Product details

The ST2253A digital four-probe tester is a multi-purpose and intelligent comprehensive measuring instrument that uses the four-probe measurement principle to test the resistivity/block resistance of materials.

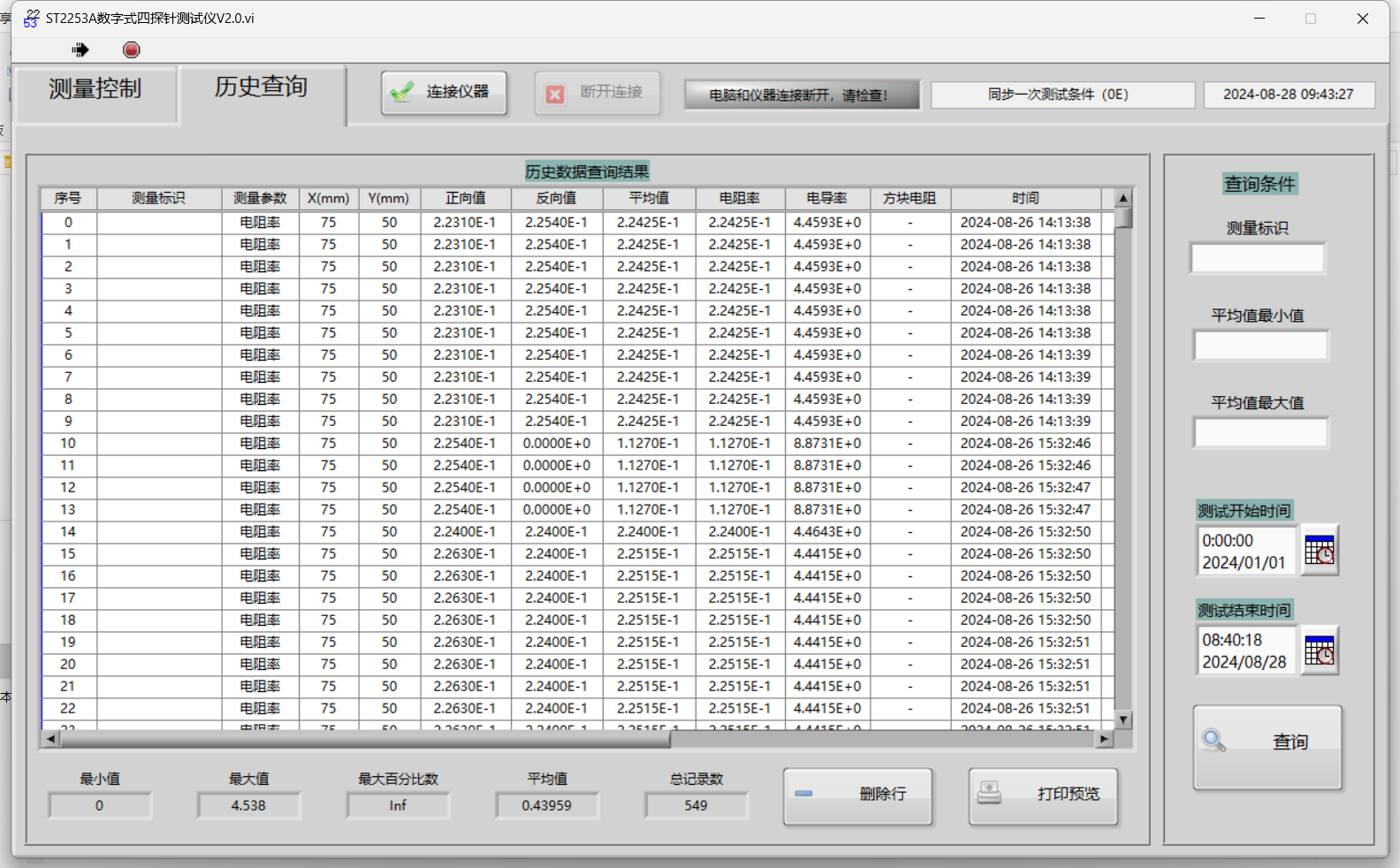

Equipped with computer software, it can save, query, statistically analyze data and print reports. National Patent Number: Software Copyright Registration No. 07928553.

The design of this instrument complies with GB/T 1551-2021 "Determination of Resistivity of Silicon Single Crystal - Straight Row Four-Probe Method and Direct Current Two-Probe Method" and GB/T26074-2010

The national standard "Measurement Method of Resistivity of Germanium Single Crystal Direct Current Four-Probe" and the American standard ASTM F1711-96 are used to determine the thin-film resistance of thin-film wires for professional flat panel displays by the four-point detection method.

Measurement range, resolution

Electrical resistance: 10.0×10 ^-6to 200.0×10 ³ Ω, resolution: 1.0×10 ^-6to 0.1×10 ³ Ω

(1.0×10-6 to 20.00×10 ³ Ω, resolution: 0.1×10 ^-6to 0.01×10 ³ Ω)

(100.0×10 ^-6to 2.000×10 ⁶Ω, resolution: 10.0×10 ^-6to 0.1×10 ³Ω)

Resistivity: 10.0×10 ^-6to 200.0×10 ³ Ω-cm Resolution: 1.0×10 ^-6to 0.1×10 ³ Ω-cm

Square resistance: 50 x 10 ^-6-1.0 x 10 ⁶ Ω / / resolution: 5.0 x 10 ^-6-0.5 x 10 ³Ω / /

Range division and error grade

Full-scale display	20	200	2	20	200	2	20	200
Test current	1A	100mA	10mA	1.0mA	100μA	10μA	1μA	0.1μA
Conventional range	mΩ		Ω			kΩ
Basic error	±0.5%FSB ±4LSB		±0.5%FSB±2LSB				±1.0%FSB ±4LSB	±2%FSB ±4LSB

Instrument appearance and power supply

Power supply: Input voltage: U=AC 220V±10%, frequency: f=50Hz, Power consumption: P < 20W

Main unit: 220mm (length L) × 245mm (width W) ×100mm (height H), net weight: Wg≤2.5k
