Product details

overview

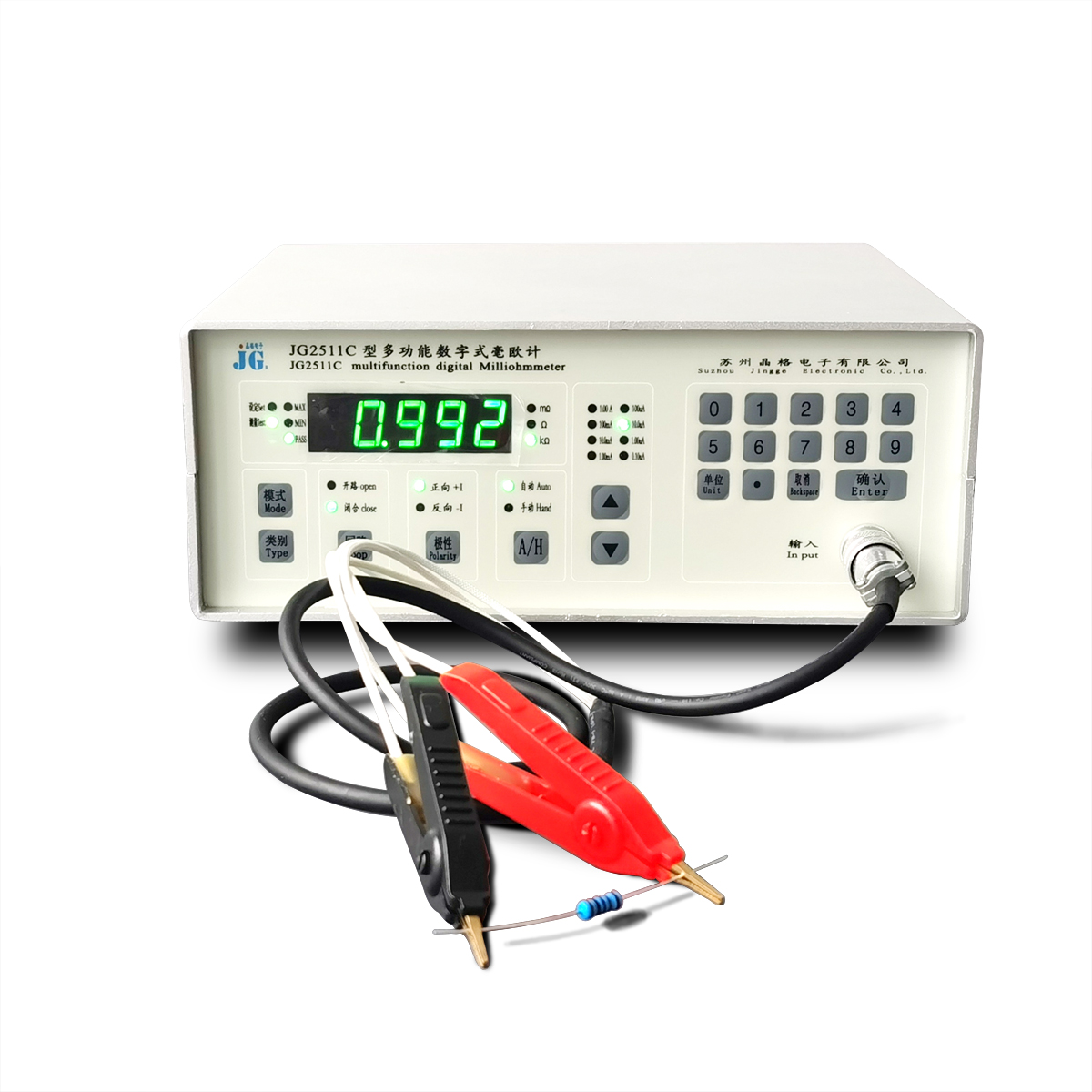

JG2511C type multi-function digital milliohmmeter is multi-purpose measuring device using four terminalmeasurement principle, the resistor body resistance, metal conductor, and low resistance switch contact resistancemeasurement. The instrument features:

1 the test instrument with automatic classification function on the results of the test, if the test sample is a voice prompt, and relay output synchronous isolation, easy function expansion. There are two ways of product classification: absolute bounds method and standard value and the percentage error band method.

2 optional PC software can automatically or manually (also can be used to control pedal), to facilitate real-time save the current data to the host computer, it is convenient to classify queries, especially suitable for the production linetest data traceability and quality control. As shown in Figure 1.3。

3 Set all parameters, instrument function conversion using digital keyboard input, convenient and reliable.

4 automatic / manual optional mode conversion range.

The instrument consists of the host, the four terminal test fixtures and PC software components. Mainly by the hostcontrol constant current source, high resolution ADC, keyboard input, display driver and embedded microcontrollersystem.

The instrument has high measuring accuracy, high sensitivity, good stability, high intelligent degree, compact structure, convenient measurement etc..

The instrument is suitable for scientific research units, institutions of higher learning performance of resistors,resistor switching device test. Especially suitable for the requirements of low resistance, and fast measurementrequirements results sorting.

Three： the basic technical parameters

1 the measurement range, resolution (in parentheses is the downward extension of 1 orders of magnitude)

Resistance:10.0×10-6 ～ 200.0×103 Ω, resolution：1.0×10 ^-6～ 0.1×10 ³Ω

（1.0×10 ^-6～ 20.00×10 ³Ω, Resolution0.1×10 ^-6～ 0.01×10 ³Ω）

2 dimensions: 245mm (L) x 220 mm (wide) x 95mm (high)

Net weight: ≤ 1.5 ~ 2.0kg
