Product details

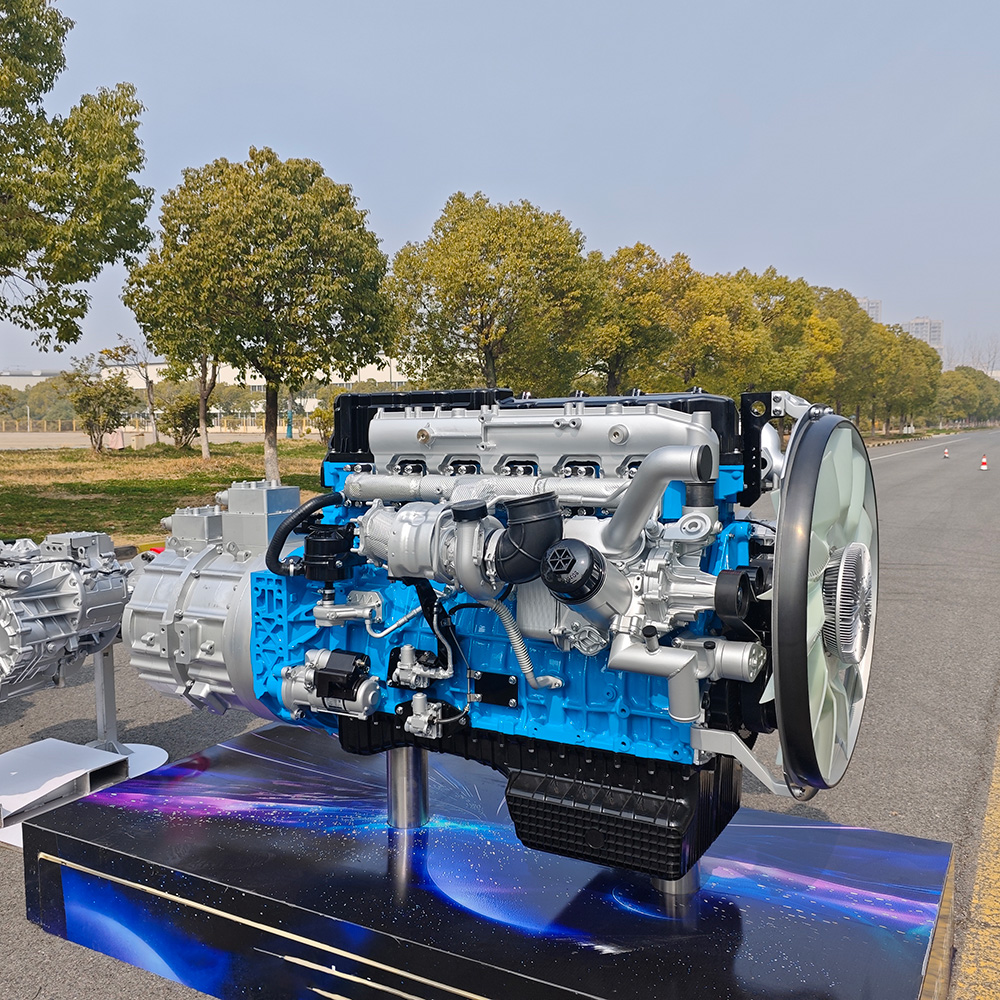

The methanol non road GS13M series engine has fully switched to the second - generation Geely autonomous methanol control system, using M100 methanol clean energy. It has comprehensive improved in efficient combustion, low - temperature starting, intelligent diagnosis, emission control, corrosion resistance, and wear resistance, creating excellent performance of this engine with high performance, low fuel consumption, high reliability, and low emissions. Fully validated under application conditions such as generator sets, ship engines, and construction machinery.
High performance: adopting high compression ratio, high - energy ignition, high roll flow inlet structure, while optimizing the valve timing mechanism, adopting technologies such as intake turbocharging and intercooling to make combustion more complete and power more powerful.
Low fuel consumption: optimizing combustion through the second - generation Geely autonomous methanol control system, the engine has better fuel economy, low operating cost, and extremely high cost - effectiveness, which can save 20% compared to diesel engines in terms of economy.
High reliability: Adhere to the concept of high - quality development, from a technical perspective CAE analysis and experimental verification are considered from multiple dimensions to ensure reliable product quality and long service life, B10 has a lifespan of ≥ 1.2 million kilometers.
Ultra low emissions: Methanol is recognized as a clean energy source. Compared to conventional fuels such as gasoline and diesel, methanol combustion is more complete and thorough, and its emissions include CO HC and NOx emissions have significantly decreased, with almost no particulate emissions, and emissions have decreased by ≥ 85%.

Engine performance parameters

Item	Unit	Engine set parameters
Type	-	In-line,four-stroke,liquid-cooled,superchaged and intercooled
Fuel type	-	Main fuel:M100 methanol Auxiliary starting fuel:92# gasoline No gasoline auxiliary starting device is used,and coolant heating is required to ensure engine starting
*Number of cylinders-borestroke**	mm	6-130*161
Compression ratio	-	12.5:1
Total piston displacement	L	12.82
Speed	rpm	1500@50
Engine quality	kg	1180

Generator set power	kW COP	kW PRP	kW LTP	kW ESP
50Hz	250kW	250kW	300kW	300kW

Working conditions	Power	Fuel consumption
	kW	kg/h
110% Spare	352	154.13
100% Common	320	139.01
80%	256	111.96
50%	160	74.71
30%	96	51.72
