Five-screw stretch film machine

2 month ago

4 0

RUIAN HENGTUO MACHINERY CO.,LTD.

 12 month year

Product details

Introduction

This machine is used for the production of plastic LDPE stretch film, stretch film, and cling film. The products are widely used in food preservation, commodity packaging, and bulk cargo container pallet packaging. It is a better substitute for heat-shrinkable packaging film in transportation.

What is the details of our Stretch Film Extruding Machine

1. To ensure good plasticization and high quality and high output, special mixing refining design is adopted in the machine's alloy screw which consists of import static state mixer.

2. The bi-directional loop design and helix runner inside cooling steel roller are adopted to stable the temperature on the surface of the roller.

3. The machine is easy to test and adjust the thickness of film, the Slitter could be changed without stopping the machine.

4. The winding system applys air knife online device, which can automatically cut the film in different width quickly.

Main technical parameters

Model	HT-2000 Five -layer cast film machine
Screw diameter	80/70/120/70/80
L/D	32：1
T-die width	2250mm
Finished film width	2000mm
Finished film thickness	0.01-0.03mm
Max. extrusion output	250-300kg/h
Main motor power	22/30/110/30/22
Heating power	50kw
Air consumption	0.8m³/min
Water consumption	0.7m³/min
Total power	150kw
Power supply	380/3/4/50
Overall dimension	750028502800mm

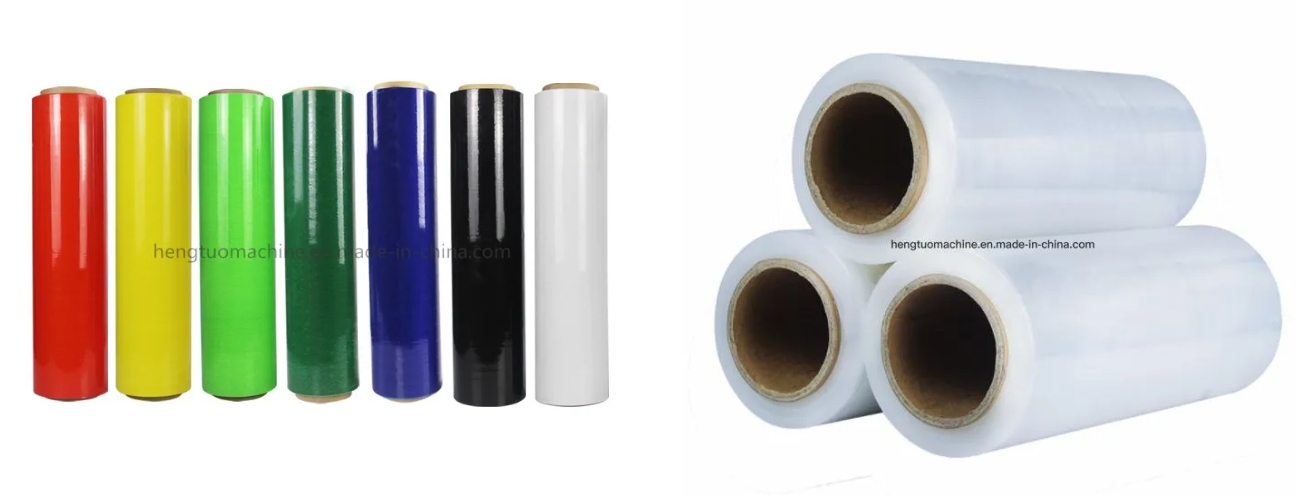

Finished Film Roll And Application
