Advanced Reversible Hammer Crusher for Efficient Material Breakdown

Our high-performance Reversible Hammer Crusher is a versatile core device for medium and fine crushing in mining and aggregate processing lines. It pairs seamlessly with upstream Mining feeder to ensure steady, uniform material feeding, and works in tandem with Jaw crusher, Cone Crusher and Hammer Impact Crusher to form a flexible, multi-stage crushing system—adapting to diverse ore and rock types with reversible operation that extends hammer service life. We also supply premium Mining Spare Parts for this crusher, minimizing maintenance downtime and sustaining long-term, high-efficiency operation of your entire production line.

Reversible Hammer Sand MakerWorking Principle

The DLKZS series reversible hammer sand maker adopts a large rotor, small hammer heads and lowMeteritih fe thedeslef Oorthn fce rtible r thnin e sng of the rffe Pdte ind arn eftn gete of thehammer heads and effectively reduces dust emission.

Product Advantages

Rotor Can Rotate Forward and Reverse,Eliminating Hammer Head Flipping

The DLKZS series reversible hammer sand makeradopts an overall symmetrical design. After therotor runs clockwise for a certain period, it canoperate counterclockwise in reverse.Both sidesof the hammer head can be used withoutflipping the hammer head, ensuring uniformwear of the liners and grate plates at both theleft and right ends.

Hydraulic Adjustment of Grate Frame,Saving Time and Effort

The grate frame is adjusted hydraulically. It canbe adjusted up and down according to therequired material size and the wear degree ofthe hammer head and grate plate, which savestime and effort, and is safe and reliable. At thesame time, an auxiliary adjustment methodcombining a screw rod and a nut is equipped toposition the grate frame, avoiding force on thehydraulic cylinder and ensuring the service life ofthe hydraulic cylinder.

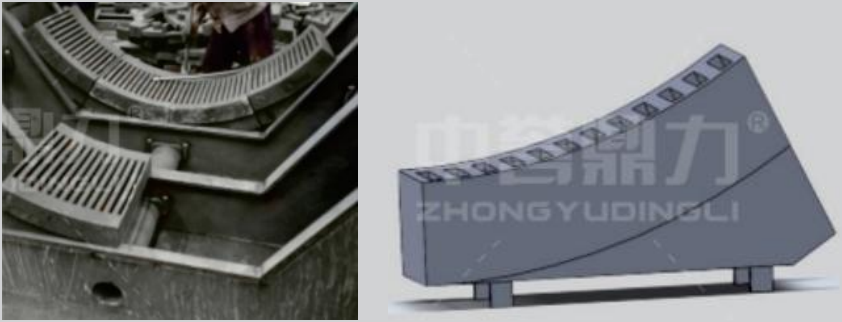

Optional Grate Plate Gap, Easy andQuick Installation

The gap of the grate plate can be selected based ondifferent discharge particle sizes. The grate plate andgrate plate frame adopt a flat fit, which allows for easyinstallation and replacement.

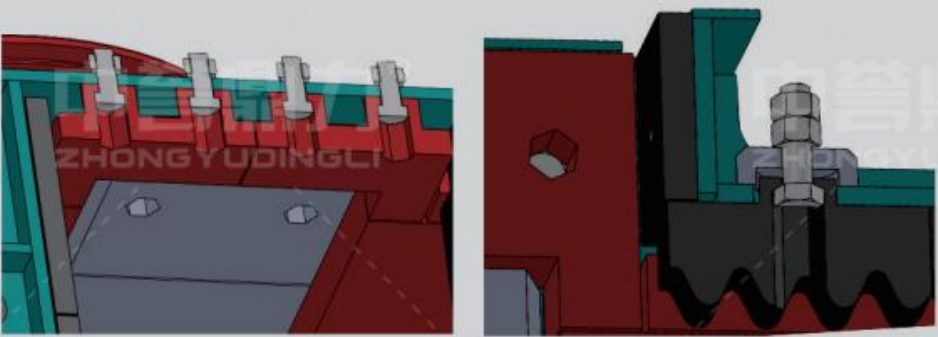

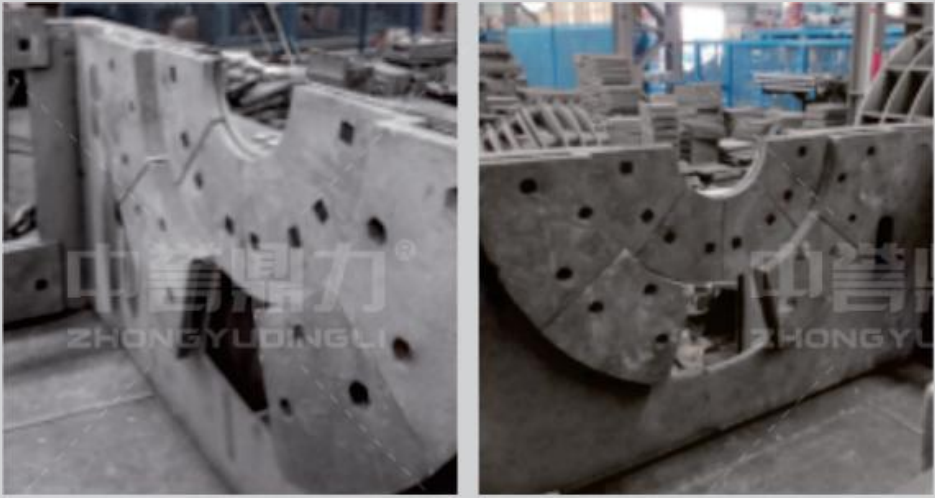

Deep Hole Design for Liner Bolts,Preventing Bolt Wear

This series of machines uses hexagon-head high-strength bolts to fix the main liner and side liner. Thecountersink for the bolt head is designed as a deephole to prevent the bolt head from being worn bysmall crushed raw materials.

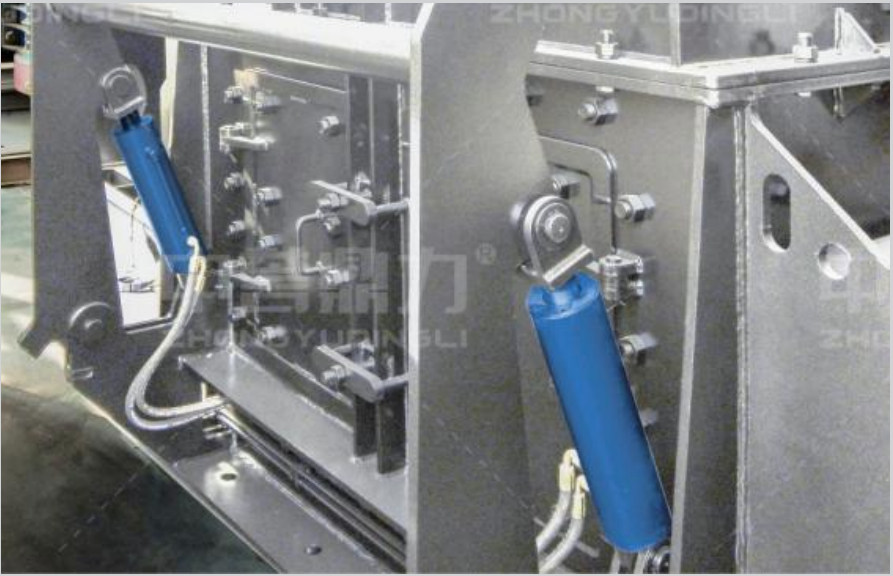

Hydraulic Cover Opening Structure,Convenient Maintenance

The end inspection door structure uses hydraulicnepecfow ddoi feff ientaedperihlg teep eraten theeasy for operators to maintain the rotor and wear-resistant parts.

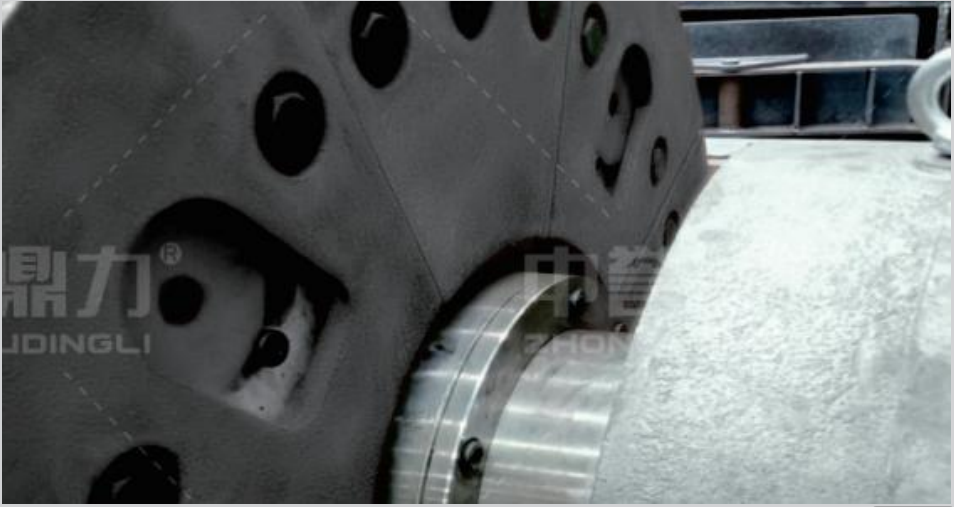

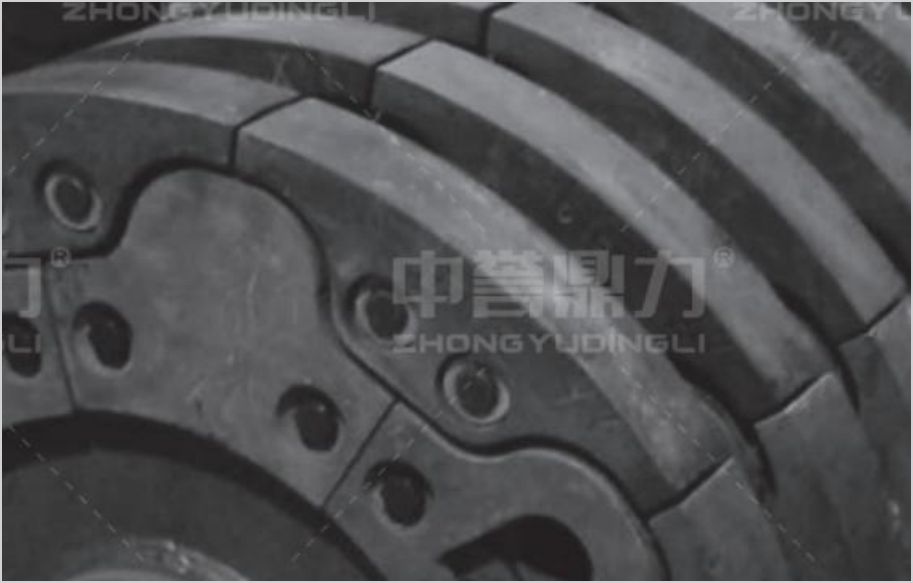

Hammer Disk with Large EdgeProtection Structure, Wear-Resistantand Reliable

The hammer disk on the rotor adopts a large wear-resistant edge protection structure, which operatesstably, is wear-resistant and reliable, and easy toreplace.

Hammer Shaft with Baffle + ShaftRetainer Structure, Easy Hammer HeadReplacement

Remove the bolt under the baffle shaft, the shaftretainer will drop, and the hammer shaft can be takenout through the through-baffle. Replacing thehammer head or hammer shaft is convenient andquick, saving time and effort.

Thickened Liners, Extended HammerHeads, More Professional for HardRock Crushing

This machine has thickened liners and grate plates,and extended hammer heads, making it moreprofessional for hard rock crushing. The accessorieshave a long service life and stable operation.

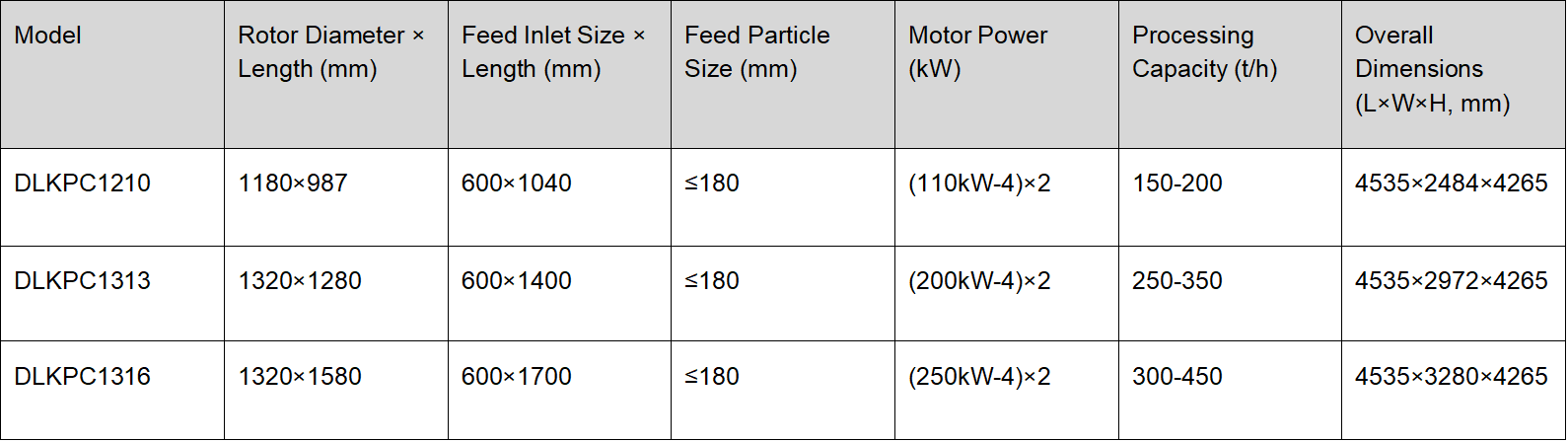

Technical parameters
