The mini roller heat transfer machine is a miniaturized heat transfer device with a roller diameter of 200mm. It is suitable for small batch orders or proofing operations for fabrics with a width of less than 1200mm. Its volume is significantly smaller than that of the traditional roller heat transfer printing machine, and its weight is light, which is easy to carry and place. It is suitable for small studios, home workshops or temporary workplaces with limited space. It can be used for heat transfer of various materials, such as fabrics and leather, and can achieve transfer effects of different patterns and colors to meet personalized customization needs. The roller sublimation transfer machine has the characteristics of fast heating speed and precise temperature control. At the same time, since the power is generally less than 10 kilowatts, it has low power consumption and high safety.

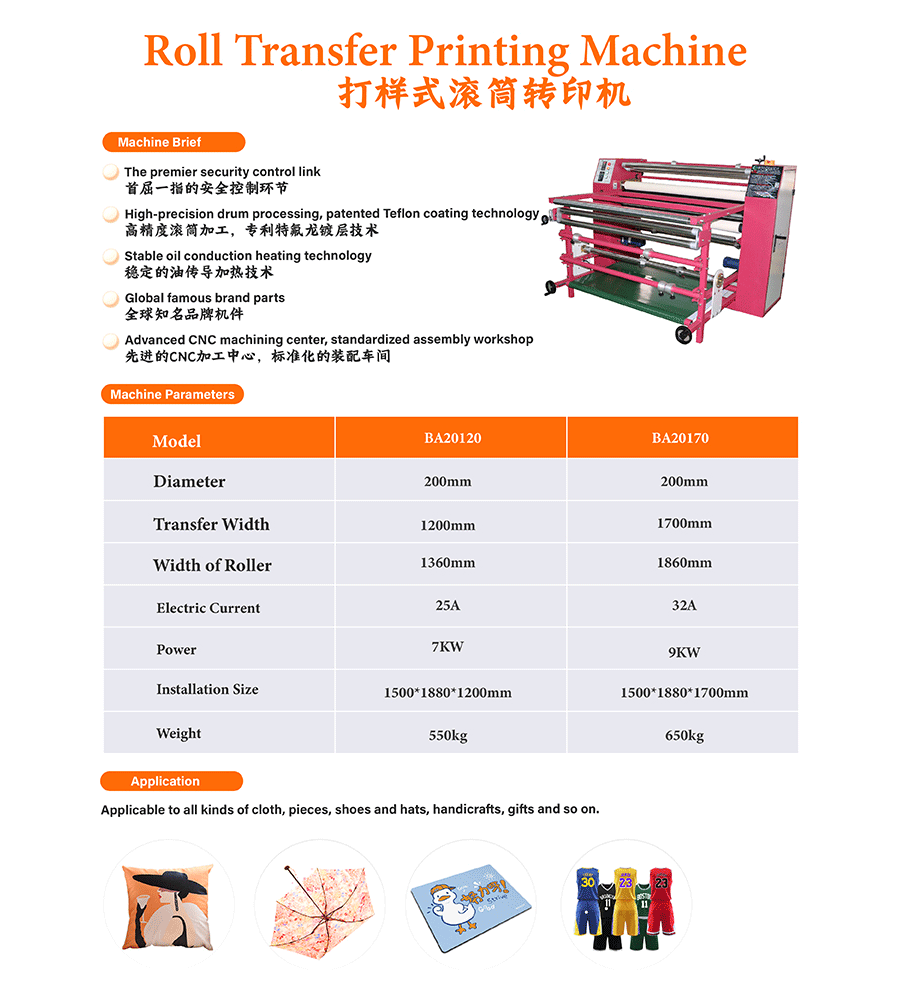

Technical Parameters of heat roller transfer printing machine
|
Mini Heat Transfer Machine is widely used to make sample or some small output order.We Designed it in 2015, it was widely popular when it come on.Blanket is used Dupont Materials, longer life. 100% seamless steel pipe is used to make the roll, ensure the safety and the transfer printing effect. |
||
| Model | BA20120 | BA20170 |
| Roller size | Diameter 200*1360 mm | Diameter 200*1860 mm |
| Roller surface | coated | coated |
| Transfer width | 1200 mm | 1700 mm |
| Transfer speed | 150 m/h | 150 m/h |
| The main machine dimension(mm) | 1880*580*1350 | 2500*580*1350 |
| The work table dimension(mm) | 900*1520*1000 | 900*1880*1000 |
| installed dimension(mm) | 1480*1880*1350 | 1480*2500*1350 |
| Blanket separation method | Manual | Manual |
| power supply | 1-phase 220 V | 1-phase 220 V |
| Heating temperature | 260℃ | 260℃ |
| Conveyor belt material | PVC | PVC |

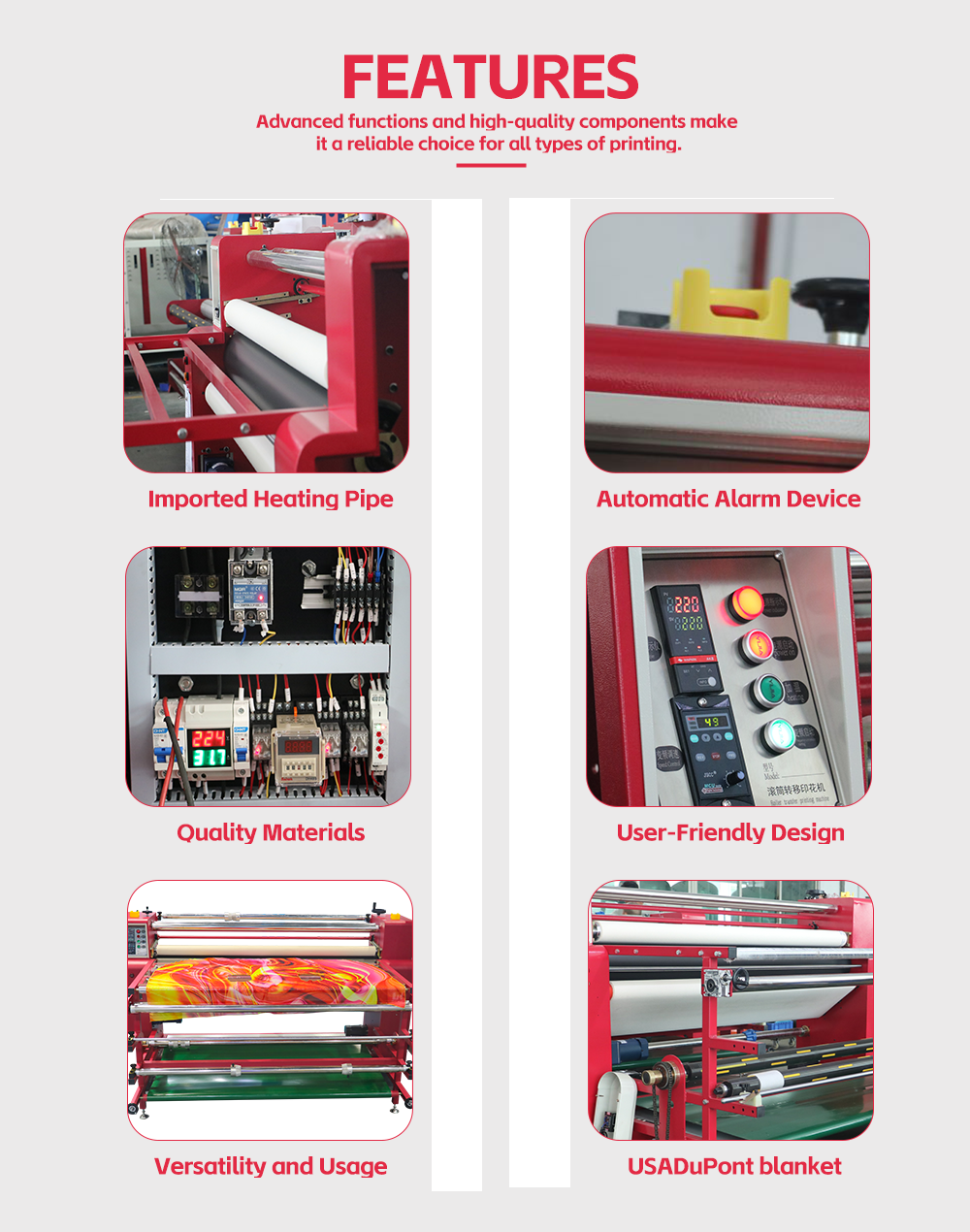

Main Features of roll to roll heat press machine /thermal transfer printing machine
1.The most advanced technology and imported units are adopted by machine controlling system with automatic positioning, accuracy together with security, electronic constant temperature controlling with high accuracy, long service life and other features.
2.Heating wheel is controlled by sealed and heat-oil heating to efficiently ensure the even and stable temperature.
3.Printing speed is equipped with continuous speed adjustment system, feeding equipment is convenient for operation with swiftness and high reliability.
4.Equipped with continuous speed adjustment system, you can adjust printing speed as you need.
5.The roller was heating up with oil and temperature heating system.
6.We can provide total service for heat sublimation print technology,
7.Get CE certificate,1 year warranty.
1.Drum
Roller is made by seamless steel pipe, coating with a certain degree of flexibility, easy to compensate for the pressure roller between the line speed difference, to avoid graphic distortion.Life time is 5-8 years.
2.Integrated Slip Ring
Integrated slip ring, with a safety protection device, can solute all kinds of problem in the course of using carbon brush slip ring.Transmission date mote stable .Maintenance -free.
3. Blanket
Dupont materials is used to make this blanket,longer lifetime.
4.PVC Conveyor
PVC conveyor belt with flat, smooth, not easy to heat, but easy to maintain the original state of textile after the transfer; conveyor belt with a network structure, easy to heat, but short life, light textiles easily lead to wrinkles. PVC conveyor belt mainly for the user to provide a variety of textile transfer convenience. Users can choose according to their own needs.
Details of low cost rotary sublimation transfer machine
If you are interested in the product, contact 2bvideo.com for more information for more information
