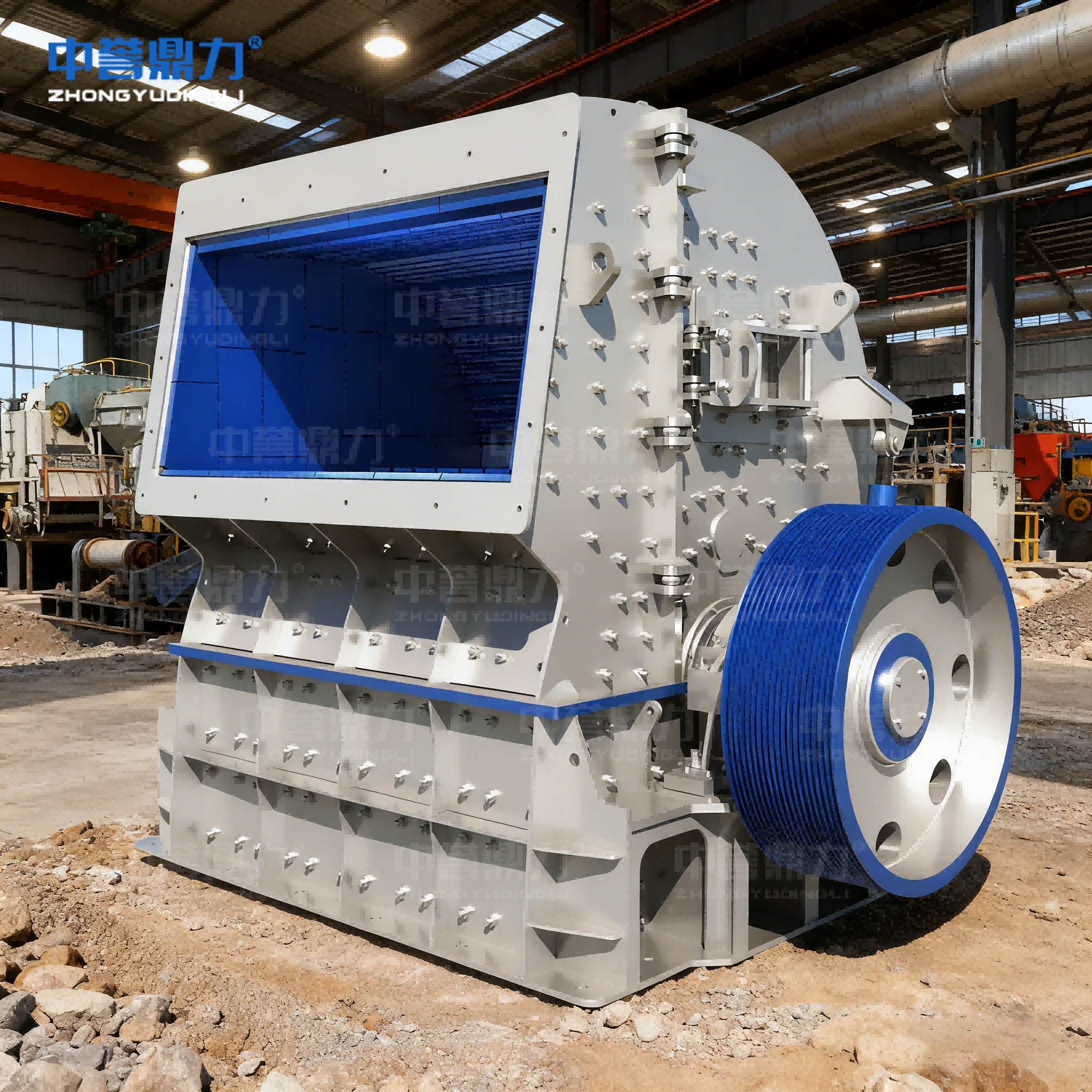

Drawing on over 30 years of experience in stone production and processing, Zhongyu Dingli has continuously refined its manufacturing processes to develop the Shaping Hammer Crusher—an all-in-one solution for crushing and shaping.
Targeted at small-scale production lines with a capacity of less than 500 tons per hour, this machine delivers integrated crushing and shaping functionality in a single unit. It can also serve as secondary crushing and shaping equipment in large-scale production lines.
Applicable Materials: Limestone, bluestone, and other medium-to-low hardness materials
Recommended Material Specifications: Materials with compressive strength not exceeding 150 MPa and calcium content higher than 40%
Processing Capacity: 150–1500 T/H
Feed Particle Size: ≤ 1200 mm
Our high-precision Shaping Crusher is a core aggregate-shaping device for mining and construction material processing lines, dedicated to refining the particle shape of crushed materials into high-quality, cubical aggregates that meet strict construction standards. It integrates seamlessly with upstream Mining feeder to ensure steady, uniform material feeding, and works in tandem with Jaw crusher (primary crushing), Cone Crusher and Hammer Impact Crusher to form a complete multi-stage crushing-shaping system, adapting to diverse ore types and production demands. We also supply premium Mining Spare Parts for this shaping crusher, minimizing maintenance downtime and extending the long-term stable operation of your entire processing line.
All-in-One Crushing & Shaping Machine — One Machine Replaces Two
The Shaping Hammer Crusher features a large feed particle size and a small discharge particle size. Through the design of adjustable movable liners and material gravity flow chutes, it achieves impact crushing, counterattack shaping, and gravity discharge. It converts the traditional two-stage crushing process into a single-stage operation, realizing low-cost equipment investment and operation. It is an ideal choice for customers.

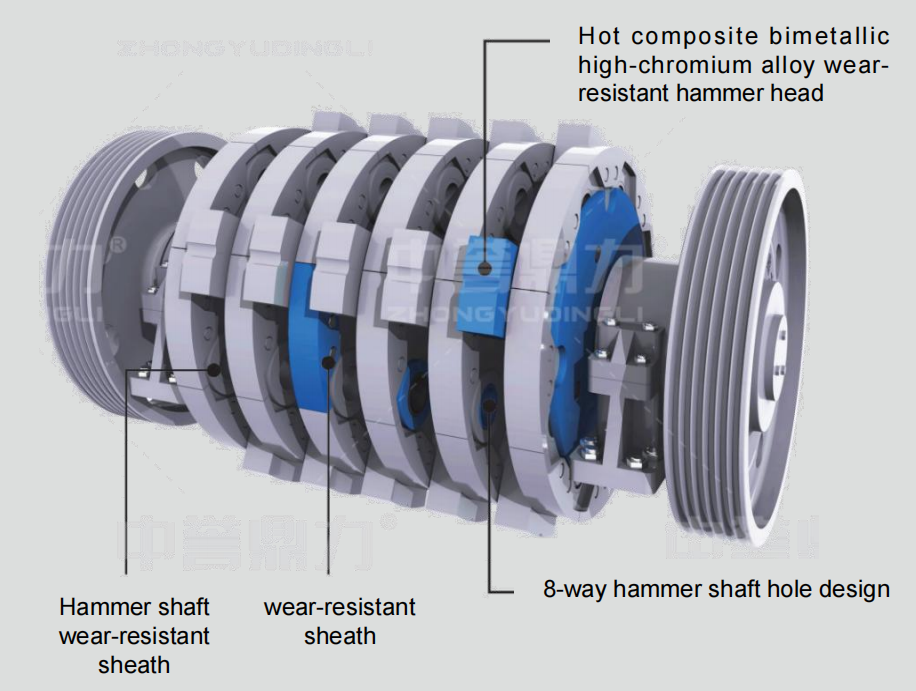

Patented Rotor: Extended Service Life
Utility Model Patent No.: ZL201721349545.9
Hammer Shaft Hole
A 42CrMoAl alloy sleeve is embedded into the hammer shaft hole via interference fit using a 200-ton hydraulic press, which extends the service life by several times compared with traditional hammer shaft holes.
Hammer Shaft
The hammer shaft is manufactured through a process of rough turning, quenching and tempering, carburizing, and finish turning, to enhance its strength, toughness and hardness.
Main Shaft
Made of 42CrMo material, the main shaft undergoes rough turning, quenching and tempering, and finish turning. The mating surfaces are milled on a gantry boring and milling machine, resulting in a significantly longer service life than that of traditional main shafts.
Hammer Head
We adopt high-strength thermally bonded bimetallic high-chromium alloy hammer heads, which are provided to customers at cost price.

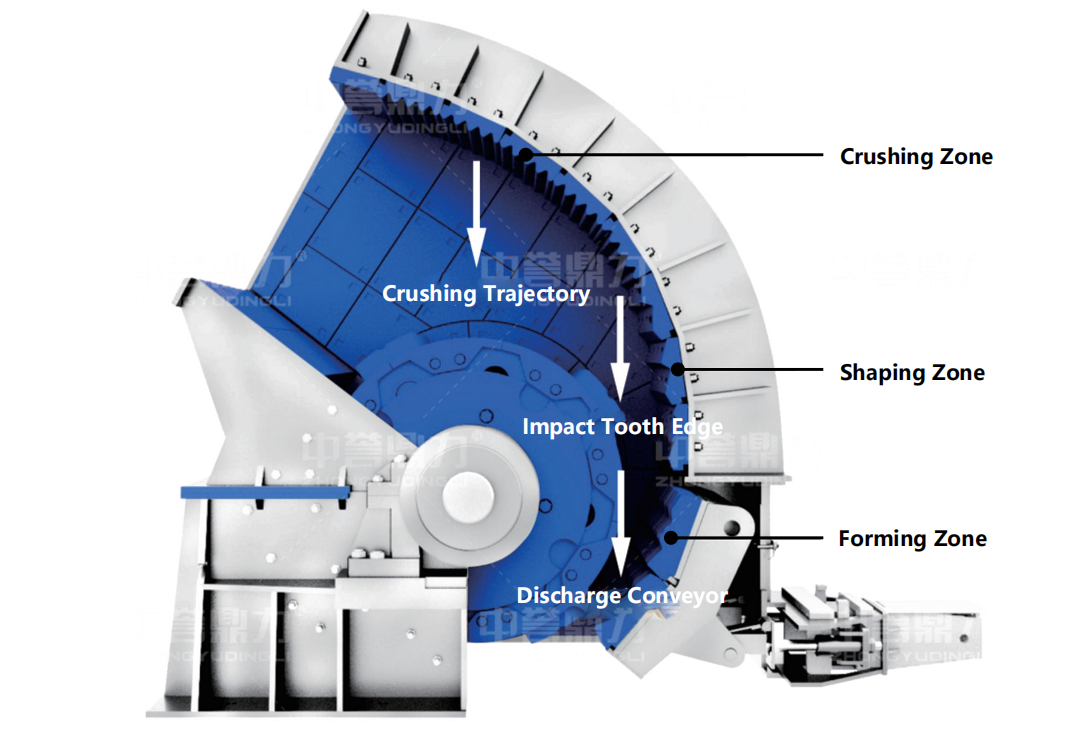

Three Impact Zones for Superior Particle Shape
The impact plate of the top impact zone features a downward wave pattern, with its impact trajectory positioned between the two rows of hammers on the rotor. The hammers crush the materials, while this impact zone shapes them. By guiding materials back between the two rows of hammers through the impact trajectory, it further enhances the crushing efficiency.
The second impact zone adopts a diamond-shaped impact design, with its movement trajectory located below the hammers. This design accelerates the downward flow of materials, shortens their residence time inside the machine chamber, and simultaneously performs impact shaping on the materials.

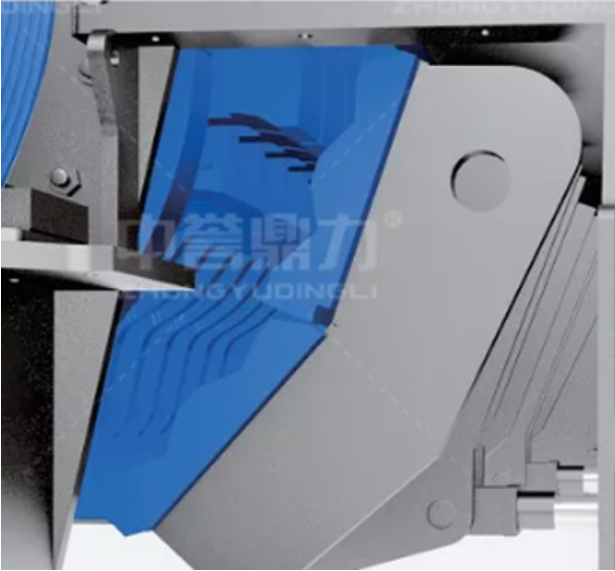

The third impact zone employs an inverted triangular impact structure that is gravity-flow enabled and spacing-adjustable.
Gravity Flow Chute Design: Minimal Powder Generation
Gaps are reserved on the adjustable impact plate of the third impact zone, allowing materials with a diameter smaller than the gap to flow out naturally. This design avoids re-crushing, boosts production capacity, and significantly reduces the powder generation rate. It serves as an ideal alternative to traditional impact crushers when processing appropriate materials.
1.Time-Tested Product
Building on the mechanical principles of traditional hammer crushers, impact crushers, box-type crushers, and all other machinery that crushes stone via hammers or blow bars, we have designed the Heavy Hammer Impact Crusher by integrating over 30 years of stone crushing experience.
2.Optimal Gradation
Thanks to multiple ingenuous designs including the three impact zones, finished product gravity flow, and adjustable impact liners, the finished aggregate achieves optimal gradation with low powder generation. It can meet the diversified requirements of customers.
3.Easy Maintenance
Equipped with 8 sets of hammer shaft holes (4 for standby use), the machine body is fitted with inspection doors for easy monitoring of operation status. A hydraulic shaft extractor is provided to facilitate the replacement of hammers and hammer shafts. All components are bolt-fastened for convenient disassembly, reducing maintenance time and costs.
4.Exquisite Manufacturing
All key components are protected with safeguards. They are processed using modern machinery and equipment such as gantry milling machines and hydraulic presses. We have established a dedicated Product Technology Department to continuously improve processing technologies and enhance product quality.

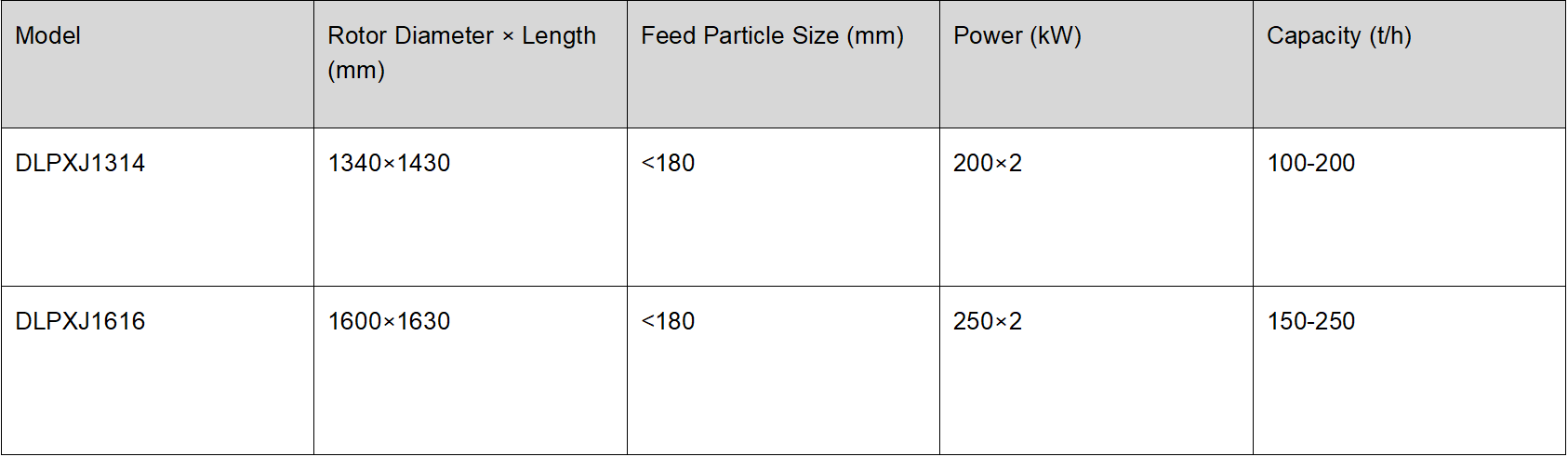

Technical Parameters of Shaping Crusher
