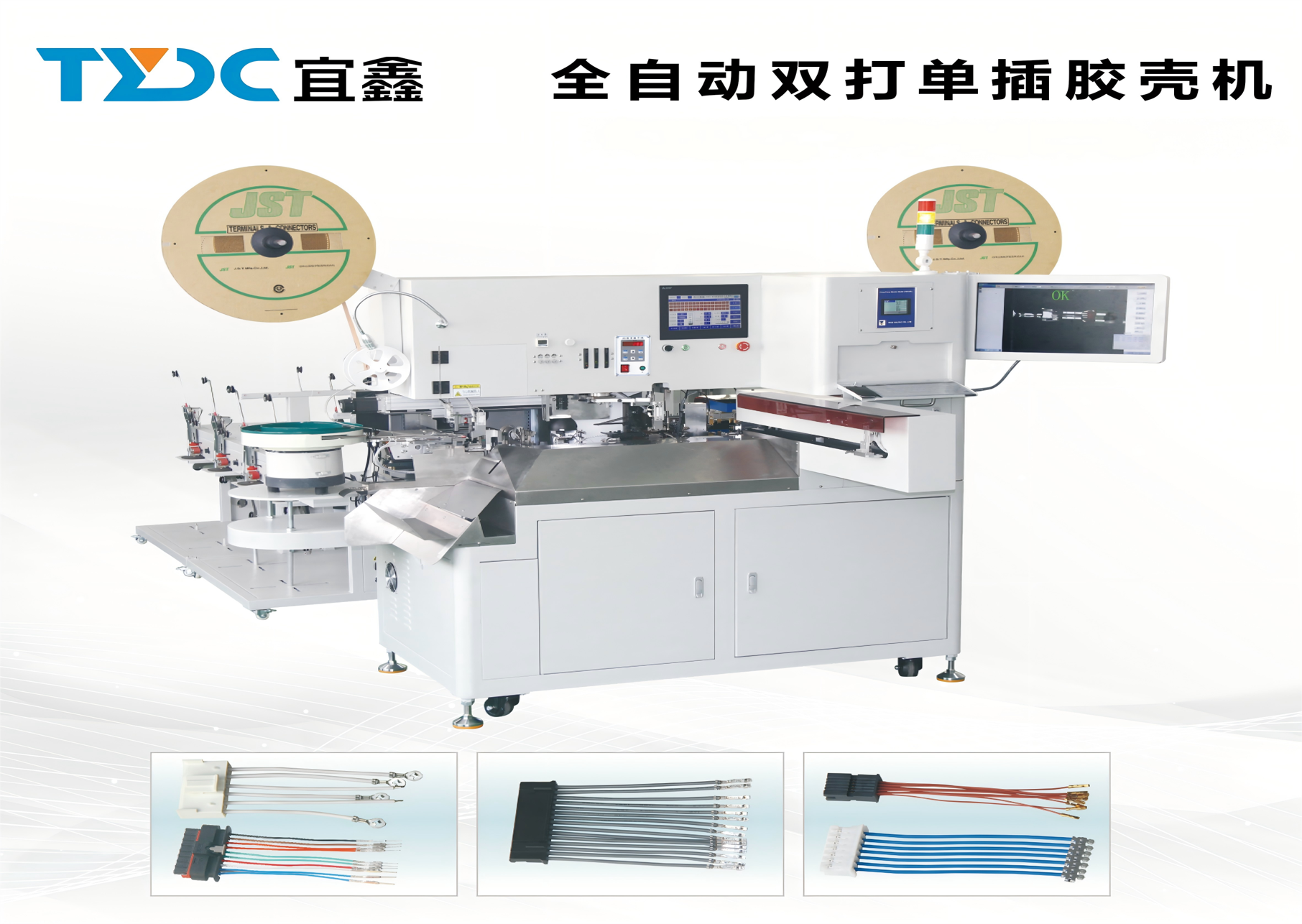

Product Introduction:

This device can achieve automatic cutting, stripping, and crimping of one end of the wire, as well as automatic cutting , stripping, crimping ,and insert a rubber shell at the other end . For sample request, a waterproof plug can be inserted at the back end. The finished wire has three pairs of twisted pairs ( The fourth pair is not twisted).

As a single-end machine, it does not support crimping both ends, unlike dual-end wire harness assembly machines.

Equipped with an automatic feeding system and a vibratory feeder for bulk rubber housings, the TYDC-K-A601 eliminates manual feeding, reducing labor costs and improving production efficiency.

Designed for ease of use, it is suitable for small and medium-sized workshops. Once initially adjusted, the machine supports continuous mass production without frequent parameter changes, providing stable and consistent output for industrial applications.

Equipment Advantages:

The vibrating disc automatically feeds bulk rubber shells.
Simple design, easy operation, and convinent debugging.
Changing product specifications is simple and takes short time.
Comes with a universal wire cutting stripping feeder for the roll axis.
Each product can freely set the wire cutting length and stripping length.
Automatic selection of equipment and isolation of defective products in the manufacturing process.
Perform a 100% pull test on the terminal crimping insertion.

Main Equipment Configuration:

Control System: Inovance
Servo Motor: Inovance
Cylinder: Taiwan Airtac
Fiber Optic Amplifier: Panasonic (Japan)
Transmission Module: Yaohua (equipped with Taiwan HIWIN ball screw guide rail)

Why Choose This Machine:

The TYDC-K-A601 delivers high-speed, precision single-end double end processing wire harness assembly. Fully automatic cutting, stripping, crimping, and tin dipping reduce manual error and downtime. CCD inspection and pull-out testing guarantee every wire meets quality standards.
