Description
CNC turntable automatic screen printing machine Specially developed for hoses soft-tubes plastic bottles and glass bottles. After manually placing the bottles on the feeding conveyor belt, the mechanical gripper transfers the bottles to the printing tooling. At the same time, the CCD camera captures the bottom and body of the bottle and cooperates with the servo motor for precise positioning. Two silk printing stations and two colors are completed at the same time. . Then the robot clamps the finished bottle to the unloading line. the
The automatic screen printing machine has high efficiency, and the round bottle can reach more than 55 per minute, and the square bottle can reach more than 45 per minute. And the overprinting precision is high, the degree of intelligence is high, and the pass rate of product quality is high. The main frame of the machine is welded by high-strength and high-quality steel parts, the circular turntable is designed, the main components are processed by CNC, and the plexiglass protective door is installed, which shows the safety of humanization and operation, and meets European safety standards; the control system , Servo motors, electrical components, and pneumatic components are all made of well-known brands from Germany, Japan, and France to ensure the accuracy and stability of the machine's operation. It is suitable for multi-color silk screen printing of round, square, square with arc, oval, rhombus, special-shaped and other bottle shapes.

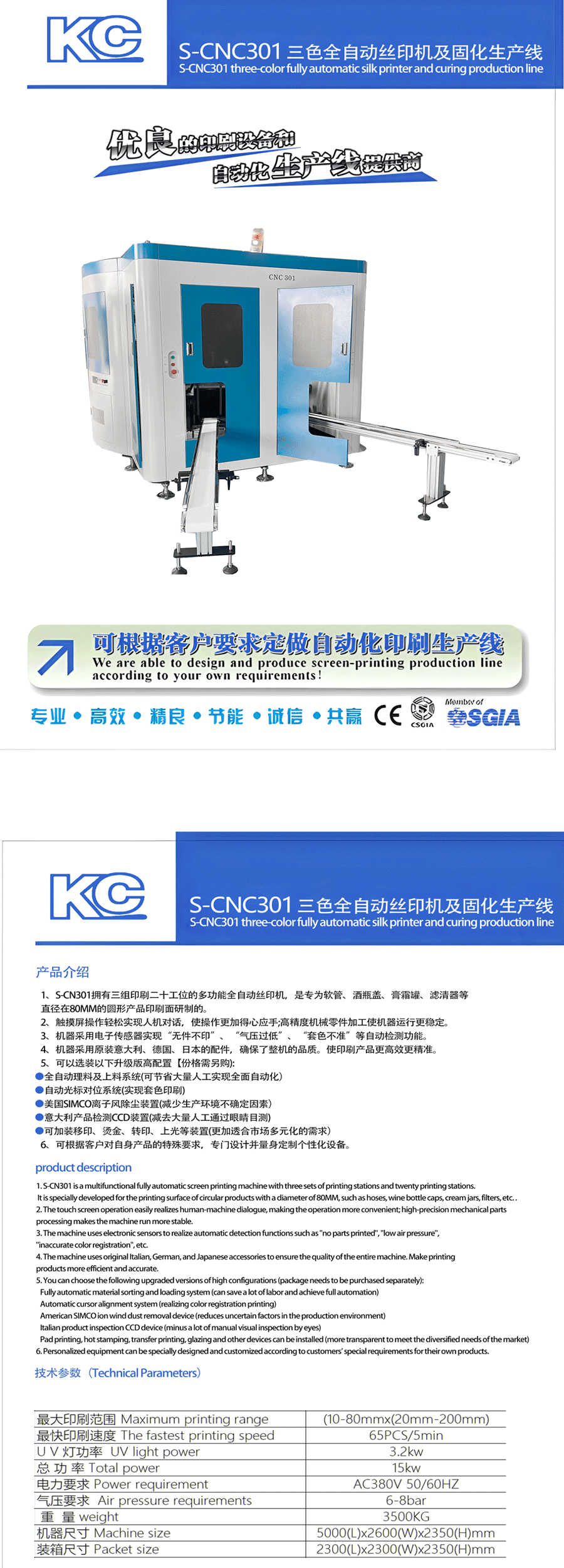

Technical parameter:
|
Description |
Parameters |
|
Feeding system |
Speed : 0-10M/ Conveyor width: 50mm |
|
Pre-treatment |
Fire width: 250mm |
|
Workbench |
Rotating plate diameter : 1.5M |
|
Print system |
Max print diameter: 100mm/Max print length: 300mm |
|
|
Screen plate up-down adjustment : 150mm |
|
|
Overprint accurate: 0.05-0.1mm |
|
|
Max print speed: 3000pcs/H |
|
|
Air : 5-7 bar |
|
UV system |
UV Wattage: 4KW |
|
Downloading |
Conveyor width : 0.5M/Conveyor speed: 0-10M/min |
|
Power supply |
3 P380V |
System Configuration
|
Description |
Brand |
Note |
|
Pneumatic components |
SMC , AIRTAC |
Japan. Taiwan |
|
PLC |
Beckhoff |
Germany |
|
Light sensor |
Omron/KEYENCE/SICK |
Japan |
|
Electrical components |
Schneider/Omron |
Germany/Japan |
|
Splitter |
GOIZPER |
Spanish |
|
Servo system |
INOVANCE |
China |

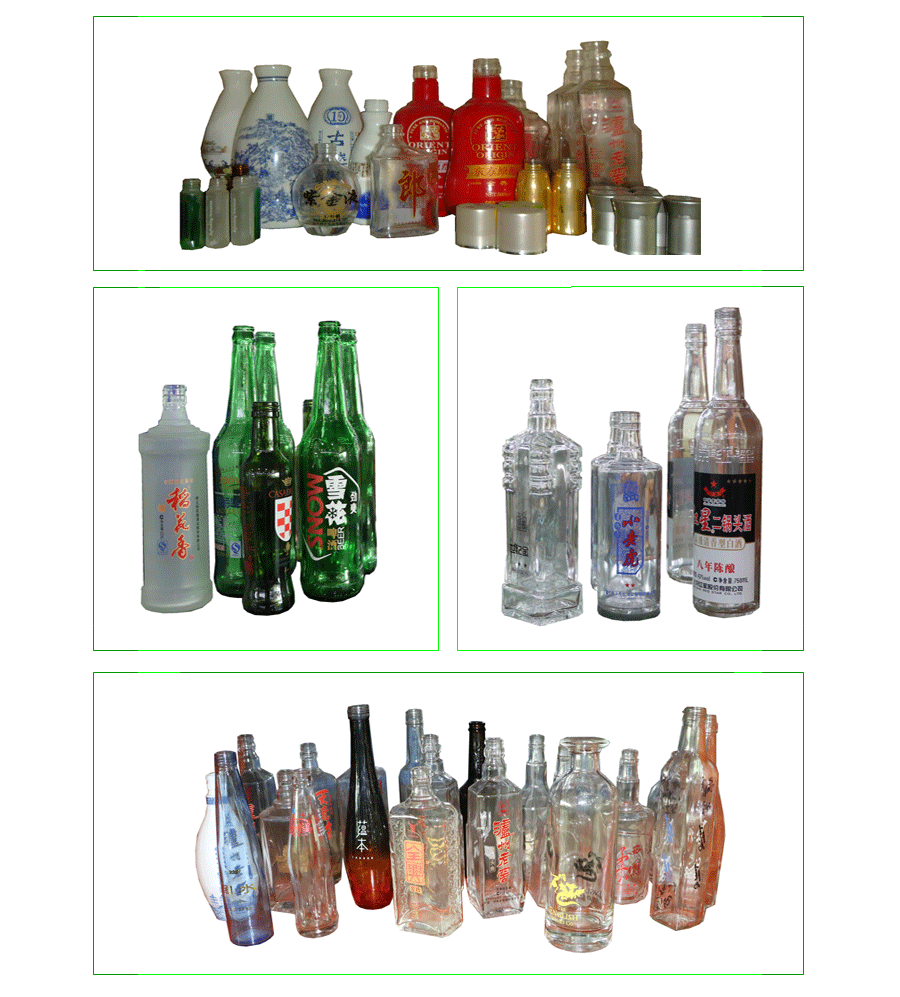

Application-Stencil Printed samples

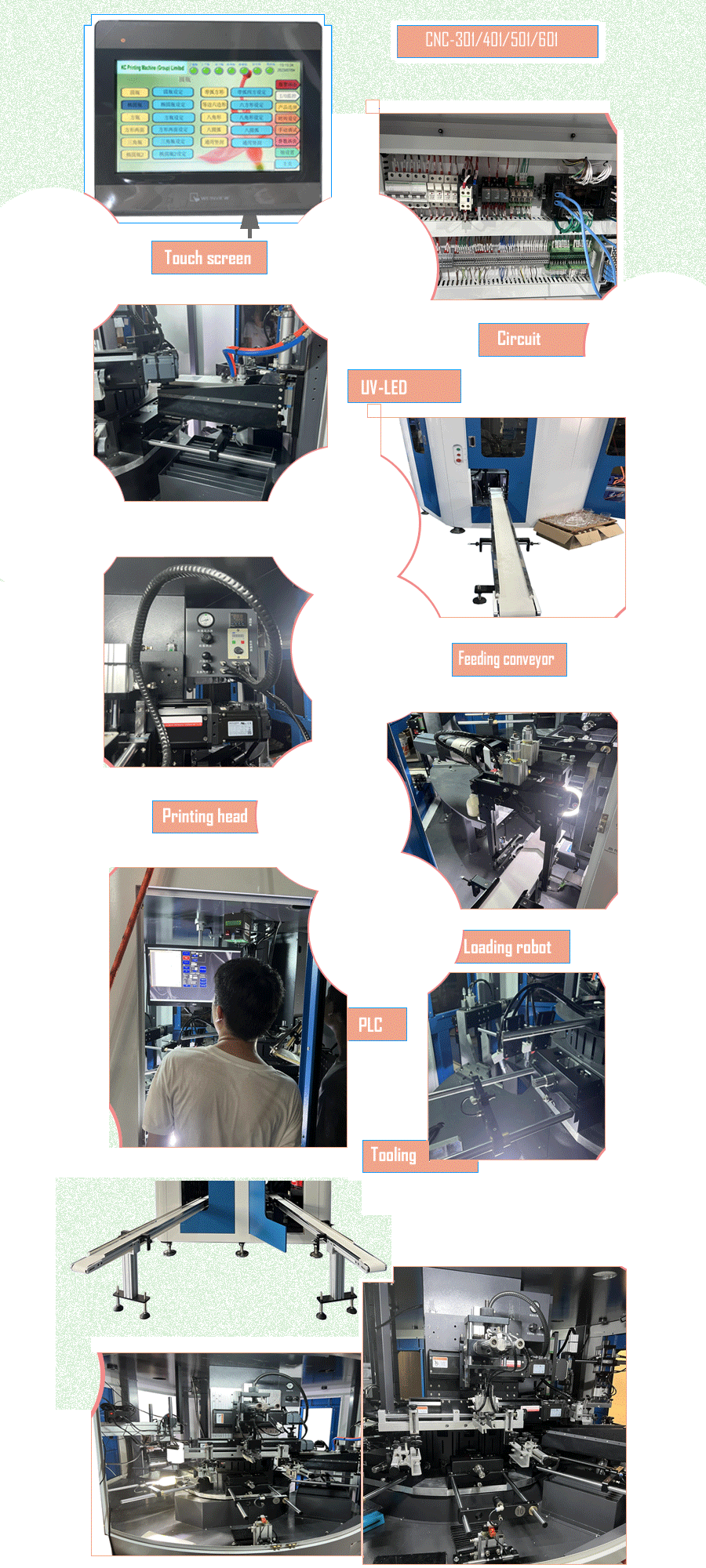

Machine Features:
CNC automatic screen printing machine typically have 10 stations. Different printing units can be customized according to customer needs. Each printing unit is modularized for easy replacement.
Standard screen printing equipment includes loading and unloading conveyors, adjustable in height from 550mm to 650mm. Customizable automatic loading systems such as vibrating plates and crawlers can be added to meet customer needs.
1. Loading station: Bottle base positioning is achieved through visual recognition, and the bottle body is dusted using an electrostatic air gun.
2. Flame treatment system: For polyolefin materials, a flame treatment system is also available.
3. Bottle body positioning: Positioning of the screen is achieved through visual recognition of the bottle body.
4. Screen printing station #1: Station #1 is controlled by a servo screen printing unit.
5. UV or UVLED curing unit.
6. Screen printing station #2:
7. UV or UVLED curing unit.
8. Screen printing station #3:
9. UV or UVLED curing unit. 10. Robotic Unloading Station
Three colors are completed in one go, and no parts are printed. Automatic loading and unloading is required.
The loading system requires a loading stop. Once the bottle is in place, the stop stops the loading clamp and the bottle is picked up. The loading clamp first places the bottle parallel to the base mold and then presses it into the base mold.
The bottle base is equipped with a visual sensor and dual CCD positioning.
The print head up and down, screen lift, base mold rotation, and left and right parallel movement of the print head are all controlled by servo systems.
Each station can be started and stopped independently.
The automatic screen printing equipment has added a remote control function, enabling remote monitoring and program modification when connected to the network.
A non-stop function has been added. When no parts are available, the user can enter a time period according to their needs. The machine will remain in a waiting state during this time, eliminating the need to restart when a part arrives. This port is open to the user, allowing them to choose whether to use this function.
