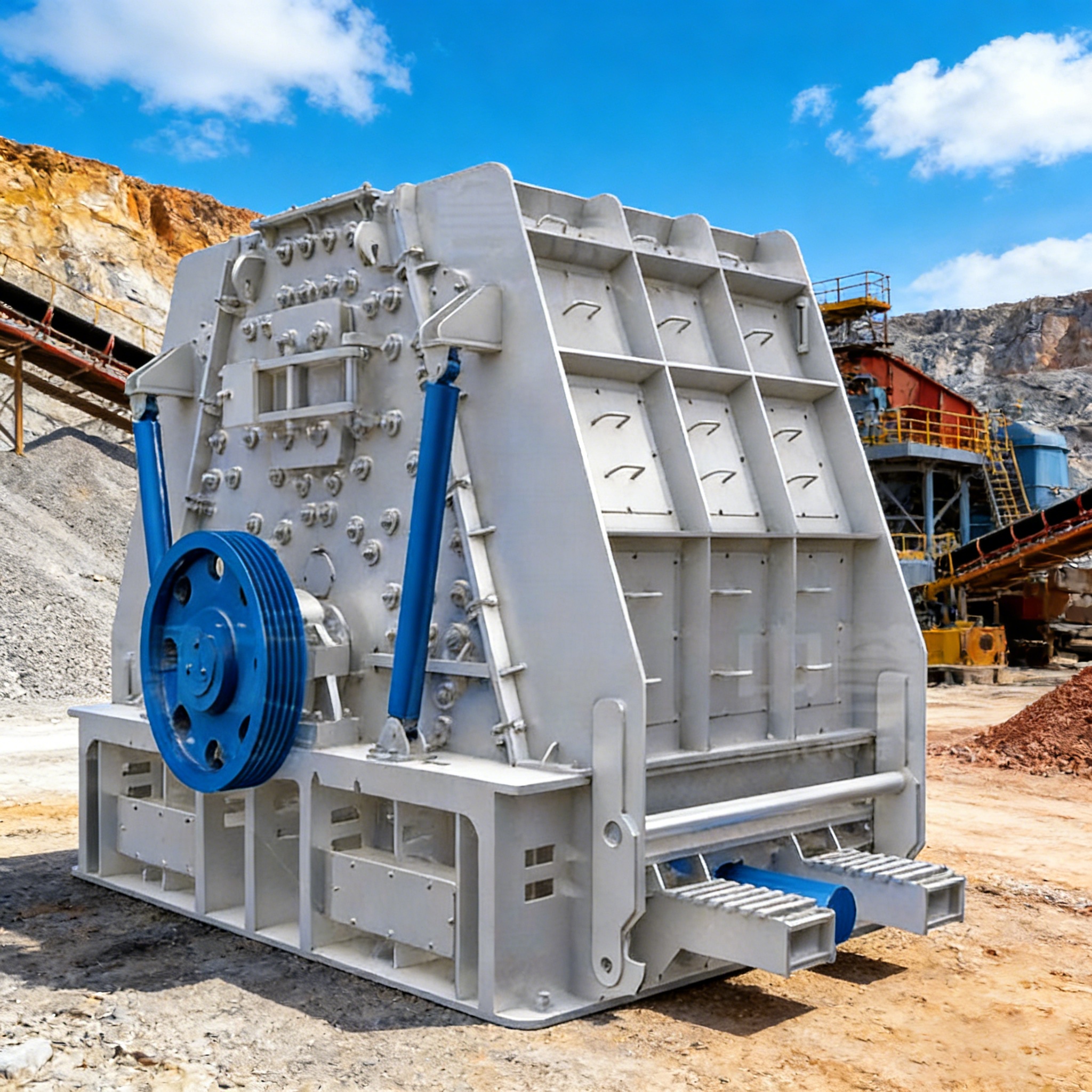

The Double-Cavity Hard Rock Crusher is an innovative mining crushing equipment developed by Dingli to solve the challenges of excessive equipment wear and poor particle shape when crushing hard rock. Built on the company’s decades of expertise in hammer crusher R&D and tailored to the realities of modern crushing production lines, this machine is ideally suited for processing high-hardness materials such as granite, cobblestone, and river pebbles.
Core Design: Double-Cavity Symmetric Structure:
The machine body features a double-cavity symmetric design, which allows more material to be accommodated in a single pass, boosting crushing output. During operation, the motor drives the hammerheads to rotate at high speed, delivering impactful blows to the material falling from above. The material gains kinetic energy and collides with the impact plates on the inner cavity walls, causing initial fragmentation. As the material enters the crushing chamber, it undergoes mutual impact and autogenous grinding. After multiple impacts and grinding, the material is reduced to the required particle size and discharged from the lower side of the machine, completing the crushing process.
Enhanced Durability: Key Component Improvements:
1. Liner Plates
The main liner plates are thickened, with deeper corrugations on the impact liner plates, ensuring exceptional wear resistance and longevity.
2. Hammerheads
Manufactured from heat-treated composite bimetal high-chromium alloy, the hammerheads feature an extended alloy section for higher utilization efficiency. The gap between the small hammer and the main hammerhead is minimized, preventing side wear on the hammerheads.
3. Hammer Discs
Protective sleeves are installed on the hammer discs, shielding them from direct material impact and reducing wear.
4. Bolt Fastening
The nuts are positioned on the back of the main liner plates to avoid shear forces on the bolts, preventing the main liner plates from detaching. The main liner plate bolts use double nuts with butterfly spring washers to eliminate loosening.
Core Advantages:
1. Dual Hammerhead Paths
The rotor is designed with dual hammerhead paths, ensuring material enters the optimal crushing position within the cavity. This produces finished materials with a particle shape that meets national construction standards.
2. Ease of Use
The machine body and rotor are independent, allowing the body to shift left/right and the rotor to reverse, eliminating the need for manual hammerhead turning and reducing labor intensity and maintenance costs. Remote control enables adjustment of the gap between hammerheads and main liner plates without stopping the machine.
3. Eco-Friendly Production
Sealing structures at the rotor-body interface prevent dust diffusion and pollution, creating a clean working environment around the bearings.
4. Easy Maintenance
The independent body and rotor design, combined with remote control, eliminates manual hammerhead turning and liner plate adjustment, significantly reducing labor intensity and maintenance costs.
We specializes in R&D, production and sales of core equipment for mineral mining, construction aggregate processing and infrastructure projects, covering a full range of business categories including core crushing equipment (DLKPC double-cavity hard rock crusher, DLHGC horizontal gyratory crusher, DLHPT multi-cylinder cone crusher, jaw crusher, etc.), sand making and separation equipment (DLZSJ double rotor sand making machine, DLVF composite separator), conveying and screening equipment (fully-sealed box-type belt conveyor, crawler/tire-type mobile crushing and screening station, circular vibrating screen, etc.), as well as supporting facilities and customized equipment (assembled corridor, wear parts, hydraulic control systems, etc.), providing one-stop intelligent processing solutions for related fields.

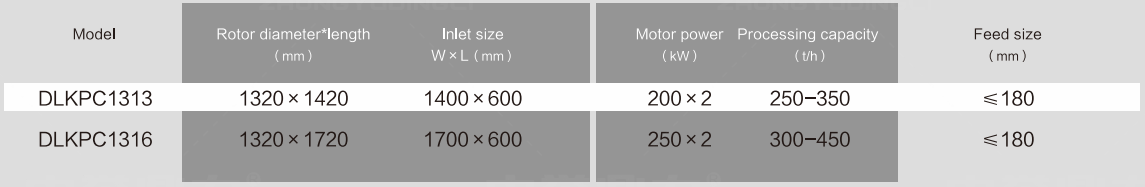

Technical parameters:
