Limestone Crushing SolutionsLarge Scale Aggregate Production Line Solution for the Middle East and North Africa Closed Circuit Processing with Low Wear
Eco-Friendly Aggregate Production Line: Aggregate Crushing Solutions for the Middle East
Limestone Crushing Plant Project Overview
Project Scale: 700 tons per hour, meeting the mass production demands of large limestone mines, building materials plants, and key infrastructure projects in the Middle East
Application Scenarios: Aggregate production for large building materials plants in the Middle East and North Africa; material supply for highway and bridge infrastructure projects; large-scale processing for limestone mines and aggregate suppliers
Key Challenges: Strict environmental regulations; risk of production suspension and fines for non-compliance with dust emission standards; inconsistent aggregate particle shape resulting in low product premiums; high equipment failure rates and maintenance costs due to high-temperature, dusty operating conditions
Solution Highlights: 1615 Heavy-Duty Hammer Crusher + 1216 Shaping Crusher closed-circuit process, with non-conforming material returned for reshaping; uniform aggregate particle shape and reasonable gradation, increasing product premiums by 15%; Fully enclosed structure + pulse dust collection system ensures emissions comply with Middle Eastern environmental standards such as Saudi Arabia’s PME, Qatar’s MME, and the UAE’s EAD; high-manganese steel core components are reinforced for high-temperature operations, reducing wear rates by 40% compared to similar models, with equipment lifespan 1.8 times longer than traditional lines; failure rates are 60% lower, equipment availability is no less than 95%, and MTBF is improved by 55%
Limestone Crushing Plant Process Flow
Raw material silo → ZG1550 vibrating feeder for uniform feeding → PCZ1615 heavy-duty hammer crusher for primary crushing → YZ3070 circular vibrating screen for grading → Oversized material returned to the 1216 shaping crusher for secondary shaping → Qualified finished aggregate conveyed to storage

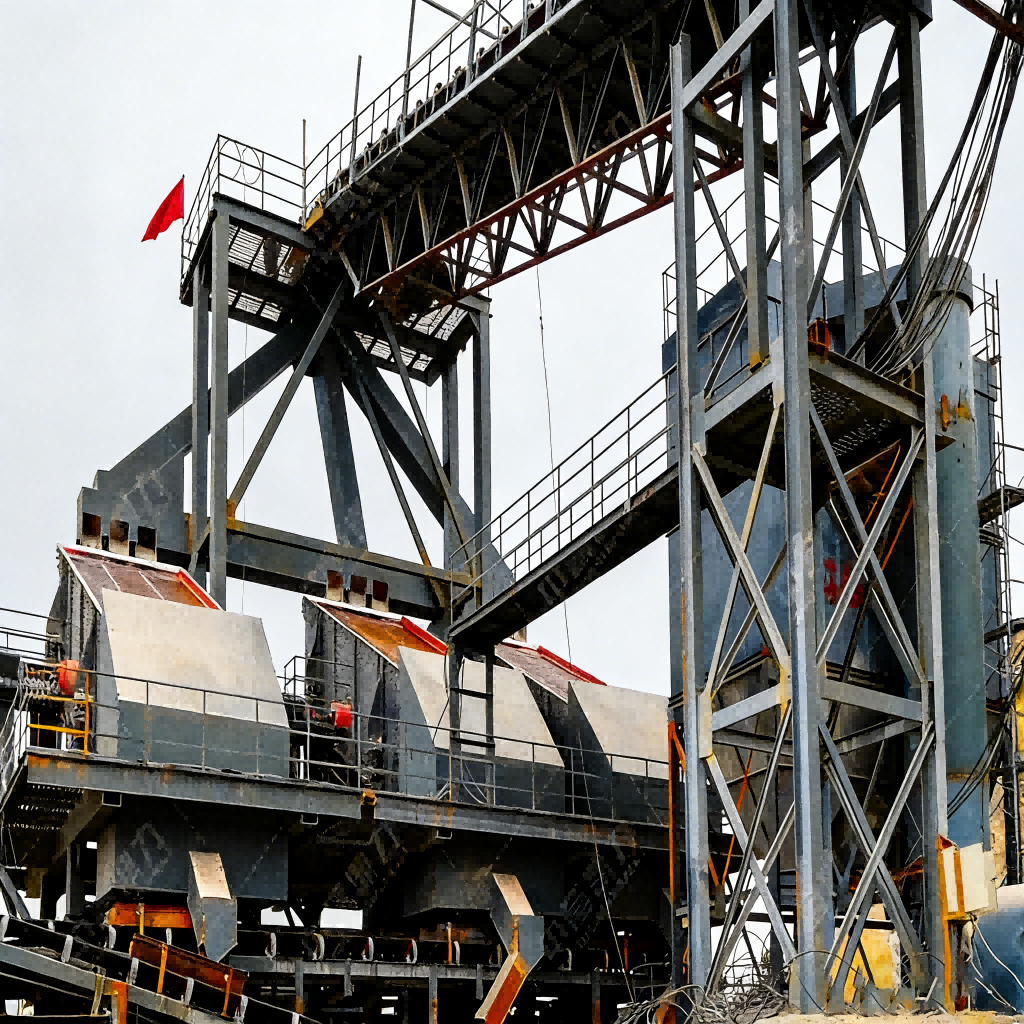

Feeding Section: The ZG1550 feeder ensures stable and uniform feeding, suitable for continuous operation in high-temperature and dusty environments. Primary Crushing Section: The PCZ1615 heavy-duty hammer crusher performs primary crushing, featuring high throughput and a high crushing ratio. Screening Section: The YZ3070 circular vibrating screen performs multi-stage classification; qualified material is sent directly to storage, while non-conforming material is returned for re-shaping. Re-shaping Section: The 1216 re-shaping crusher performs secondary re-shaping on the returned material, ensuring uniform aggregate particle shape and reasonable gradation, making it suitable for direct supply to concrete batching plants and large-scale infrastructure projects. Dust Collection Section: A fully enclosed structure combined with a pulse dust collection system ensures dust emissions meet standards and passes environmental inspections in Middle Eastern countries.
Limestone Crushing Plant EPC Service Scope
Design: Customized closed-circuit shaping processes and fully enclosed pulse dust collection solutions based on ore characteristics, production capacity requirements, and environmental regulations across Middle Eastern countries. Equipment Manufacturing: Core equipment—including the PCZ1615 hammer crusher, 1216 shaping crusher, ZG1550 feeder, and YZ3070 circular vibrating screen—is entirely self-developed and manufactured, with quality-controlled high-manganese steel wear parts. Installation and Commissioning: Modular installation significantly shortens the commissioning cycle, enabling rapid production startup; overall procurement costs are reduced by 30% compared to traditional environmental protection lines. Operation and Maintenance Management: Dedicated after-sales teams and local spare parts warehouses in the Middle East and North Africa ensure a response to malfunctions within 4 hours and spare parts shipment within 24 hours; 24-month warranty on the entire machine, including free on-site repair, commissioning, and operator training during the warranty period
Limestone Crushing Plant Project Case Study
A limestone aggregate project for a major building materials group in Riyadh, Saudi Arabia. Prior to the upgrade, the client used a traditional multi-stage crushing line, resulting in poor aggregate particle shape. The product could only be sold as standard-grade material, with a premium of less than 5%. Dust emissions frequently exceeded regulatory limits, leading to rectification notices from the Saudi Environmental Authority and the risk of production suspension. During hot seasons, equipment failures were frequent, with an average of 2 to 3 shutdowns per month, resulting in an order fulfillment rate of only 65%. In 2023, the company introduced a 700-ton-per-hour eco-friendly aggregate production line from Zhongyu Dingli. After the upgrade, the closed-circuit shaping process produced aggregates with uniform particle shape and reasonable gradation, increasing the product premium to 20% and successfully entering the high-strength concrete supply chain; the fully enclosed + pulse dust collection system kept dust emissions well below Saudi Arabia’s PME standards, allowing the facility to pass environmental inspections and eliminate the risk of production suspension; High-manganese steel core components, specifically designed for high-temperature conditions, reduced wear rates by 40%, lowered average monthly downtime to 0.4 times, and stabilized equipment availability at 96%; Mean Time Between Failures (MTBF) increased by 55%, enabling uninterrupted continuous production during peak periods; overall procurement costs were reduced by 30%, and O&M costs were 25% lower than those of comparable equipment. Customer Feedback: The Zhongyu Dingli eco-friendly aggregate production line has helped us simultaneously resolve the two major challenges of environmental compliance and product premium pricing. It performs extremely stably in high-temperature, dusty environments, and the return on investment has far exceeded expectations.
Limestone Crushing Plant FAQ
Q: Do the dust emissions from the closed-circuit production line comply with environmental regulations in the Middle East and North Africa?
A: Yes, they are fully compliant. The equipment features a fully enclosed design and is equipped with a pulse dust collection system heavy hammer impact crusher production line. All emission indicators meet environmental standards in the Middle East and North Africa, including Saudi Arabia’s PME, Qatar’s MME, and the UAE’s EAD. We also provide comprehensive test reports that can be directly used for environmental compliance audits, helping you avoid fines and the risk of production shutdowns.
Q: How does the equipment perform in terms of wear resistance and stability under the high-temperature, dusty conditions of the Middle East?
A: The core crushing components are made of high-manganese steel and are specifically reinforced for the high-temperature, dusty conditions of the Middle East. Limestone crushing and shaping production line Wear rates are 40% lower than those of comparable equipment, and the overall service life of the equipment is 1.8 times that of traditional production lines. It can operate stably over the long term in environments with temperatures as high as 50°C.
Q: What dedicated after-sales support is available for the MENA environmental aggregate production line?
A: We have a dedicated after-sales team and local spare parts warehouse in the MENA region. The equipment comes with a 24-month warranty, with a response time of 4 hours for malfunctions and spare parts shipped within 24 hours. Closed circuit aggregate line with shaping crusher During the warranty period, we provide free on-site maintenance, commissioning, and operator training, completely addressing concerns about delayed equipment repairs.
