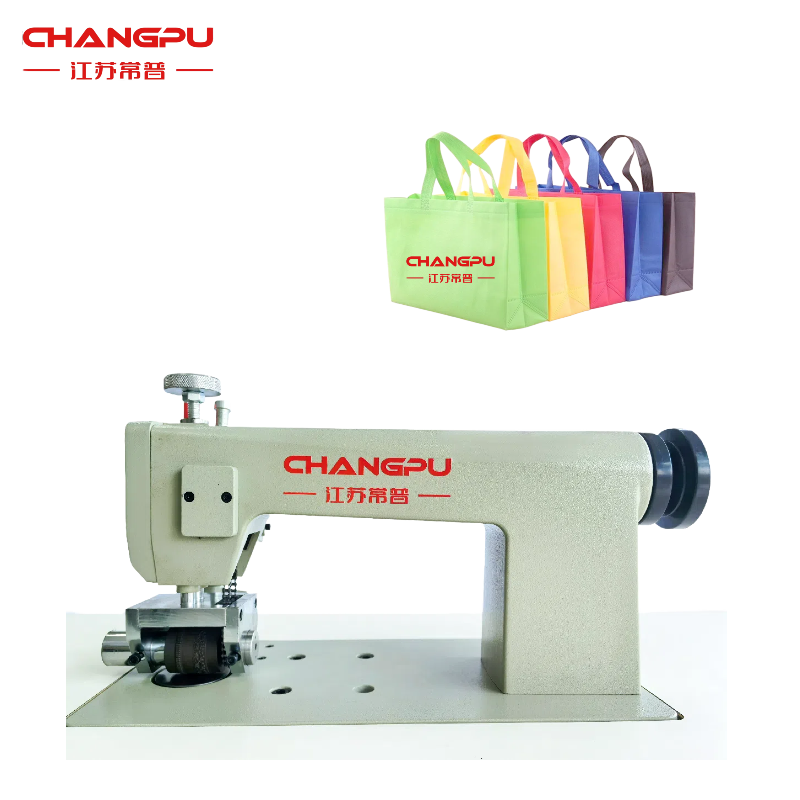

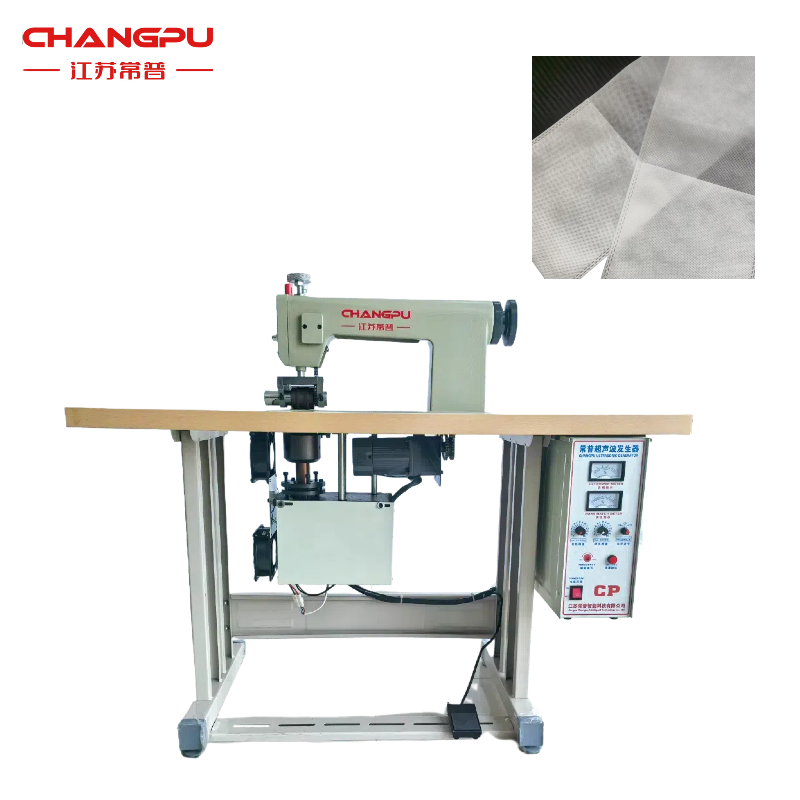

The Changpu brand CP-60 ultrasonic sewing machine's basic configuration includes a new 20KHz computer-controlled intelligent ultrasonic generator, a transducer, a fixed suspension structure for the base mold, a single-motor (optionally dual-motor) speed control system, and a manual (optionally pneumatic) mold lifting system. Its features are significant: a built-in computer chip and a multi-channel ultrasonic protection system ensure stable operation; super-strong power is adjustable in three levels (large, medium, small) to suit the welding and cutting of different materials and thicknesses; automatic frequency tracking and ultrasonic soft-start technology bring its performance up to international standards; pattern mold styles are diverse and customizable; operation is simple and its speed reaches four times that of ordinary sewing machines. The equipment boasts powerful functions, capable of edge cutting (single/curved edge cutting and sealing, producing smooth edges without fraying), seaming (threadless welding of multiple layers with excellent strength), perforating (patterned hole cutting with sealed edges), slitting (single/multiple strip cutting and sealing), and molding (simultaneous cutting, seaming, and embossing, completed in a single step). It is particularly suitable for materials such as chemical fiber fabrics, synthetic leather, non-woven fabrics, spray-bonded cotton, films, and plastic sheets, and is widely used in lace apparel, ribbons, decorations, handkerchiefs, tablecloths, curtains and other home textiles, tents, raincoats, as well as medical protective products like surgical caps and gowns, and non-woven masks.
Technical Parameters
|
Power Supply |
220V |
|
Input Power |
1800-2500W |
|
Output Frequency |
20KHZ |
|
Operating Speed |
0-20m/min |
|
Mold Dimensions |
WIDTH：0-100mm; DIA：Ø50-Ø60mm |
|
Dimensions (LWH) |
1200*600*1200mm |
|
Net Weight |
80KG |
