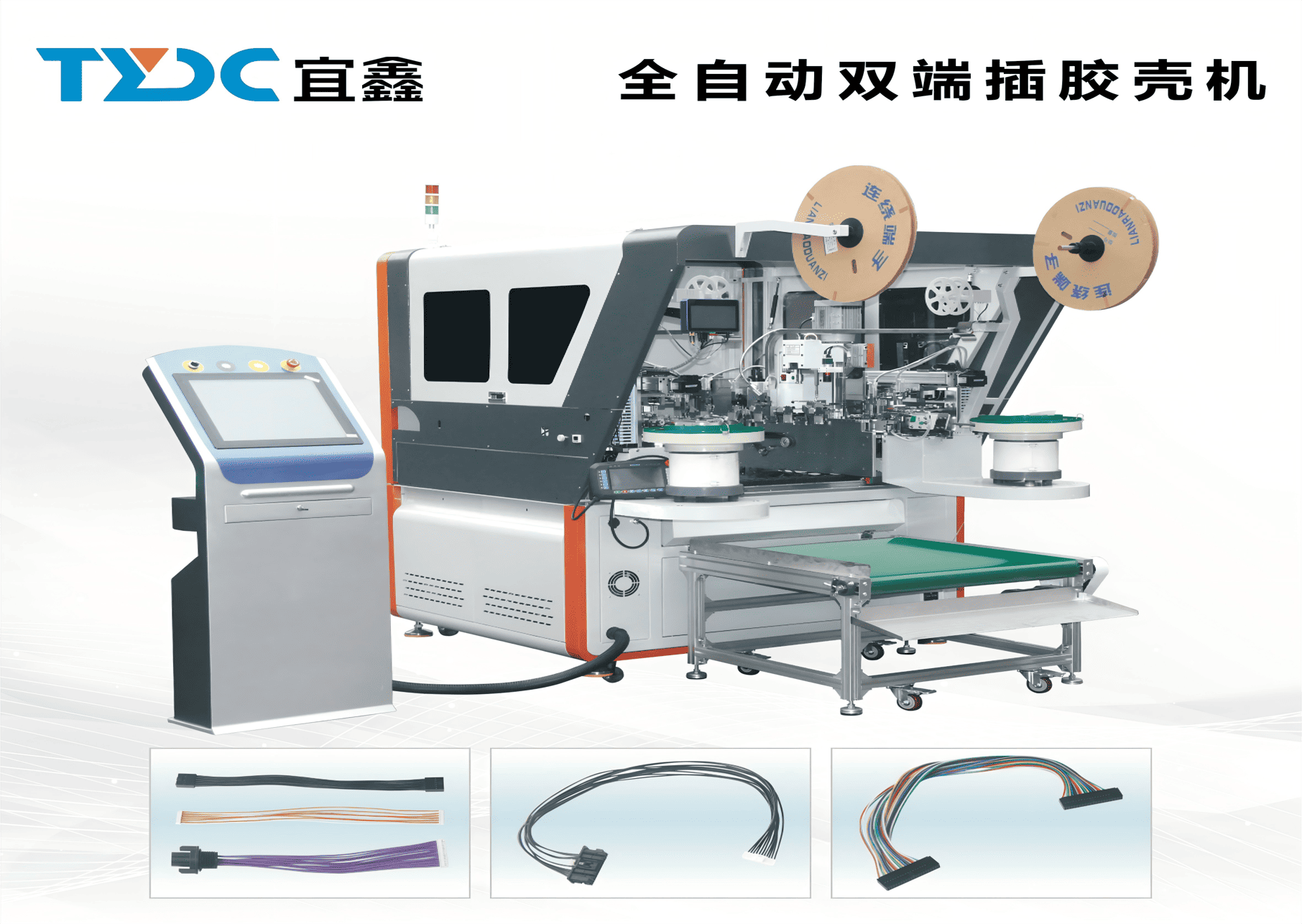

Fully Automatic Dual-Head Shell Insertion Machine

2 month ago

0 0

Dongguan Yixin Machinery Co., Ltd.

 7 month year

Product details

In the traditional wire harness processing industry, manual insertion of housings (plastic connectors) during production typically presents two issues: low efficiency and inconsistent product quality. This Fully Automatic Dual-Head Shell Insertion Machine was developed specifically to address these pain points.

This Dual-Head Connector Insertion Machine processes both ends of the wire harness simultaneously, enabling an integrated, continuous workflow that includes wire cutting, stripping, crimping, and housing insertion. Equipped with a four-camera CCD vision system, the machine monitors the position of each terminal and insertion point in real-time during operation, ensuring that no defective products pass through.

Our crimping precision reaches 0.02mm. The machine utilizes independent dual-servo blade holders to ensure consistent stripping results across different wire types; a three-axis guided insertion system ensures precise housing positioning, while a flip-style rejection system automatically discards defective units.

This Automatic Shell Insertion Wire Harness Machine from Yixin employs Inovance control systems and servo motors, while the drive components feature Panasonic fiber-optic sensors and HIWIN (Taiwan) ball screws.

This wire harness assembly machine is widely used in the manufacturing of automotive wire harnesses, home appliance cables, industrial control wiring, medical cable assemblies, and electronic connectors. As a professional manufacturer of wire processing equipment, Dongguan Yixin Machinery Co., Ltd. offers customized configuration solutions tailored to your specific wire types and production volume requirements. Our Double-End Wire Crimping Assembly Machine supports both single-end and dual-end operation modes, allowing for configuration based on your production needs. Please contact us to discuss your specific requirements.
