Product details

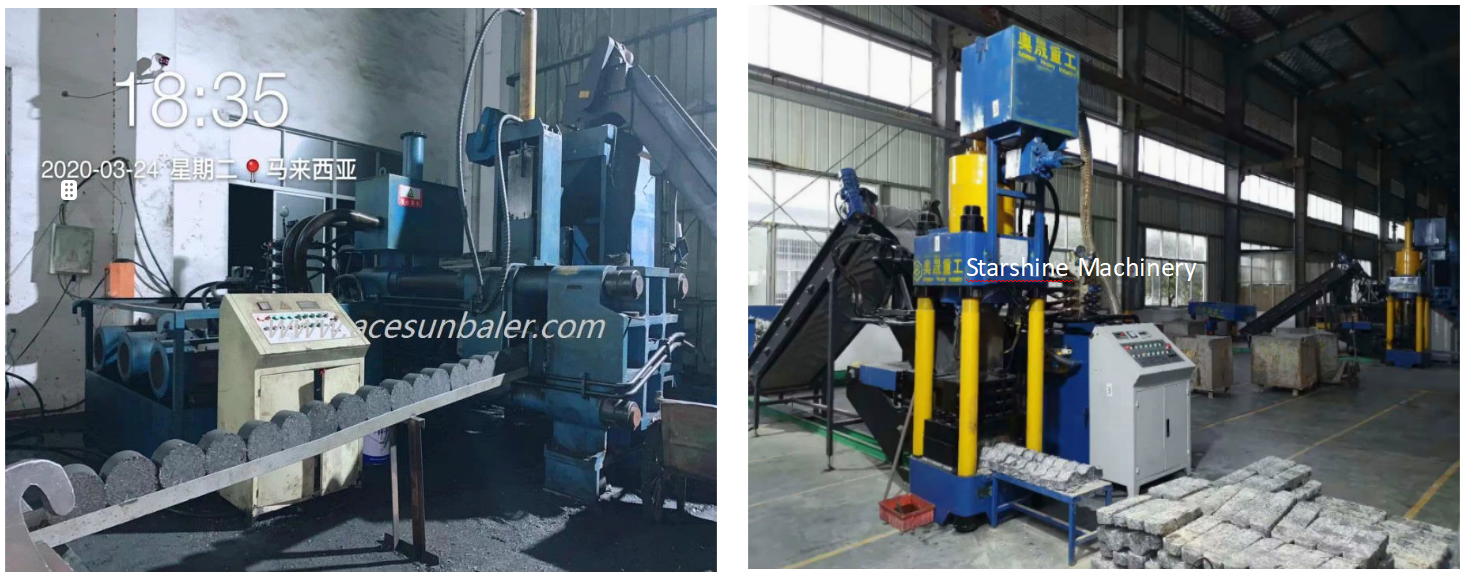

Copper Compress Brass Press Copper Processing Machine

How Copper Chip Press works:

The principle of hydraulic transmission is usually used in the scrap metal briquetting machine. Metal chips to be pressed are added into a large bin above a spiral feeding device, the spiral feeding device is started to add the metal chips into a die, then the spiral feeding is stopped, a quick cylinder drives a piston rod of a main cylinder and a punch head to quickly press down, after the punch head enters a die cavity, the quick cylinder is switched into the main cylinder to slowly descend, materials in the die are pressed into high-density briquettes by high pressure, And then that briquette block is pus out of the die cavity through a block pushing cylinder and other device to complete an action cycle.

Equipment composition of Copper Briquetting:

1. Main machine: It is composed of frame, main hydraulic cylinder, pushing hydraulic cylinder, bottom plate hydraulic cylinder, supporting mold frame and mold, pressure head, etc. The frame is composed of upper and lower beams and columns. The upper and lower beams are generally made of integral steel castings and bear the tension during work.

2. Hydraulic station: It is composed of motor, hydraulic pump, pump protection device, professional control valve block and pipeline system for connecting briquetting machine. It is equipped with cooling system to prevent the equipment from working continuously due to overheating of oil temperature.

3. Console: It is composed of electrical system and PLC control system, equipped with adjustable text display. The action sequence and each action time are completely controlled by PLC system, and can be adjusted by the operator at any time.

Model classification:

There are mainly two types: vertical type and horizontal type. Vertical models have a small footprint and are compact, while horizontal models may be more convenient for automation and handling of large materials in terms of feeding and discharging.

Performance characteristics of Metal Chip Briguetting Machine:

1. High efficiency and energy saving: large-tonnage hydraulic cylinder design is adopted to provide strong compression force, which can quickly compress metal chips into briquettes, and some equipment adopts energy-saving motor and hydraulic system to reduce energy consumption.

2. High degree of automation: The electrical part adopts imported PLC automatic control system, which has strong anti-interference ability, low failure rate, simple operation, and can realize automatic operation and monitoring. Safe and reliable: adopt multiple safety protection measures, such as overload protection, emergency shutdown, etc., to ensure the stable operation of equipment and the safety of operators.

3. strong applicability: under the condition of not adding any additive, various granular and powdery cast iron, aluminum, copper, magnesium, titanium, molybdenum and other metals can be pressed into high-density briquettes and directly put into a furnace for smelting.

Scope of application of Brass press:

It is widely used in various foundries, large-scale production and processing enterprises and enterprises using hot blast stoves, intermediate frequency furnaces, high frequency furnaces, etc. It can also be used in metal recycling and processing enterprises to press the recycled metal chips into briquettes for sale, so as to improve transportation efficiency and economic benefits.
