Product details

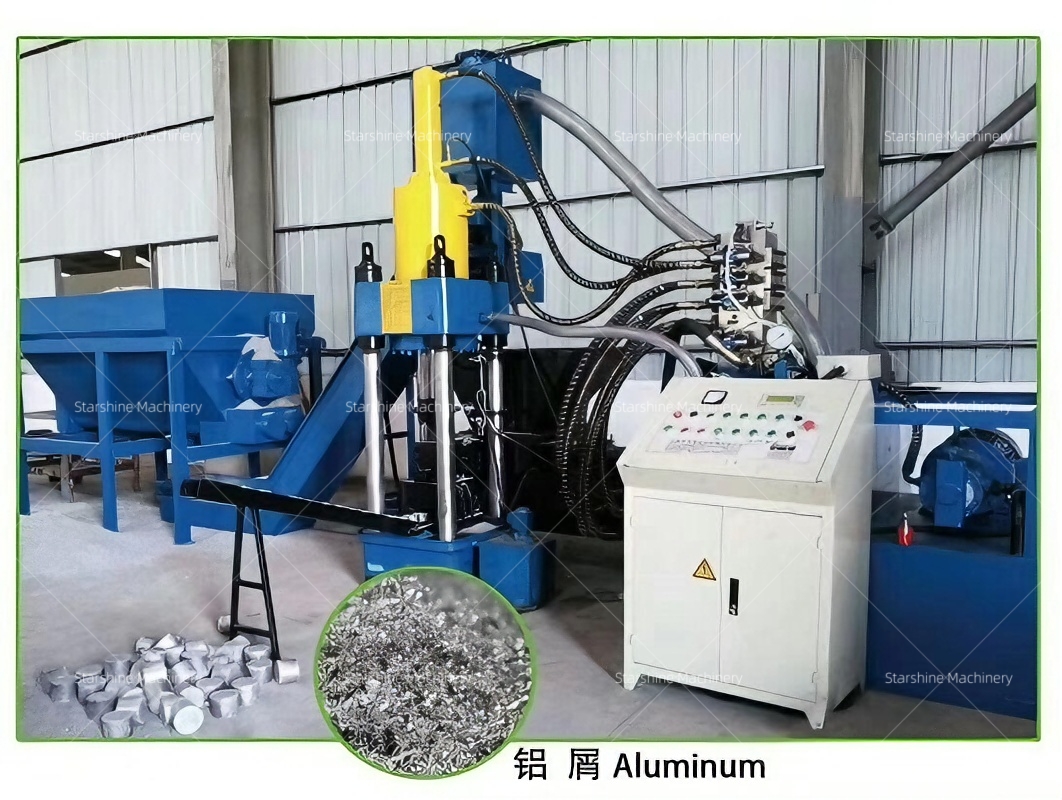

High Pressure Briquetting Machine Metal Chips Press

Aluminum Chip Briquetter (also known as metal chips briquetting machine, aluminum chip briquetting machine) is a special equipment that compresses loose metal chips (iron chips, steel chips, copper chips, aluminum chips, etc.) Into high-density briquettes or blocks through high-pressure cold-pressing technology, aiming at solving the problems of land occupation, high transportation cost and large smelting loss of metal chips, while recycling cutting oil. To maximize the use of resources.

How Hydraulic Briquetting Machine works:

1. Feeding stage: metal chips enter the compression chamber through manual or automatic feeding devices (such as screw, belt conveyor).

2. Compression stage: The hydraulic system provides 200 ~ 2500 tons of high pressure (some models can reach 3900 tons), and the main hydraulic cylinder pushes the pressure head to compress the metal chips into a set shape.

3. Forming stage: cylindrical, square or special-shaped briquettes are formed under the action of the die, and the density can reach 5 ~ 6 T/m ³ (cast iron chips).

4. demould stage: that material pushing hydraulic cylinder push out the briquette block to complete a working cycle.

5. Deoiling function (optional): Some models are equipped with deoiling system, which can separate more than 90% of the cutting oil and realize the secondary utilization of the oil.

Classification by drive mode:

1. Hydraulic drive: mainstream type, stable pressure, suitable for all kinds of metal chips, good energy-saving effect.

2. Mechanical drive: high efficiency but large pressure fluctuation, suitable for materials with low density requirements

3. Servo drive: latest technology, energy saving more than 30%, pressure control accuracy up to ± 1%.

Core Performance Benefits of Metal Briquetting Press:

1. High volume compression ratio: the volume of loose metal chips can be reduced by 70% to 80%, saving storage space.

2. that transportation cost is reduce: under the same weight, the transportation efficiency is improve by 5 to 6 times, and the transportation cost per ton is reduced by more than 40 percent.

3. Smelting loss is reduced: briquettes are directly put into the furnace, the burning loss rate is reduced from 15% -20% to 5% -8%, and the metal recovery rate is improved.

4. Environmental protection standards: fully enclosed design, to avoid cutting oil leakage pollution, in line with hazardous waste treatment specifications.

5. High degree of automation: support 24-hour continuous operation, reduce labor input and reduce safety risks.
