Features:

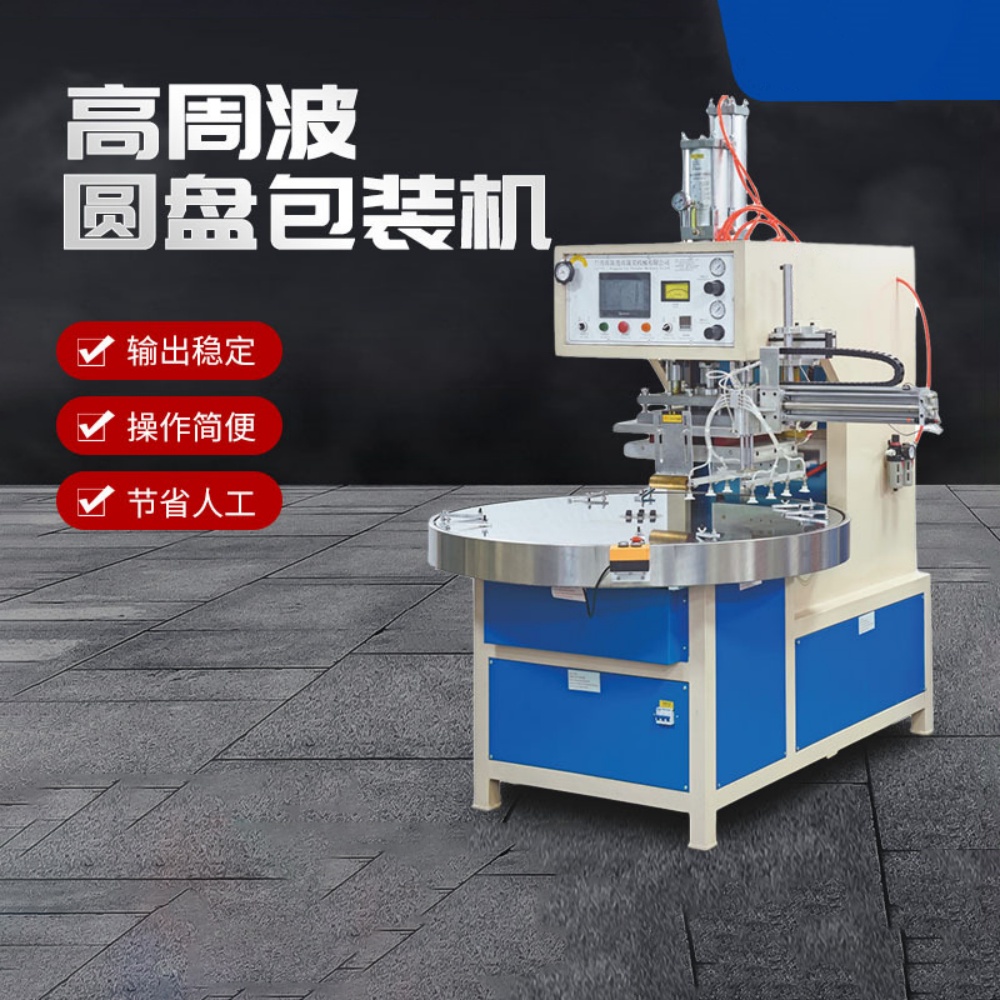

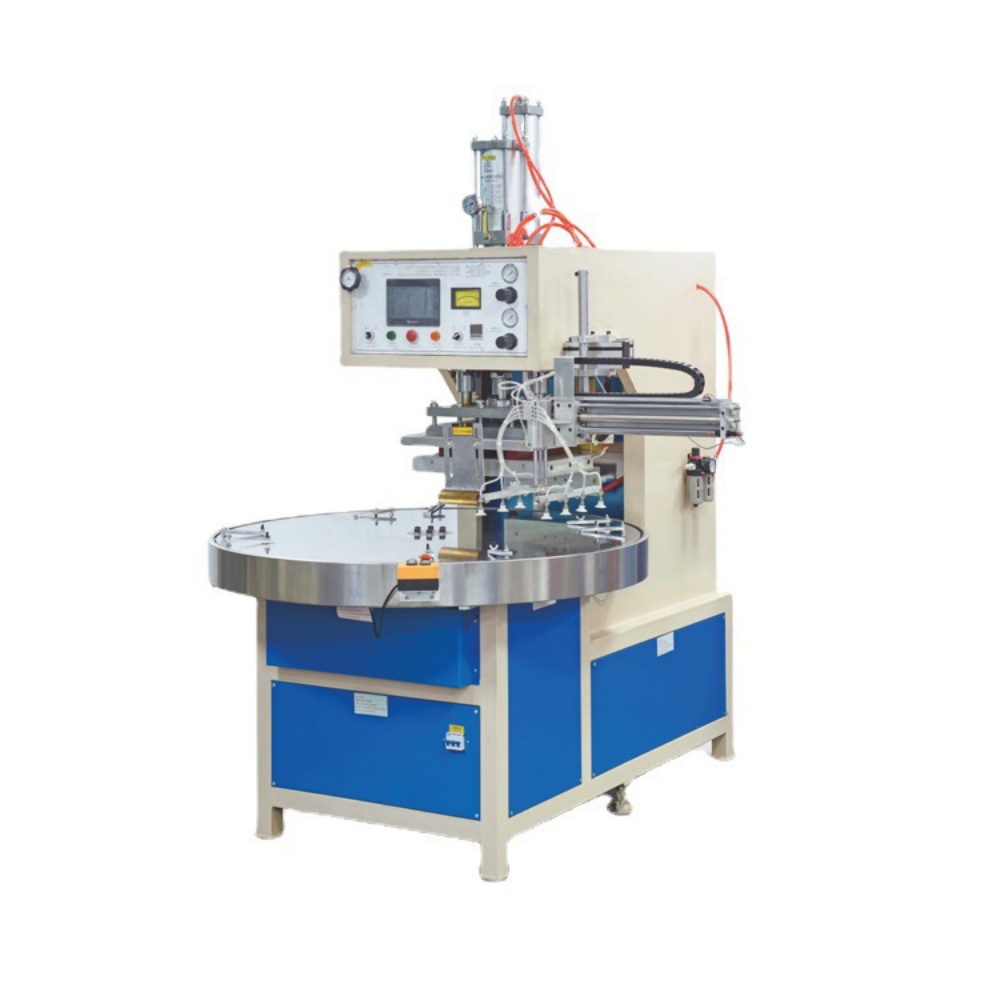

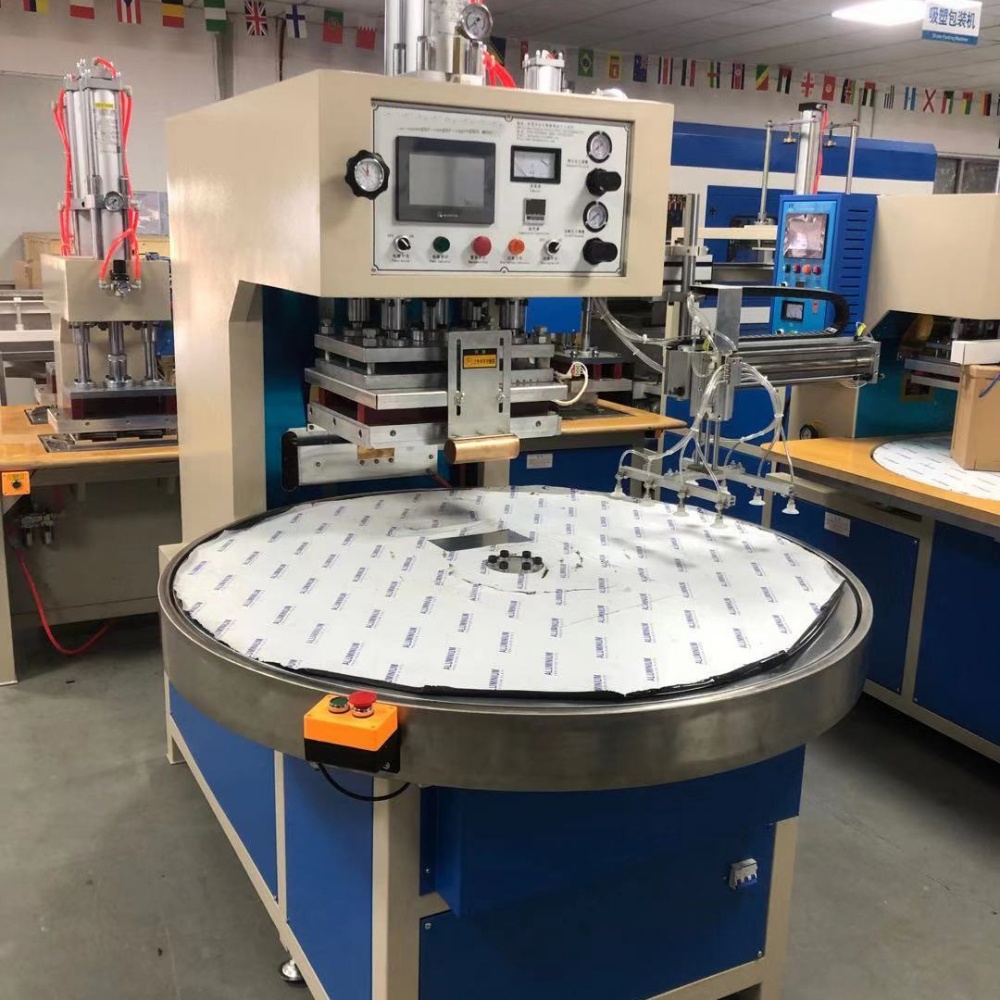

• The machine is designed as an automatic rotary type, allowing one person to operate multiple workstations, improving efficiency and saving labor costs;
• Optional automated devices such as feeding and picking robots are available to adapt to assembly line production;
• It uses a PLC + human-machine interface for simple operation;
• The welding and cutting machine has a secondary cutting function, welding first and then cutting to meet the needs of products requiring edge trimming;
• Suitable for: double-sided paper card blister packaging; double-sided blister packaging of PVC, PET, APET, etc.
Technical Parameters:
|
Model Number |

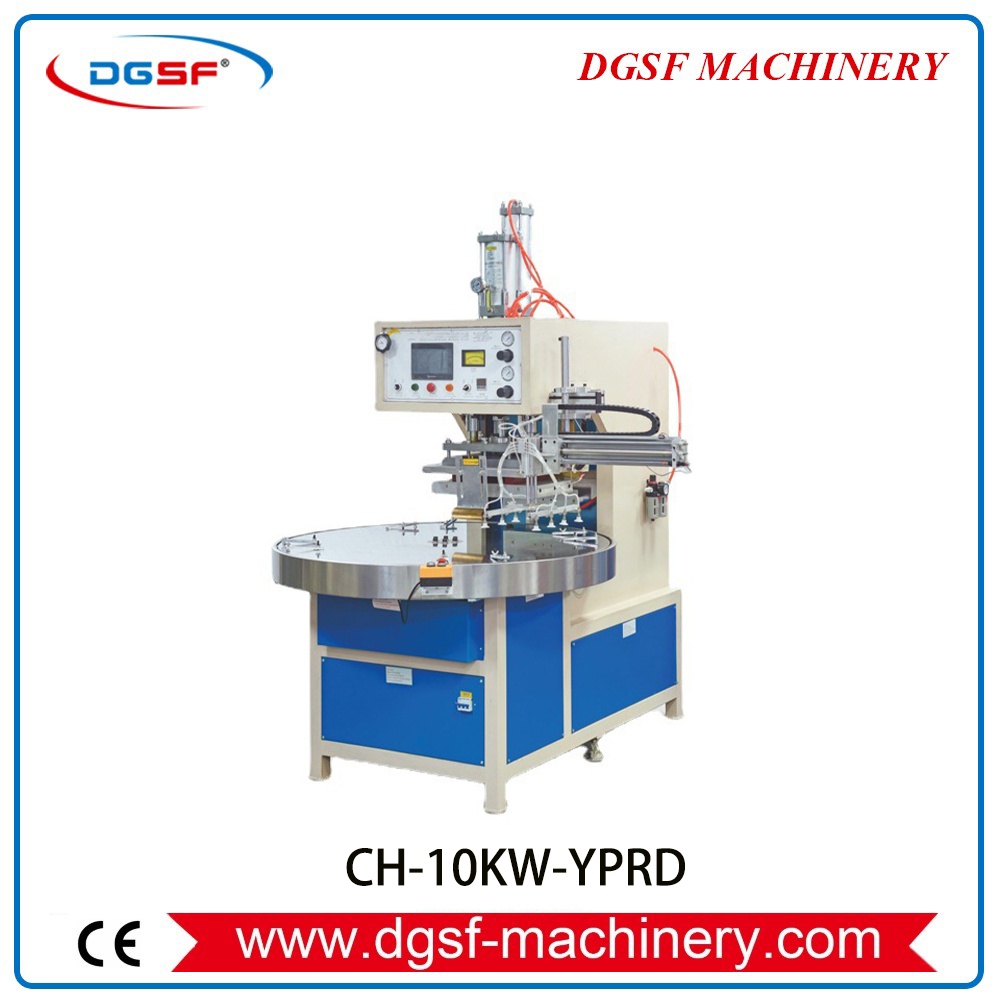

CH-10KW-YPRD |
|
Power |
10KW |
|
Voltage |
220V/380V3P 50/60Hz |
|
Power Input |
12KVA |
|
Oscilltion Frequency |
27.12MHz |
|
Oscillation Tube |
E3069 |
|
Anti-Spark System |
NL-5557 |
|
Max Pressure |
20Ton |
|
Disc Diameter |
1300mm |
|
Working Table Size |
300*450mm |
|
Machine Size |
1700*1360*2300mm |
|
Machine Weight |
1200KG |
