Features:

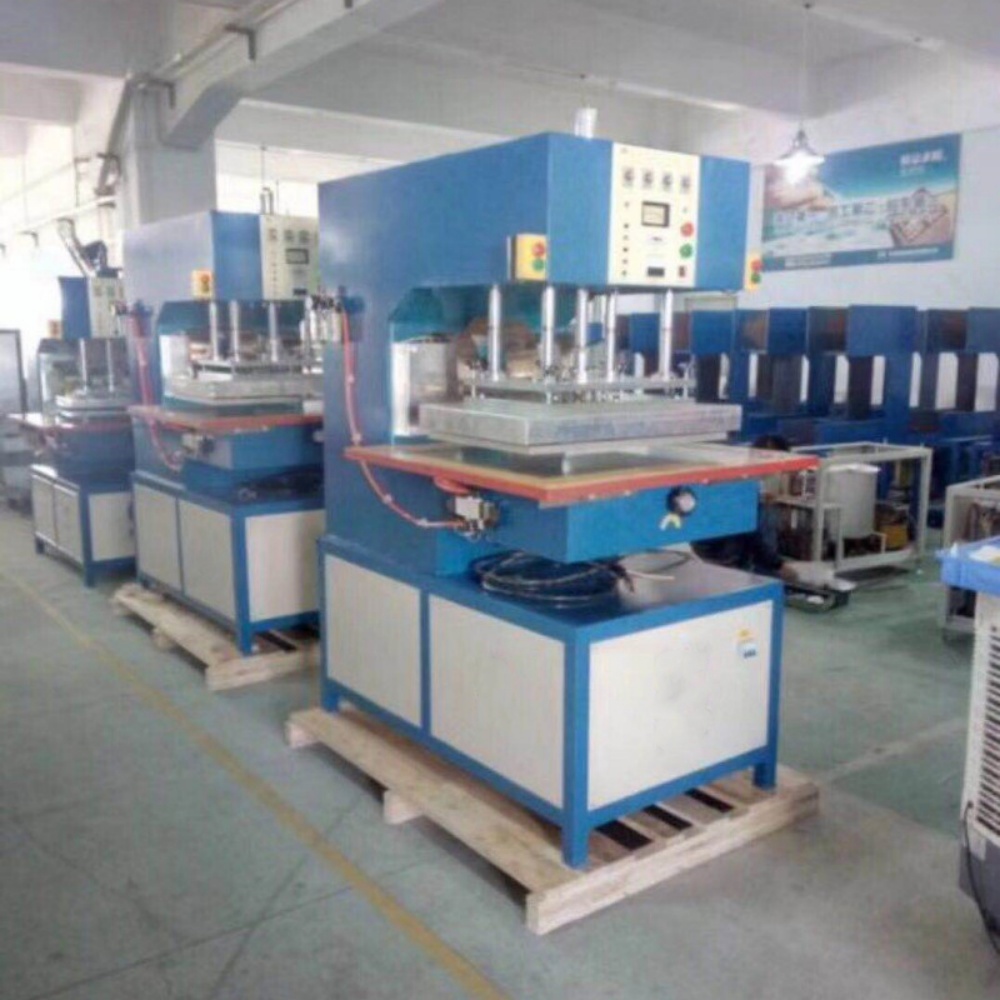

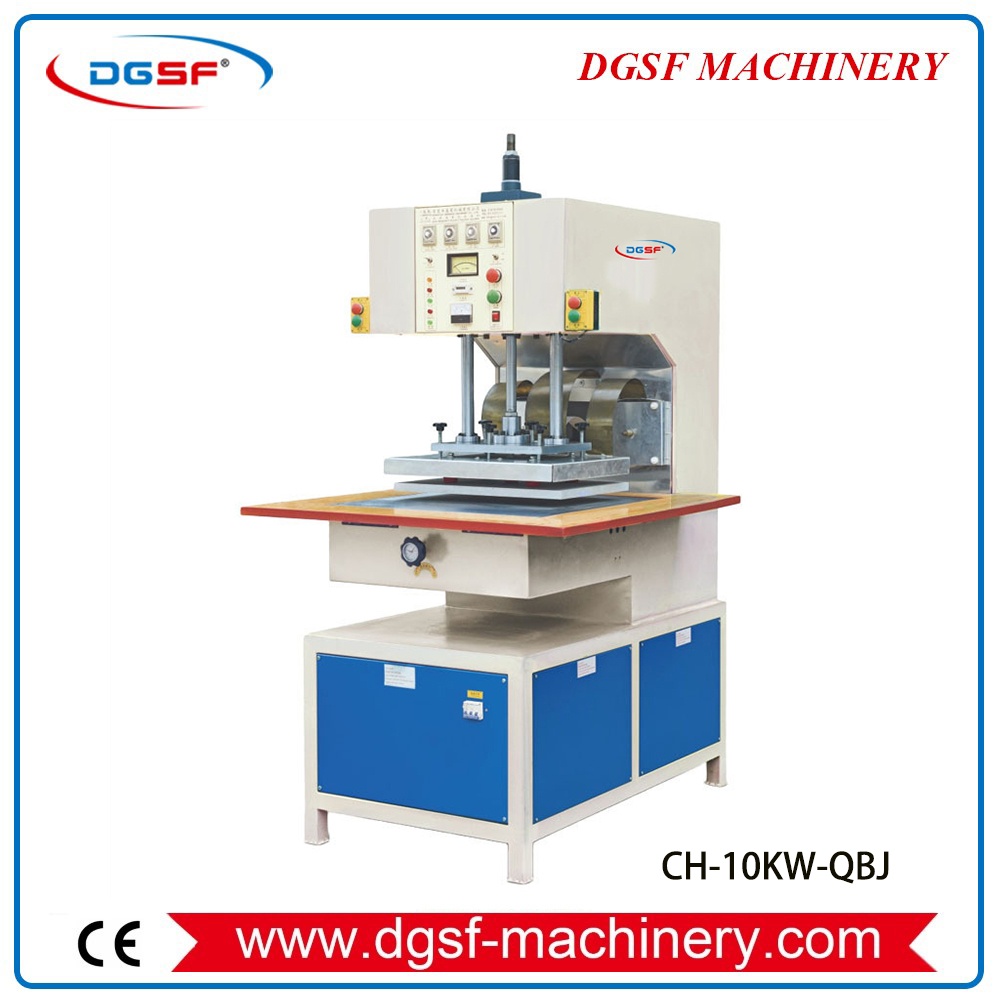

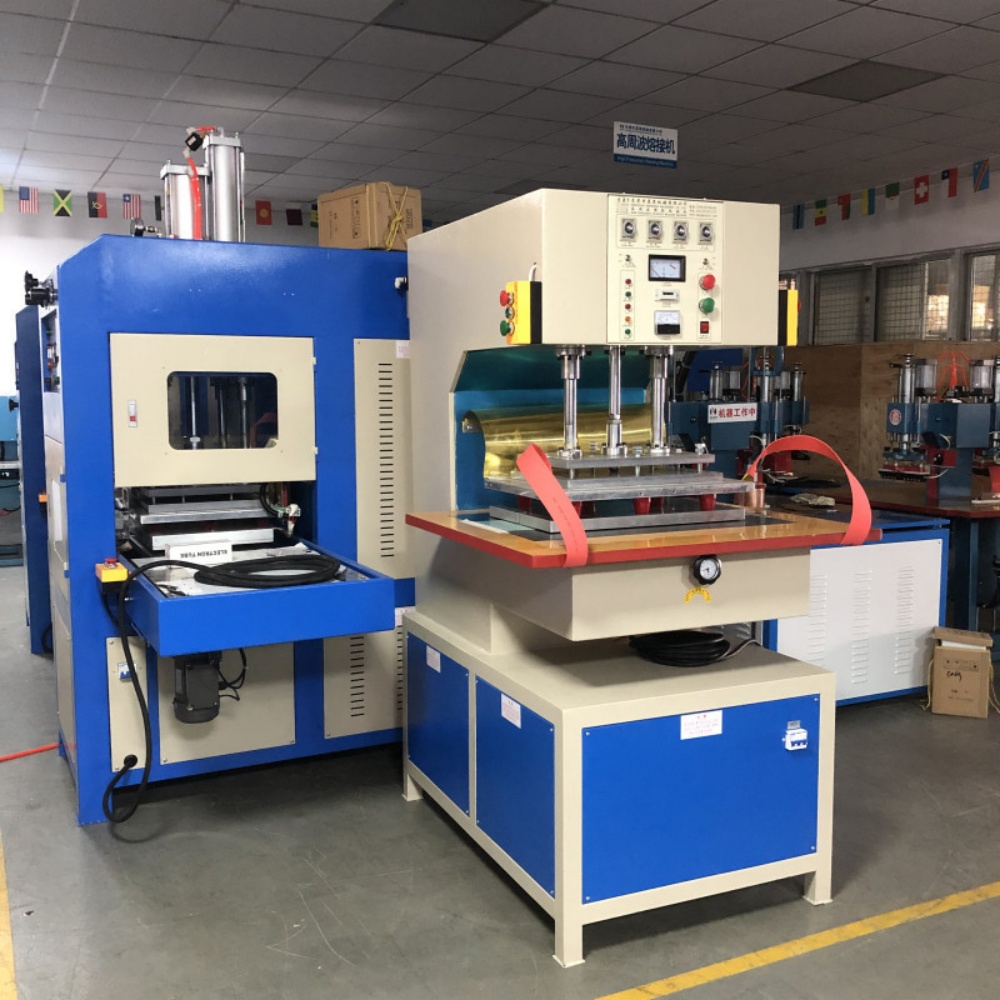

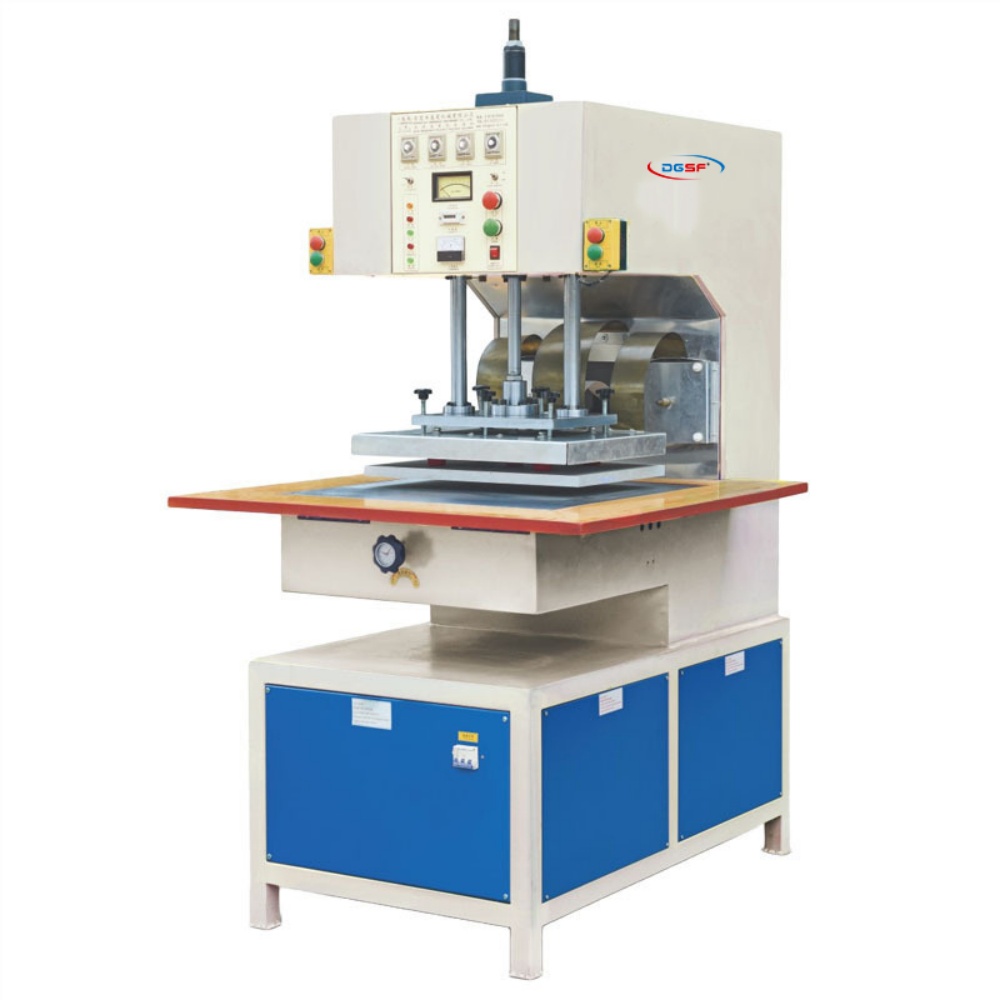

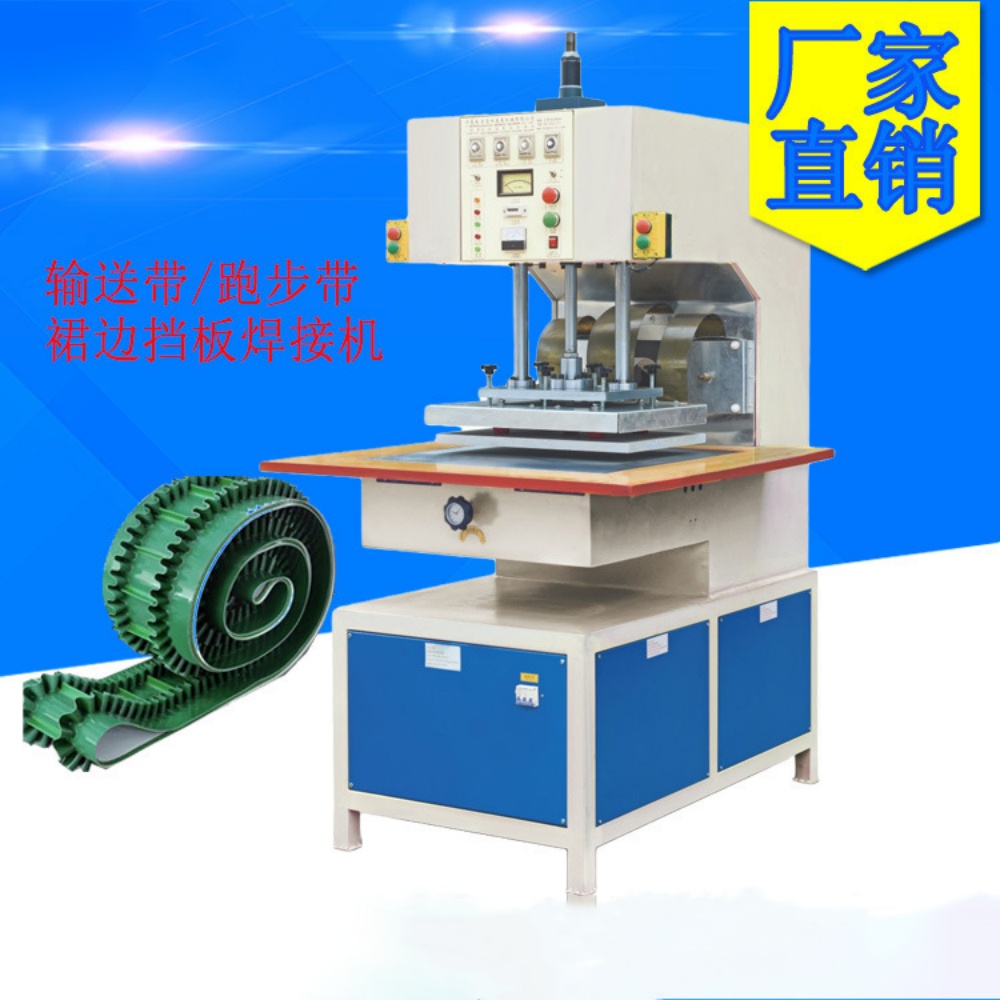

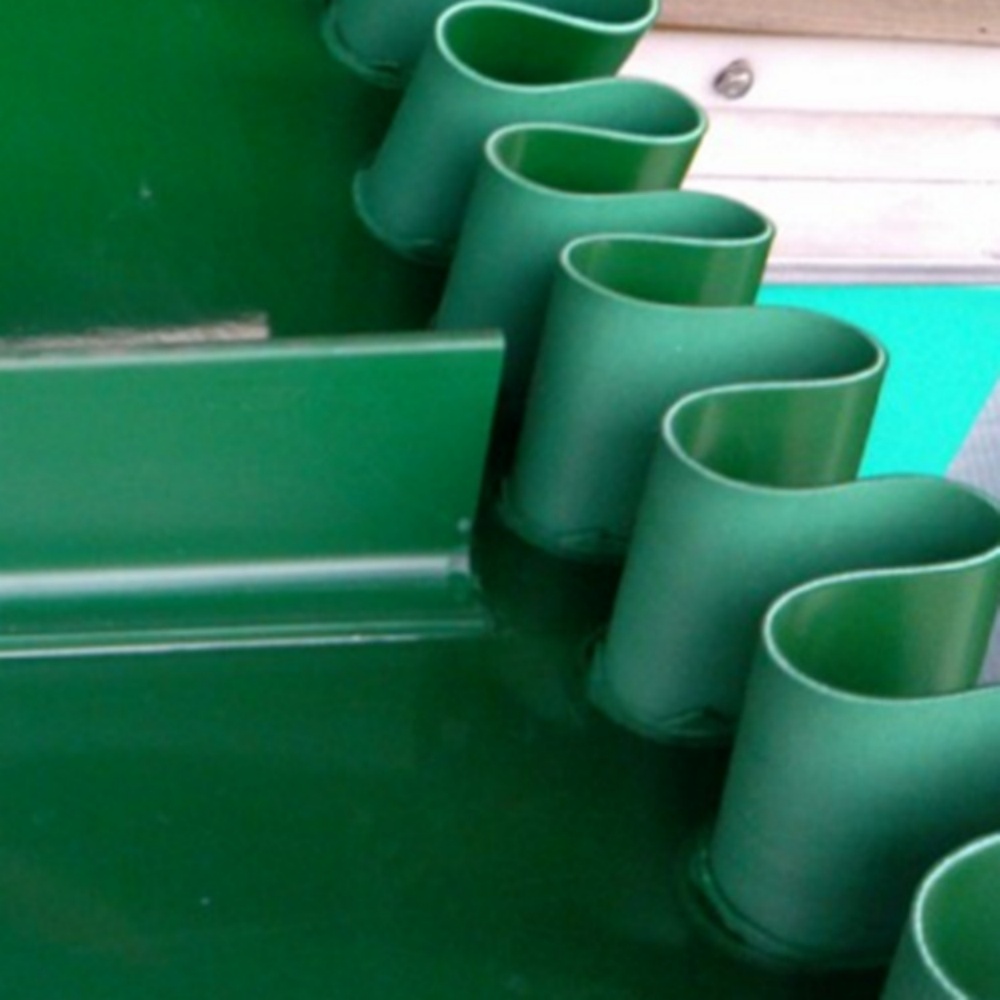

This product is primarily designed for adding skirts or baffles to industrial conveyor belts made of PVC/PU materials, and for adding baffles to synchronous belts. It utilizes a high-frequency electromagnetic field to rearrange the internal molecules, achieving the purpose of welding.
Technical Parameters:
|
Model Number |
CH-10KW-QBJ |
CH-12KW-QBJ |
CH-15KW-QBJ |
|
Output Power |
|
12KW |
15KW |
|
Voltage |
220V/380V 3P50/60Hz |
||
|
Input Power |
|
12KVA |
15KVA |
|
Oscillation Frequency |
|
27.12MHz |
27.12MHz |
|
Oscillation Tube |
|
E3069 |
E3130 |
|
Anti-Spark System |
|
NL-5557 |
NL-5557 |
|
Max Pressure |
|
500KG |
800KG |
|
Working Table Size |
|
400*600mm |
400*600mm |
|
Machine Size |
|
1300*1000*1900mm |
1300*1000*1900mm |
|
Machine Weight |
|
650KG |
750KG |
If you are interested in the product, contact 2bvideo.com for more information for more information
