Features:
High-frequency welding machines are mainly used for the production and processing of soft plastics such as PVC, EVA, PU, TPU, or PVC with a content of 30% or more, as well as composite leather, composite fabrics, and other products;

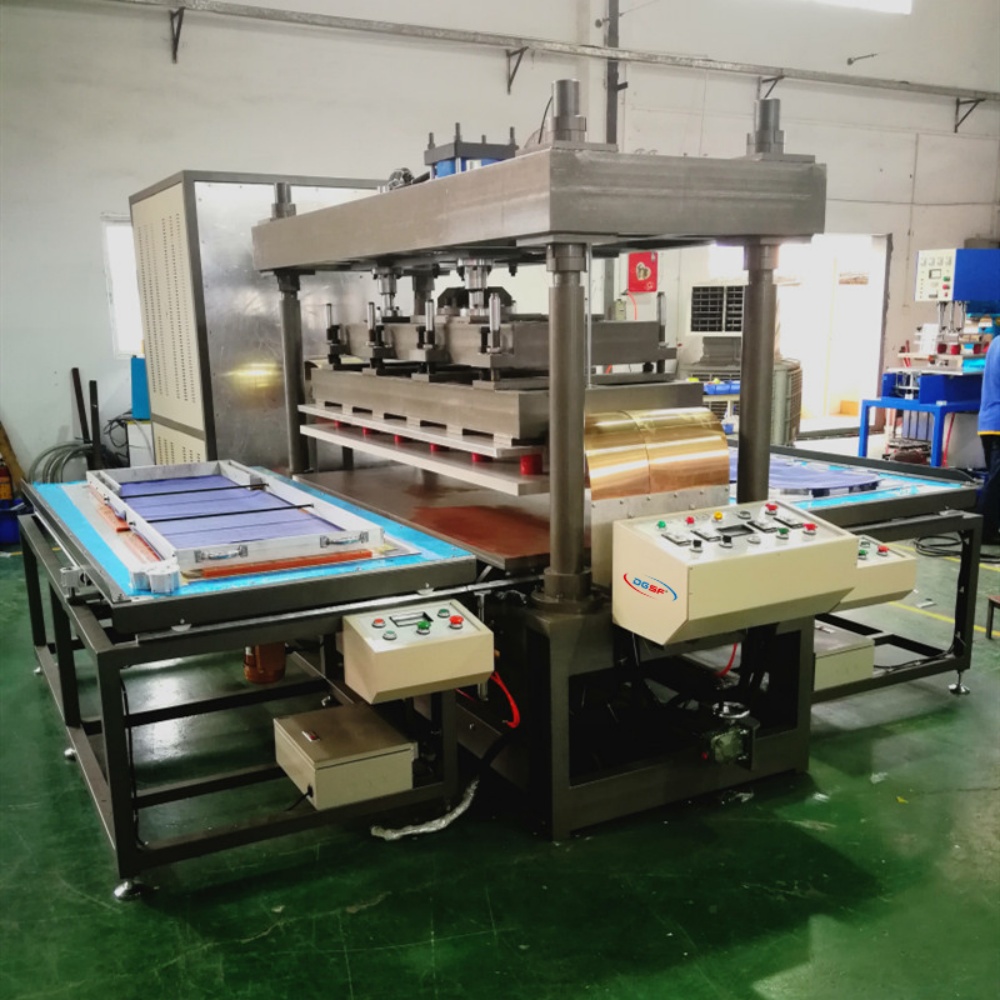

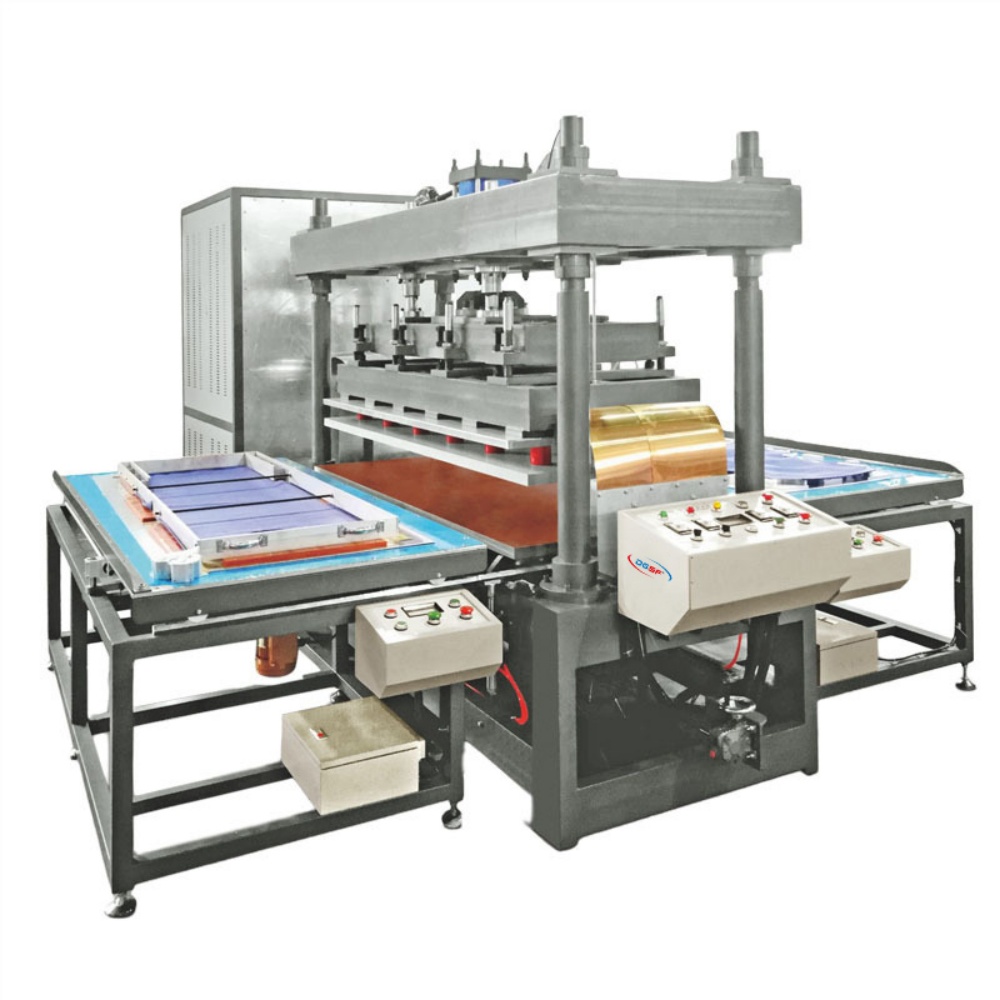

25-50KW large four-column gantry high-frequency welding machines are used for heat sealing of products with larger areas;
such as inflatable beds, Teslin beach chairs, carpets, car seat cushions, children's swimming pools, etc.
Technical Parameters:
|
Model Number |

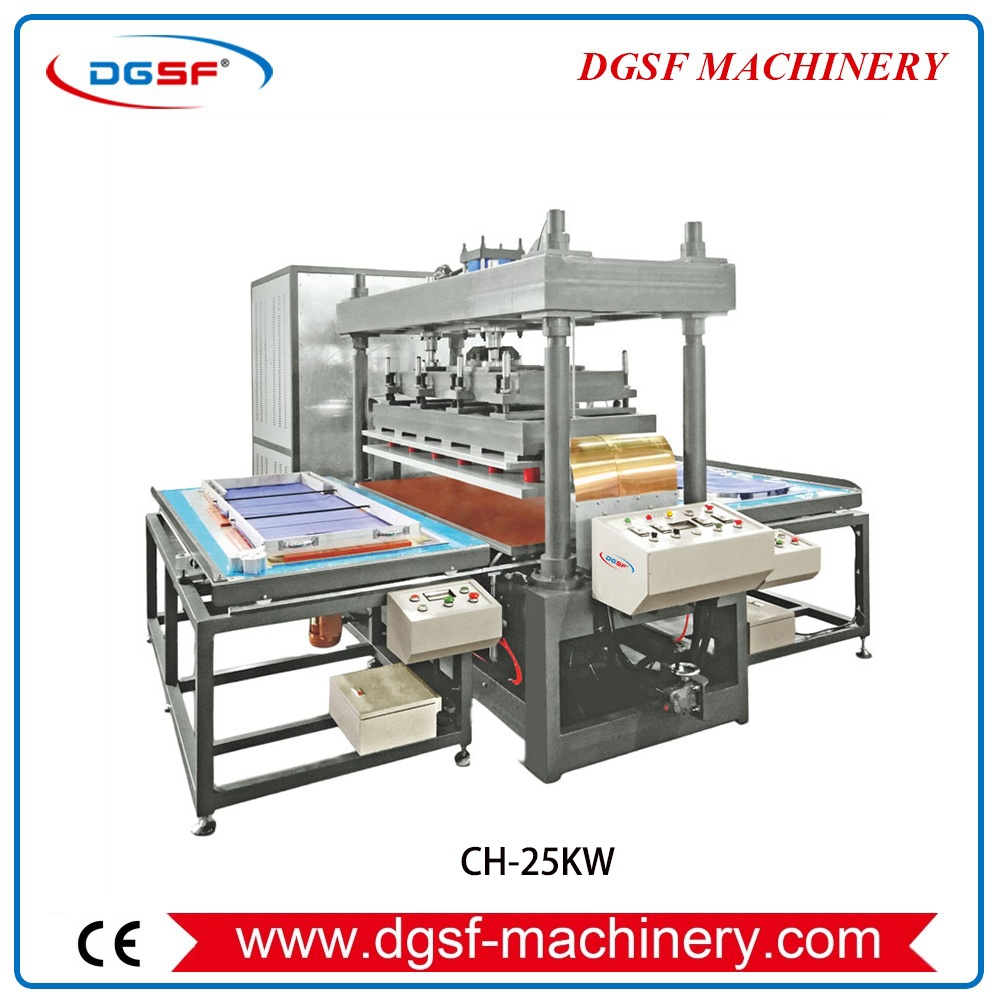

CH-25KW |
CH-35KW |
CH-50KW |
|
Output Power |
25KW |
35KW |
50KW |
|
Voltage |
3P380V 50/60HZ |
||
|
Input Power |
35KVA |
50KVA |
80KVA |
|
Oscillation Frequency |
27.12MHz |
27.12MHz |
27.12MHz |
|
Oscillation Tube |
8T25RB |
8T87RB |
E3116 |
|
Anti-Spark System |
NL-5557 |
NL-5557 |
NL-5557 |
|
Max Pressure |
1200KG |
1500KG |
1800KG |
|
Distance of upper |
170mm |
170mm |
170mm |
|
Working Table Size |
800*1000mm |
1000*1200mm |
1200*1800mm |
|
Machine Weight |
1200KG |
1500KG |
1800KG |
