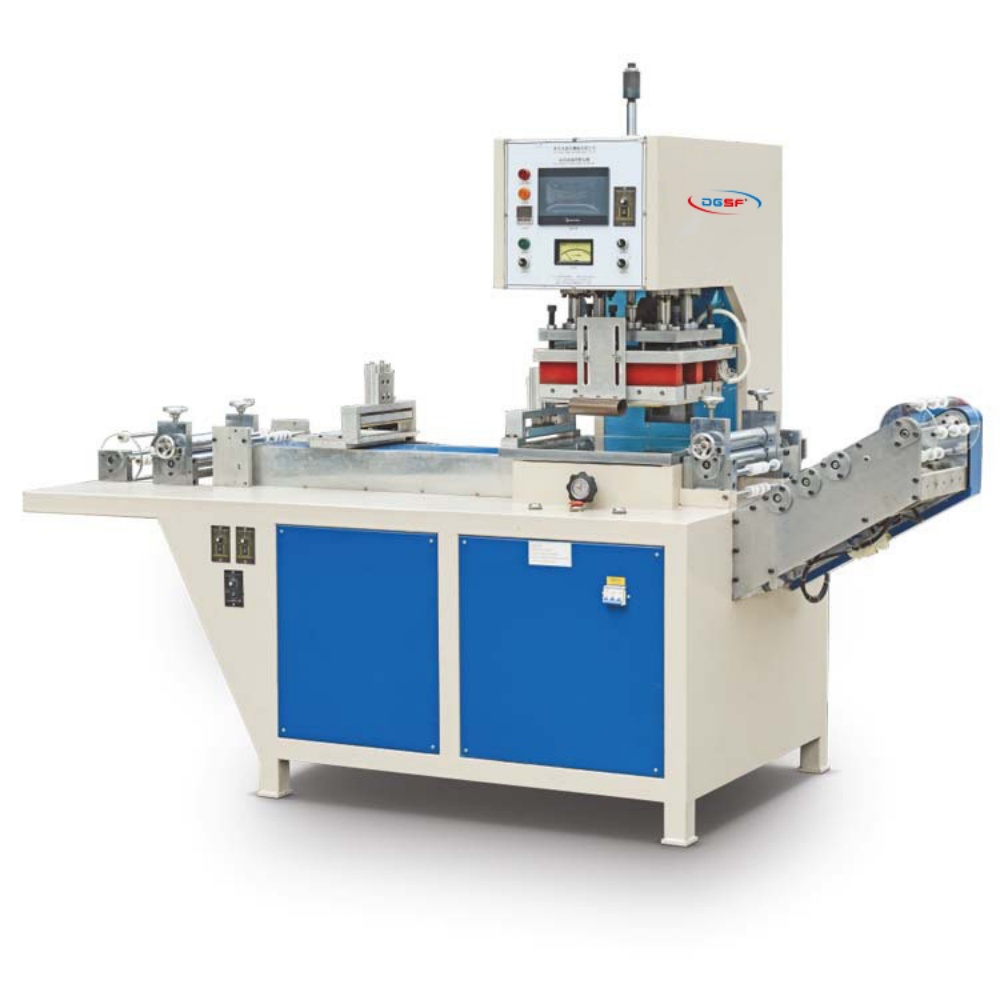

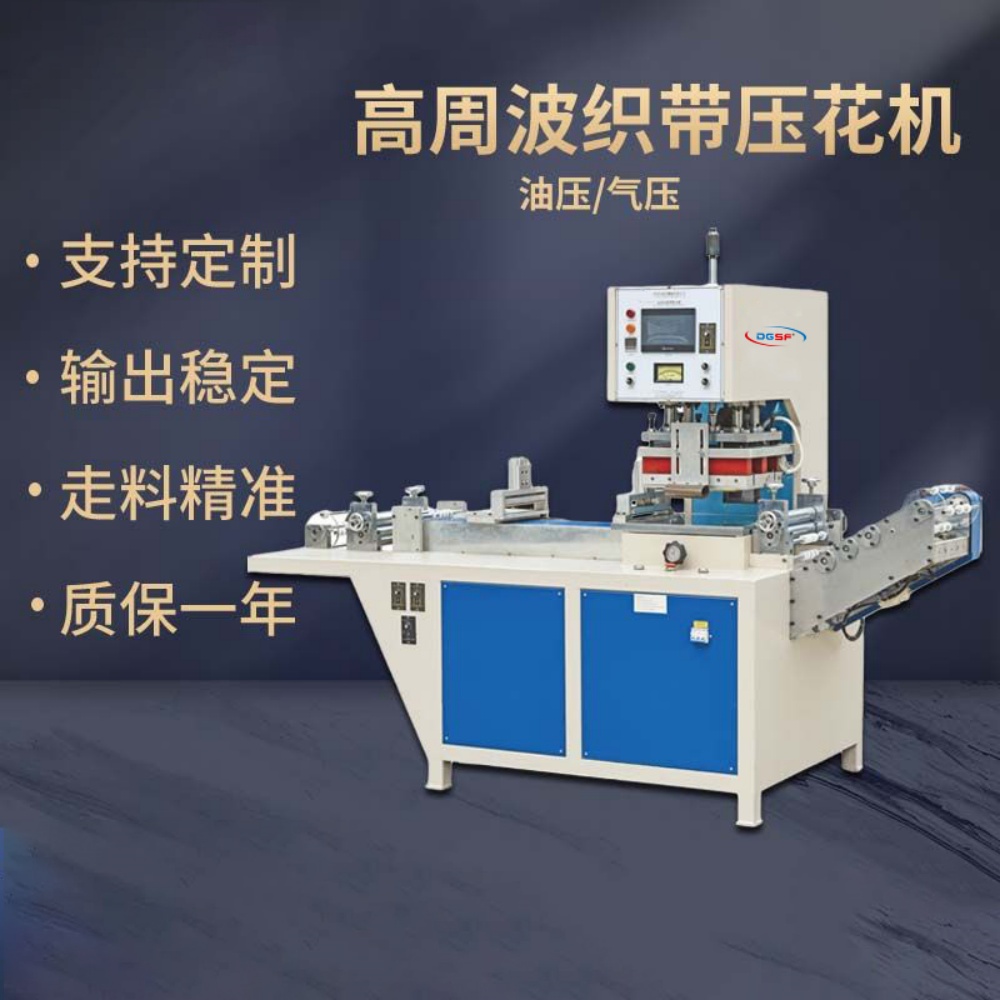

Features:
• The fully automatic embossing machine features an automatic tape feeding and discharging system, and includes hot pressing and high-frequency functions.
• Different patterns can be embossed using different molds, and the embossing can withstand tensile and washing tests.
• The machine is available in both pneumatic and hydraulic versions, allowing for selection based on specific needs. It is equipped with digital temperature control, a PLC + HMI, and a built-in counting function.
• The pneumatic version can simultaneously feed 1-2 webbings; the hydraulic version can simultaneously feed 4-6 webbings.
• The machine produces clear embossing, stable performance, and precise positioning.

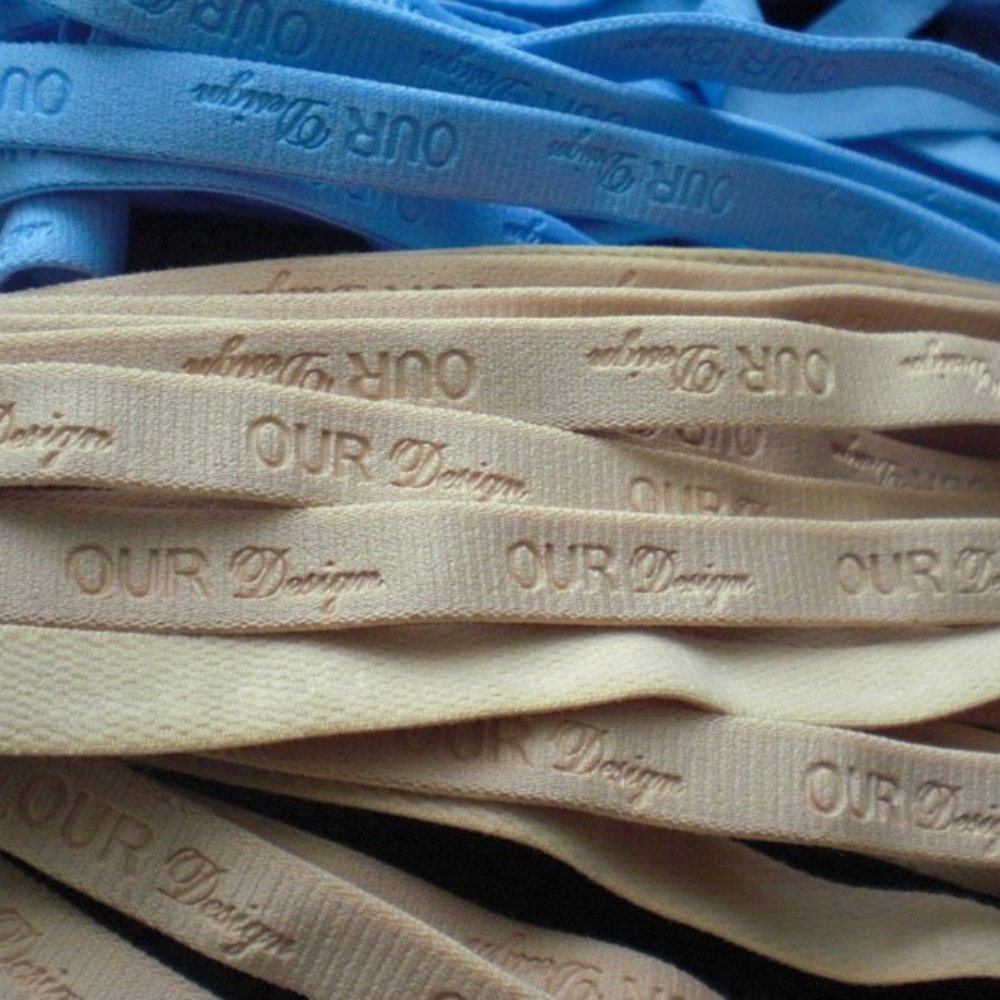

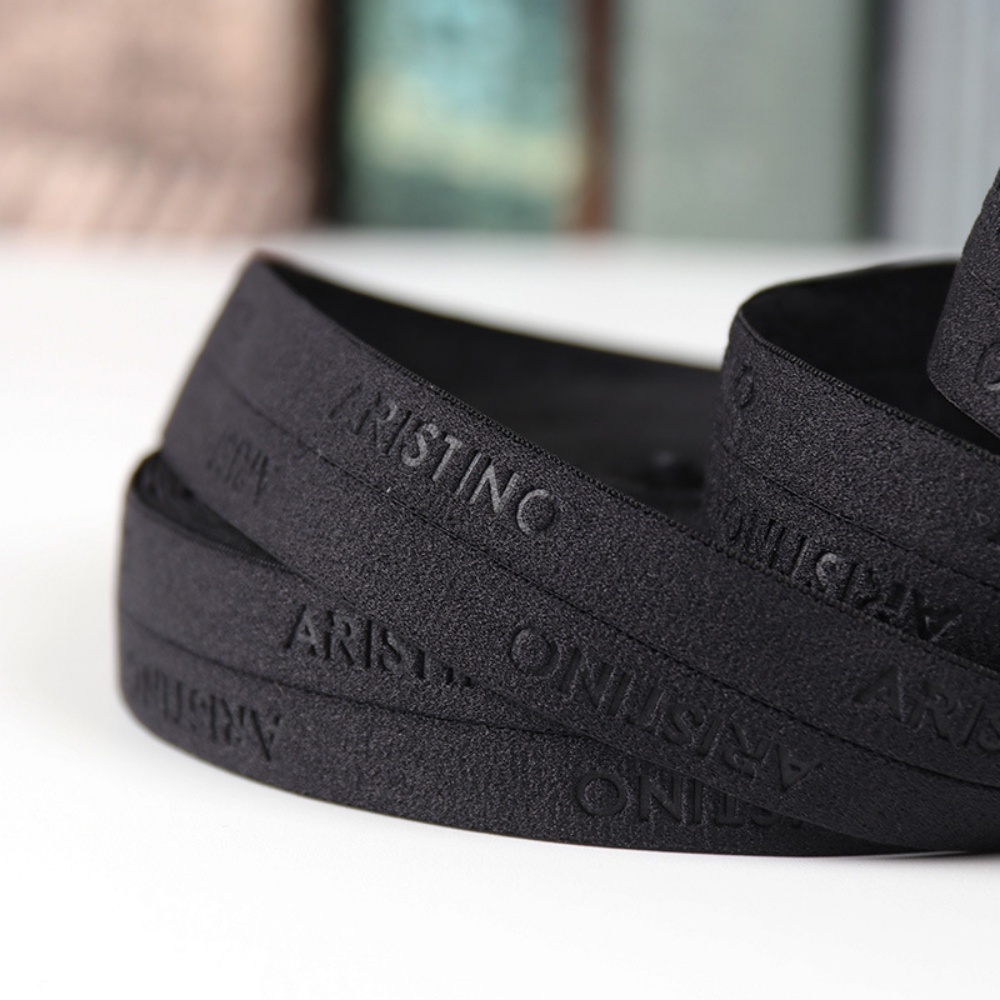

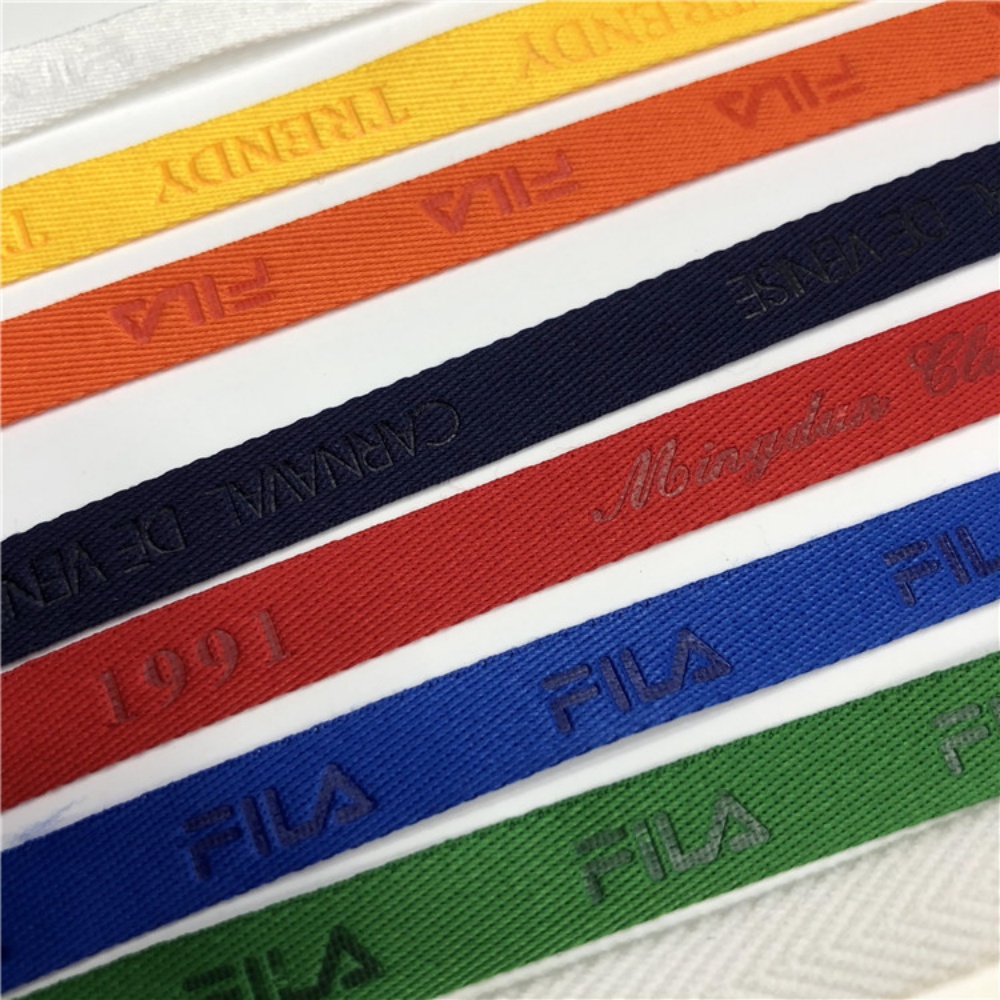

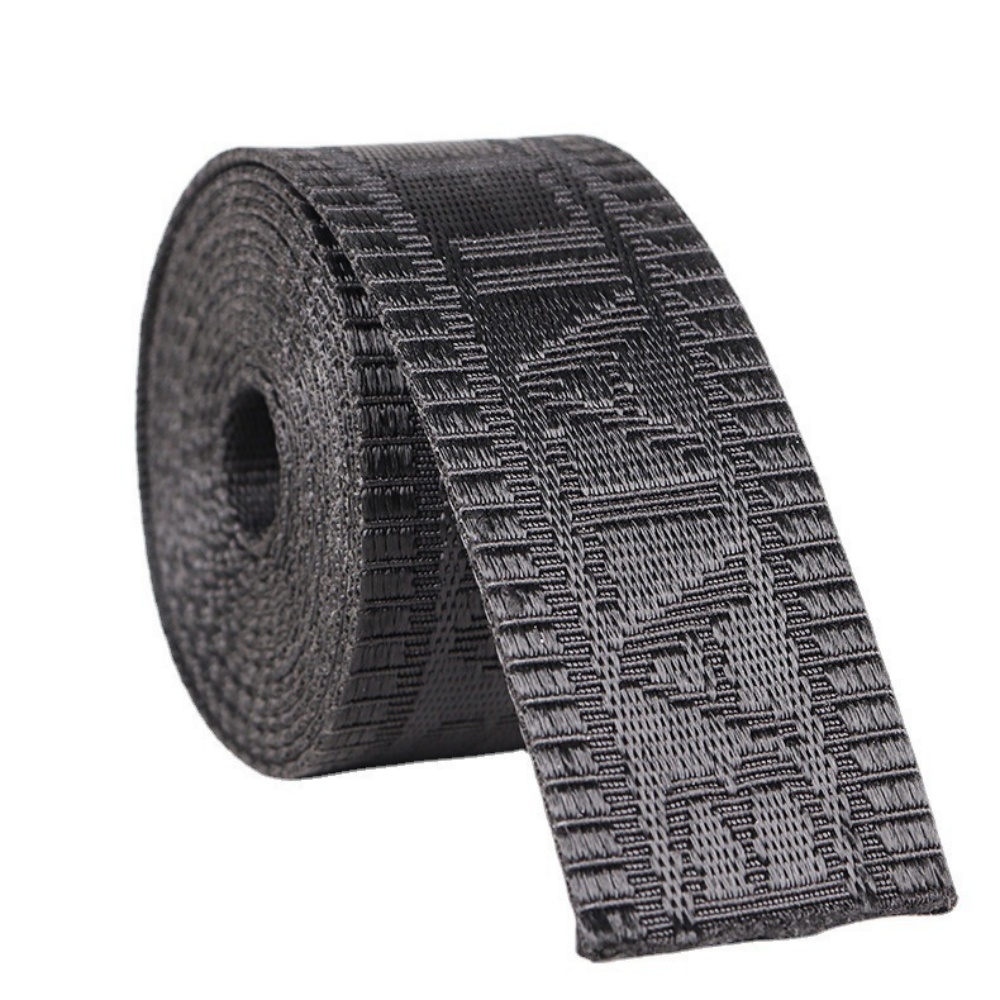

• Primarily used for embossing various webbings and hot stamping on garment accessories.
Technical Parameters:
|

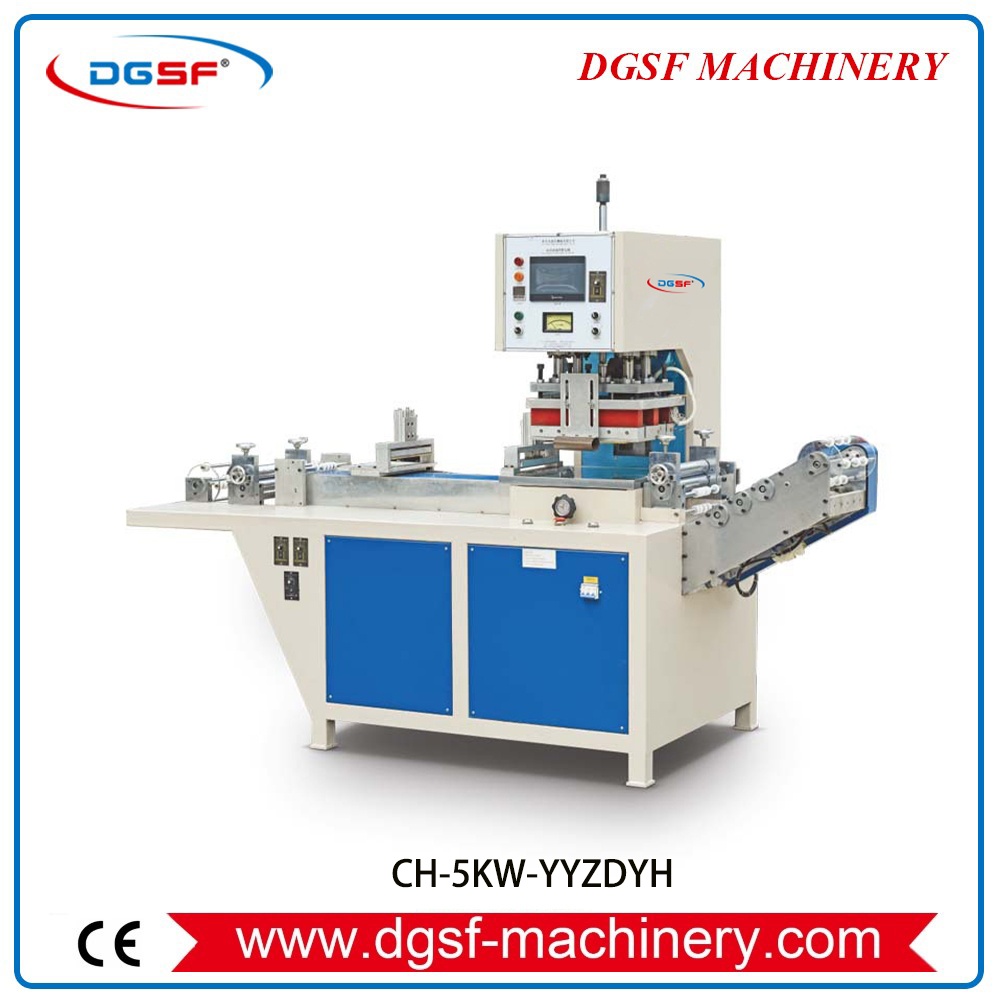

Model Number |
CH-5KW-YYZDYH |
|
Output Power |
5KW |
|
Voltage |
220V/380V 3P50/60Hz |
|
Input Power |
8KVA |
|
Oscillation Frequency |
27.12MHz |
|
Oscillation Tube |
7T85RB |
|
Anti-Spark System |
NL-5557 |
|
Max Pressure |
2Ton hydraulic pressure |
|
Working Table Size |
300*400mm |
|
Machine Size |
2600*1000*1850mm |
|
Machine Weight |
1200KG |
