Features:

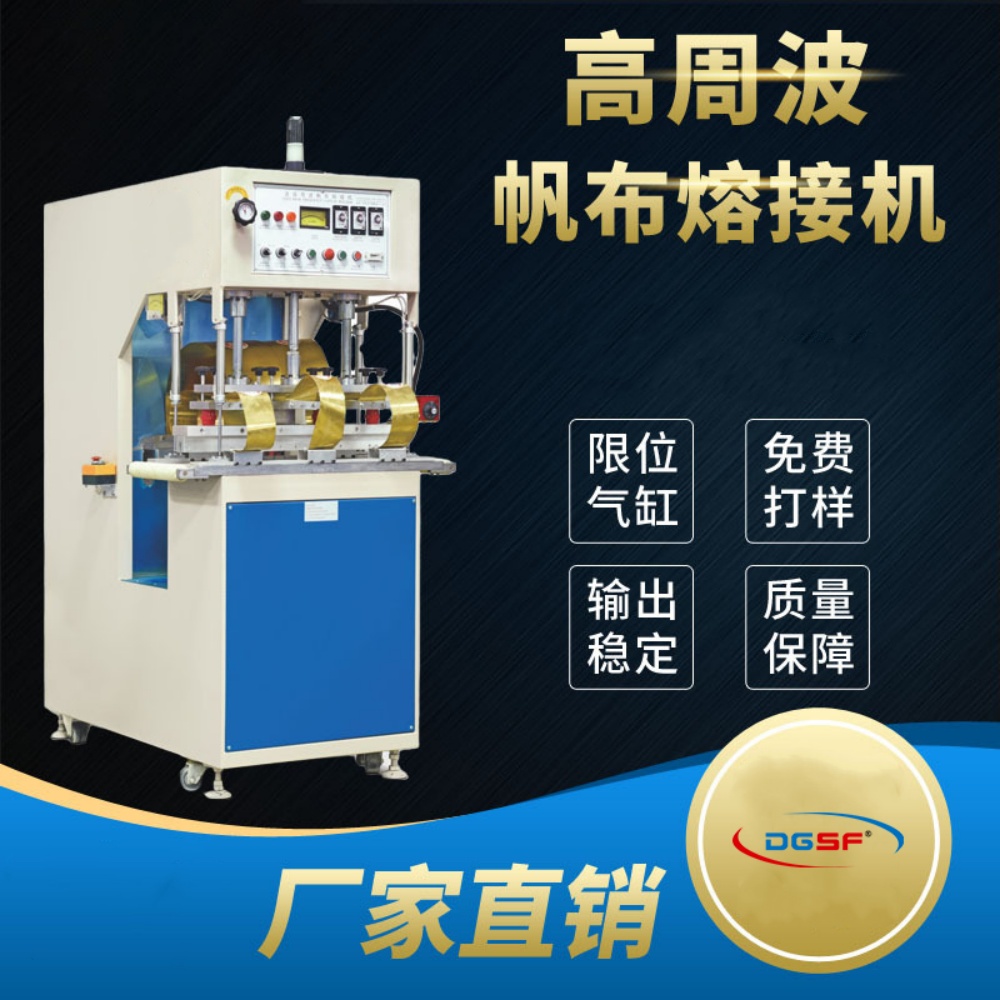

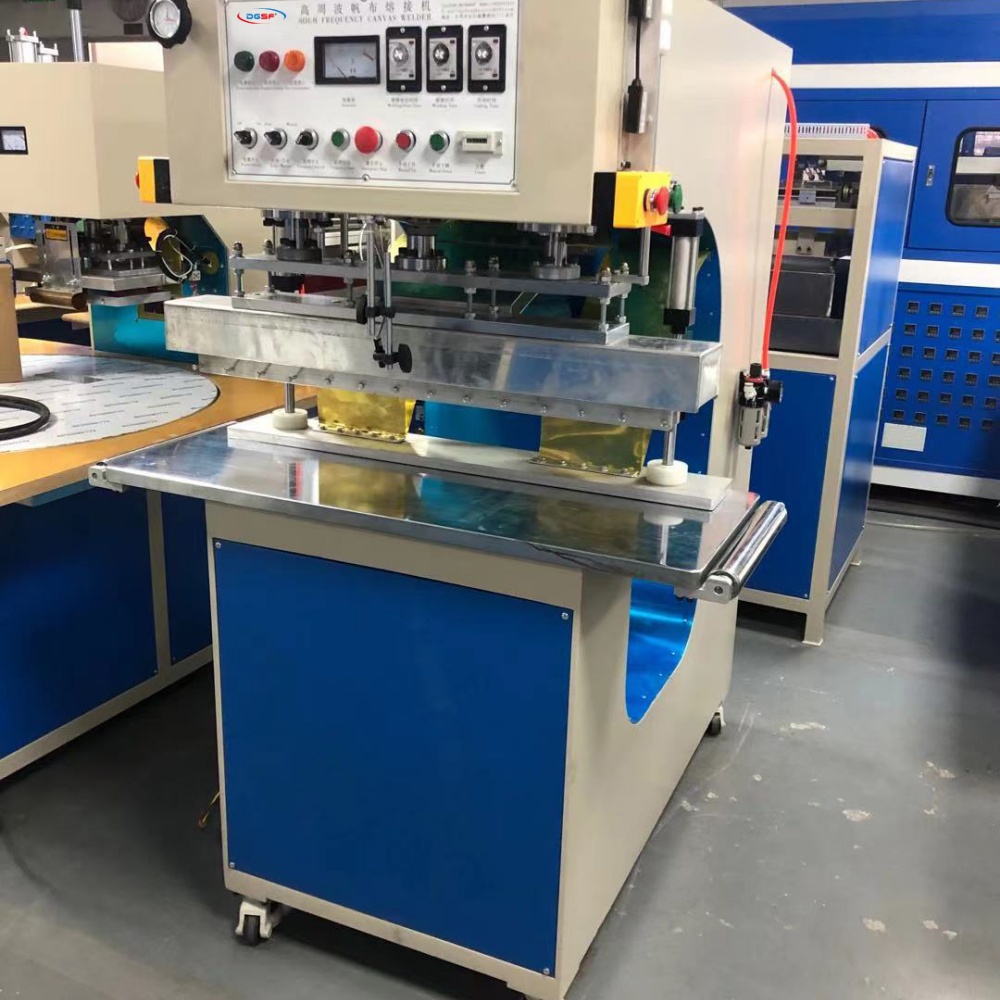

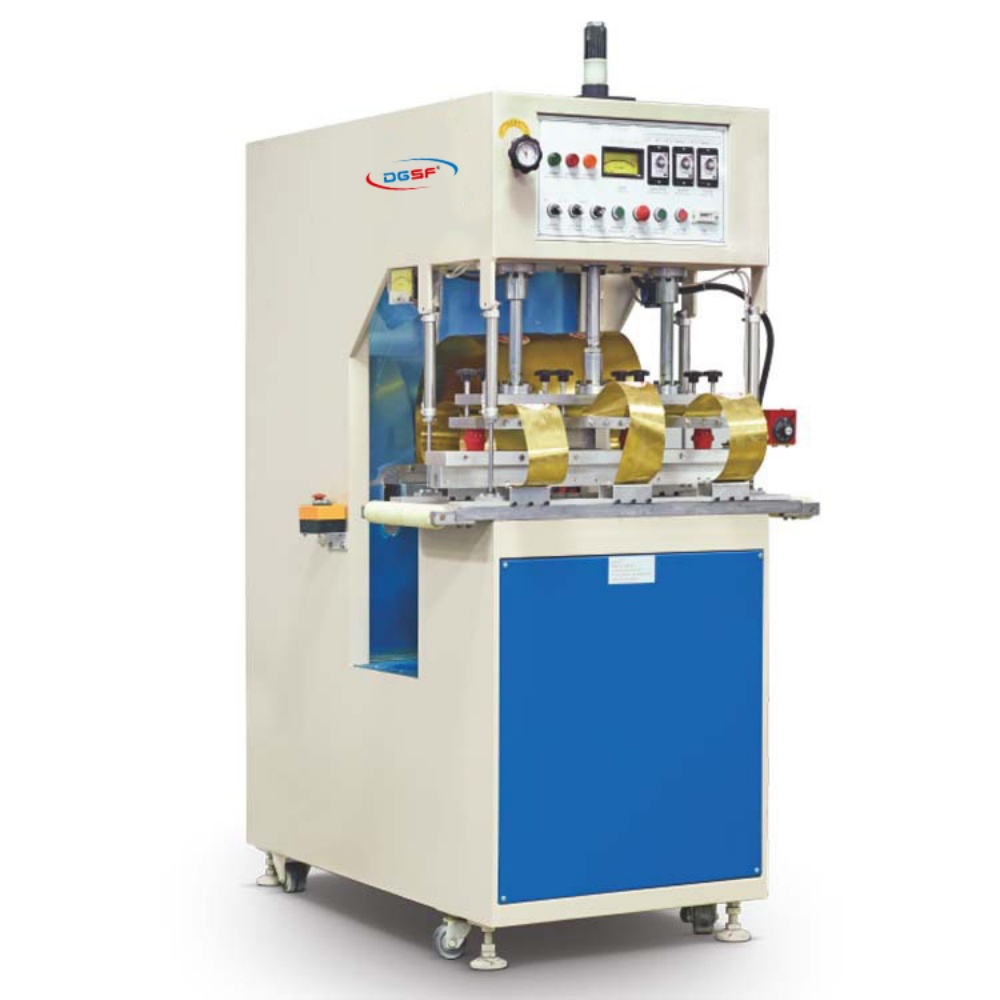

• The machine has a G-type structure and is suitable for welding canvas tents, advertising banners, masking fabrics, or splicing soft plastics containing 30% PVC. Through high-frequency welding, the materials welded at this frequency have a smooth, flat, aesthetically pleasing, and strong surface.
• The machine has a deep and wide feed groove, facilitating large-area continuous splicing. The machine can rotate continuously for pressing and welding, and the round-trip length can be customized.
Technical Parameters:
|
Model Number |

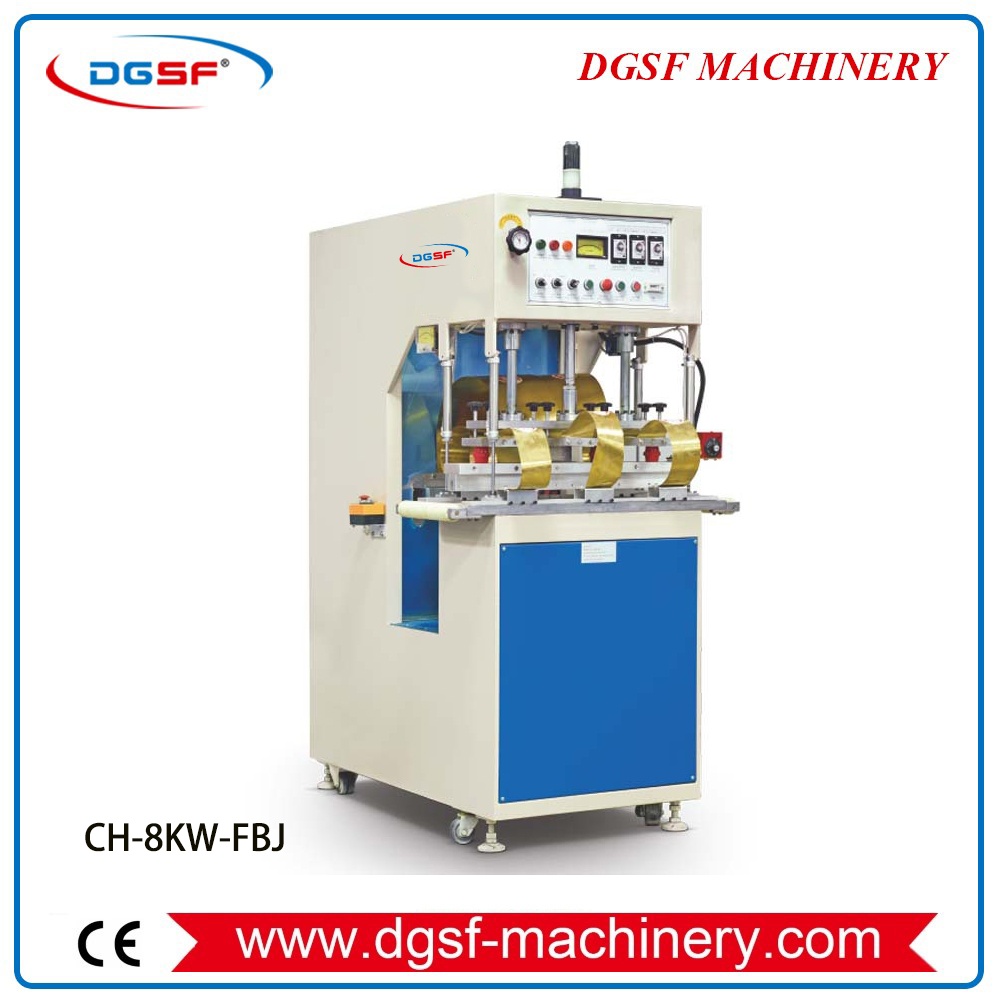

CH-8KW-FBJ |
CH-12KW-FBJ |
CH-15KW-FBJ |
|
Output Power |
8KW |
12KW |
15KW |
|
Voltage |
220V/380V 3P50/60Hz |
||
|
Input Power |
10KVA |
15KVA |
25KVA |
|
Oscillation Frequency |
27.12MHz |
27.12MHz |
27.12MHz |
|
Oscillation Tube |
7T69RB |
E3130 |
8T85RB |
|
Anti-Spark System |
NL-5557 |
NL-5557 |
NL-5557 |
|
Size of Mould Holder |
50*800mm |
50*1000mm |
50*1500mm |
|
Working Table Size |
350*900mm |
350*1100mm |
350*1600mm |
|
Machine Size |
1000*1350*2000mm |
1200*1350*2000mm |
1700*1480*2000mm |
|
Machine Weight |
500KG |
600KG |
800KG |
