Features:

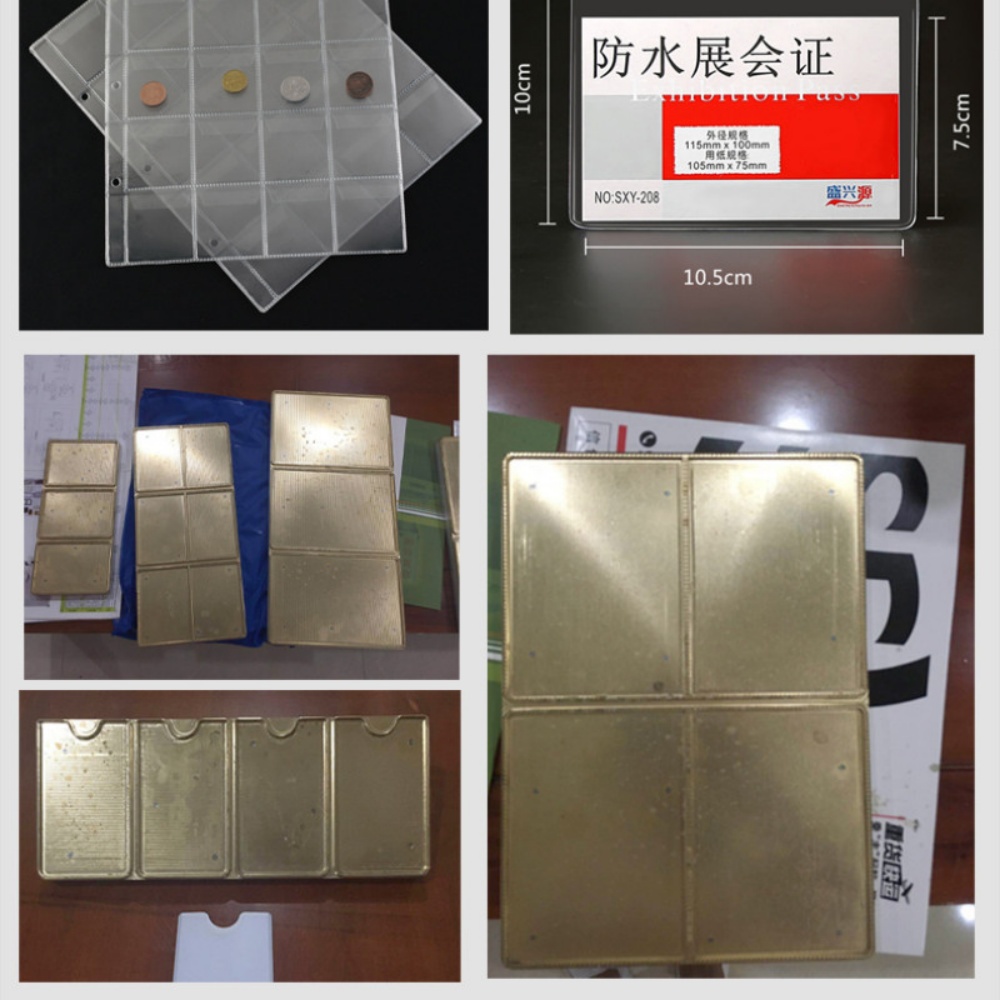

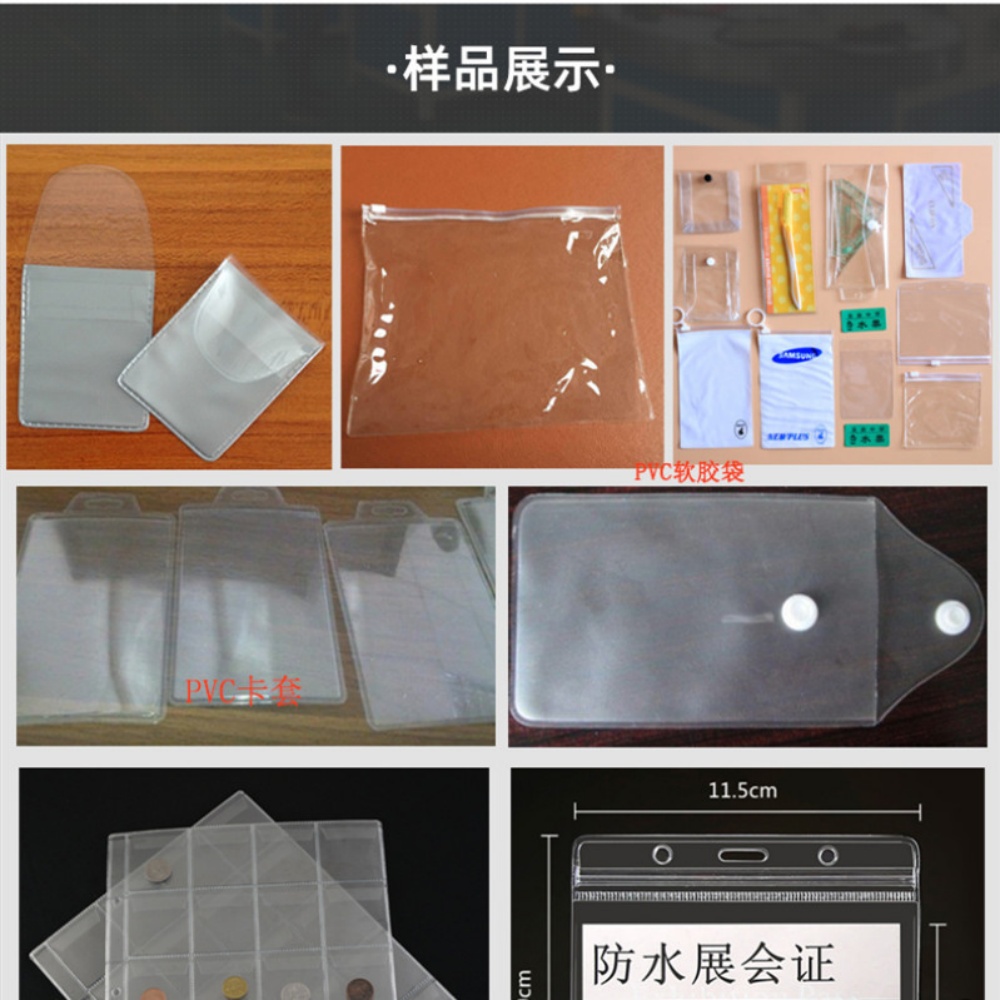

• Primarily suitable for medical PVC infusion bags, photo album pages, business card holder pages, book covers, notebook covers, packaging bags, and other flat bags; suitable for materials containing 30% or more PVC soft plastic.

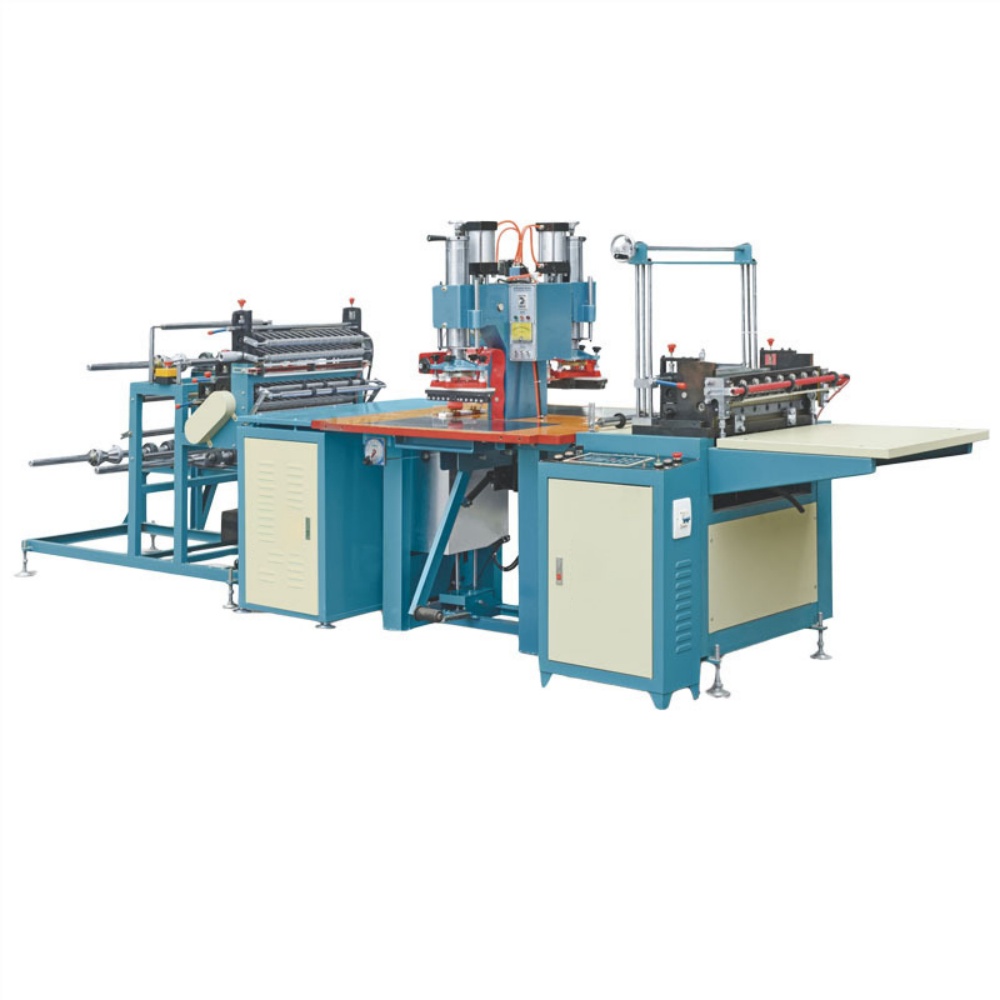

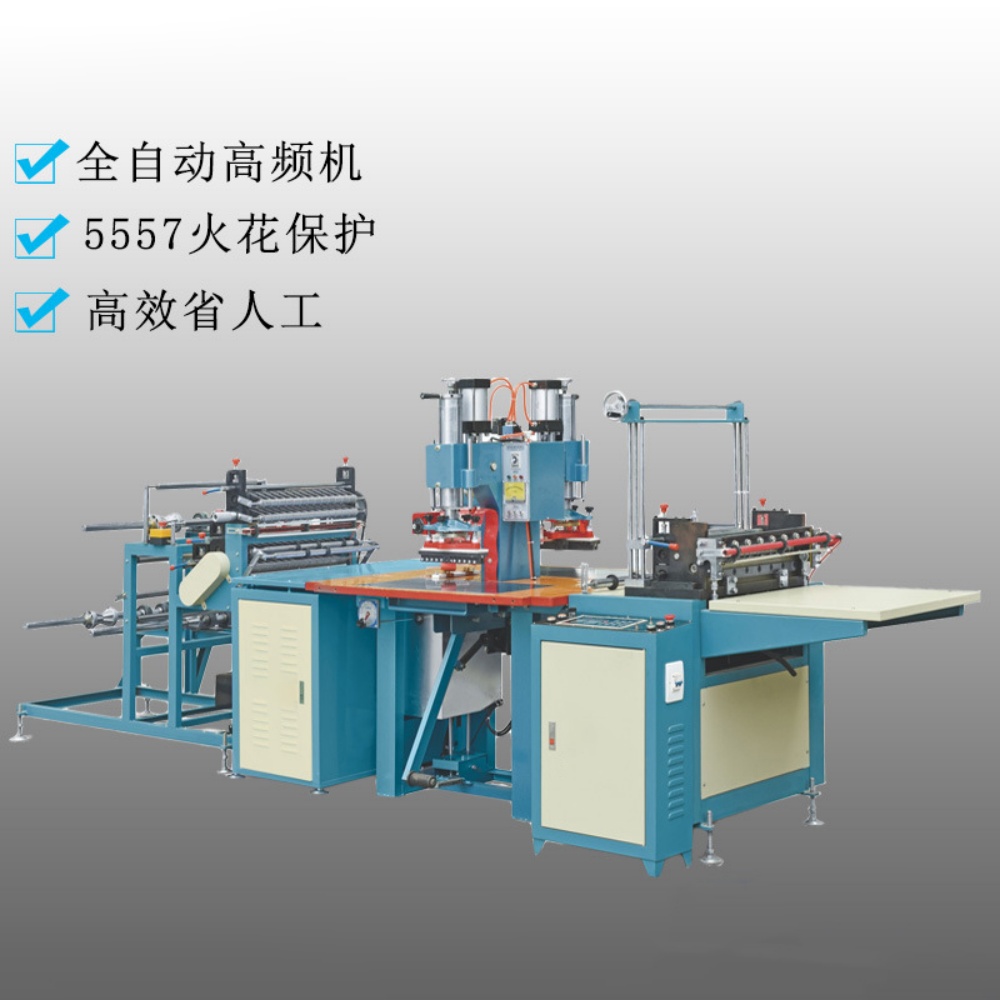

• This machine adopts a PLC programmable system; it supports roll material production and is equipped with a fully automatic feeding and waste collection device, resulting in a high degree of automation; accurate mold positioning effectively controls edge material waste.
• Easy to operate, replacing traditional single-product production, saving labor and increasing efficiency.
• High-frequency output, high output power, and stable current.
Spark protection device effectively protects mold materials and internal electronic components.
Technical Parameters:
|
Model Number |

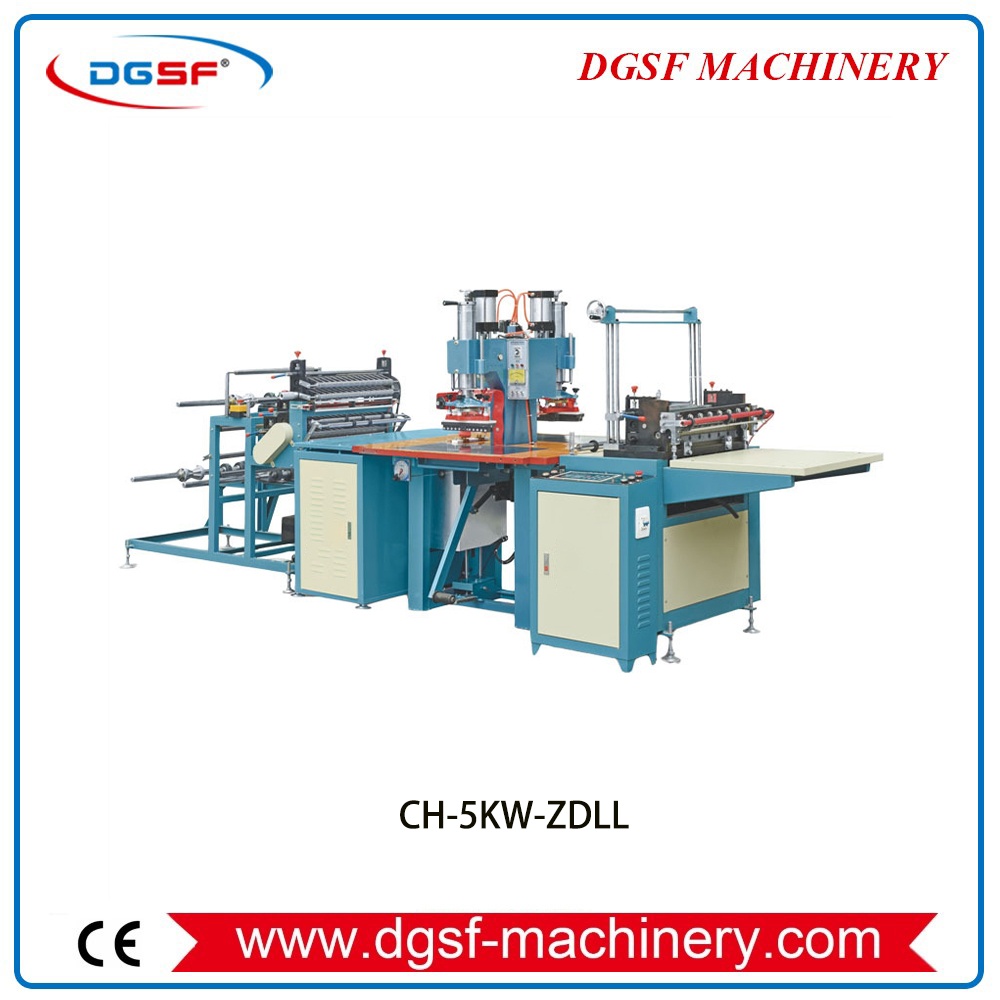

CH-5KW-ZDLL |
CH-8KW-ZDLL |
|
Output Power |
5KW |
8KW |
|
Voltage |
3P380V50/60HZ |
|
|
Input Power |
8KVA |
10KVA |
|
Oscillation Frequency |
27.12MHz |
27.12MHz |
|
Oscillation Tube |
7T85RB |
7T69RB |
|
Anti-Spark System |
NL-5557 |
NL-5557 |
|
Max Pressure |
400KG |
400KG |
|
Distance of upper |
170mm |
170mm |
|
Working Table Size |
350*700mm |
350*700mm |
|
Machine Size |
4600*1100*1500mm |
4600*1100*1500mm |
|
Machine Weight |
600KG |
700KG |
