Features:

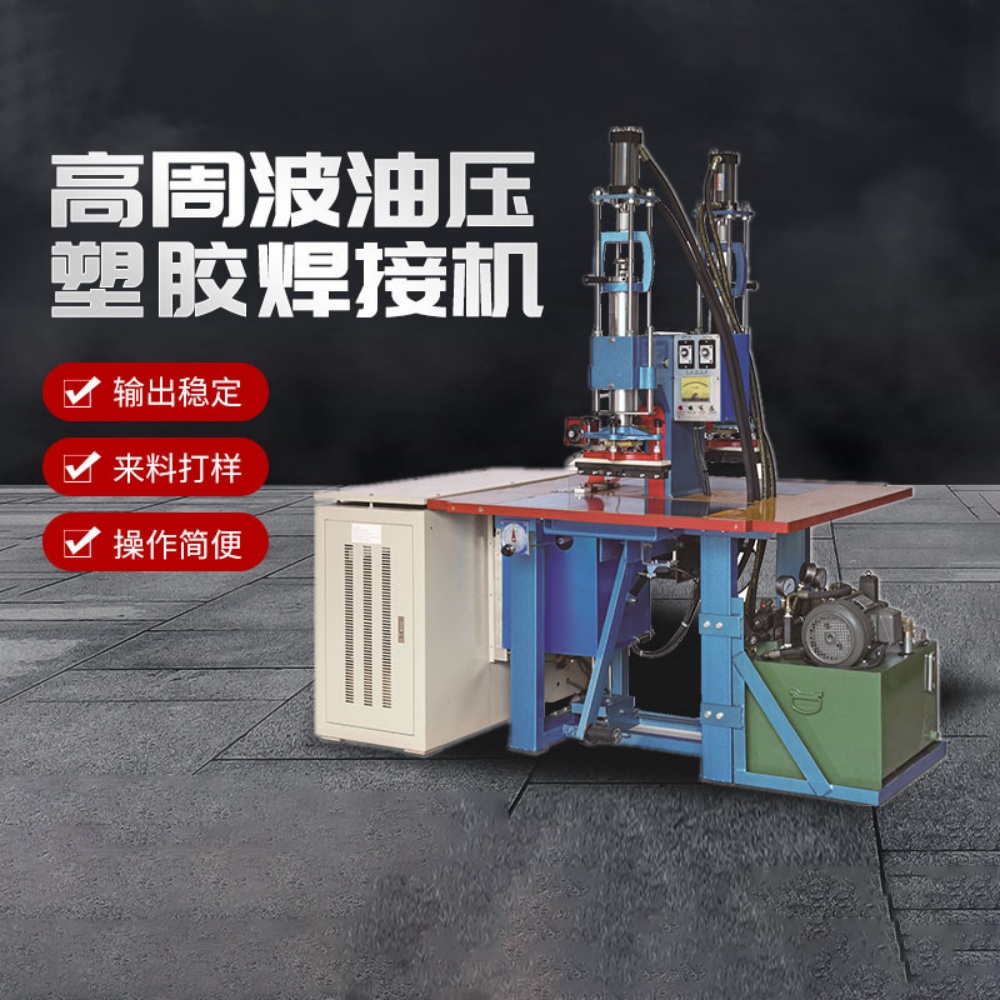

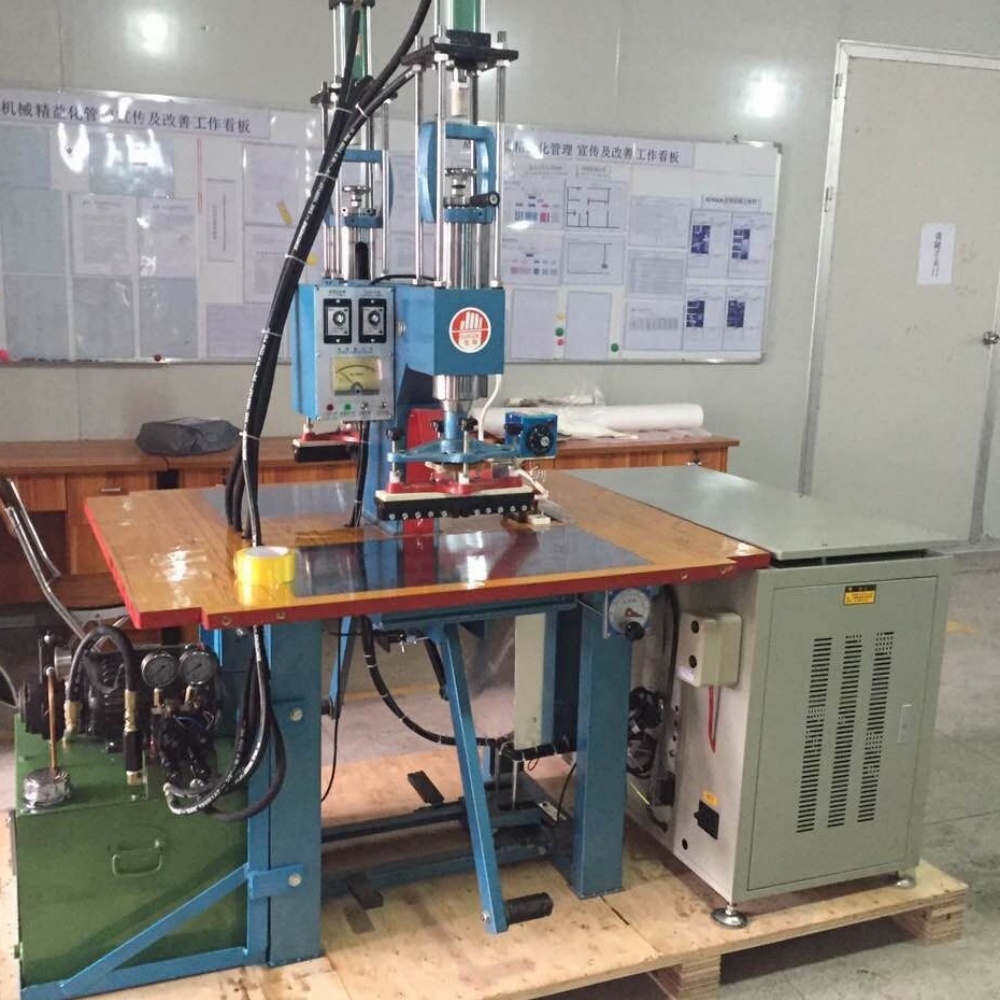

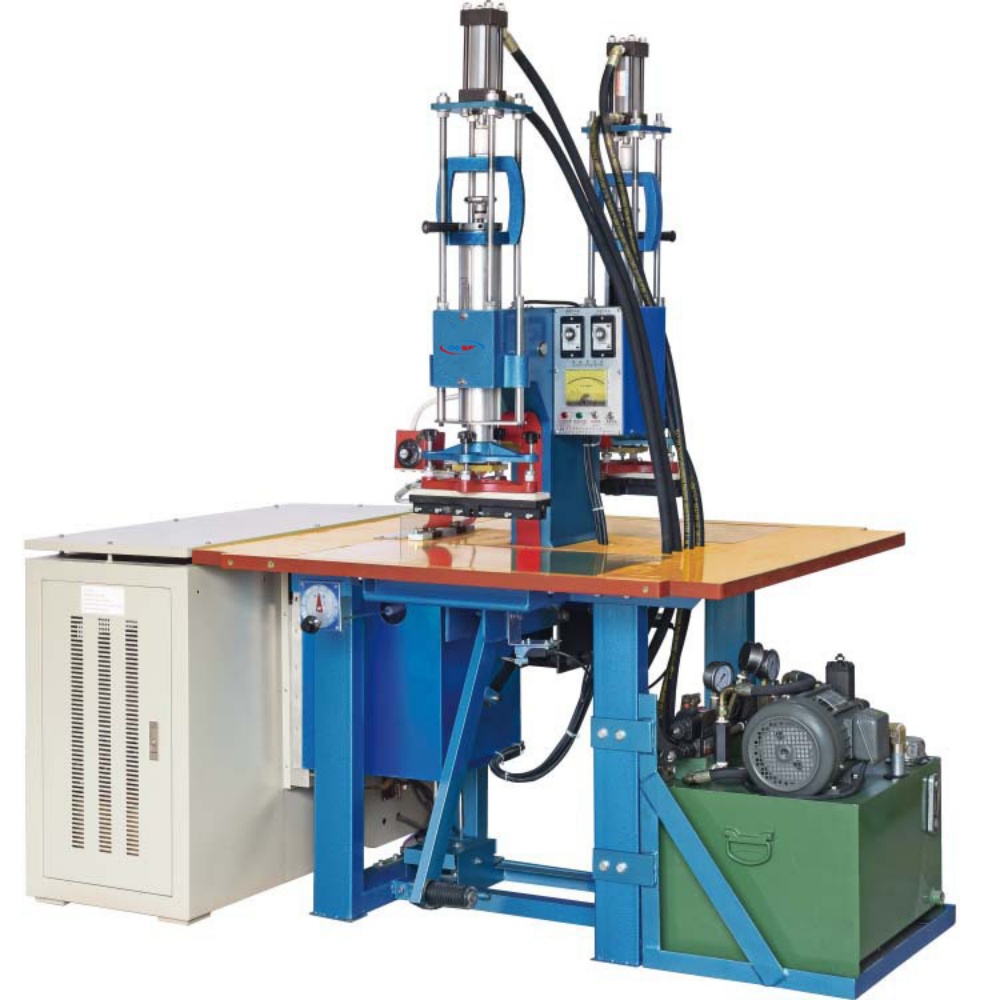

• High-frequency dual-head welding machines are available in pneumatic and hydraulic versions;
• The machine features a dual-head foot-operated structure for easy product alignment; operators need to use both feet to operate the equipment, with the left foot controlling the high-frequency pedal and the right foot controlling the raising and lowering of the welding head;
• The high-frequency welding time is adjustable, with the two welding heads used alternately; the welding head pressure can be adjusted arbitrarily to achieve the desired depth of high-frequency welding;

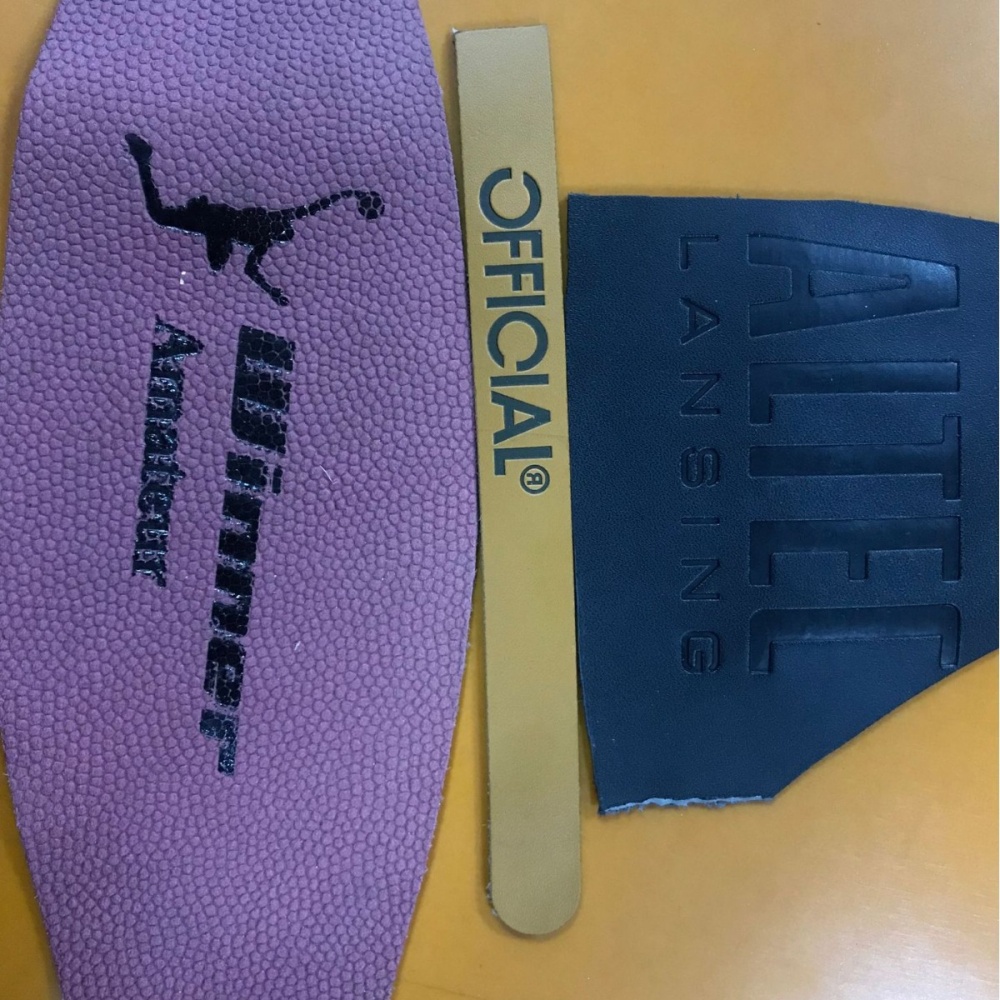

• Primarily suitable for: welding PVC products, leather embossing, hot stamping logos, etc.
Technical Parameters:
|
Model Number |

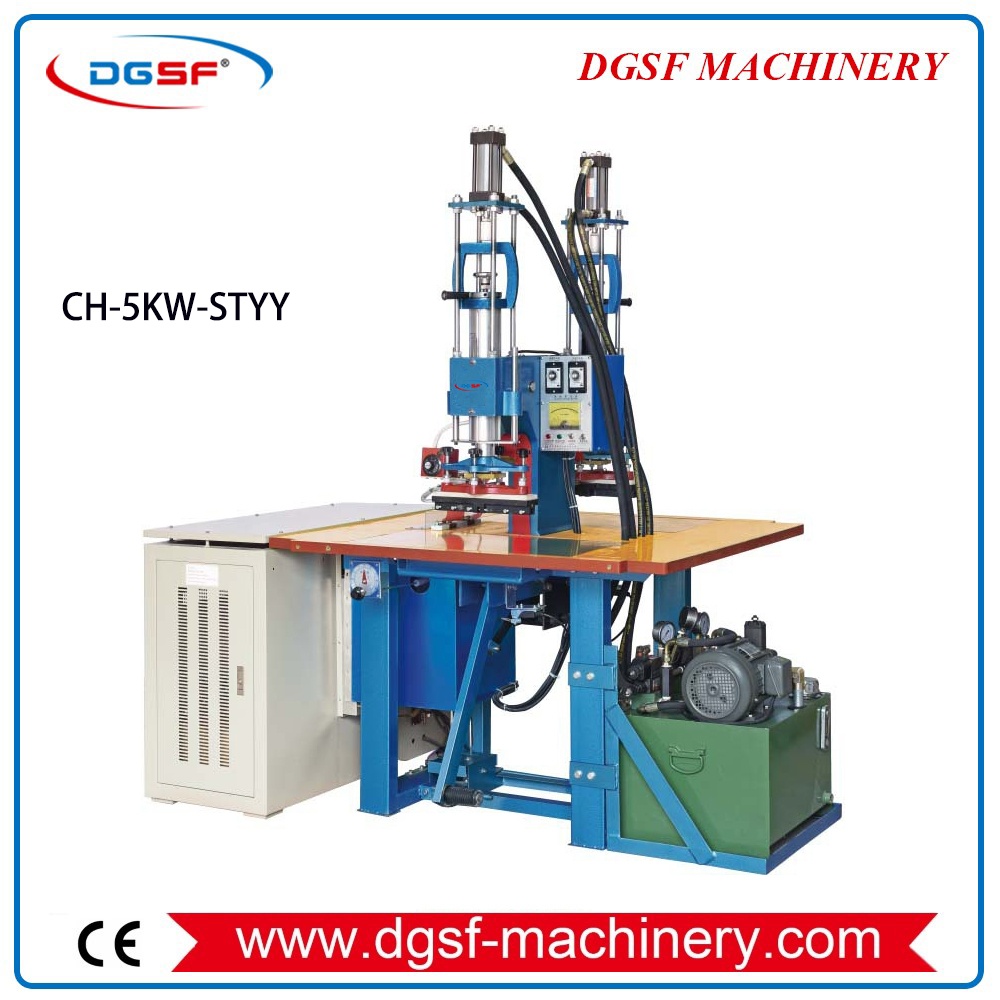

CH-5KW-STYY |
CH-8KW-STYY |
CH-10KW-STYY |
|
Output Power |
5KW |
8KW |
10KW |
|
Voltage |
220V/380V 3P50/60Hz |
||
|
Input Power |
8KVA |
10KVA |
12KVA |
|
Oscillation Frequency |
27.12MHz |
27.12MHz |
27.12MHz |
|
Oscillation Tube |
7T85RB |
7T69RB |
E3069 |
|
Anti-Spark System |
NL-5557 |
NL-5557 |
NL-5557 |
|
Max Pressure |
1200KG |
1200KG |
1200KG |
|
Working Table Size |
350*700mm |
350*700mm |
350*700mm |
|
Machine Size |
1900*1070*1950mm |
1900*1070*1950mm |
1900*1070*1950mm |
|
Machine Weight |
500KG |
550KG |
550KG |
If you are interested in the product, contact 2bvideo.com for more information for more information
