Hydraulic Press Shear Lefort Shear Baler Baler Shear

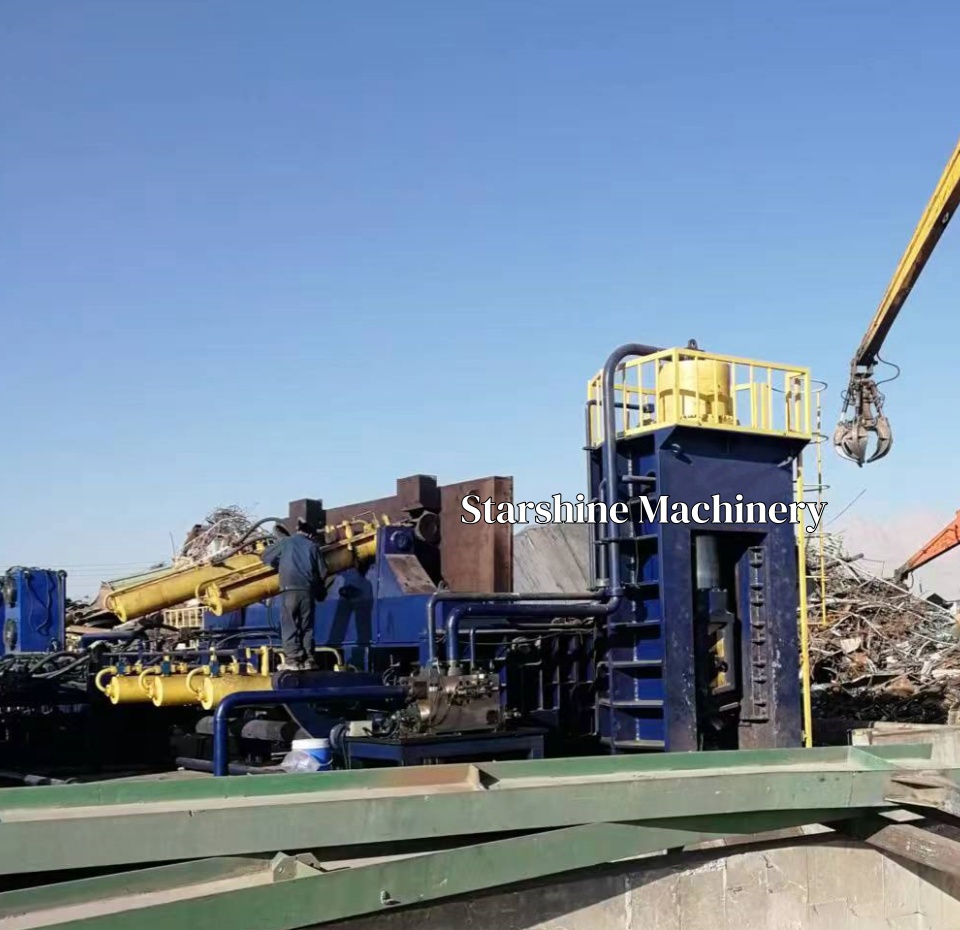

Heavy-duty scrap metal baling and shearing machine (also known as gantry baling and shearing machine, box shearing machine) is the core heavy equipment in the field of metal recycling, which integrates the functions of pre-pressing packing and shearing, and specializes in processing large and irregular scrap steel/scrap metal.

Core positioning and function of hydraulic shear press

-Core function: pre-compact the loose/large scrap metal (such as car shell, I-beam, ship plate, light and thin material), and then cut it into standardized furnace material blocks through the gantry cutter head, so as to achieve "volume reduction + crushing" in one step.

-Applicable materials:scrap steel, scrap iron, scrap automobile, section steel, steel plate, steel bar, metal structure, etc.

-Applicable scenarios: large scrap steel recycling bases, steel plants, automobile dismantling plants and smelters are the key equipment for "concentrate feeding".

-Structural composition Main frame: high strength steel plate welded gantry structure, bearing huge shear force.

-Pre-compaction packing system: side cylinder/upper cylinder compacts the material, reduces the gap and improves the shearing efficiency.

-Shearing system: The main hydraulic cylinder drives the heavy-duty cutter head to cut the material vertically downward.

-Hydraulic system: high pressure oil pump + oil cylinder, providing 25 – 32 MPa working pressure to achieve high thrust.

-Electric control system: PLC fully automatic control, support manual/automatic mode, with safety protection.

Workflow of metal shear press

-Feeding: The scrap metal is fed into the bin by the steel grabber/loader.

-Pre-pressing: the pressing cylinder is pushed forward to compact and fix the material.

-Cutting: the main cylinder drives the cutter head downward to cut off the material.

-Discharging: the sheared material block automatically falls off to complete the cycle.

Core advantages of Press Shear

-Efficient integration: baling + cutting integration, no need for additional equipment, single shift capacity can reach 80 – 250 tons.

-Safe and reliable: the closed material box is designed to avoid material splashing and comply with safety regulations.

-Strong durability: the cutter head is made of H13 alloy steel, which is wear-resistant and impact-resistant; the welding process of the body conforms to JB/T 5943 standard.

-Convenient operation: PLC fully automatic control, 1 person can operate, support remote monitoring.

-Energy saving and environmental protection: low noise of hydraulic drive, high density of material block after shearing, reducing the loss of transportation and recycling.
