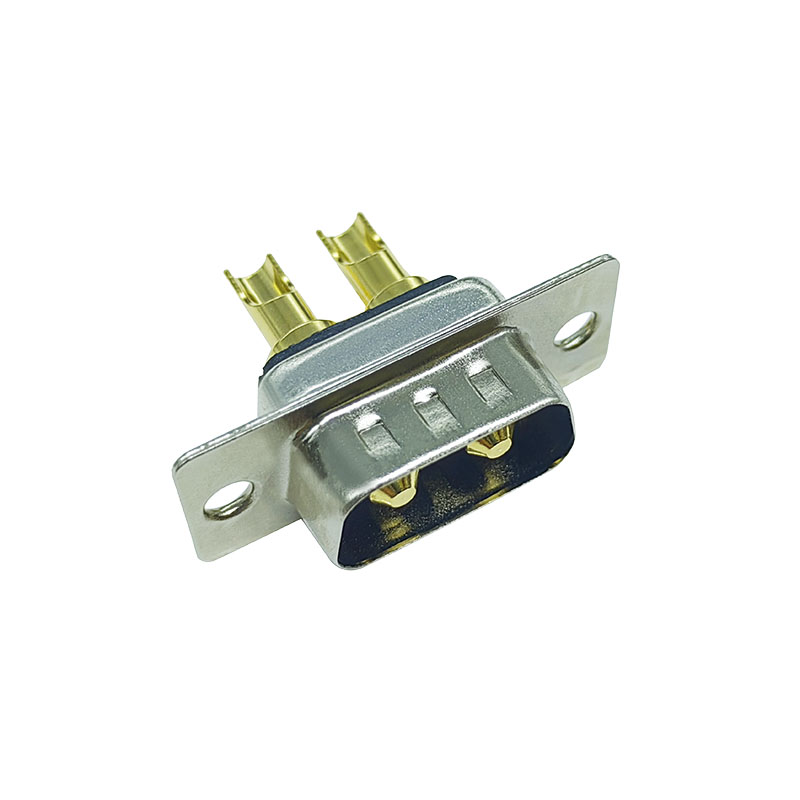

2W2 High-Current d connector: Small Size, Big Power

When mentioning dsub connector, many people's first reaction is: "Isn't that an old interface? I've seen it on printers."

But this 2W2 is really not the "old relic" you think it is.

What is a 2W2 d sub connector ?

Within the standard D-sub housing size, it integrates 2 high-current contacts and 2 regular signal contacts.

To sum it up in one sentence: One interface handles both power transmission and signal control.

No need to pair it with a separate bulky power connector anymore—2W2 saves you space, cost, and hassle.

Core Highlights

High Current Carrying Capacity

Each high-current pin typically supports 10A to 40A (depending on the specific model). Customization is supported. While regular pins might start heating up at this current, the 2W2 says: Piece of cake.

Compact D-sub Size

Space-saving and PCB-layout friendly. Structural engineers will be speechless, and layout engineers will shed tears—the touched kind.

Reliable Locking Mechanism

Supports screw locking or snap-fit fixation. With such high current, the contact naturally needs to be as stable as a rock.

Optional Waterproof Version (IP67)

If used outdoors, in humid conditions, or in environments where "a colleague accidentally spilled water again," the waterproof version is always ready.

Typical Application Scenarios

Industrial Power Equipment

Don't ask "why is the interface a bit hot?" anymore. Use 2W2 for rock-solid stability.

EV Charging Stations & Battery Systems

High current requires high trust, and 2W2 can deliver.

Medical Equipment

Reliability isn't a bonus point; it's a must-have.

Test & Measurement Instruments

Lab equipment can be precise, but it cannot be fragile.

Technical Parameters

Rated Current Male: 10AMP~40AMP

Rated Current Female: 10AMP~40AMP

Contact Resistance: 25mohms MAX

Insulation Resistance: 1000Mohms MIN

Withstanding Voltage: 1000VRMS

Operating Temperature: -55°~125°
