17 pin d sub power connector:

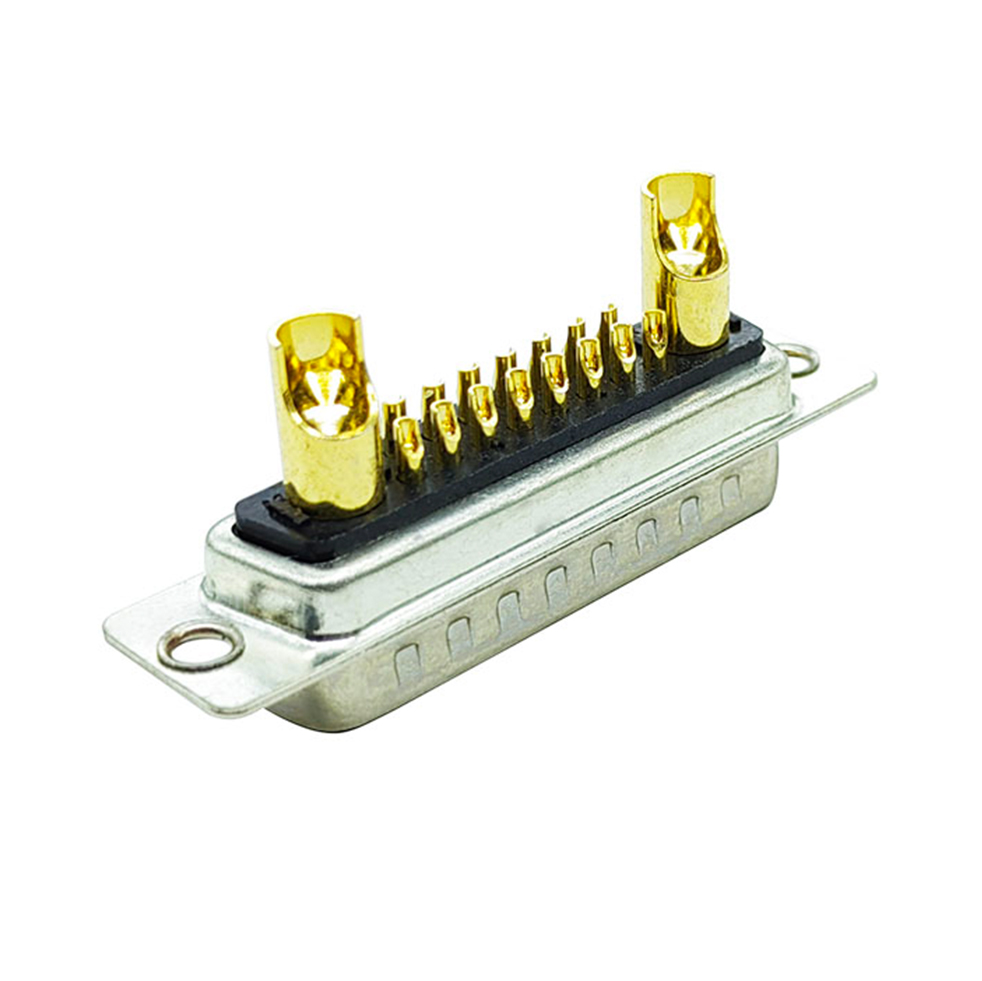

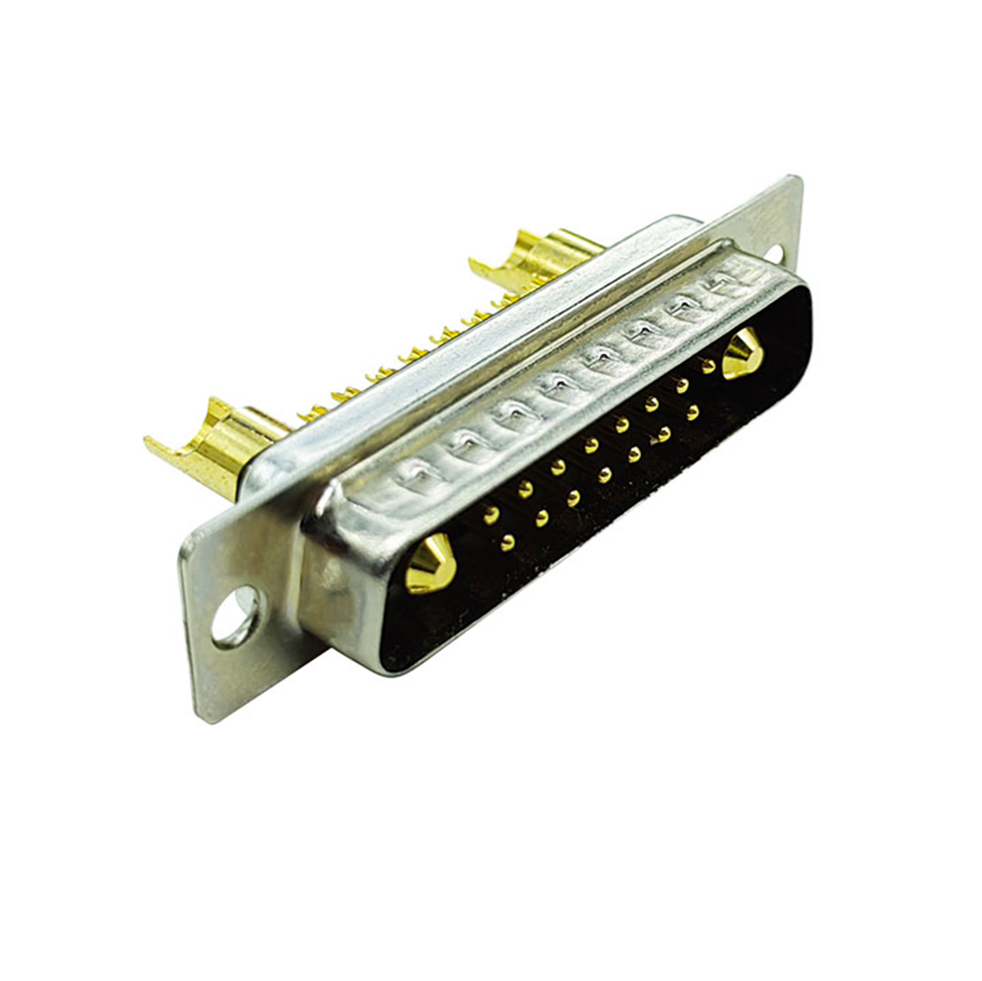

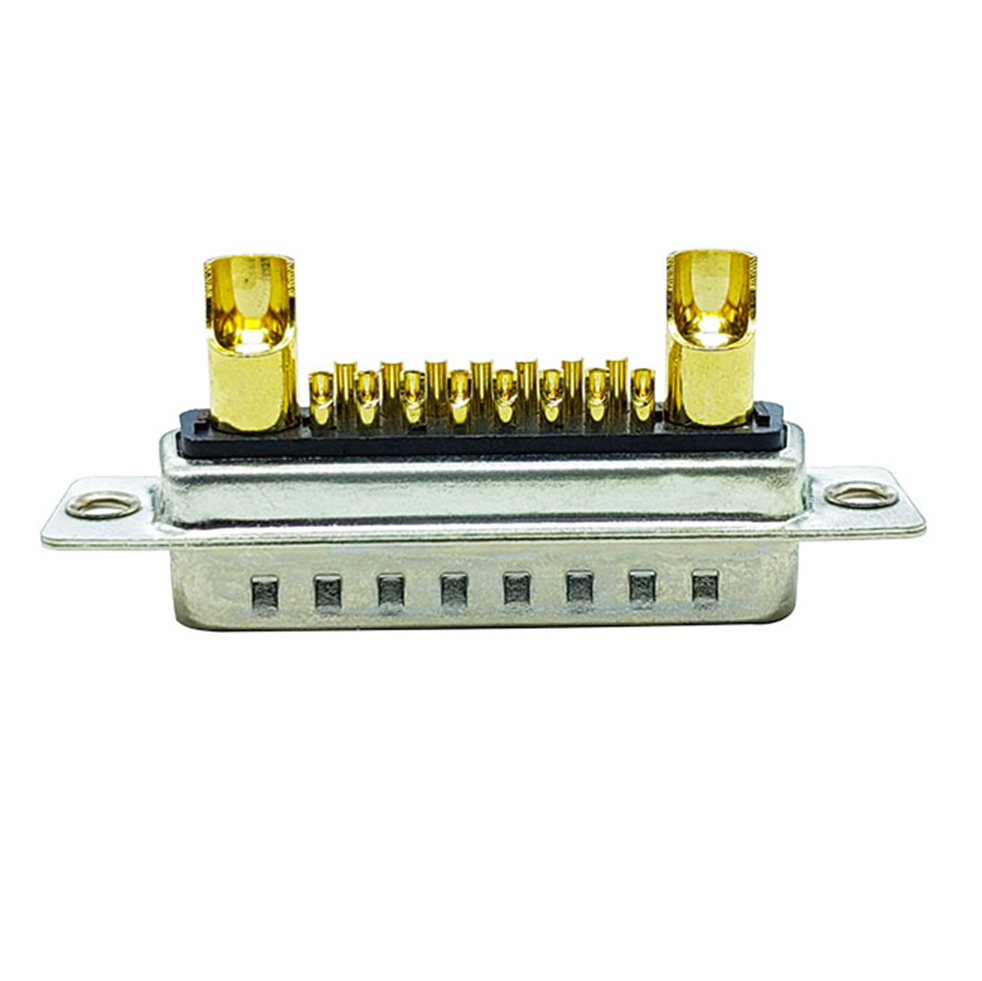

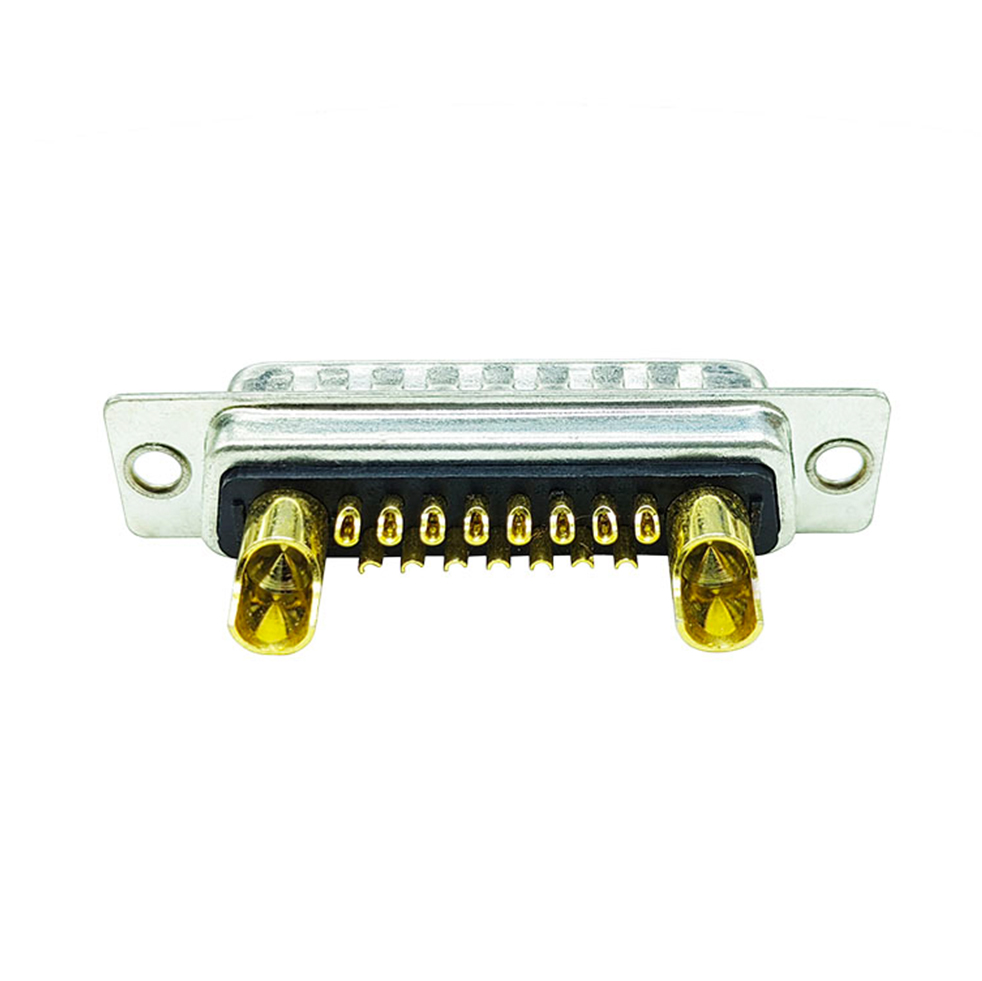

17W2 wire D-SUB mixed high current d connector, 15 pins signal + 2 pins high current classic ratio, The solder wire dsub connector (both piezo wire / hand solder wire can), does not require solder plate, is suitable for beam processing, external wiring of equipment, external wiring in a cabinet, and mobile equipment wiring. It is a common signal for industrial control, power supply, communication, and automation + a dual-way high-power one-way interface.

Core product advantages

1. Wire without board insertion: pure wire structure, suitable for wire harness products, no need to install PCB, the most convenient external wiring.

2. Mixed integration: 15 lines of control signal + 2 separate large current, one interface handles the power supply + signal, saving two interfaces from occupying space.

3. High current does not heat: 2 thick, high power terminals, large carrying current, low long-term full load temperature.

4. Anti-interference stability: metal shielding shell optional, anti-EMI electromagnetic interference, long line transmission signal without packet loss.

5. Adapted beam mass production: The end of the solder wire is corrected, so that the beam factory can weld in bulk, injection molding, and customizing long lines.

17W2 Wire D-SUB Customer Application Cases

Industrial Automation Equipment Cable Factory

Pain point: The external part of the equipment needs to go both control signal and two lines of power supply, the partial wiring is messy, and the installation on site is difficult and easy to make mistakes.

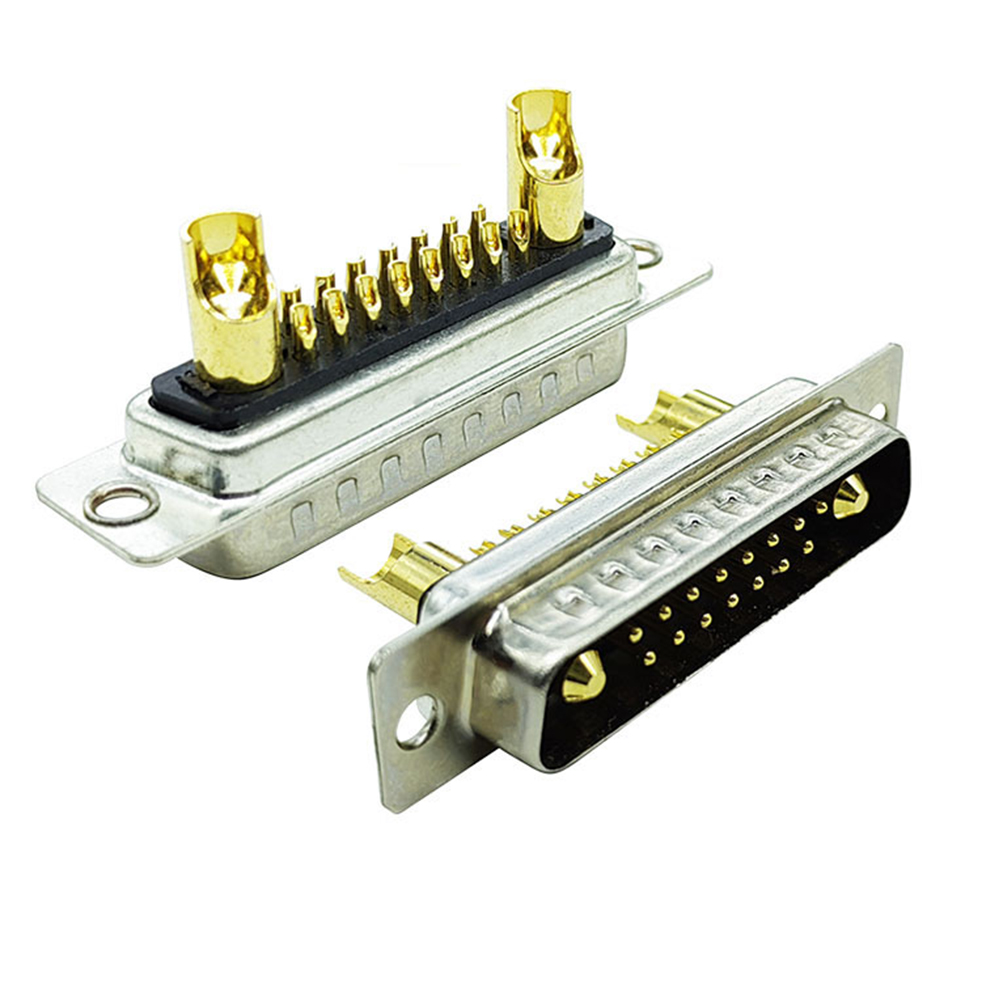

Solution: 17W2 wire bonding male and female docking, custom sets of wiring harness.

Effects: Single interface integrated docking, simple wiring to prevent misinserting; The power supply of the high current needle is stable, the equipment starts and stops without pressure reduction, and the assembly efficiency in the field is increased by half.

Outdoor security power control box

Pain point: Outdoor equipment has many external wires, which need to be waterproof and resistant to aging, 2 high power supply + multiple signal acquisition.

Solution: waterproof 17W2 wire D-SUB, with shielding + waterproof apron.

Effects: Dust protection and waterproofing are adapted to outdoor rain and humid environments; The gilded touch points are resistant to salt mist oxidation, the contact is stable for years of outdoor use, and the failure rate is greatly reduced.

Core specification parameters

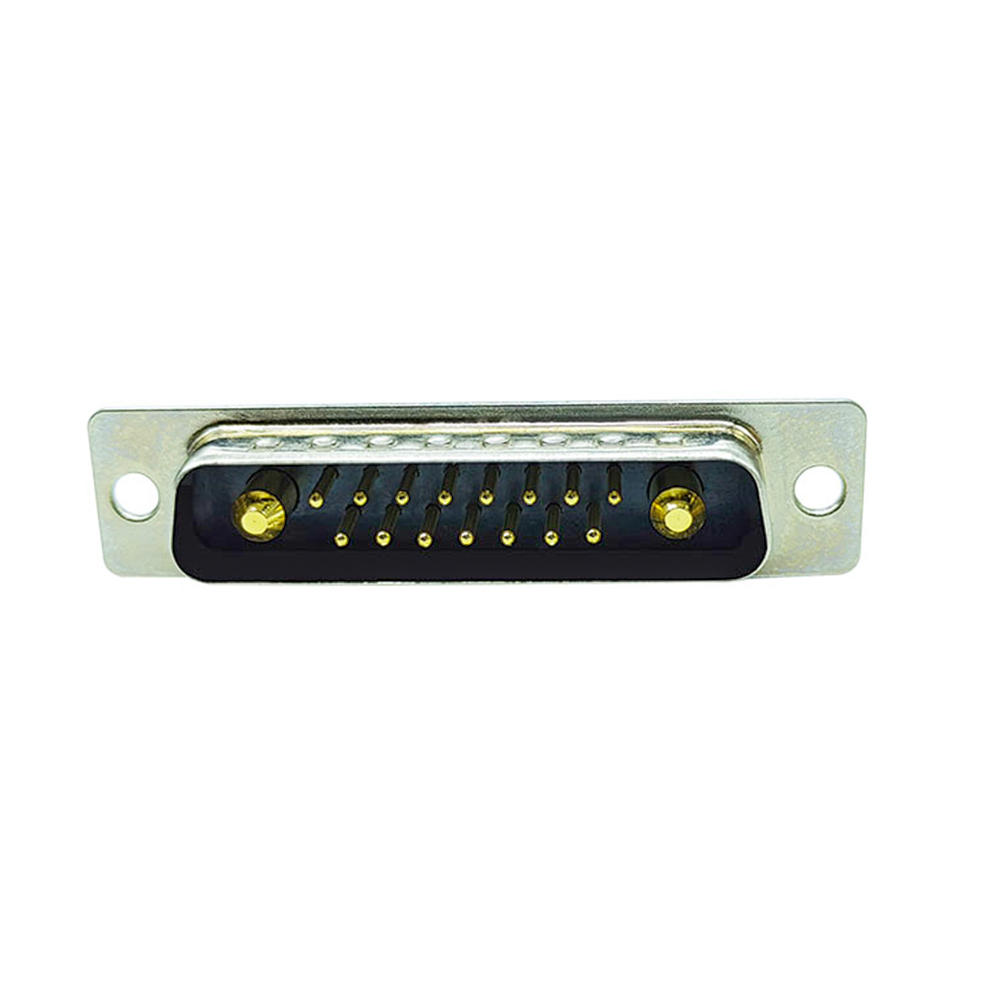

Specification: 17 W2 = 15 Signal Pin + 2 High Current Pin

The wiring mode: back end solder wire type, naked wire welding and terminal piezo can

Frontal static current: 3-5 A; High Current Needle 20 A / 30A / 40A Optional

Frontal voltage: 500 V AC

Contact resistance: ≤ 25 mΩ

Extreme resistance: ≥ 2000 MΩ

Working temperature: -55 ° C to 125 ° C

Rubber core: PBT glass fiber UL94-V0 flame retardant

Touchpoint: Brass based, gilded nickel substrate, oxidation resistant and puncture resistant

Structure: Standard D-type housing, optional metal shield, screw lock fixed
