db9 d sub connector

3 month ago

2 0

Dongguan Pandi Electronic Technology Co., Ltd.

 4 month year

Product details

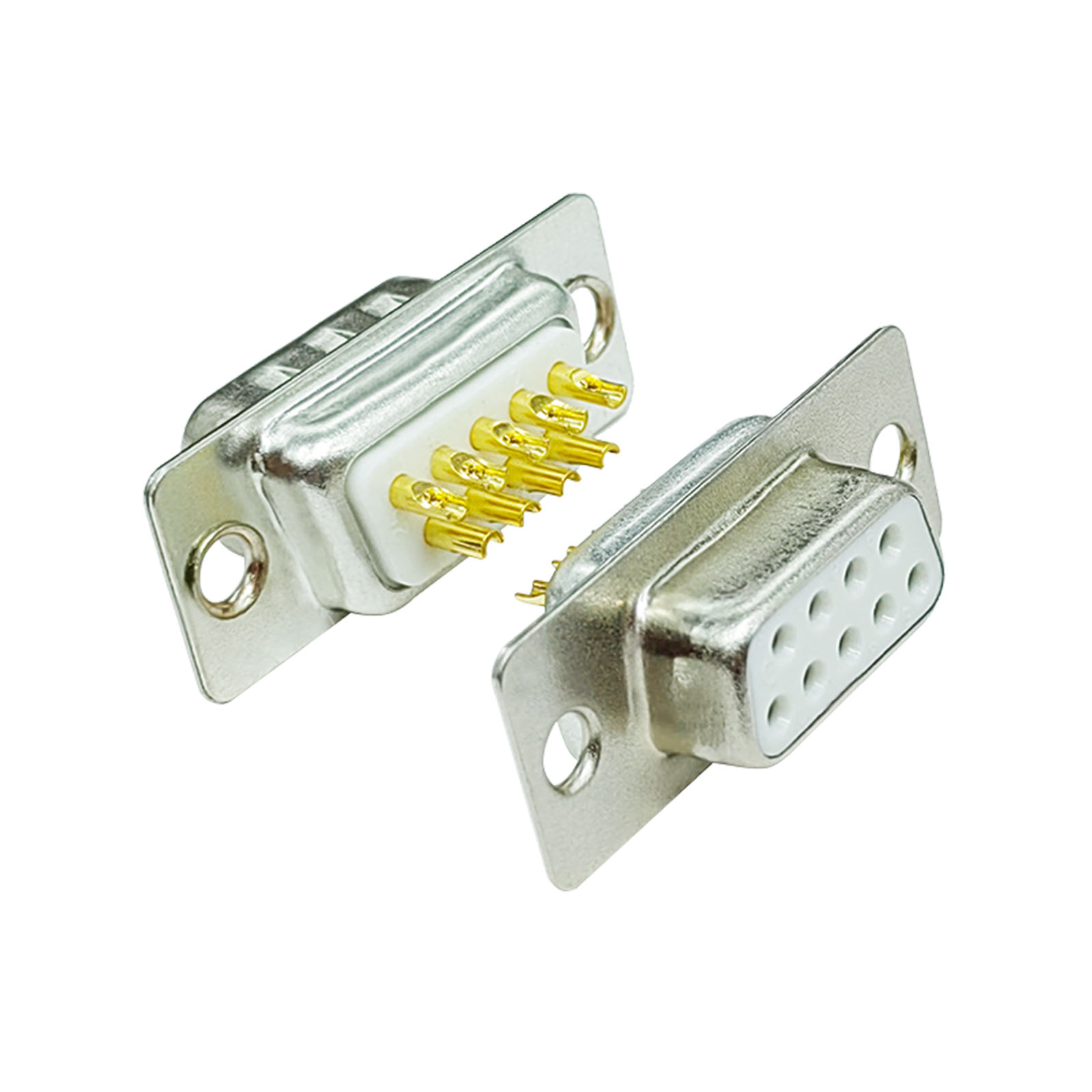

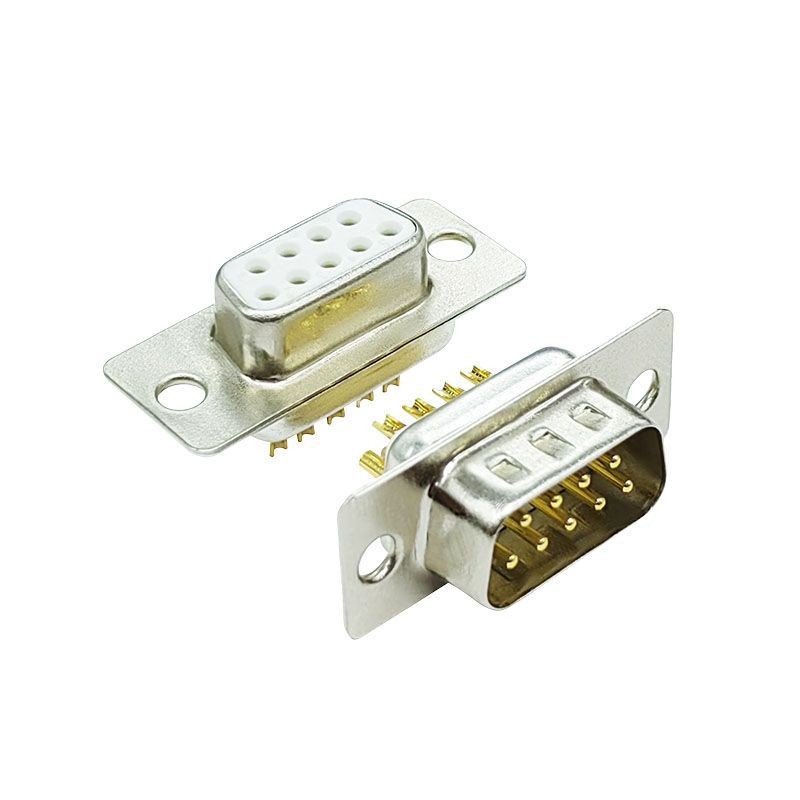

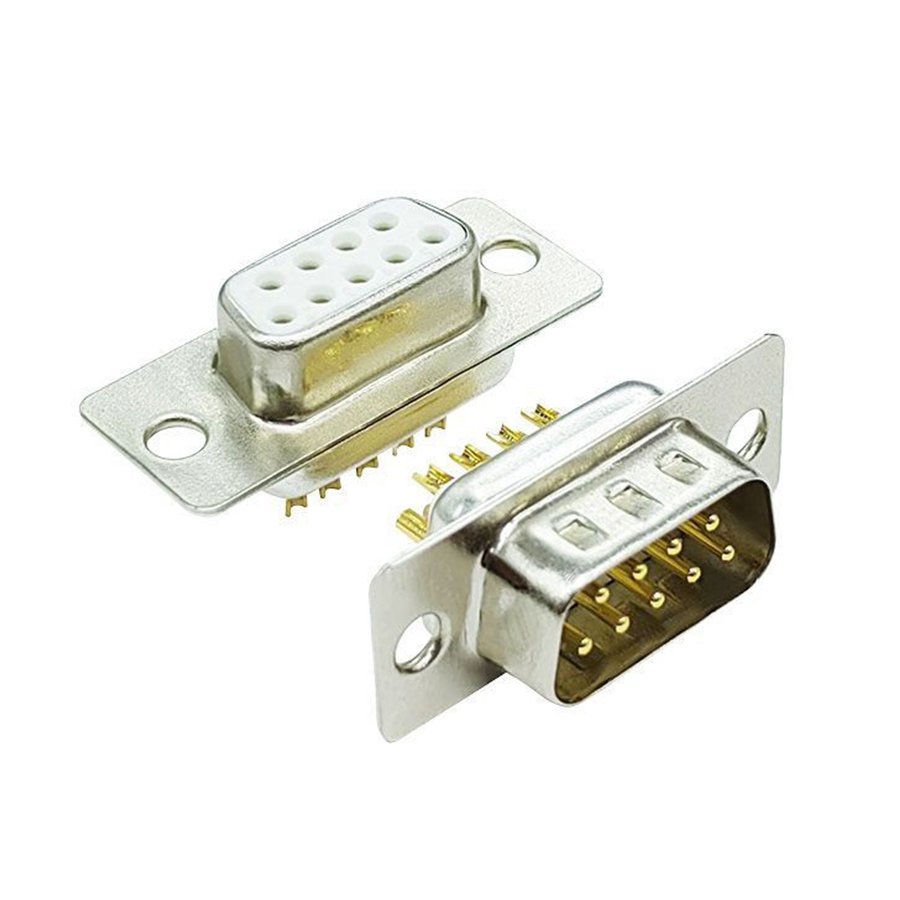

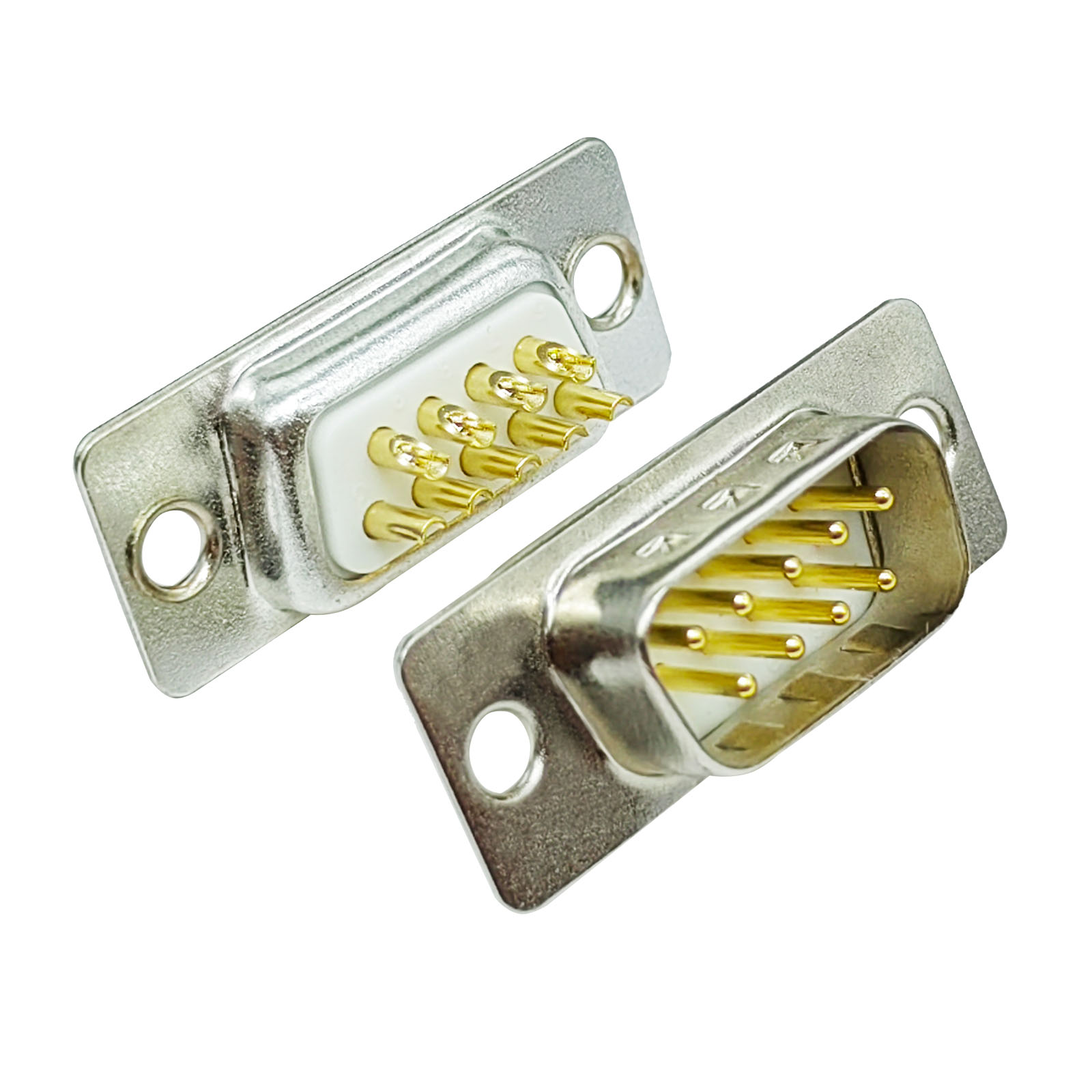

These Db9 d connector (Female and Male) are widely used in various fields, including industrial control and medical equipment, 5G communications, aerospace, new energy vehicles, rail transportation, and wire harness assemblies. The compact design of the d sub connector 9 pin serial port significantly saves internal space in equipment. Pandi is a professional connector manufacturer in China. Our hollow pins provide a cost-effective solution with stable signal performance; this sub d connector 9 pin serial port is highly stable because the gold-plated solid pins ensure strong and stable signal transmission. Furthermore, the soldered mounting method provides excellent stability and reduces wear caused by repeated mating and unmating.

9-pin mini DIN female customer case study:

We have a stable customer – Yinian Company, founded in March 1987, which has steadily developed over the years. In May 1995, the company established a production plant in Guangdong, China, successfully transforming from a trading company into a manufacturer. By 2006, with the establishment of the Taicang (Shanghai area) factory, its product line became more complete and integrated. Initially, they only needed some simple 9-pin male D-type connectors to supplement their production line. After considering our product quality and price, we became a long-term partner.

Yinian, as a long-term customer of Dongguan Pandi Electronic Technology Co., Ltd., has consistently ordered D-type connector products from us, including both hollow and solid pin types.

The 9 pin mini din female Electrical Performance:

Rated Current (Pin): 5A

Rated Current (Socket): 5A

Contact Resistance: 25 mΩ MAX

Insulation Resistance: 1000 MΩ MIN

Dielectric Withstanding Voltage: 1000 VRMS

Operating Temperature: -55°C ~ 125°C
