Semi-Enclosed Electric Three-Wheeler

Semi-Enclosed Electric Three-Wheeler

3 month ago

5 0

Zhiche JiLin Intelligent Technology Co., Ltd.

 4 month year

Product details

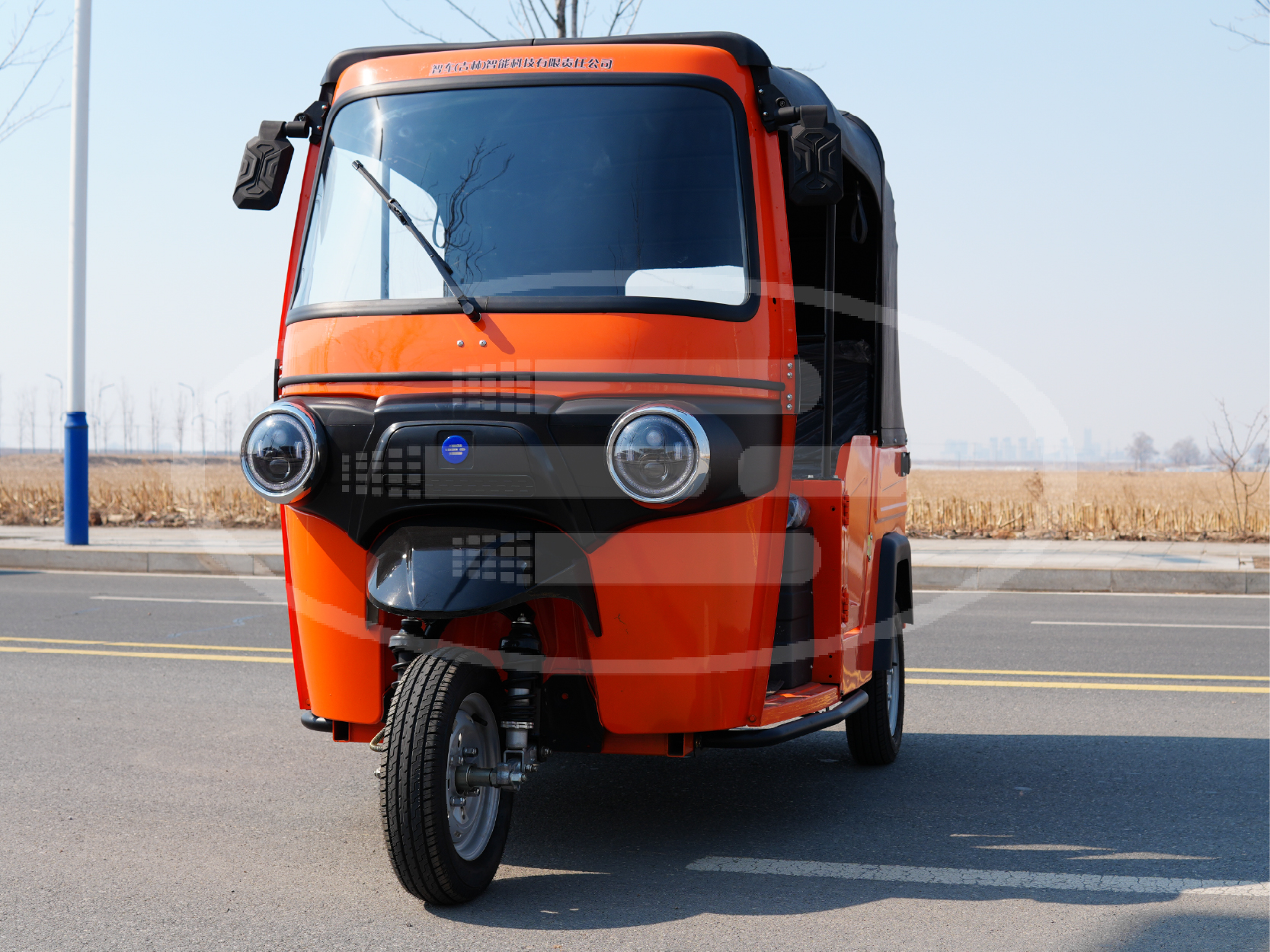

The orange body is vibrant and eye-catching, while the high-end version has strong power and long-lasting range. Equipped with a 3kW AC asynchronous motor and a 120A remote drive controller, coupled with a large capacity lithium battery, the single charge range can reach 100 kilometers. The hydraulic oil brake is sensitive and linear, with high gloss lens headlights for clear night vision. The dual arm composite shock absorber and independent rear suspension effectively filter out bumps, providing both comfort and safety. It is suitable for daily commuting and heavy cargo transportation.

Vehicle dimensions (length x width x height): 2930 x 1350 x 1850 mm

Body structure: Non load bearing body

Body Material (Aluminum/Iron/Plastic): Stamped Sheet Metal

Motor: 3kW

Controller: 120A remote drive

Charging time (hours): 5-8 hours

Single charge range (km): 100km

Turning radius: less than 8 meters

Maximum load capacity (kg): 450

Braking distance (meters): 12 meters

Charger Type (Internal/External): Internal

Motor type: AC asynchronous motor

Controller: 120A remote drive

Battery type: Lithium battery (standard)

Transmission system: speed ratio 10:1

Suspension system: front double wishbone composite shock absorber, rear independent suspension

Steering system: manual steering

Tire specification: 135-70R12

Braking system: hydraulic oil brake

Minimum ground clearance: 180 mm

Maximum speed: 50 km/h

Maximum climbing gradient: 20%

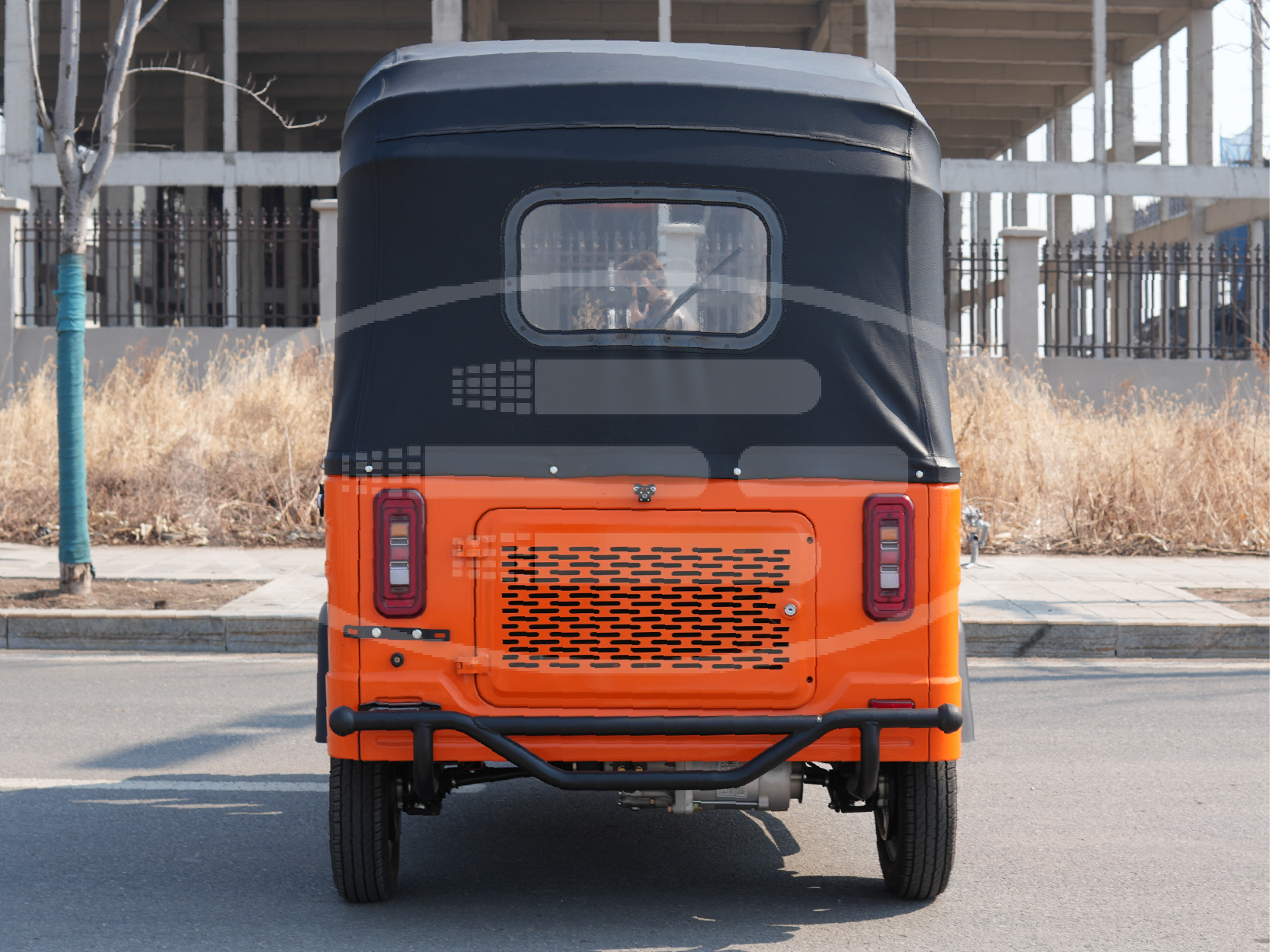

External configuration: high brightness lens headlights, LED taillights, 12 inch steel wheels, remote control central locking, reverse buzzer

Color: Orange
