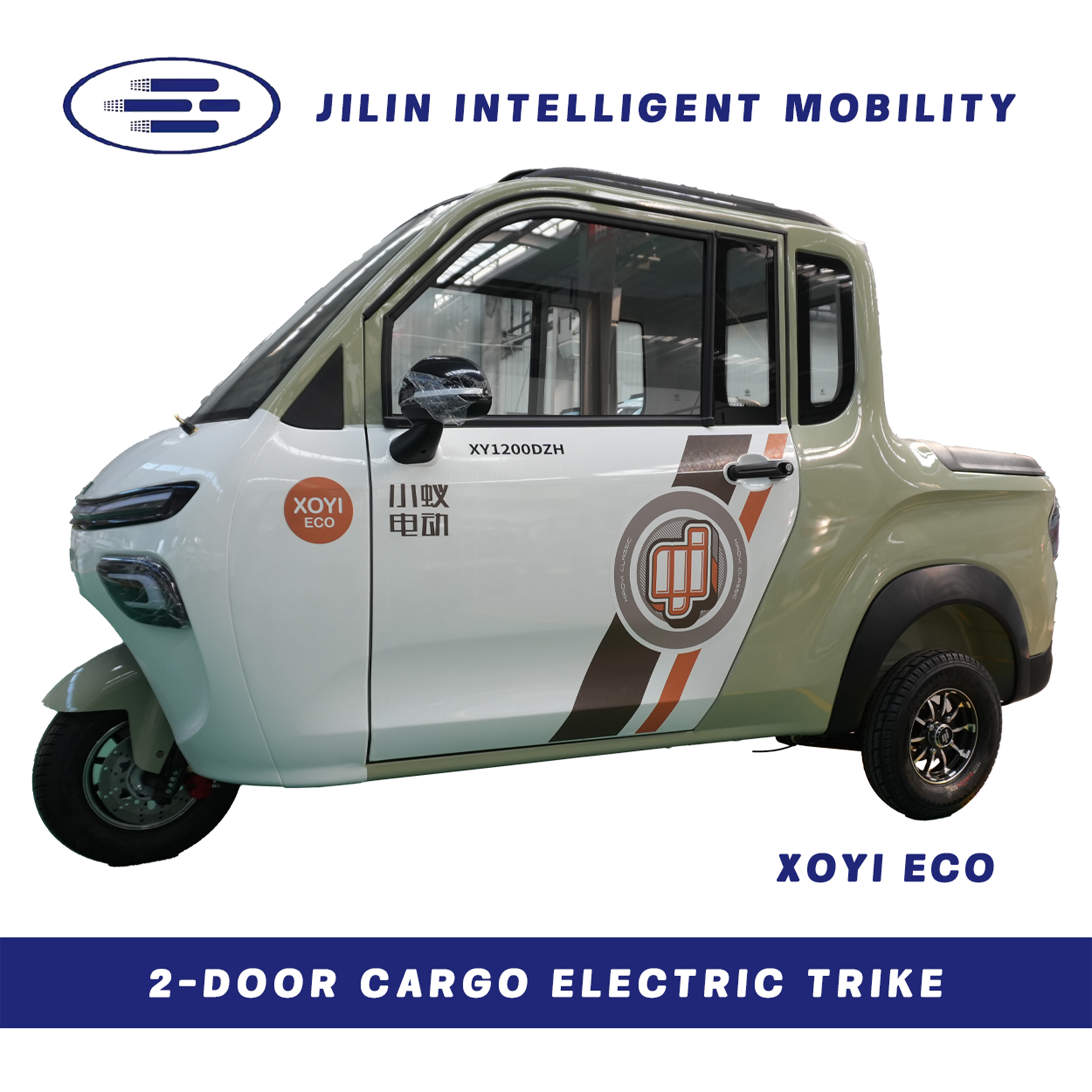

2-Door Cargo Electric Trike

2-Door Cargo Electric Trike

3 month ago

5 0

Zhiche JiLin Intelligent Technology Co., Ltd.

 4 month year

Product details

The white body is simple and practical, and the XOYI P5 is specially designed for short distance travel and lightweight cargo. Equipped with a 1000W sine wave motor and a 60V/58Ah lithium battery (standard 52Ah, optional 70Ah), the range can reach 100 kilometers. The three wheel disc brakes (front and rear discs) are sensitive in braking, the aluminum alloy wheels are beautiful and durable, the one click start is easy to operate with the central locking system, and the hill descent function enhances safety. Fully enclosed frame sheet metal body, four doors and three seats, flexible and compact, with a turning radius of ≤ 4 meters, suitable for community commuting and daily commuting.

Model code: P5

Length x Width x Height (mm): 2610 x 1280 x 1630

Wheelbase (mm): 1940

Front/rear wheelbase (mm): 1160

Minimum ground clearance (full load) (mm): ≥ 160

Minimum turning radius (m): ≤ 4

Curb weight (kg) (excluding battery): 294

Total weight (kg): 564

Actual vehicle speed (km/h): 39

Maximum displayed speed (km/h): 51

Economic speed (km/h): 39

(0-30km/h) Acceleration time (s): ≤ 12

Maximum climbing gradient (%): ≥ 20

Motor power (kW): 1 kW (1000W)

Motor form: Sine wave motor (Heaven leaning motor)

Battery type: 60V/58Ah lithium battery (standard 52Ah, optional 70Ah; optional lead-acid 86Ah)

Charging time (h): 8

Single charge range (km): ≥ 100 (economy speed)

Drive type: rear wheel drive

Transmission ratio (rear axle ratio): 1:9

Body type: Fully enclosed frame sheet metal body

Vehicle structure: 4 doors and 3 seats

Number of car doors: 4

Front suspension: hydraulic front fork

Rear suspension: Trailer arm suspension (composite shock absorber)

Steering method: lever type (mechanical steering)

Tire specifications: Front 4.00-10, Rear 4.00-10

Wheel rim: Aluminum alloy wheel hub (aluminum wheel)

Braking system: front/rear disc, with front/rear disc brakes for service braking

Parking brake type: Handball type

Minimum ground clearance: ≥ 160 mm

Turning radius: ≤ 4 meters

Top speed: 39 km/h (actual)/51 km/h (displayed on the meter)

Maximum climbing gradient: ≥ 20%

Maximum load capacity: Total weight 564kg, curb weight 294kg, estimated load capacity of approximately 270kg

Seat configuration: driver and driver manual adjustment in both directions, front ordinary seats, colored leather fabric

Instrument: LED module with reverse image

Other configurations: front indoor ceiling light, rear wing, one touch start, center console, rear window glass on, LED front combination light, rear fog light, reversing light, built-in antenna, reversing image, hill descent control, manual, maintenance manual
