Product details

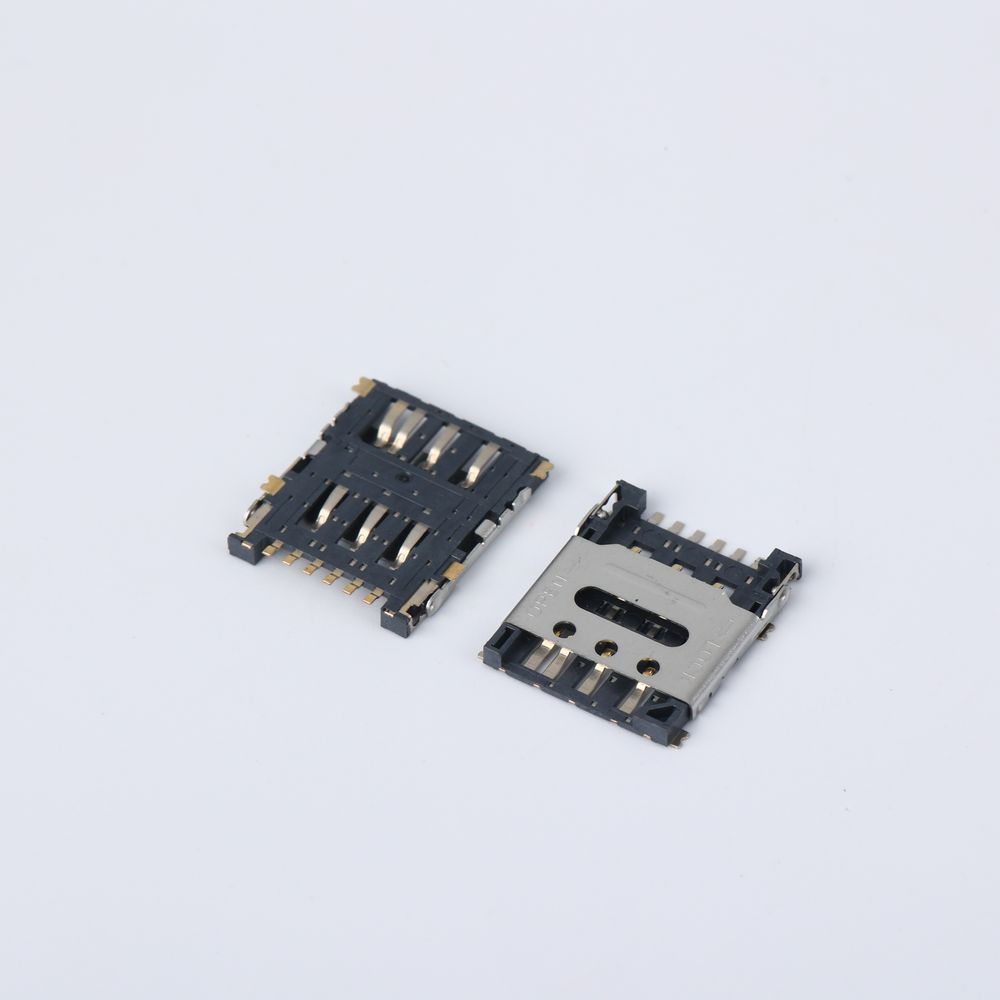

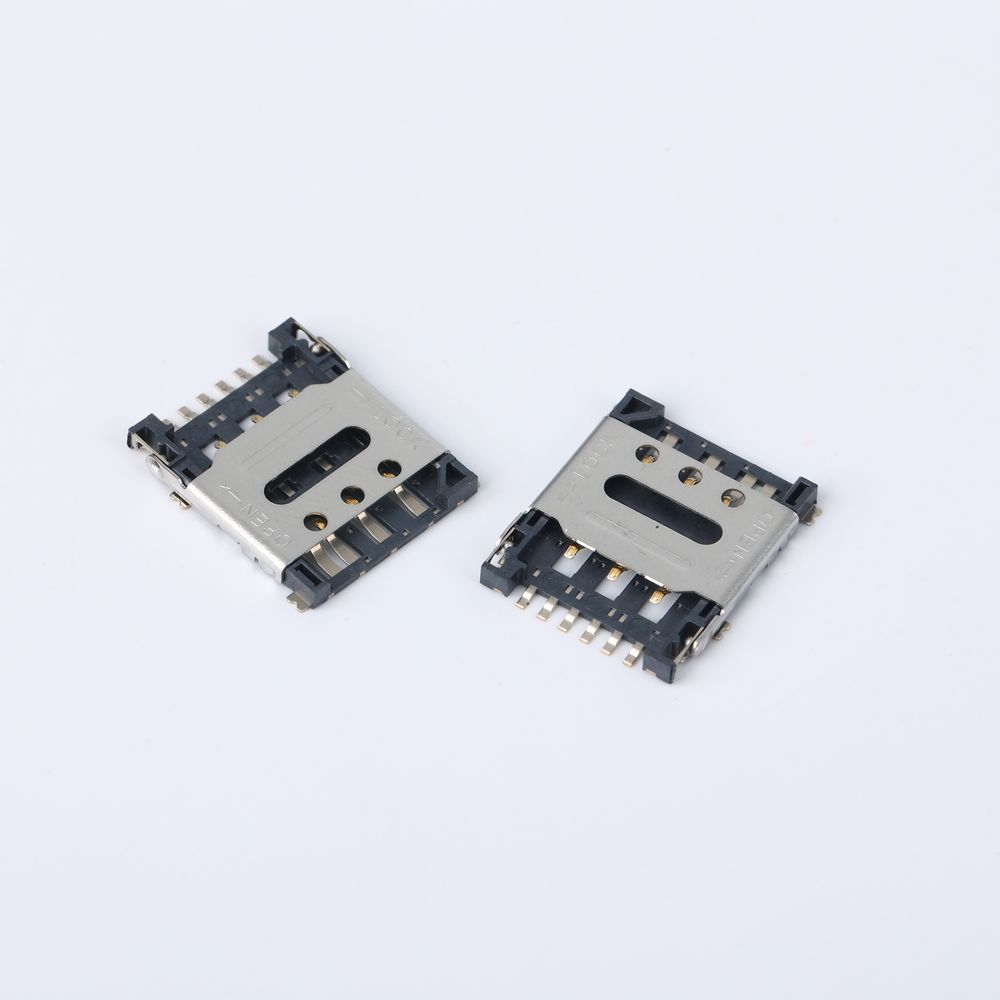

1.45H Flip-Lid Nano-SIM Card Holder 7PIN HF SD card connector, with a height of H=1.45mm, this ultra-thin design significantly saves PCB space, making the device lighter and thinner. The flip-lid design combined with precise card slots can effectively prevent SIM cards from accidentally falling out due to vibration or impact, ensuring stable signal. Micro SD card connector supports external card insertion, making it very easy for users to replace SD cards without having to remove the device's casing.

Material description

HOUSING:	HIGH TEMPERATURE THERMOPLASTIC
CONTACT:	COPPER ALLOY, 50U'' NICKEL UNDERPLATED OVERALL, G/F PLATED ON CONTACT AREA AND SOLDER AREA
SHELL:	STAINLESS STEEL, CLEAR ONLY
CURUENT RATING:	0.5A
VOLTAGE RATING:	30V
CONTACT RESISTANCE:	100mΩ MAX
INSULATION RESISTANCE:	1000mΩ MIN
DIELECTRIC WITHSTANDING VOLTAGE:	500V AC FOR 1 MINUTE
OPERATING TEMPERATURE:	-40℃~+85℃, HUMIDITY 80% R.H MAX

This connector SD card used in Smartphones, tablets, wearable devices (such as smartwatches), IoT modules, industrial control equipment, etc. Especially suitable for ultra-thin devices with strict requirements for thickness and space, as well as situations where SIM cards need to be frequently inserted or removed or where there is a vibration environment.
