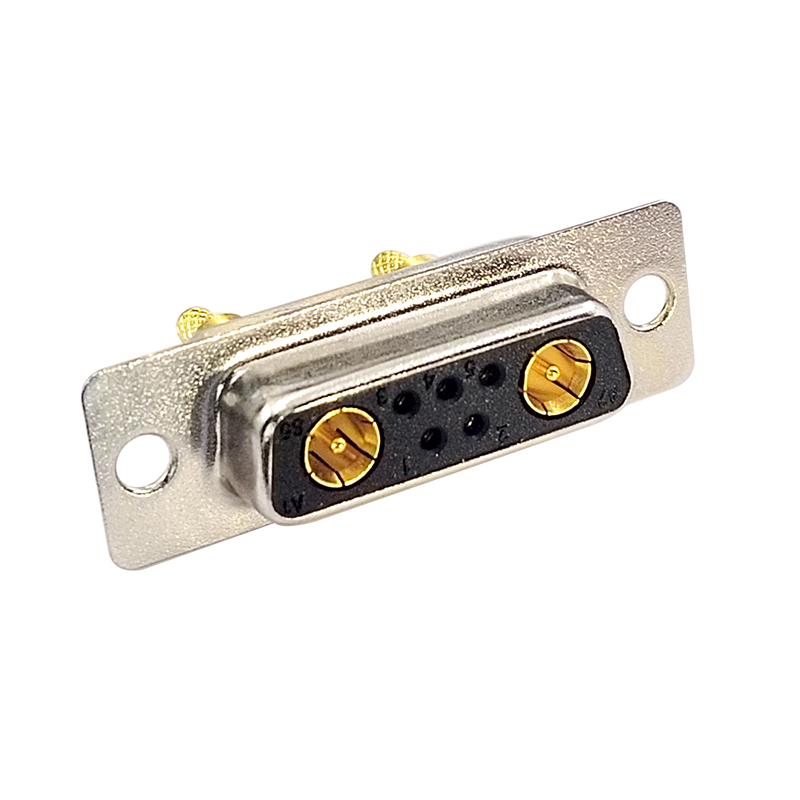

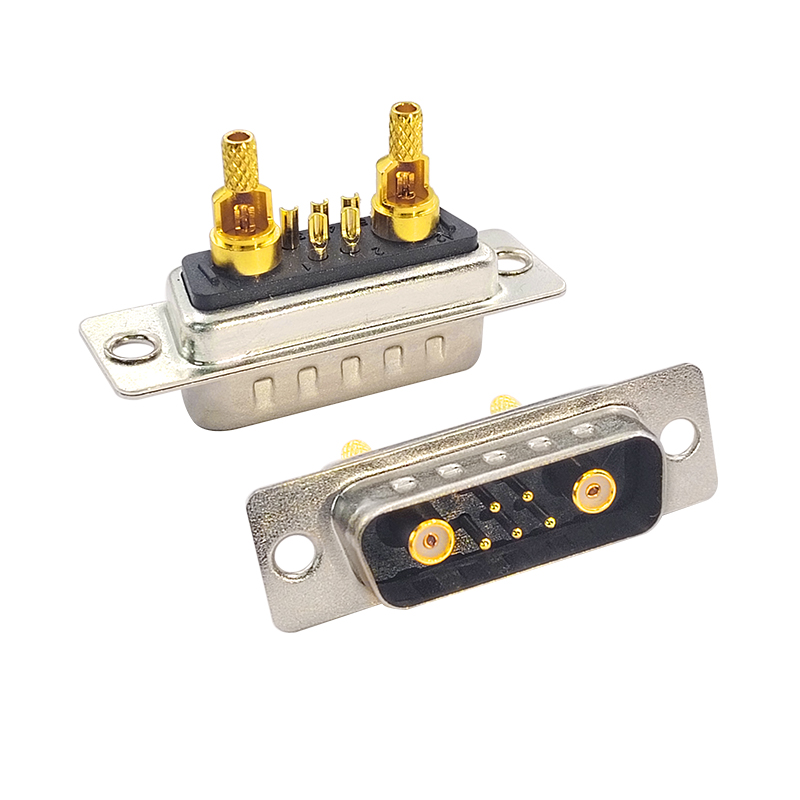

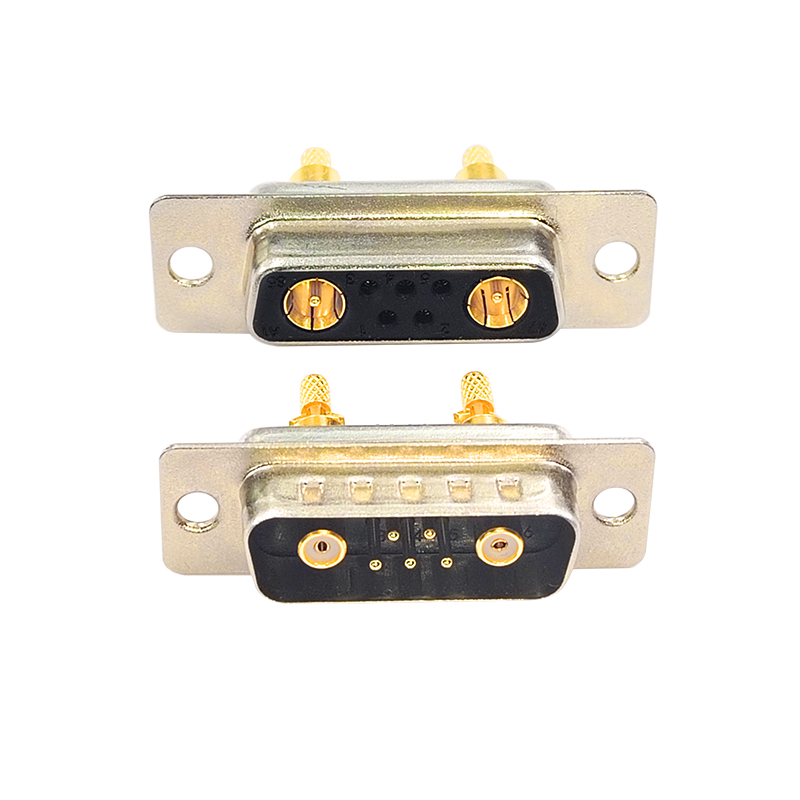

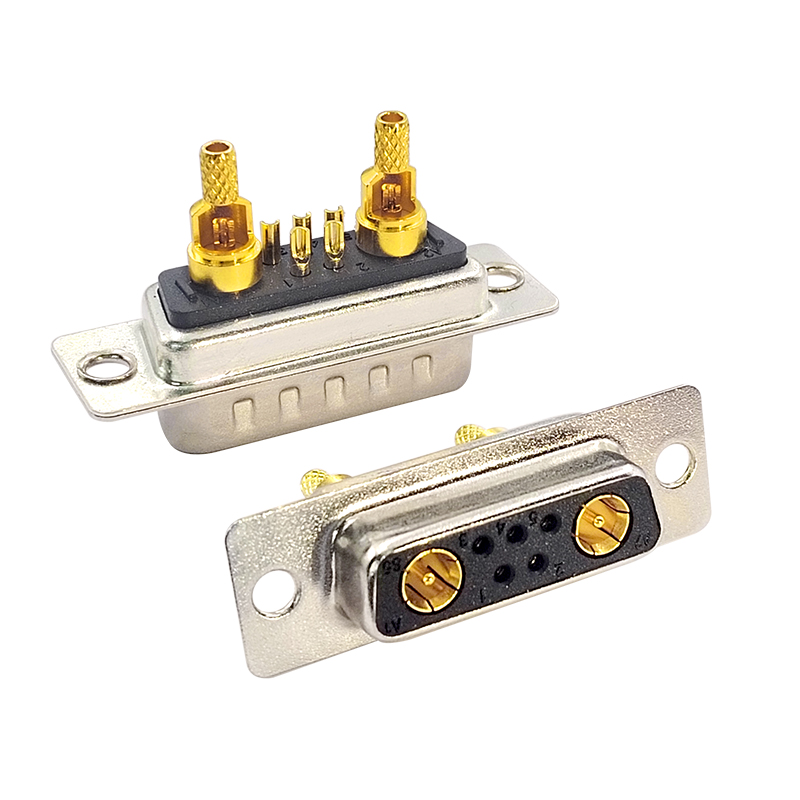

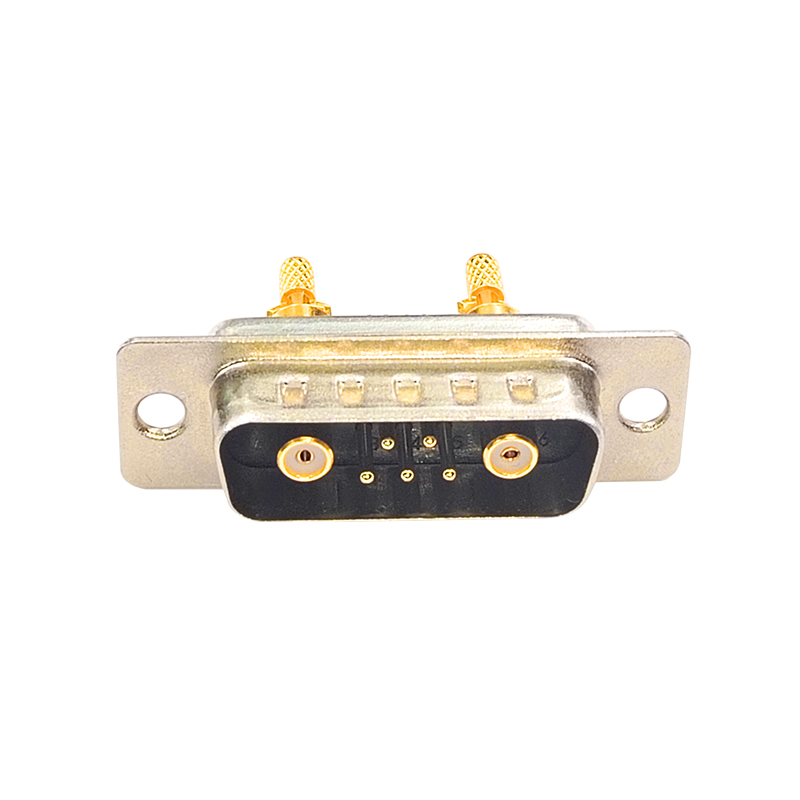

Pandi 7W2 RF d sub connector (5 signal pins + 2 RF coaxial cores)

7W2 is a Combo hybrid layout D-SUB RF connector with 7 touch points allocated: 5 common signal pins + 2 independent RF coaxial cores, and a single shell integrates low frequency control signal + high frequency RF signal at the same time, saving the dual interface opening, and saving the device panel space.

Core Structure and Material of Pandi d connector 7W2 famale and male

1. Trigger layout

5 ordinary signal needles: turning copper needles, gold-plated, standard signal transmission, single needle rated 5A;

2 coaxial RF cores: independent shielded internal conductor, 50Ω / 75Ω Two impedances are optional, suitable for RF cables (coaxial signal wire, video wire, RF feed wire).

2. Main Material

Enclosure: cold rolled steel, tin / nickel, fully shielded against interference;

Rubber core: PBT + 30% glass fiber, UL94-V0 flame retardant;

Trigger: Phosphorus copper / brass, gilded nickel substrate (abrasion resistant, low contact impedance).

3. Locking Structure

Standard 4-40 UNC flange fixed screw, supporting nut bracket, anti-loose, industrial equipment seismic.

Main Electrical Parameters of 7W2 dsub d onnector

GE Indicators

Frontal and fixed voltage: 250 V ~ 500 V AC

Signal needle current: standard 5 A; Large current models can be customized 10 / 20 / 30 / 40 A

Contact impedance: signal pin ≤ 15mΩ, RF core ≤ 30mΩ

Insulation impedance: ≥ 2000 MΩ (500VDC)

Voltage resistance: 750 ~ 1000 V AC 1min

Working temperature: -55 ° C ~ + 105 ° C / 125 ° C

Plug-in life: ≥ 1000 times

Radio frequency impedance: 50Ω (radio frequency communication / radar), 75Ω (video, surveillance, broadcasting)

Protection upgrade: IP67 waterproof sealed type, outdoor / wet industrial control available

Form of installation

Wire type (Solder Cup)

The cable is soldered directly at the tail end, suitable for chassis wiring and cable assembly, and both the mother and the mother are in stock.

Typical application scenarios for 7W2 connectors

Signal equipment: 5G base station module, radio frequency receiver, signal tester, coaxial signal acquisition equipment;

Medical instruments: imaging equipment, ultrasonic radio frequency output, inspection control unit;

Industrial automation: machine vision (video coaxial signal + control IO), industrial camera, radar industrial control;

Security and broadcasting: high-definition video transmission, monitoring consoles, radio frequency signal switching equipment;

Railway / military: vehicle radio frequency units, portable detection terminals;

Test measurement: oscilloscope, signal source hybrid signal output interface.

Product advantages

Integration: A single interface walks simultaneously the control signal + radio frequency, reducing panel openings and simplifying wiring;

Independent radio frequency shield: 2 channels of the same chassis come with isolated shield, and high and low frequencies do not interfere with each other;

Fully shielded metal shell: anti-EMI electromagnetic interference, suitable for high-frequency precision signals;

Specifications are flexible: impedance, current, installation mode, waterproof rating can be customized;

Standard D-SUB shell size: compatible with conventional D-SUB openings, equipment transformation does not need to change the sheet metal.
