High Pressure Through Spindle Coolant VMC HMC - Precision Machining with Advanced Cooling & Chip Control
Engineered for high-precision die/mold manufacturing, deep-hole drilling, continuous heavy cutting, and ductile material machining, the High Pressure Through Spindle Coolant VMC HMC series redefines the performance standards of vertical and horizontal machining centers. Integrating industrial-grade rigid structure, high-torque spindle output and intelligent fluid control technology, this series of machine tools delivers stable, high-speed, and high-precision processing for aerospace components, automotive parts, precision molds and mechanical structural workpieces. Its fully upgraded cooling and chip management system effectively solves core industry pain points including insufficient Tool Cooling, sticky long chips, blocked chip discharge and poor surface finish in deep and closed cavity machining.

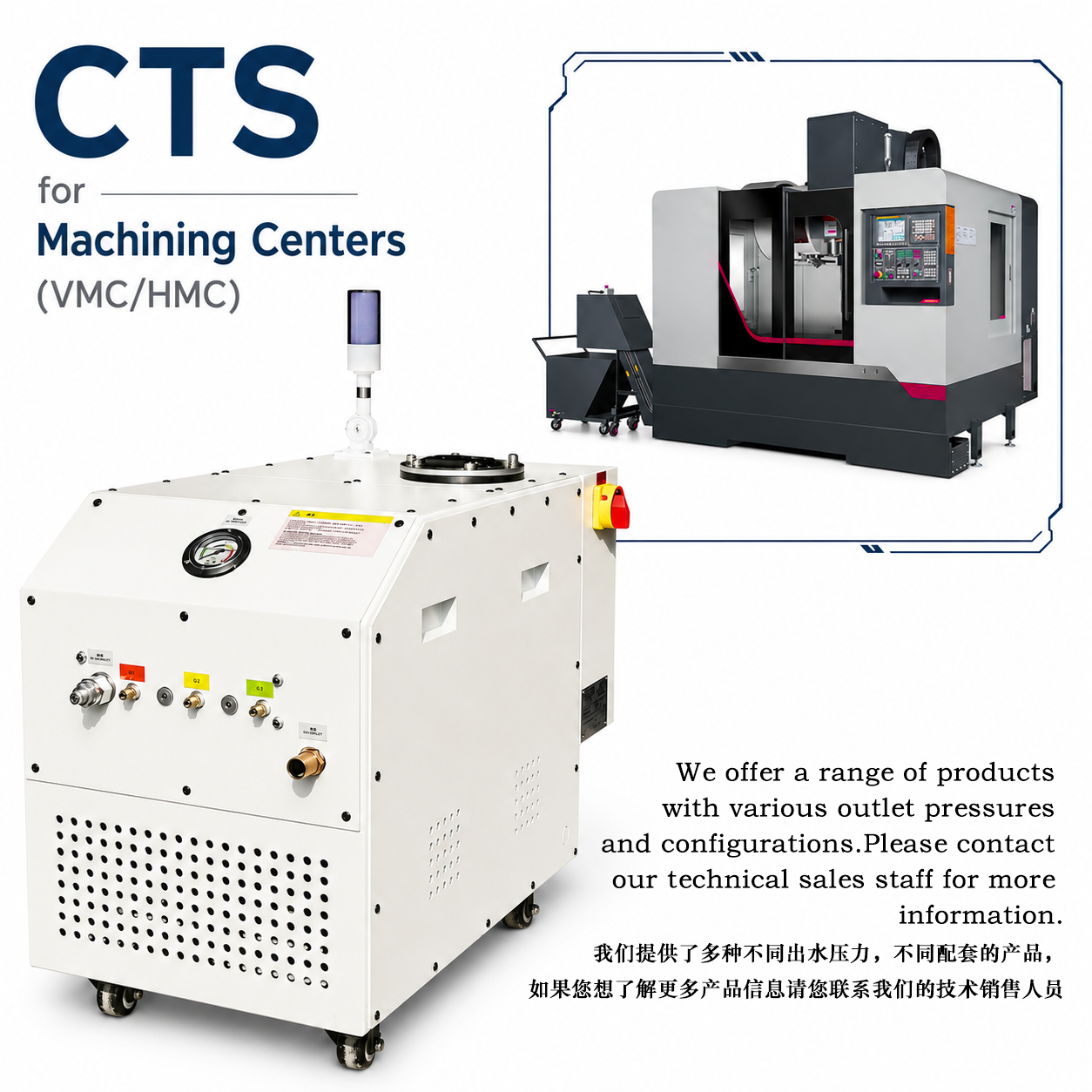

The entire machining performance is empowered by the robust High-Pressure Coolant System, the core functional module of VMC and HMC equipment. Adopting high-pressure pump unit, precise flow regulation and full-cycle filtration circulation design, this system supports adjustable high-pressure coolant output to adapt to diverse machining demands from shallow milling to ultra-deep hole drilling. It breaks the limitation of traditional low-pressure external cooling that easily forms vapor isolation layers at high-temperature cutting zones, ensuring continuous and stable coolant supply for high-load machining and laying a solid foundation for efficient cooling and chip disposal.
To achieve pinpoint and efficient Tool Cooling in complex machining scenarios, the VMC HMC series is fully equipped with dual core configurations of Through-Spindle Coolant and Through-Coolant Tool. Different from traditional external nozzle spraying with blind cooling areas, the Through-Spindle Coolant design delivers high-pressure coolant straight through the spindle core and tool holder to the tool tip cutting zone, realizing zero-distance heat dissipation at the tool-workpiece friction interface. Matched with customized Through-Coolant Tool with internal micro cooling channels, it achieves omnidirectional coverage of heat concentration areas. This efficient cooling method instantly removes massive cutting heat generated by high-speed and heavy-load processing, suppresses tool thermal deformation and premature wear, greatly prolongs tool service life, and maintains long-term consistent machining accuracy and surface quality.
Complementing the high-pressure circulating cooling system, the independent High-Pressure Flushing function brings comprehensive cleaning and auxiliary processing capabilities to the machining area. The high-speed high-pressure coolant jet generates powerful impact force, which thoroughly flushes accumulated fine metal powder, residual cutting fluid and adhered debris on the workpiece surface, tool groove and spindle working area. It keeps the closed machining cavity clean at all times, eliminates processing defects caused by chip adhesion and coolant residue, and creates optimal working conditions for continuous stable machining of VMC and HMC equipment.
Equipped with the integrated high-pressure cooling architecture, the machine boasts outstanding Chip Removal & Chip Breaking performance, solving the long-standing bottleneck of difficult chip evacuation in deep-hole and closed-cavity machining. For ductile materials such as aluminum alloy, stainless steel and alloy steel that easily produce continuous long chips, the high-pressure impact from the High-Pressure Coolant System and directional scouring of High-Pressure Flushing can effectively break long coiled chips into uniform fine fragments. Meanwhile, the directional pressure assists the automatic discharge of broken chips out of the machining area, realizing one-stop Chip Removal & Chip Breaking. It avoids tool winding, workpiece scratching and secondary cutting caused by residual chips, significantly improving machining efficiency and product yield.
The organic integration of Through-Spindle Coolant, Through-Coolant Tool andHigh-Pressure Coolant System builds a closed-loop intelligent cooling and chip management system for High Pressure Through Spindle Coolant VMC HMC. It optimizes Tool Cooling efficiency in all working conditions, realizes automated and efficient Chip Removal & Chip Breaking and high-intensity High-Pressure Flushing, and comprehensively enhances the stability, continuity and reliability of precision machining. By reducing manual cleaning frequency, tool loss rate and product defective rate, the equipment effectively lowers production and maintenance costs, bringing higher economic benefits for batch and high-precision processing production lines.
With professional high-pressure cooling technology, reliable chip control capability and excellent overall machining performance, the High Pressure Through Spindle Coolant VMC HMC series is the ideal high-efficiency processing equipment for modern precision manufacturing, perfectly adapting to diverse complex machining demands of vertical and horizontal processing scenarios.
| Specification |
JY-C70 |
JY-C100 |
HY-C150 |
| Applicable Series |
TD-S70 |
TD-S100 |
TD-S150 |
| Motor Power |
2.2 kW |
3 kW |
4 kW |
| Weight |
85 kg |
105 kg |
120 kg |
| Dimensions (L×W×H) |
785 × 390 × 530 mm |
860 × 450 × 660 mm |
900 × 500 × 700 mm |
| Outlet Pressure |
70–90 kg (Adjustable) |
70–90 kg (Adjustable) |
70–90 kg (Adjustable) |
| Pump Form |
Vane / Plunger Pump (Optional) |
Vane / Plunger Pump (Optional) |
Vane / Plunger Pump (Optional) |
