High-Capacity CTS for Multi-Axis Machining: Optimize CNC Precision & Efficiency
Facing common machining pain points including tool overheating, tangled chips, poor workpiece surface finish and frequent equipment downtime in multi-axis CNC processing? Our High-Capacity CTS for Multi-Axis Machining integrates professional High-Pressure Coolant System and advanced Through-Spindle Coolant technology, perfectly combining efficient Tool Cooling, powerful High-Pressure Flushing and precise Chip Removal & Chip Breaking functions. Matched with dedicated Through-Coolant Tool solutions, it comprehensively empowers lathes, machining centers and 5-axis CNC equipment to achieve stable, efficient and high-precision automated machining.

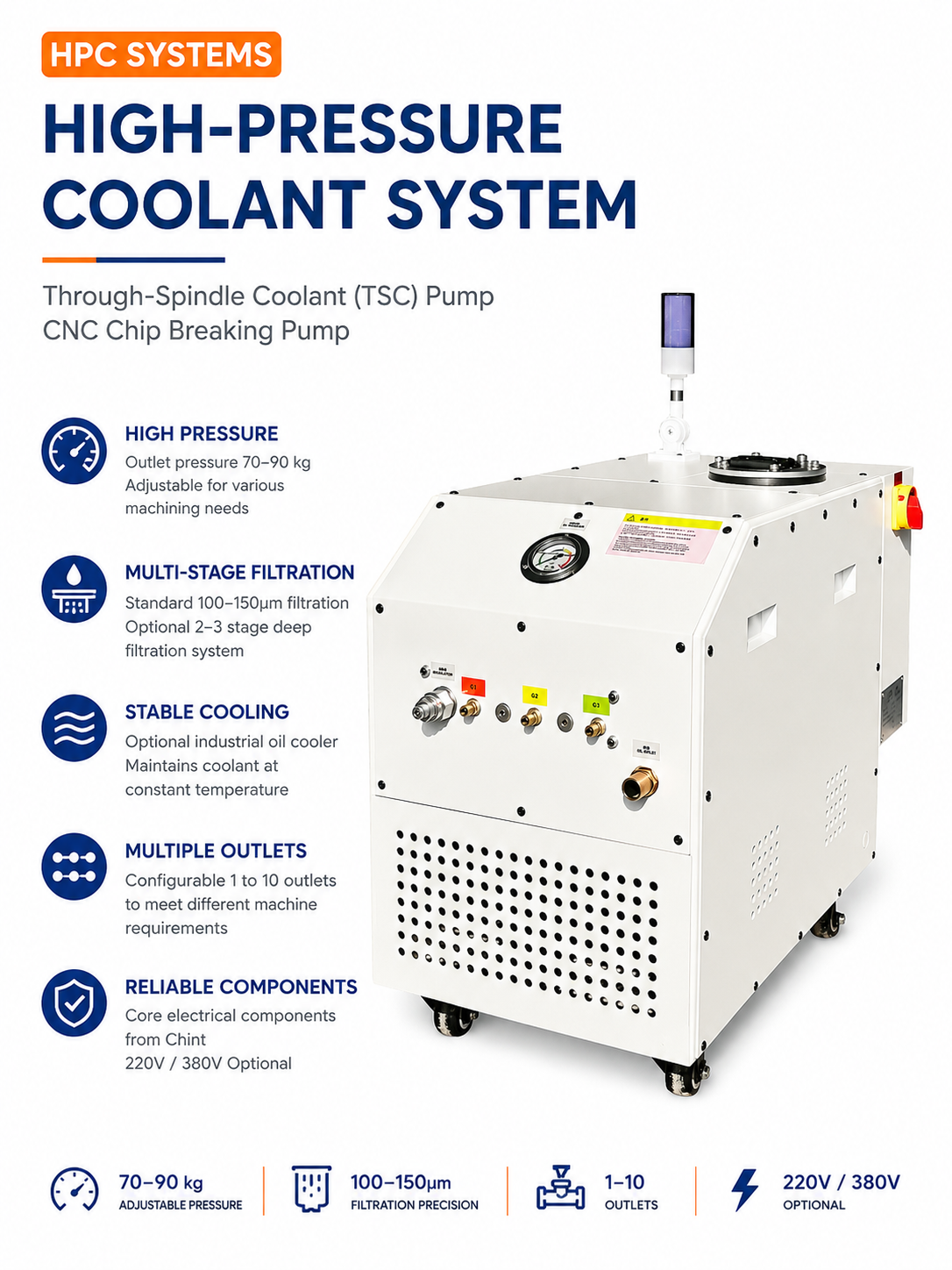

This high-capacity CTS system boasts ultra-wide equipment compatibility, fully adaptable to flat bed gang tool lathes, slant bed gang tool lathes, drill tap centers, turret lathes, deep-hole drills, Swiss-type lathes and all types of multi-axis machining centers. To meet diverse machining scenarios, it supports dual pump configurations of vane pump and plunger pump, with an adjustable outlet pressure range of 70-90kg (calibrated with 2*0.8mm external turning tools). The flexible 1-10 customizable water outlets perfectly match different Through-Coolant Tool specifications and multi-station processing demands, realizing targeted cooling and flushing for every cutting area.
Built with an industrial-grade configuration, the system adopts a standard 100~150μm filtration precision, with optional two-stage to three-stage deep filtration schemes to effectively filter cutting fluid impurities and avoid pipeline and tool blockage. The optional industrial oil cooler ensures constant temperature operation of cutting fluid, solving the problem of temperature rise during long-term high-load machining. Core electrical components adopt renowned Chint brand, supporting 220V/380V optional voltage, with stable operation, low noise and long service life, and daily maintenance is simple and convenient, greatly reducing equipment operation and maintenance costs for factories.
Equipped with mature Through-Spindle Coolant and High-Pressure Coolant System, the product delivers cutting fluid directly to the tool cutting edge through the spindle and tool internal channels, realizing all-round and efficient Tool Cooling. It quickly takes away high heat generated by cutting friction, effectively suppresses tool thermal wear and deformation, and greatly extends tool service life while reducing tool change frequency and tooling costs. Different from traditional external cooling methods, the targeted High-Pressure Flushing technology forms a powerful impact flow at the cutting point, completing efficient Chip Removal & Chip Breaking in real time.
This core function thoroughly eliminates chip entanglement and accumulation problems in deep hole, narrow groove and hard material processing, preventing tool wrapping, workpiece scratching and unexpected machine downtime caused by residual chips. It effectively avoids secondary chip cutting, minimizes workpiece thermal deformation, and significantly improves workpiece dimensional accuracy and surface finish, reducing product scrap rate in batches. Meanwhile, stable cooling and chip removal performance supports higher cutting parameters and continuous automated processing, cuts down manual cleaning and equipment standby time, and greatly boosts per capita output and overall production efficiency.
We focus on customized high-pressure pump solutions for CNC machine tool multi-axis processing, providing professional center outlet tooling solutions tailored to customer processing needs. Backed by a complete pre-sale, in-sale and after-sale service team, we deliver one-stop customized configuration, technical guidance and after-sales guarantee services. From optimizing Tool Cooling schemes and adjustingHigh-Pressure Flushing parameters to matching exclusive Through-Coolant Tool and Through-Spindle Coolant combinations, our high-capacity High-Pressure Coolant System effectively solves factory chip entanglement and machining precision problems, making multi-axis automated production safer, more stable and more efficient.
Core Advantages Overview
- Professional Cooling &Flushing: Integrated Tool Cooling and High-Pressure Flushing to solve high-temperature cutting and residual chip problems
- Efficient Chip Management: Precise Chip Removal & Chip Breaking to avoid chip entanglement and secondary processing defects
- Specialized Tool Matching: Dedicated Through-Coolant Tool solution, compatible with all mainstream multi-axis CNC equipment
- Advanced System Support: Stable Through-Spindle Coolant and industrial-grade High-Pressure Coolant System for long-term high-load operation
- Customized & Reliable: Flexible parameter configuration, wide compatibility and full-process professional after-sales service
| Specification |
JY-C70 |
JY-C100 |
HY-C150 |
| Applicable Series |
TD-S70 |
TD-S100 |
TD-S150 |
| Motor Power |
2.2 kW |
3 kW |
4 kW |
| Weight |
85 kg |
105 kg |
120 kg |
| Dimensions (L×W×H) |
785 × 390 × 530 mm |
860 × 450 × 660 mm |
900 × 500 × 700 mm |
| Outlet Pressure |
70–90 kg (Adjustable) |
70–90 kg (Adjustable) |
70–90 kg (Adjustable) |
| Pump Form |
Vane / Plunger Pump (Optional) |
Vane / Plunger Pump (Optional) |
Vane / Plunger Pump (Optional) |
