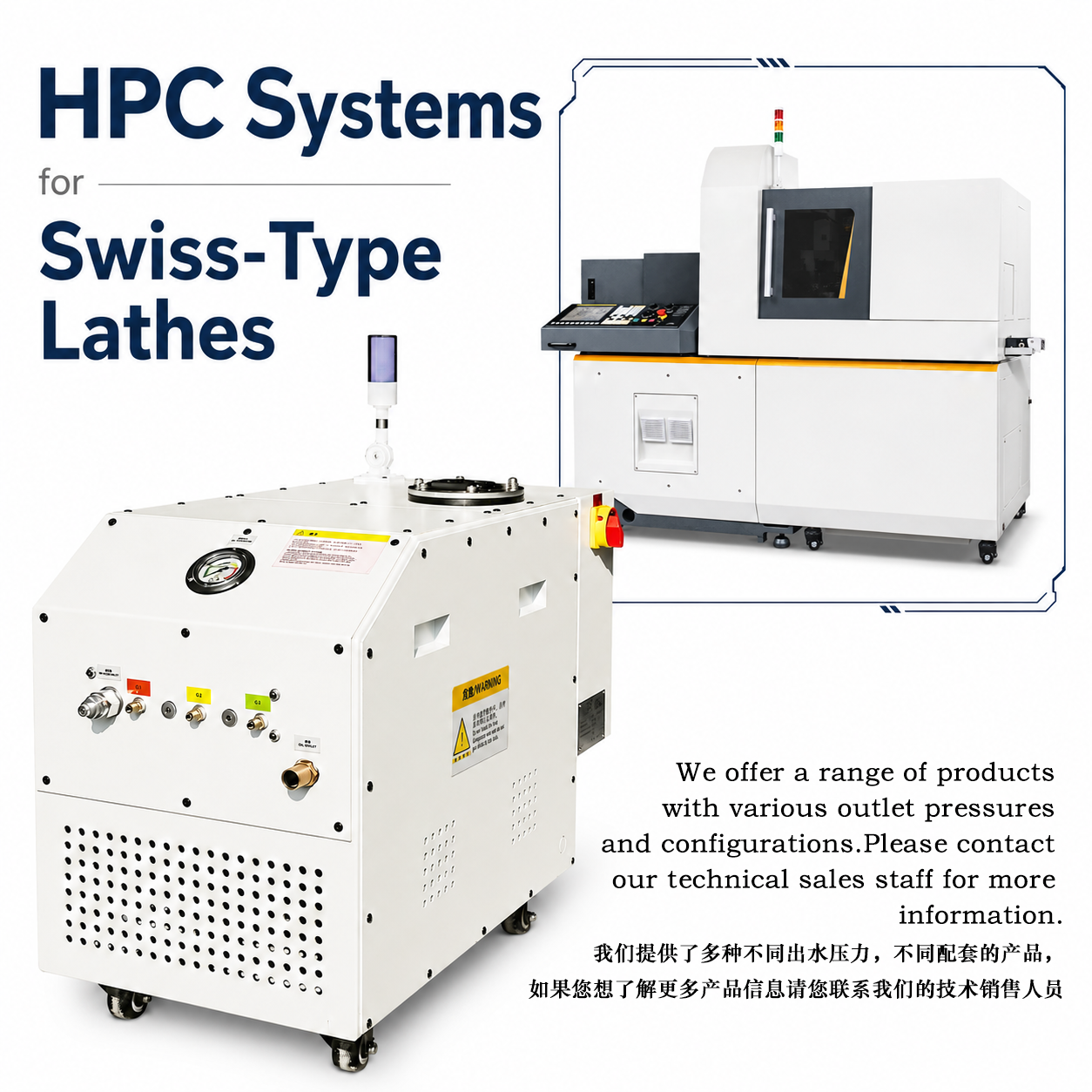

High Pressure Coolant for Swiss Turning Machines - Precision Cooling & Chip Management Solution
Optimize ultra-precision Swiss turning processes and eliminate core machining bottlenecks with our professional High Pressure Coolant for Swiss Turning Machines. Tailor-made for the compact, high-speed, and high-precision working characteristics of Swiss-type lathes, this high-pressure coolant solution integrates full-dimensional cooling and intelligent chip control technologies. It perfectly adapts to fine turning, deep hole machining, and long-term batch processing of tiny precision parts in medical, aerospace, automotive, and 3C electronics industries, effectively solving tool overheating, poor surface finish, and unsmooth chip discharge problems in Swiss turning production.
Reliable and efficient Tool Cooling is the basic core advantage of this high-pressure coolant system for Swiss turning. Swiss turning features high spindle speed, small cutting depth, and continuous long-time cutting, which makes cutting tools prone to concentrated heat accumulation and rapid wear. This coolant delivers precise and sustained heat dissipation for tool cutting edges, instantly taking away high cutting heat generated during high-speed precision machining. It stably suppresses tool thermal deformation and micro-wear, maintains consistent dimensional accuracy of tiny parts, extends tool service life significantly, and reduces frequent tool replacement and production downtime for batch processing.
Supported by a mature High-Pressure Coolant System, the solution achieves ultra-fine and high-pressure coolant output exclusive to Swiss turning equipment. With adjustable stable high-pressure power and precise flow control, the system breaks through the limitation of traditional low-pressure coolant that cannot reach deep cutting areas. It provides uniform lubrication and high-efficiency heat dissipation for narrow cutting gaps and deep hole processing positions unique to Swiss lathes, effectively improving workpiece surface smoothness, eliminating burrs and thermal scratches, and ensuring ultra-precision machining standards for micro-components.
Matching the compact structural layout of Swiss turning machines, the powerful High-Pressure Flushing function realizes dead-angle-free cleaning of the entire machining area. The high-speed high-pressure coolant jet accurately impacts the tool tip, workpiece surface, and spindle processing area, instantly flushing away fine metal chips, cutting powder, and residual oil stains generated in precision turning. It avoids residual debris causing secondary scratches on ultra-precision workpieces and tool friction damage, keeps the narrow working cavity of the Swiss lathe clean at all times, and greatly improves the yield rate of precision parts and production continuity.
Aiming at the chip processing pain points of slender part turning in Swiss machines, the professional Chip Removal & Chip Breaking system realizes standardized and efficient chip management. Swiss turning often produces long and thin continuous chips that are easy to wind around tools and workpieces, leading to machining failure and equipment jamming. Cooperating with high-pressure flushing linkage, this solution actively breaks strip continuous chips into fine uniform chips, and realizes rapid and thorough chip discharge. It completely solves chip winding, accumulation, and blockage problems, ensuring stable and uninterrupted automatic batch production of Swiss turning machines.
Compatible with mainstream precision processing configurations of Swiss lathes, it supports full Through-Coolant Tool application to achieve ultimate targeted cooling. Different from traditional external spray cooling with scattered coverage, the coolant penetrates the inside of the tool and directly acts on the tool tip cutting point, realizing zero-distance heat dissipation and precision lubrication. This greatly enhances the cooling effect of deep hole turning and micro-finishing processes, effectively resists tool thermal fatigue in long-hour continuous processing, and further improves the precision stability and processing efficiency of Swiss turning.
Equipped with industry-leading Through-Spindle Coolant technology, the system builds a three-dimensional penetrating cooling loop for Swiss turning machines. The high-pressure coolant is stably conveyed through the spindle interior, realizing synchronous cooling of the spindle, fixture, workpiece deep processing area, and cutting tool. It effectively controls the overall temperature rise of the equipment during high-speed and long-time operation, ensures the high-precision rotation stability of the spindle, and avoids machining accuracy deviation caused by equipment thermal deformation.
In summary, this dedicated High Pressure Coolant for Swiss Turning Machines relies on the organic integration of Tool Cooling, High-Pressure Coolant System, High-Pressure Flushing, Chip Removal & Chip Breaking,Through-Coolant Tool and Through-Spindle Coolant. It perfectly matches the precision, high-speed and batch processing characteristics of Swiss turning equipment, bringing comprehensive upgrades in machining accuracy, workpiece yield, tool life and production efficiency, and is the essential high-performance supporting solution for modern ultra-precision Swiss turning production.
| Specification |
JY-C70 |
JY-C100 |
HY-C150 |
| Applicable Series |
TD-S70 |
TD-S100 |
TD-S150 |
| Motor Power |
2.2 kW |
3 kW |
4 kW |
| Weight |
85 kg |
105 kg |
120 kg |
| Dimensions (L×W×H) |
785 × 390 × 530 mm |
860 × 450 × 660 mm |
900 × 500 × 700 mm |
| Outlet Pressure |
70–90 kg (Adjustable) |
70–90 kg (Adjustable) |
70–90 kg (Adjustable) |
| Pump Form |
Vane / Plunger Pump (Optional) |
Vane / Plunger Pump (Optional) |
Vane / Plunger Pump (Optional) |
