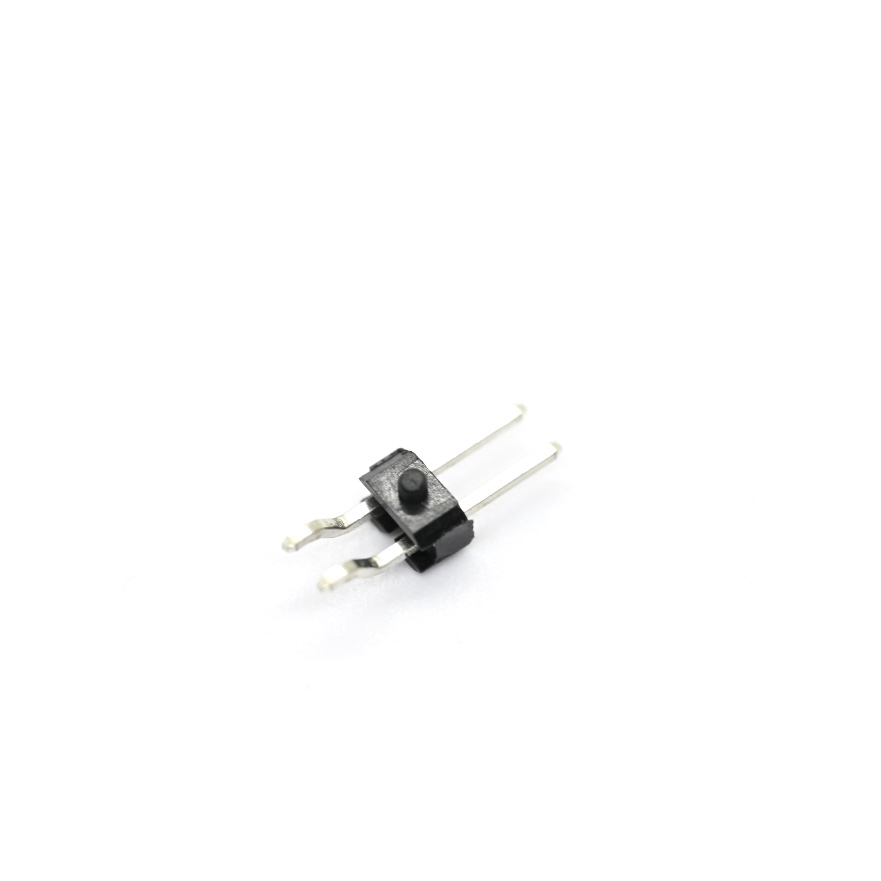

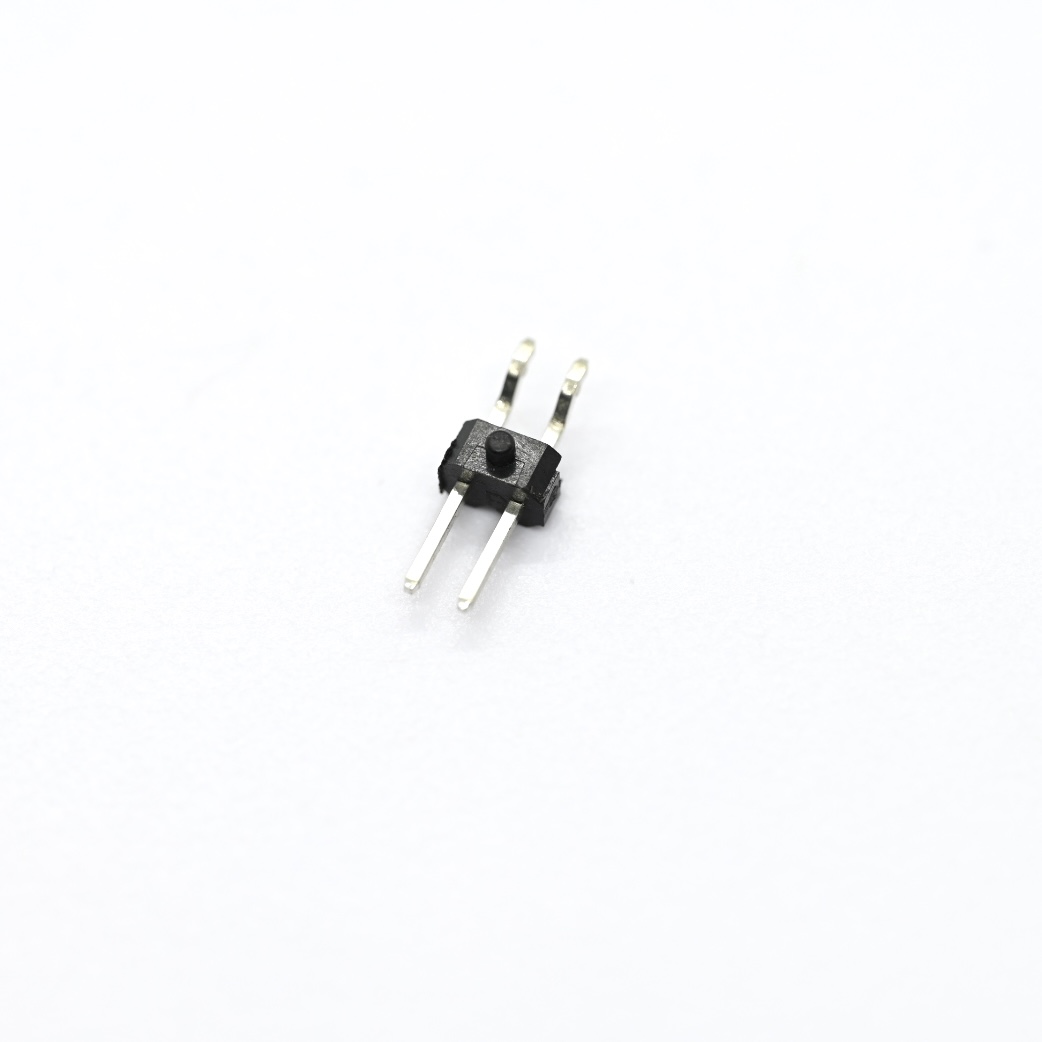

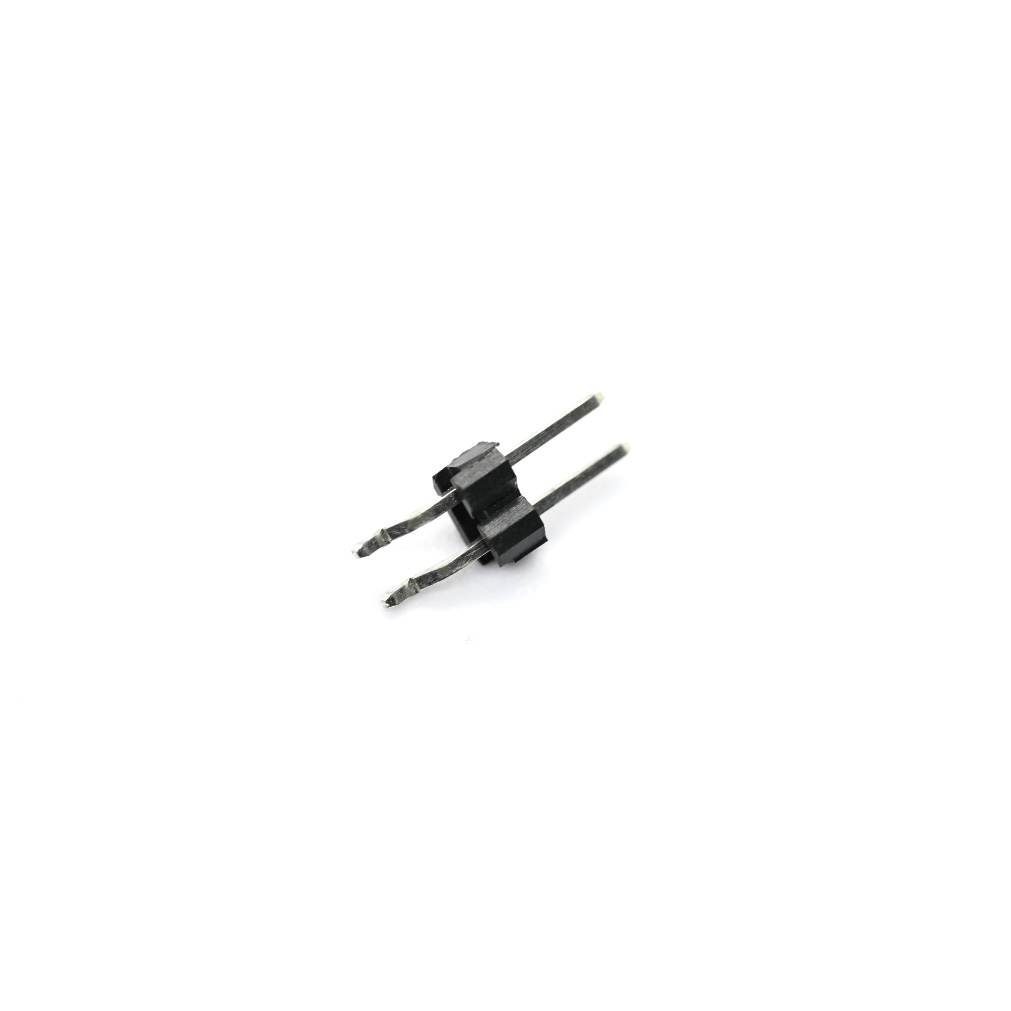

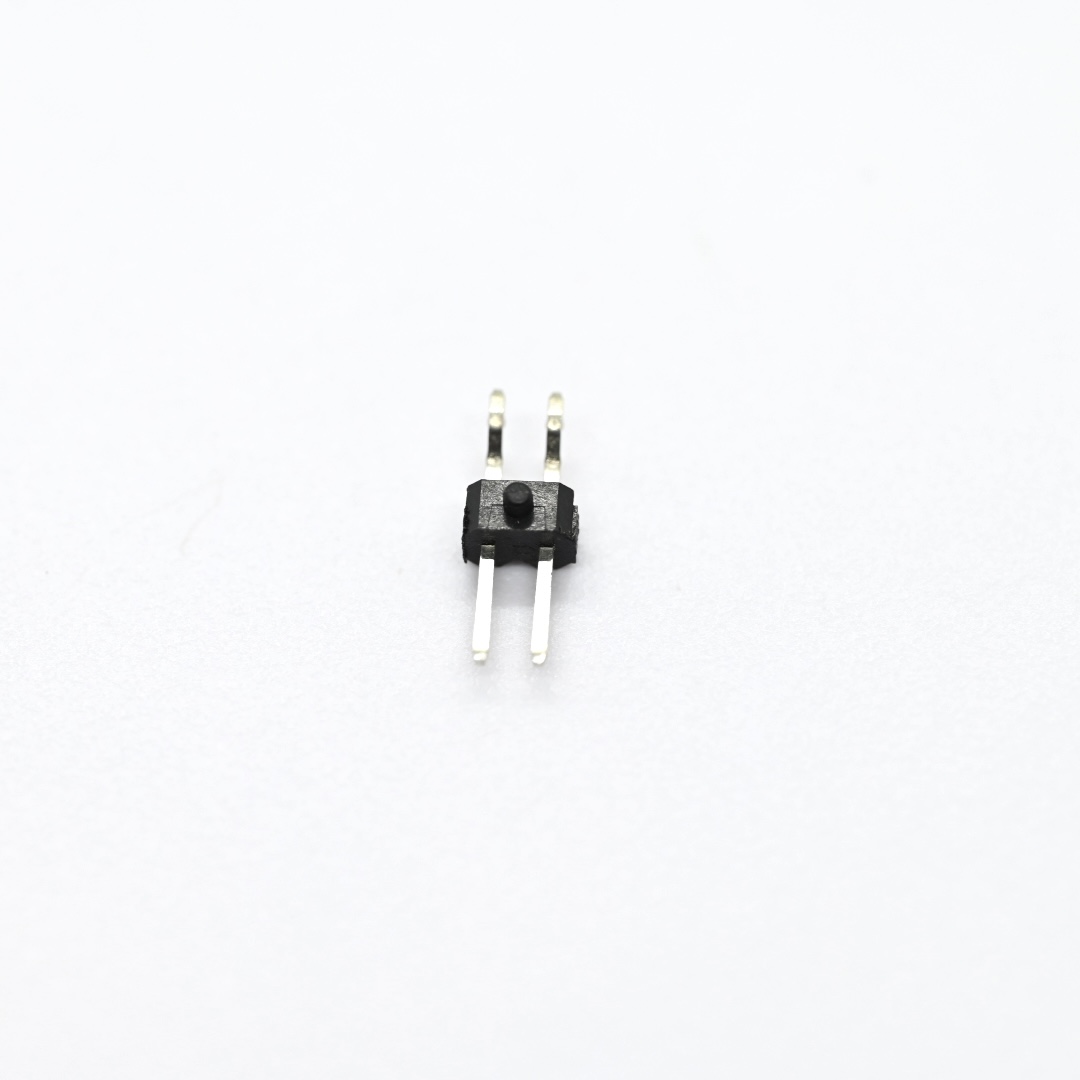

1.Prpduct Description
Manufactured by Huizhou Antenk Electronics Co., Ltd, the PHEM02 series 2.54mm Pin Header SMT Type Single Row is a surface mount pin header built for reliable signal and low power wire to board interconnection on compact PCBs. All manufacturing activities strictly comply with dimensional specifications and tolerances shown on official engineering drawings. The insulator is made of PA6T material that reaches UL94V-0 flame retardant standard to withstand high reflow soldering temperatures. Contact pins are brass with multiple plating options including tin and varied thicknesses of full or selective gold plating to meet different service life requirements. Rated for 3 Amp current, this pin header achieves minimum insulation resistance of 1000 megohms and supports AC500V dielectric voltage withstand, operating steadily from minus 65 degrees Celsius to 125 degrees Celsius. This series supports 1 to 40 contacts with two pin height types and multiple packaging choices. Our complete production workflow includes independent precision mold development, high-speed brass terminal stamping, selective gold electroplating, plastic injection molding, automatic pin assembly and full dimensional inspection. Imported Japanese and Taiwanese production equipment guarantees stable pitch precision, and all raw materials satisfy EU RoHS and REACH environmental standards.
This single row SMT pin header follows mature surface mount assembly steps. Operators place the pin header onto designated PCB pads, complete reflow soldering to fix components firmly, then mate it with matching female sockets to form separable electrical circuits. Its SMT structure saves PCB space and supports automated assembly for mass production. The product is widely used in industrial control modules, digital household appliances, communication equipment, portable electronic devices and precision testing instruments. During application, users shall not exceed the rated 3A current to avoid pin overheating. Excessive plugging force must be avoided to prevent pin bending and insulator fracture. Unused pin headers need dry sealed storage to protect plating layers against oxidation. Most specifications hold UL certification numbered E472792, and our factory owns ISO9001, ISO14001 and IATF16949 quality management certifications.
Compared with other pin header manufacturers, Antenk independently develops and owns more than 250 sets of plastic injection molds and 180 sets of precision metal stamping molds, enabling customized contact counts, pin lengths, plating types and insulator materials for this single row SMT pin header series. Our 10000 square meter production base employs 250 professional staff, equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, supporting stable mass output and on-time delivery for large overseas export orders. As a brand awarded Guangdong Famous Trademark qualification, more than 70 percent of our connectors are exported to global markets covering Europe, America, Southeast Asia and South America. We accept small batch orders for standard models without additional mold opening fees.
We implement full-process strict quality inspection for each batch of SMT pin headers, covering incoming raw material inspection, continuous monitoring for stamping, electroplating and injection molding processes, finished contact resistance testing, voltage withstand testing and plug retention force testing. Every finished batch has complete lot traceability for quality tracking. Rigorous multi-stage inspection greatly improves long-term connection stability and anti-vibration performance, lowering circuit failure risks caused by poor contact. We supply free samples, detailed PCB layout drawings and 24-hour online technical support for all global purchasers, establishing long-term trustworthy cooperative partnerships with electronic manufacturers worldwide.
SMT Straight Pin Headers support automated PCB assembly and effectively save layout space for compact electronic equipment.
Selective Gold Plated Pins reduce material cost while ensuring stable conductivity and anti oxidation performance for frequent mating cycles.
PA6T Flame Resistant Bases withstand high reflow soldering temperature and meet UL94V-0 safety requirements.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

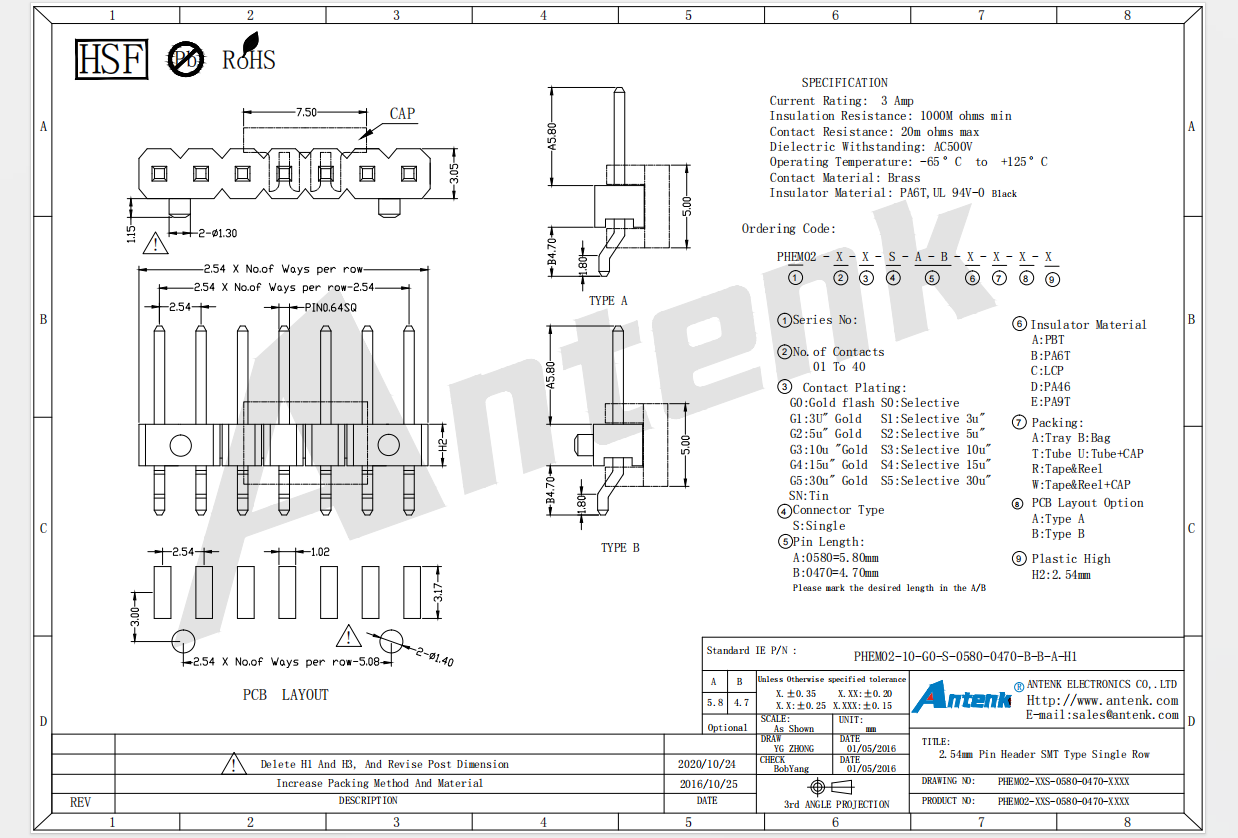

3、Product Drawing
