730 people are quoting
| Dielectric Strength | 1 kV |
| Waterproof Rating | IP67 |
| Tensile Force | White 50 N |
| Product Model | Product Dimensions(mm) | Lead Wire Dimensions(mm) | Standard Colors | Applicable Wire Specifications | |||
| A (min.) | L (min.) | B (min.) | B and C (max.) | C (min.) | A.W.G,( 68619975,mm²) | ||
| HSCT-R-01 | 1.7 | 26 | 1.0 | 1.7 | 0.76 | White | 26-24 (0.25-0.34) |
| Material | Polyethylene |
| Operating Temperature | -55℃ – 125℃ |
| Initial Temperature | 80℃ |

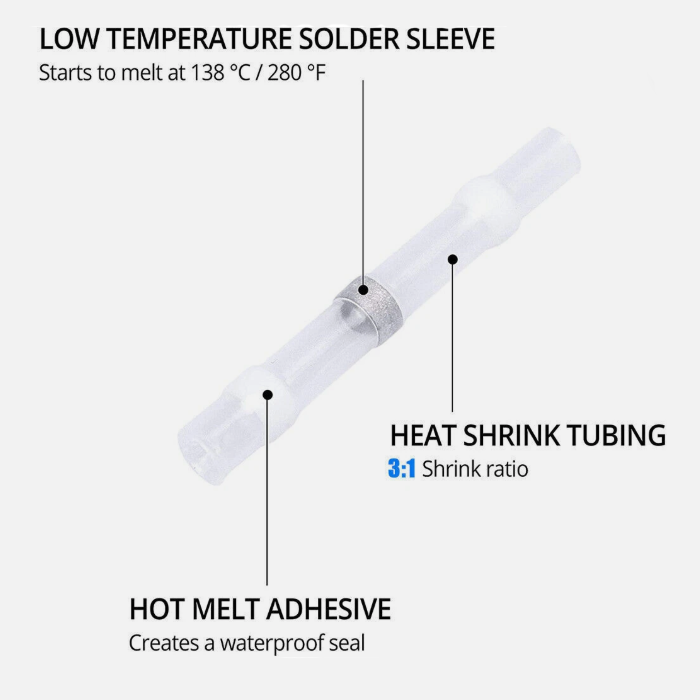

| Solder Start Melting Temperature | 138℃ |
| Solder Complete Melting Temperature | 160℃ |
| Shrink Ratio | 3:1 |
| Colors | White |
If you are interested in the product, contact 2bvideo.com for more information for more information
The information of 2bvideo.com limited shown above is provided by the user or collected on the network. Video 2B does not guarantee the authenticity,accuracy and legitimacy of 2bvideo.com limited information. Video 2B does not involve legal relationships and disputes between users arising from transactions other than secured transactions on this website. Disputes shall be settled by you through negotiation. If you are the person in charge or relevant employee of this enterprise, if you find that the enterprise information is incorrect or want to manage thiscompany, please contact us jacklee1558@gmail.com, after you claim the enterprise, you can obtain management permission, publish supplyand demand information, bring consulting orders, and remove page advertisements.
Main Product:
Heat shrink tubing,
Adhesive-lined Polyolefin Tubing,
Electrical Wire Connectors and Terminals ,
Braided Sleeving,
Fire Resisting Sleeves for Electrical Cables,
Insulation tube
