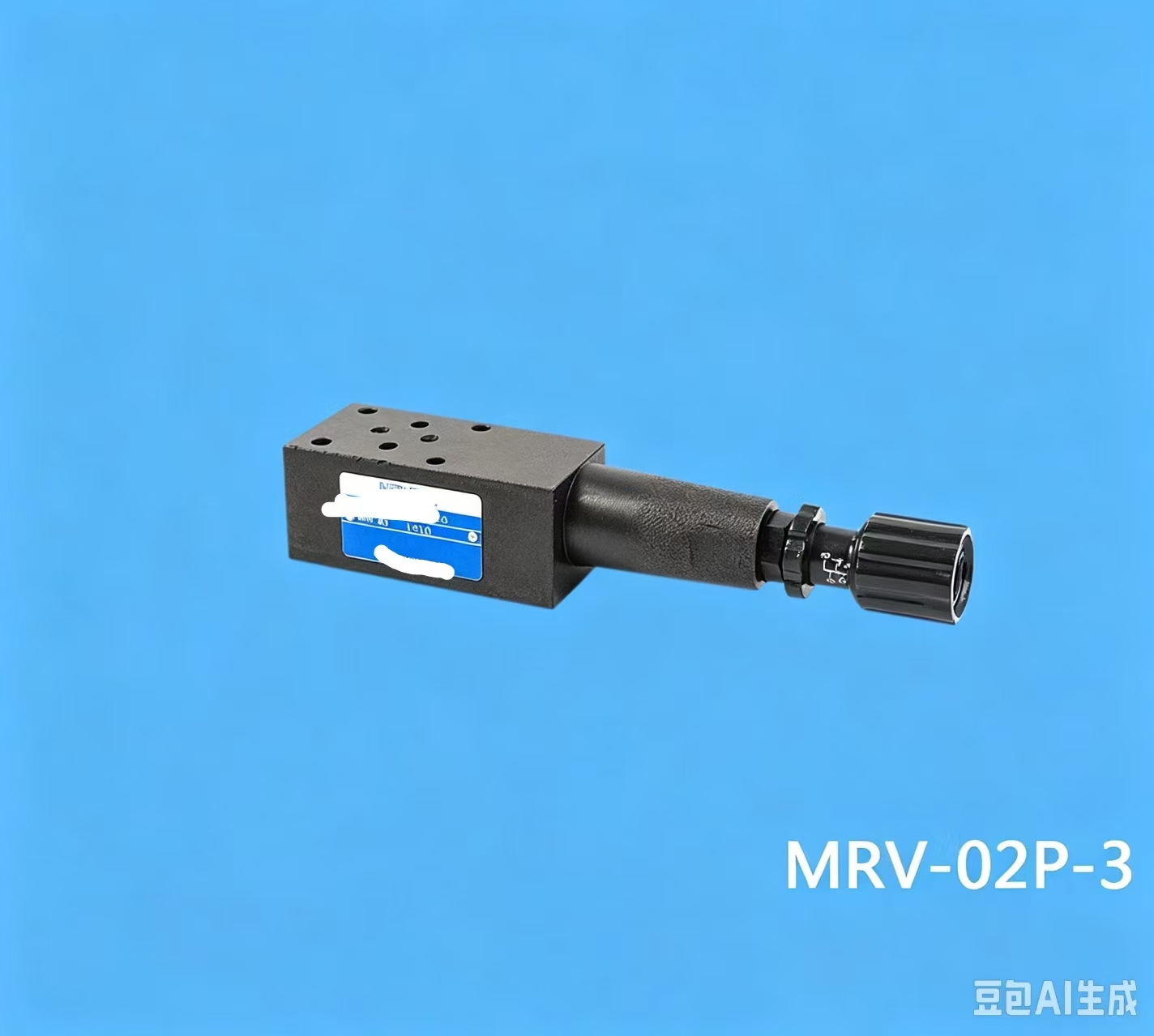

MRV Stack‑type Relief Valve

Product Overview

MRV stack‑mounted relief valve is a modular sandwich‑plate pressure‑control hydraulic valve complying with ISO4401 installation standard. It is stacked between solenoid directional valve and manifold block without extra piping. This valve is used for system pressure limiting, pressure regulating and over‑pressure safety protection. Different versions are available for P‑port, A‑port, B‑port or dual A/B‑port pressure relief. It stabilizes hydraulic system pressure and protects hydraulic pump and actuators from pressure overload.

Main Technical Parameters

Item Specification

Model Series MRV‑02(NG6), MRV‑03(NG10), MRV‑04(NG16)

Max Working Pressure 315 bar (31.5 MPa)

Max Flow Rate 40‑120 L/min (depends on nominal size)

Pressure Adjustment Range Range1:0.7‑7 MPa；Range2:3.5‑14 MPa；Range3:7‑21 MPa

Control Port Option P‑port / A‑port / B‑port / W‑type(A&B dual‑port)

Adjustment Mode Manual knob adjustment, adjustable locking function

Mounting Standard ISO4401 stack‑sandwich installation

Hydraulic Medium Anti‑wear hydraulic oil ISO‑VG32 / VG46

Operating Temperature ‑10℃ ~ +70℃

Filtration Requirement ≤25 μm

Working Principle

Direct‑acting poppet‑type relief structure. Rotate adjustment knob to set spring pre‑tension, which defines system target pressure.

1. When circuit pressure is lower than preset value, poppet keeps closed, no overflow occurs.

2. Once oil pressure exceeds spring setting value, poppet opens, excess hydraulic oil flows back to tank, system pressure is maintained at preset level.

3. W‑type version provides independent relief for both A‑port and B‑port, realizing bidirectional over‑pressure protection for actuator circuits.

Core Advantages

1. Stack‑type modular construction, no external pipeline, compact layout for hydraulic manifold assembly.

2. Multiple control‑port options(P/A/B/W), flexible to satisfy single‑side or dual‑side pressure‑limiting requirements.

3. Sensitive pressure response, stable pressure‑holding performance, small pressure fluctuation under variable‑flow condition.

4. Adjustable knob with locking function, prevents accidental pressure change caused by vibration on site.

5. Cast‑iron valve body and precision‑ground poppet, good wear‑resistance for long‑term continuous industrial operation.

6. Interchangeable with widely‑used Taiwan‑series MRV modular relief valves, easy for spare‑part replacement.

Typical Application

Pressure‑setting and over‑load safety protection for hydraulic stations, machine tools, injection‑molding machines, hydraulic presses, automation production‑lines and general‑purpose industrial hydraulic systems. Used for main‑circuit pressure limiting or individual‑actuator pressure protection.
