UL94V0 LCP SMT 1225C Coin Cell Holder

UL94V0 LCP SMT 1225C Coin Cell Holder

2 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Huizhou Antenk Electronics Co., Ltd. manufactures BT-M-SN-X-1225C SMT coin cell holder specially designed to firmly fix 1225C miniature coin batteries and deliver consistent conductive connection on PCB circuit boards. This battery holder adopts natural LCP E130i UL94V0 plastic as insulating housing with UL certification number E106764, paired with 0.15mm thick grade 301 spring stainless steel contacts finished with 30 micro inch nickel underlayer plus 100 to 200 micro inch high temperature tin plating, and customers can upgrade to multiple gold plating options from gold flash up to 30 micro inch gold for stronger anti-corrosion and stable conductivity in complex working environments. It adopts standard M-type SMT surface mount construction with exclusive matched PCB pad layout, supporting tray packing and tape reel packing two packaging modes to adapt manual assembly and high speed automated SMT production lines. This battery holder works steadily within minus 40 degrees Celsius to 100 degrees Celsius, widely used in digital cameras communication devices industrial control sensors smart home appliances electronic toys and precision measuring instruments. Operators must follow official PCB dimension standards during reflow soldering, avoid heavy squeezing to prevent stainless steel spring permanent deformation and store finished holders in dry warehouse to avoid tin nickel plating layer oxidation. Unlike peers outsourcing injection molding and terminal stamping Antenk carries out full in house production workflow covering independent mold development stainless steel terminal high speed stamping LCP plastic injection molding tin nickel gold electroplating and complete laboratory reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications and fully complying with RoHS HSF and REACH environmental standards. We own large quantities of self developed plastic and metal precision molds, provide customized plating and packaging solutions, offer round the clock professional technical support, and more than seventy percent of our coin cell holders are exported globally relying on our Guangdong Famous Trademark ANTENK and stable consistent mass production quality.

High Temp Tin Plated Stainless Contact is constructed with a 30u nickel base and 100-200u high temperature tin layer to sustain stable conduction under fluctuating thermal conditions.

Natural LCP UL94V0 Battery Housing uses certified LCP E130i flame retardant plastic to insulate internal contacts and resist deformation during SMT reflow soldering.

Wide Temp SMT 1225C Coin Socket maintains reliable clamping and conductive performance across the full operating temperature range from -40°C to +100°C.

1. Material & Plating Parameters

1.1 Insulation housing: Natural LCP E130i plastic, UL94V-0 flame retardant, UL certificate E106764

1.2 Contact terminal: Grade 301 spring stainless steel, thickness 0.15mm

1.3 Standard plating: 30u'' nickel base layer + 100–200u'' high temperature tin plating

1.4 Optional plating types: Gold flash, 3u'',5u'',10u'',15u'',30u'' gold plating

2. Applicable Battery & Structure Type

2.1 Matching battery: 1225C miniature coin cell

2.2 Mounting structure: M = SMT surface mount type

3. Temperature Performance

3.1 Operating temperature range: -40°C ~ +100°C

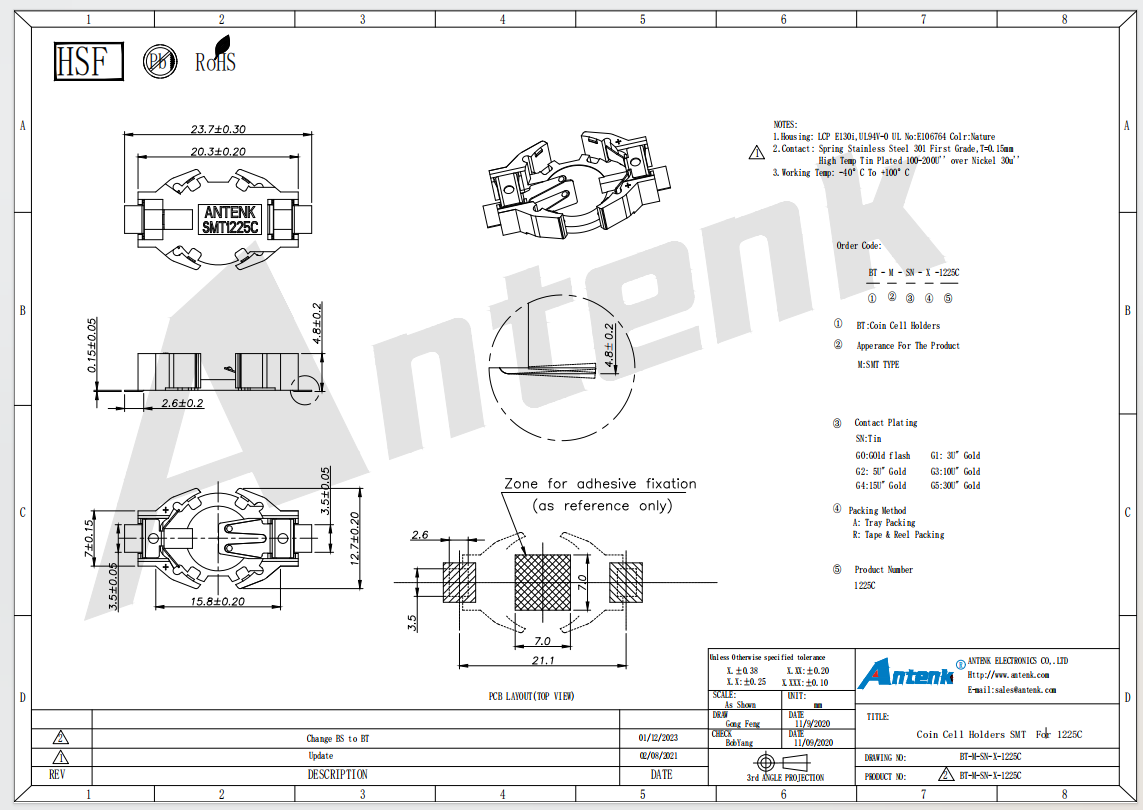

4. Dimension & Tolerance Standard (Unit: mm)

4.1 Overall outline dimensions: 23.7±0.30, 20.3±0.20, 21.1, 15.8±0.20

4.2 PCB pad layout sizes: 7.0, 3.5, 2.6±0.2

4.3 Universal dimensional tolerance rules

4.3.1 Integer size X. : ±0.38

4.3.2 Single decimal X.X : ±0.25

4.3.3 Two decimals X.XX : ±0.20

4.3.4 Three decimals X.XXX : ±0.10

5. Order Code Definition & Packaging Options

5.1 Code breakdown: BT=Coin Cell Holders, M=SMT TYPE, SN=Tin plating, X=custom suffix, 1225C=product model

5.2 Two available packaging modes

5.2.1 A: Tray Packing

5.2.2 R: Tape & Reel Packing

6. Environmental Compliance

6.1 Meet Pb-free, RoHS and HSF environmental standards

7. Application Scenarios

7.1 Digital cameras

7.2 Communication equipment

7.3 Industrial control sensors

7.4 Smart home appliances

7.5 Electronic toys

7.6 Precision measuring instruments

8. Usage Precautions

8.1 Complete reflow soldering strictly following official PCB pad layout drawing

8.2 Avoid excessive extrusion force to prevent permanent deformation of stainless steel spring contacts

8.3 Store finished holders in dry storage space to avoid oxidation of tin and nickel plating layers

8.4 Only install standard 1225C coin batteries to guarantee stable elastic conductive performance

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

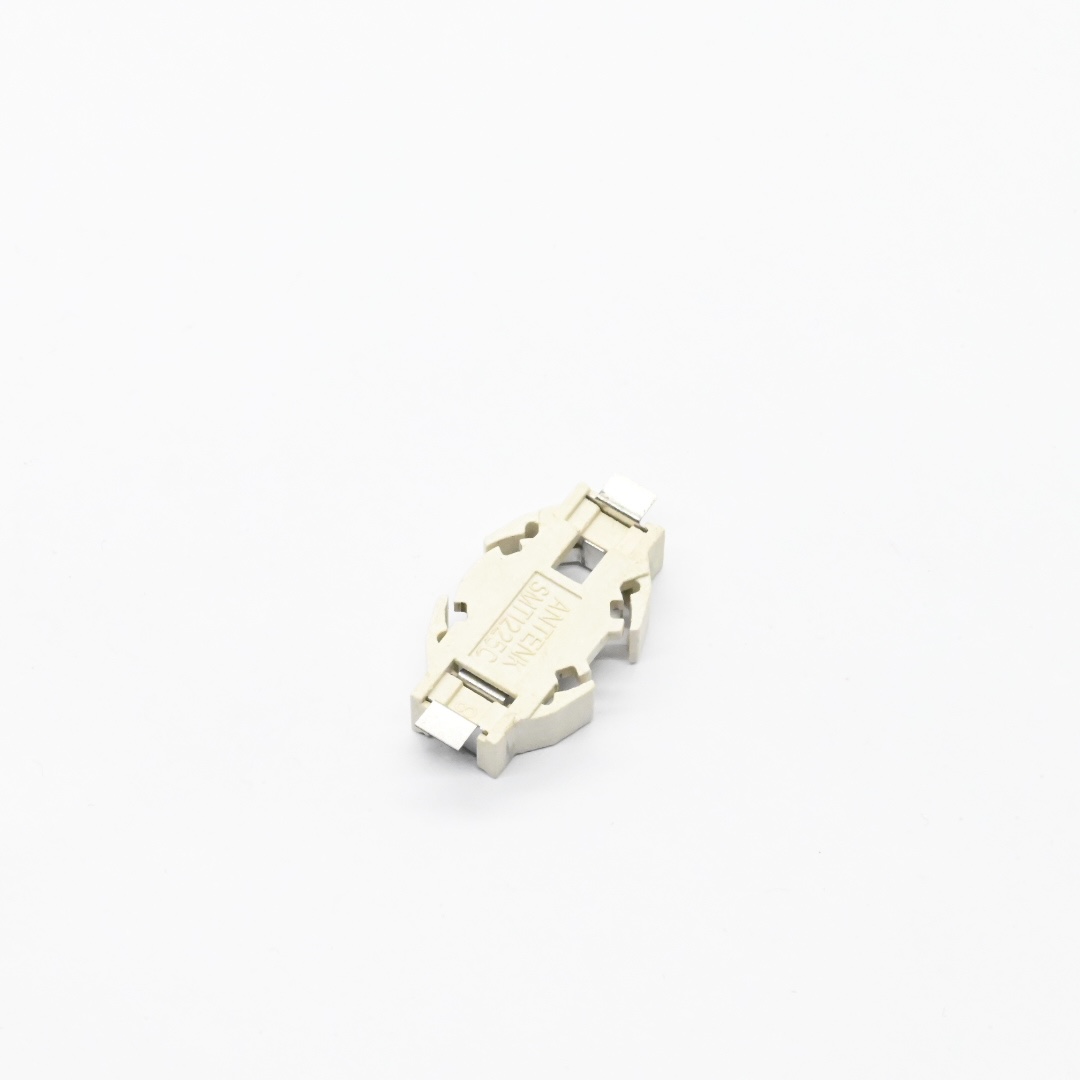

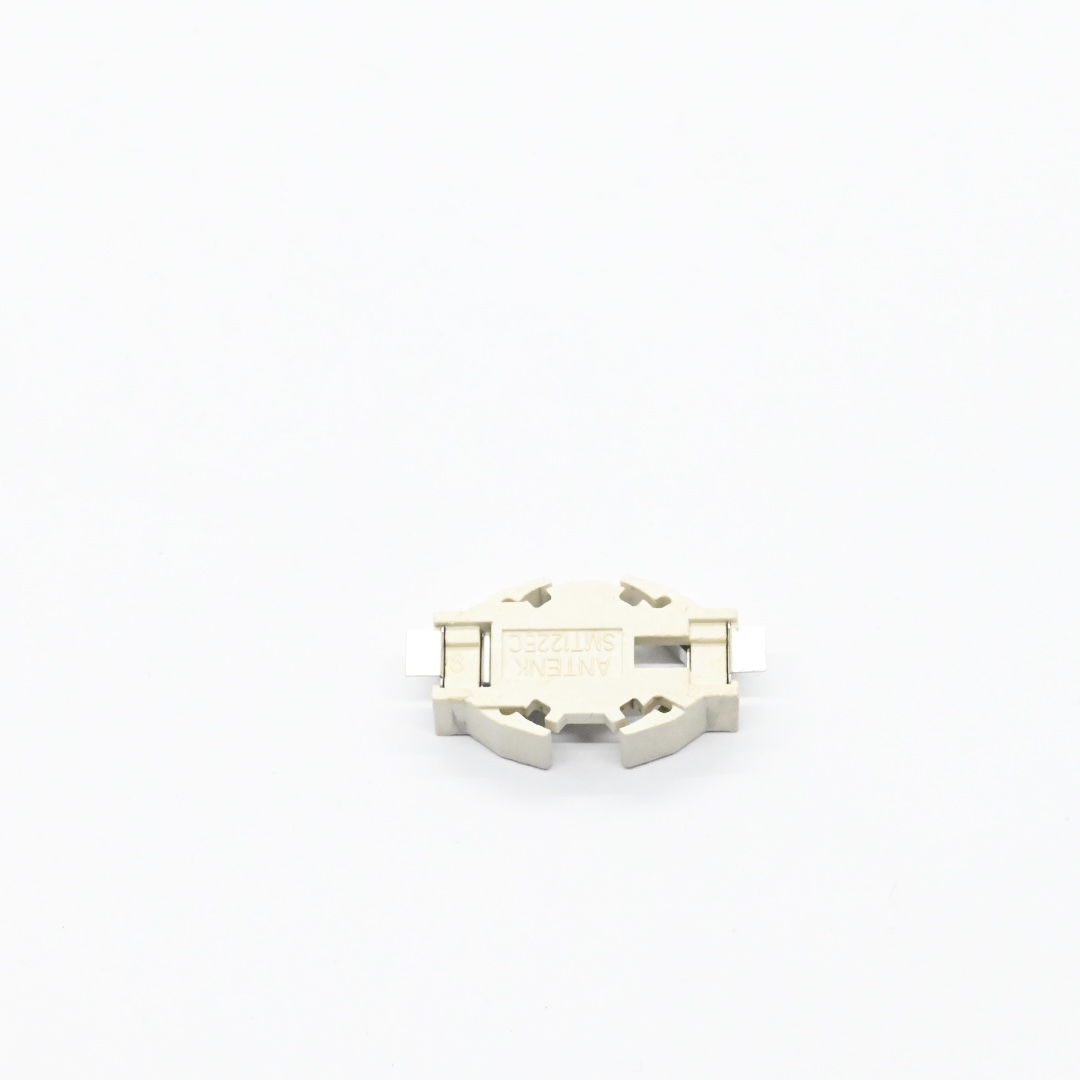

BT-M-SN-X-1225C+Coin Cell Holders SMT For 1225C（4）

BT-M-SN-X-1225C+Coin Cell Holders SMT For 1225C（6）

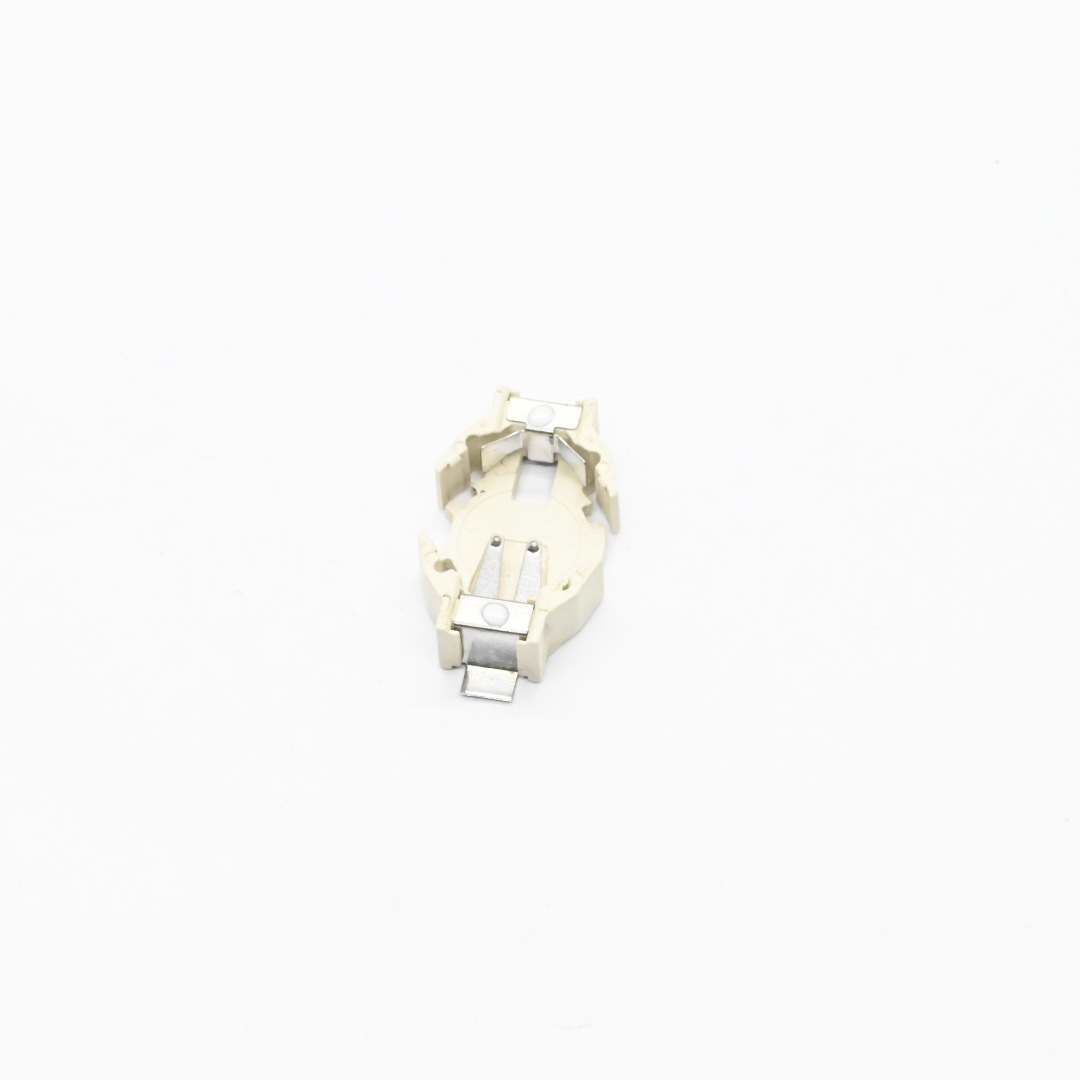

BT-M-SN-X-1225C+Coin Cell Holders SMT For 1225C（3）

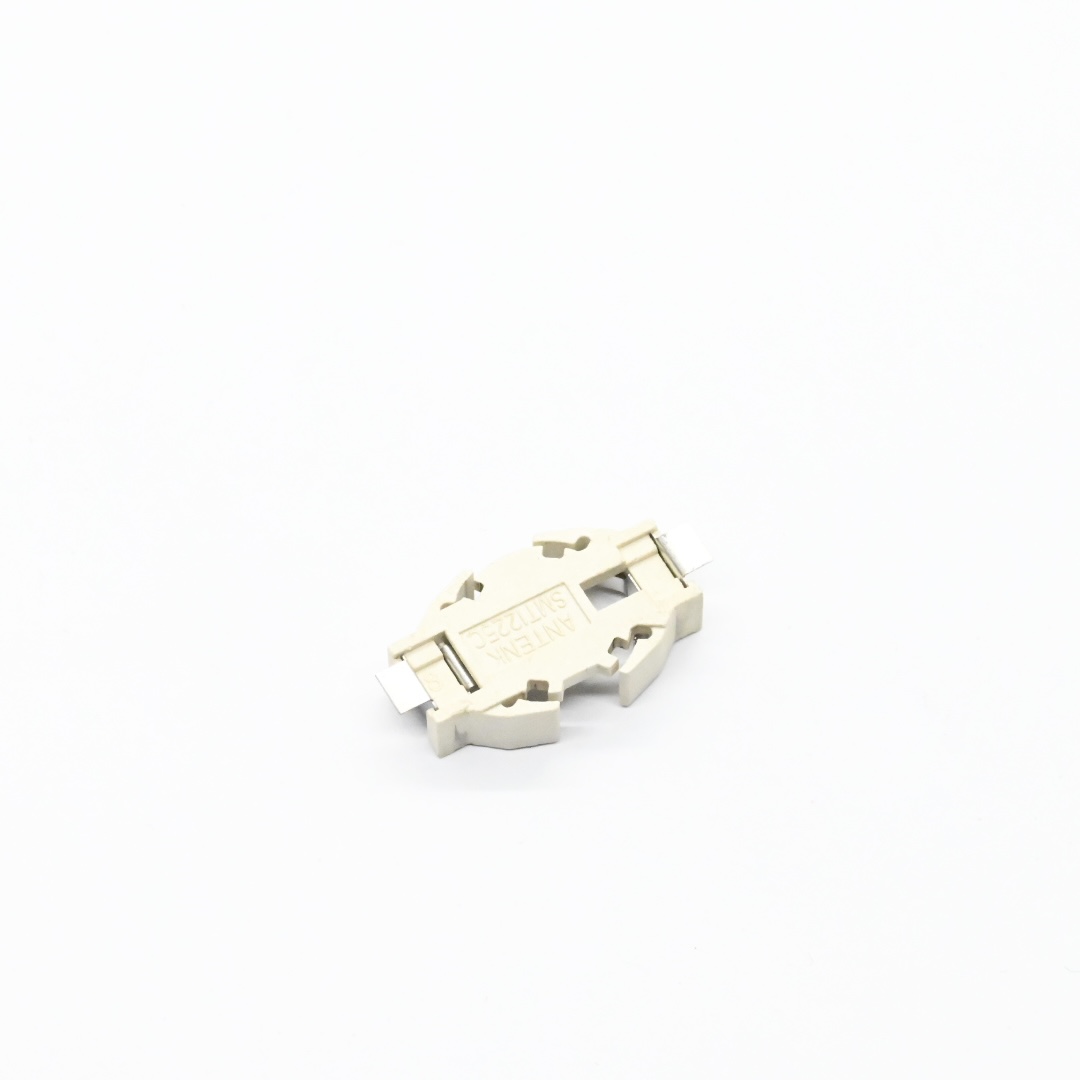

BT-M-SN-X-1225C+Coin Cell Holders SMT For 1225C（5）

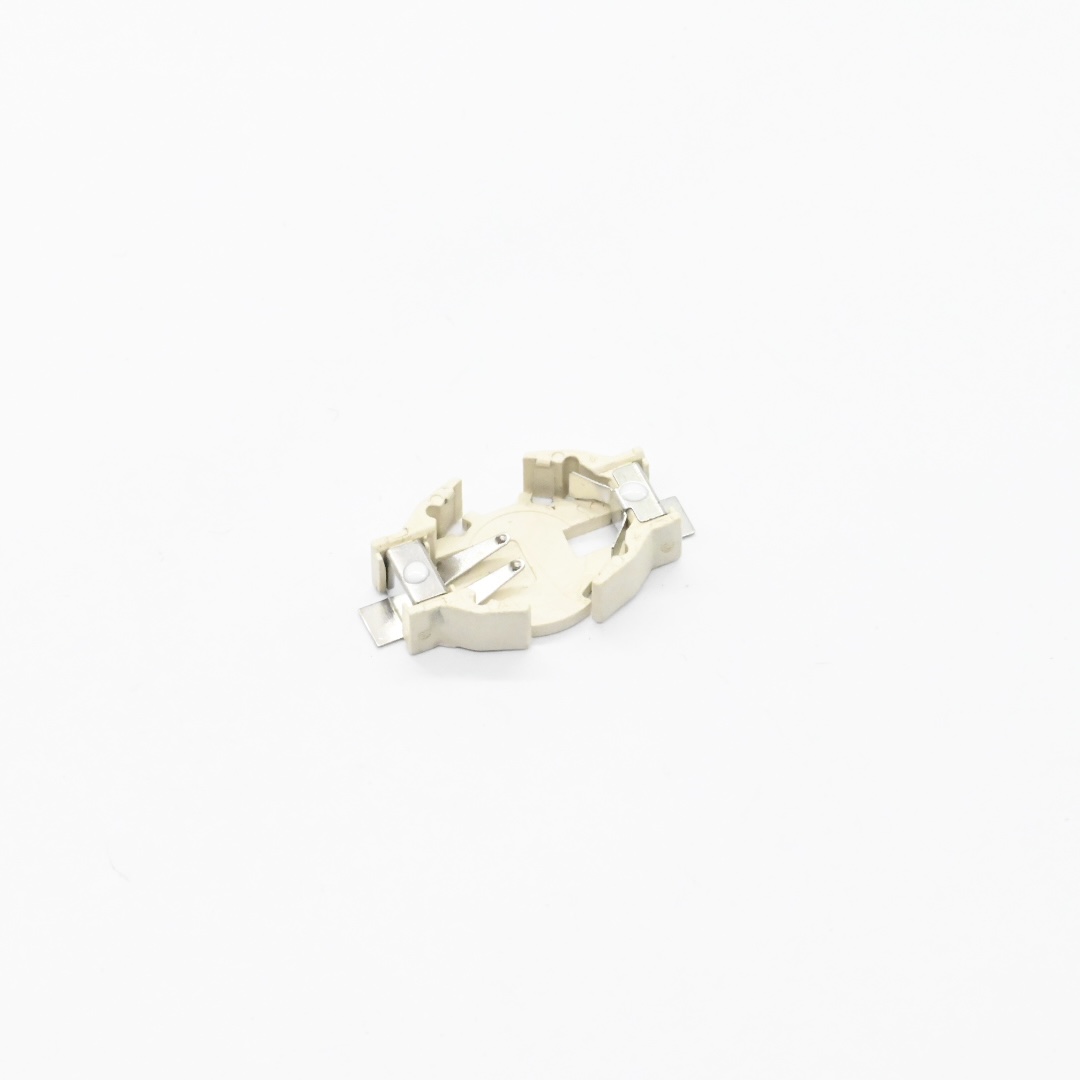

BT-M-SN-X-1225C+Coin Cell Holders SMT For 1225C（2）

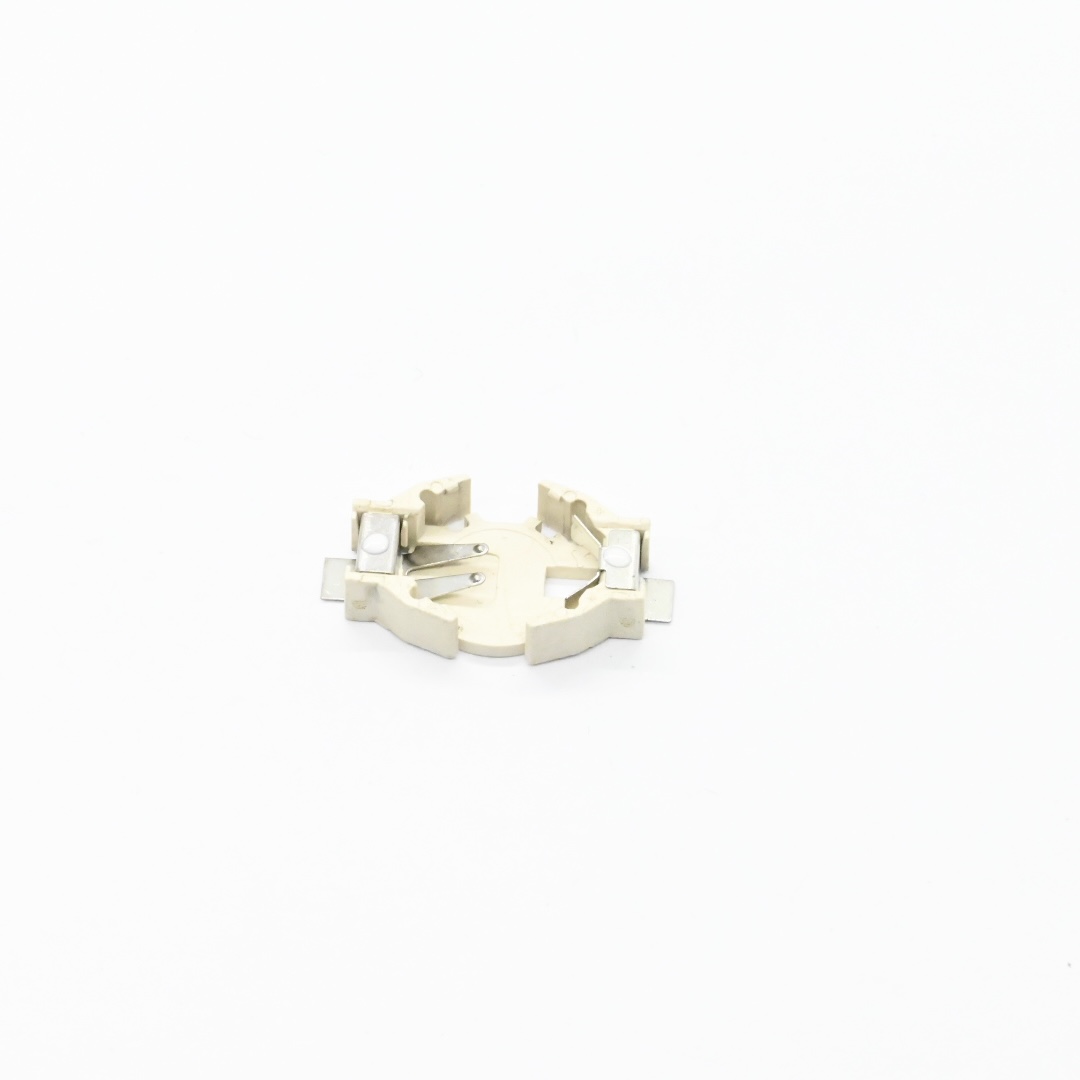

BT-M-SN-X-1225C+Coin Cell Holders SMT For 1225C（1）
