Product details

Huizhou Antenk Electronics Co., Ltd. manufactures AT801 10.0XXXX A series 10.0 mm pitch feed through terminal blocks to deliver secure reliable wire connection for industrial wiring projects, supporting contact poles ranging from 02 contacts up to 12 contacts with unified drawing dimensional tolerances to guarantee consistent assembly performance. This feed through terminal block uses PA66 plus 23 percent glass fiber UL94V 0 material for insulator housing, electrically rated for 300V voltage and 20A working current and accepts wire gauge from 18 AWG to 12 AWG equivalent to 2.5 square millimeter wire cross section. Multiple insulator color selections and two different type structures satisfy diverse field wiring customization needs and the product meets RoHS and HSF environmental standards. This high current wiring terminal block is widely deployed in communication hardware, industrial control panels, digital household appliances, computer peripherals, automotive electronic assemblies and precision measuring instruments requiring stable power and signal wire transition connection. Operators need to select correct pole count structure type and housing color based on actual wiring requirements, adopt suitable wire specification within allowed wire range during wire installation, avoid over tightening to prevent insulator damage, and store finished terminal blocks inside dry sealed packages to protect metal components against oxidation. Unlike competitors outsourcing mold stamping and molding procedures Antenk carries out complete in house production workflow covering self developed precision plastic and metal mold fabrication, metal terminal high speed stamping, high temperature PA66 injection molding plus comprehensive laboratory reliability verification, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications compliant with REACH rules. We own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, deliver custom solutions and round the clock professional engineering support, and over seventy percent of our terminal block products are exported globally backed by ANTENK brand and stable mass production quality.

1. PA66 GF Terminal Housing offers outstanding heat resistance and mechanical strength for heavy‑duty industrial terminal block installation environments.

2. Multi Color Terminal Insulator enables convenient circuit identification and classification during complex on‑site wiring operations.

3. High Current Feed Terminal ensures steady power transmission under 20A rated current for feed‑through wiring application scenarios.

Detailed Specifications:

1. Electrical Parameters

1.1 Rated Voltage: 300V

1.2 Rated Current: 20A

1.3 Acceptable Wire Range: 18‑12 AWG (2.5 mm²)

2. Material & Product Options

2.1 Housing Material: PA66 plus 23% glass fiber, UL94V‑0 flame retardant grade

2.2 Available Pole Numbers: 02‑12 contacts

2.3 Pitch: 10.0 mm

2.4 Structure Type: Type1, Type2

2.5 Insulator Color Options: Transparent, Green, Blue, Black, Gray, Orange

3. Dimensional Standards (Unit: mm)

3.1 General tolerance rule: X.XX:±0.20, shtur:±0.15

3.2 Key dimension values refer to drawing including 3.50, 11.50, 10.00, 20.60

4. Compliance Standard

4.1 Meet RoHS and HSF environmental requirements

5. Application Scenarios

5.1 Communication hardware, industrial control panels

5.2 Digital household appliances

5.3 Computer peripherals

5.4 Automotive electronic assemblies and precision measuring instruments

6. Operation & Storage Precautions

6.1 Select proper pole quantity, structure type and insulator color for actual wiring demands

6.2 Only adopt wires within specified 18‑12 AWG wire range

6.3 Avoid excessive tightening force to prevent housing damage

6.4 Store terminal blocks in dry sealed packages to prevent metal parts oxidation

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

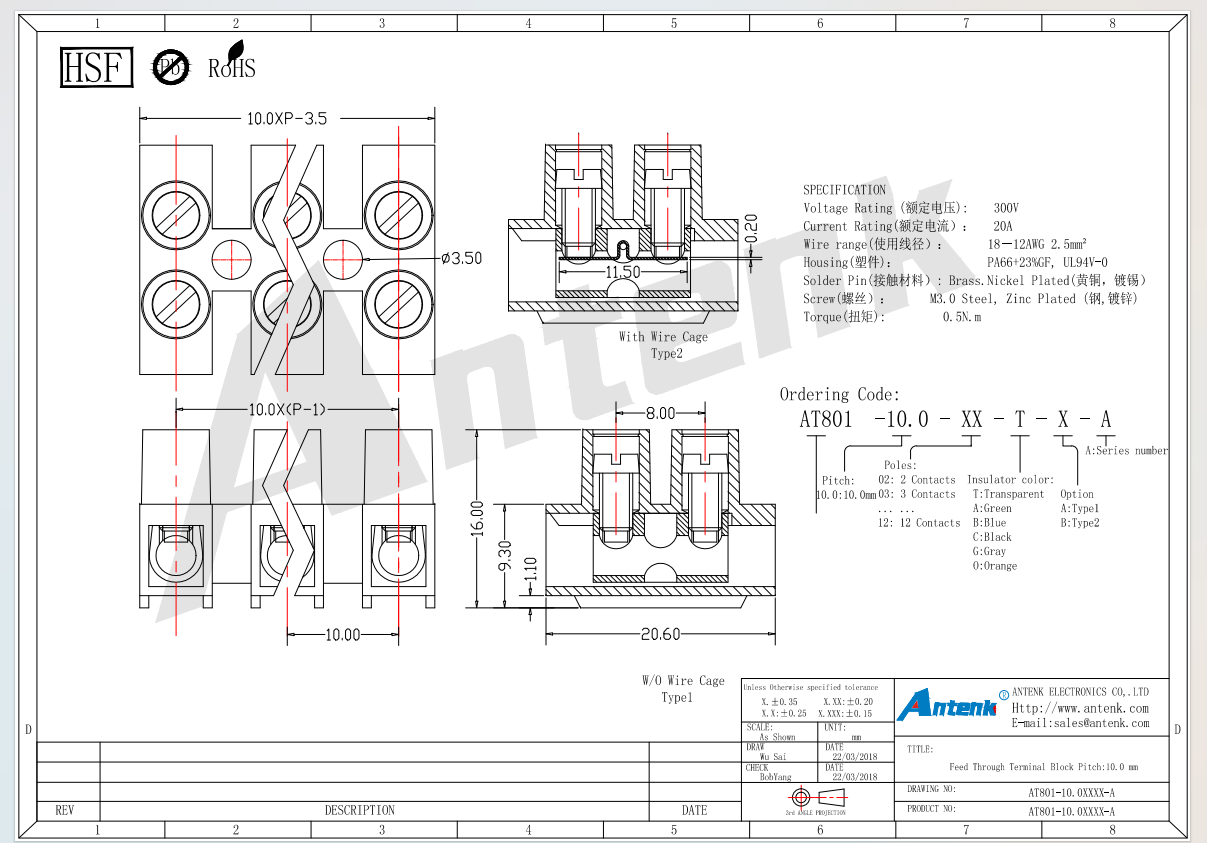

Product Drawing：

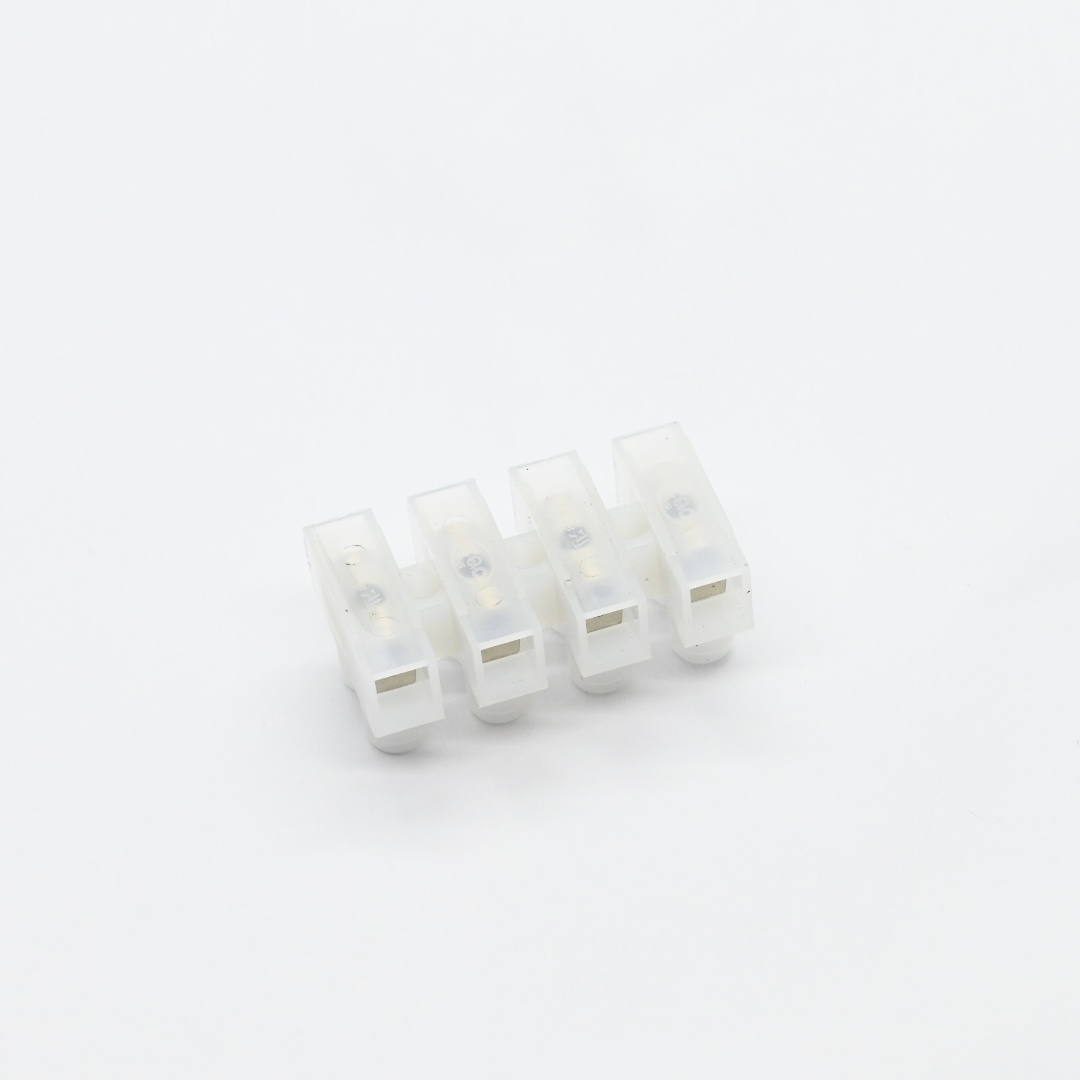

AT801-10.0-04-T-B-A+Feed Through Terminal Block Pitch10.0 mm（6）

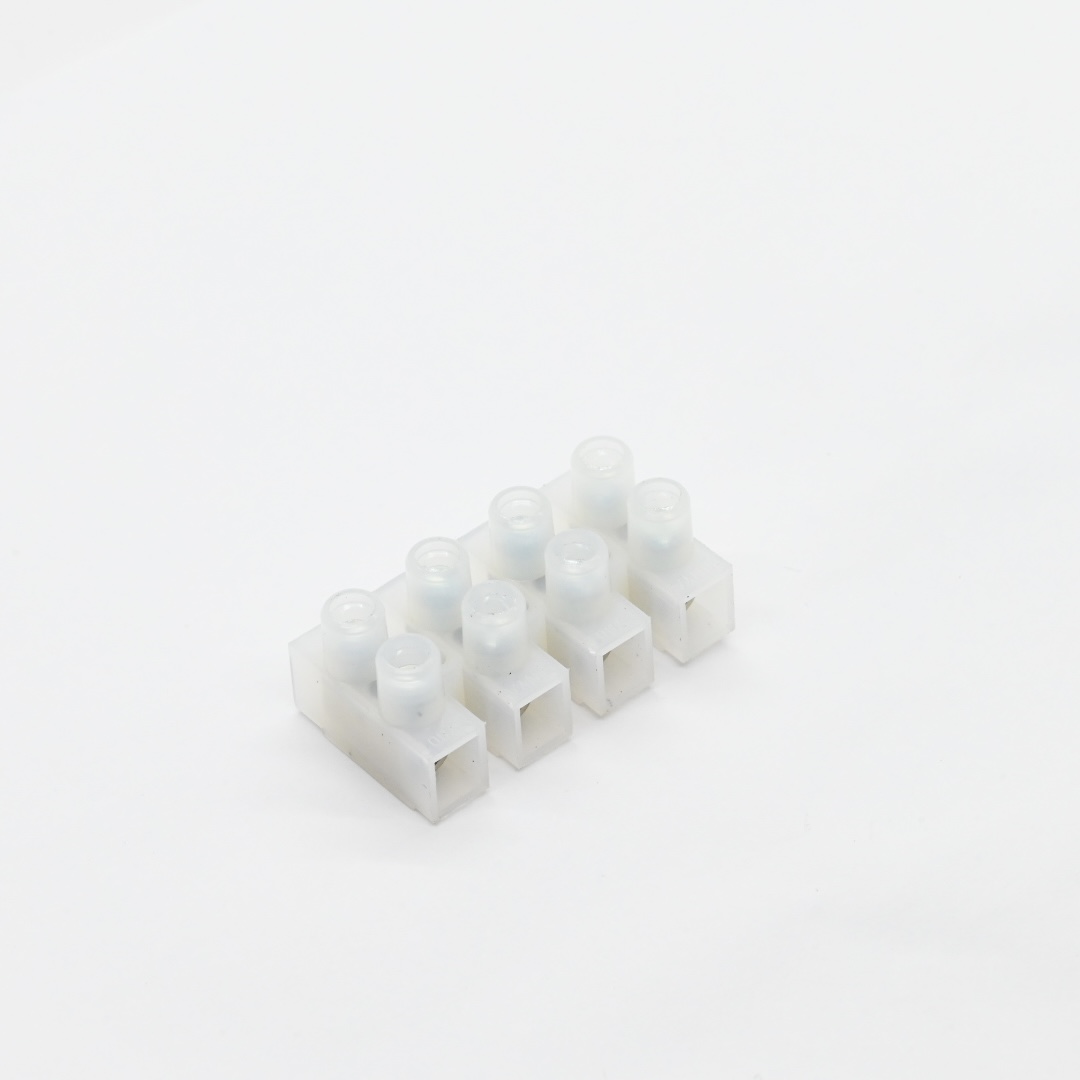

AT801-10.0-04-T-B-A+Feed Through Terminal Block Pitch10.0 mm（2）

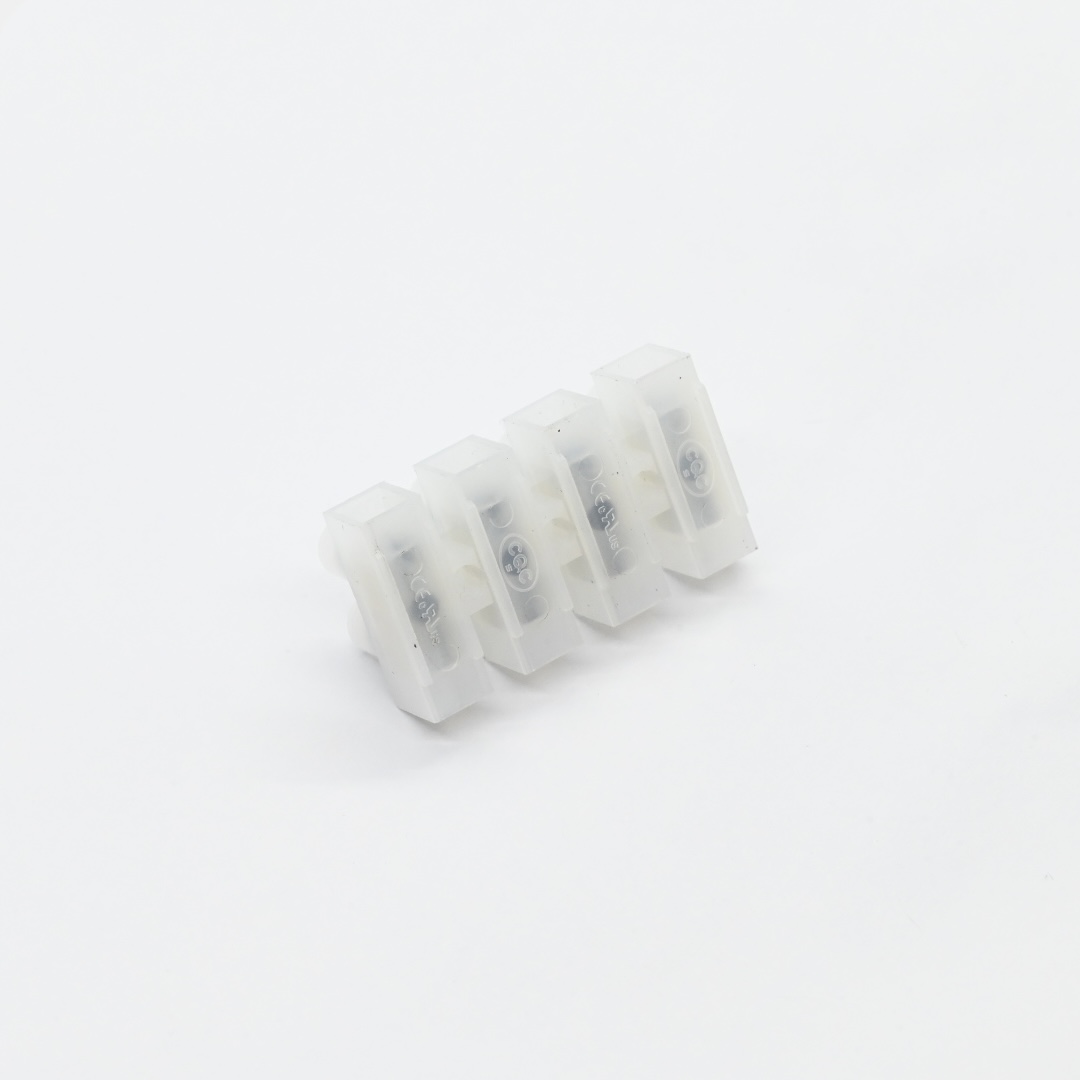

AT801-10.0-04-T-B-A+Feed Through Terminal Block Pitch10.0 mm（4）

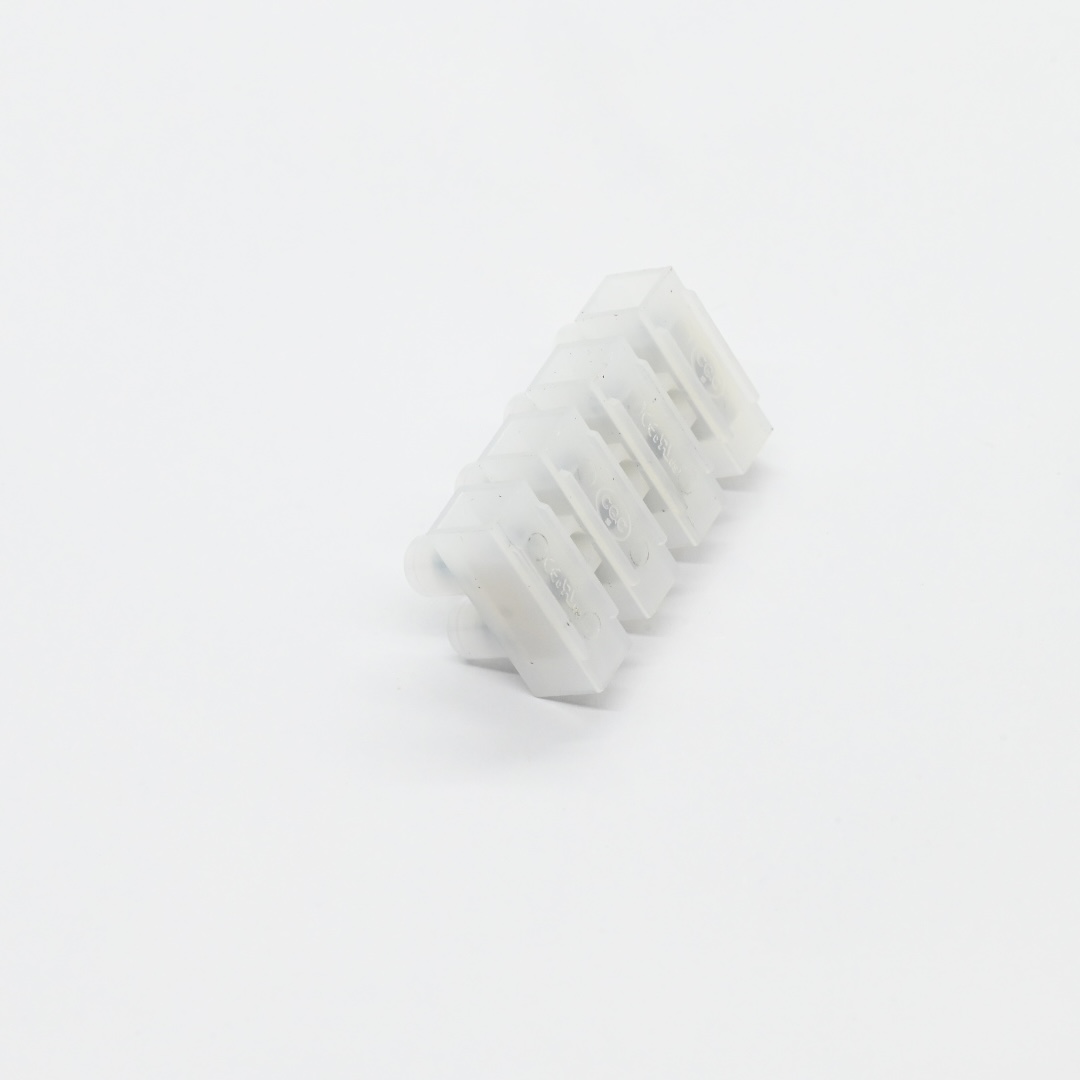

AT801-10.0-04-T-B-A+Feed Through Terminal Block Pitch10.0 mm（5）

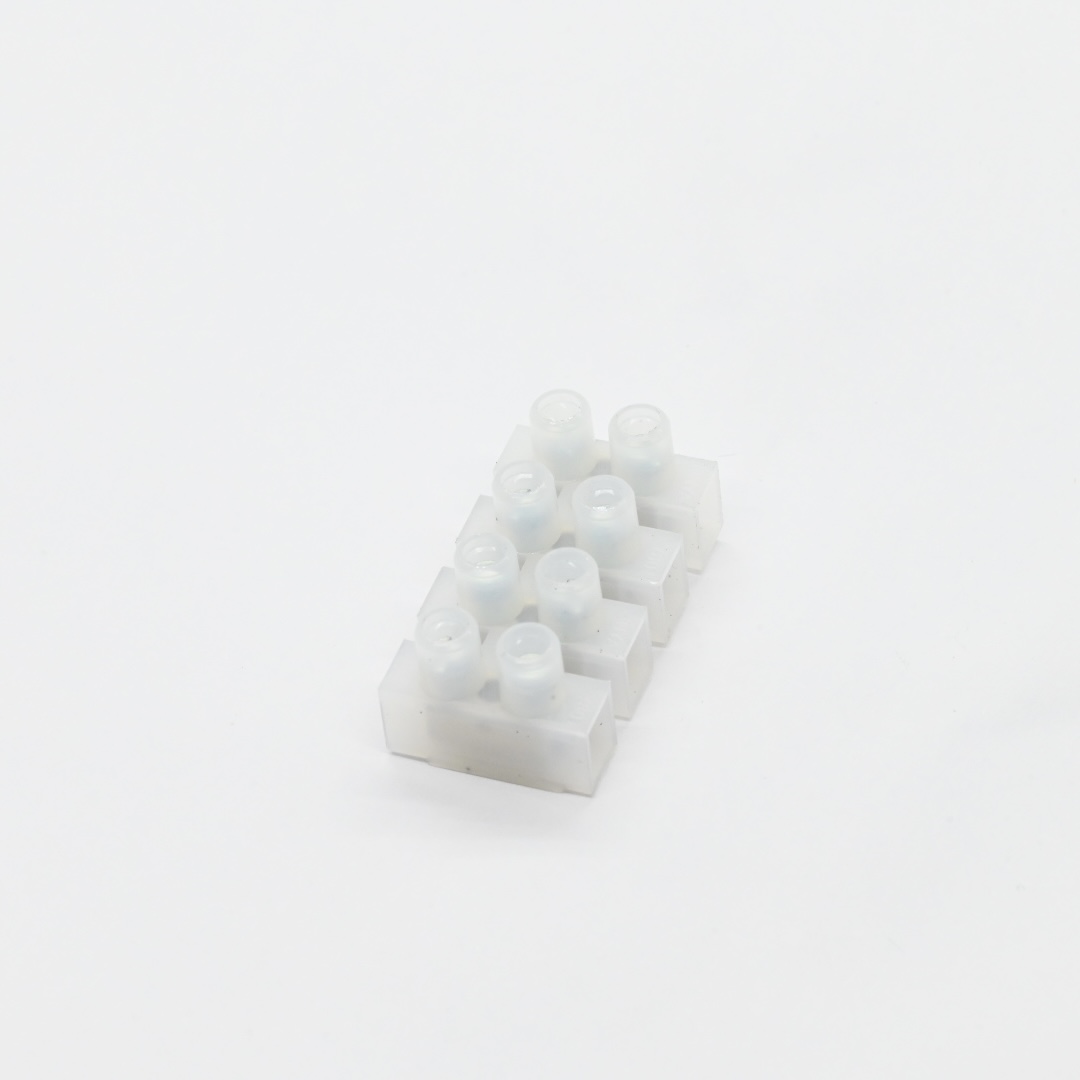

AT801-10.0-04-T-B-A+Feed Through Terminal Block Pitch10.0 mm（3）

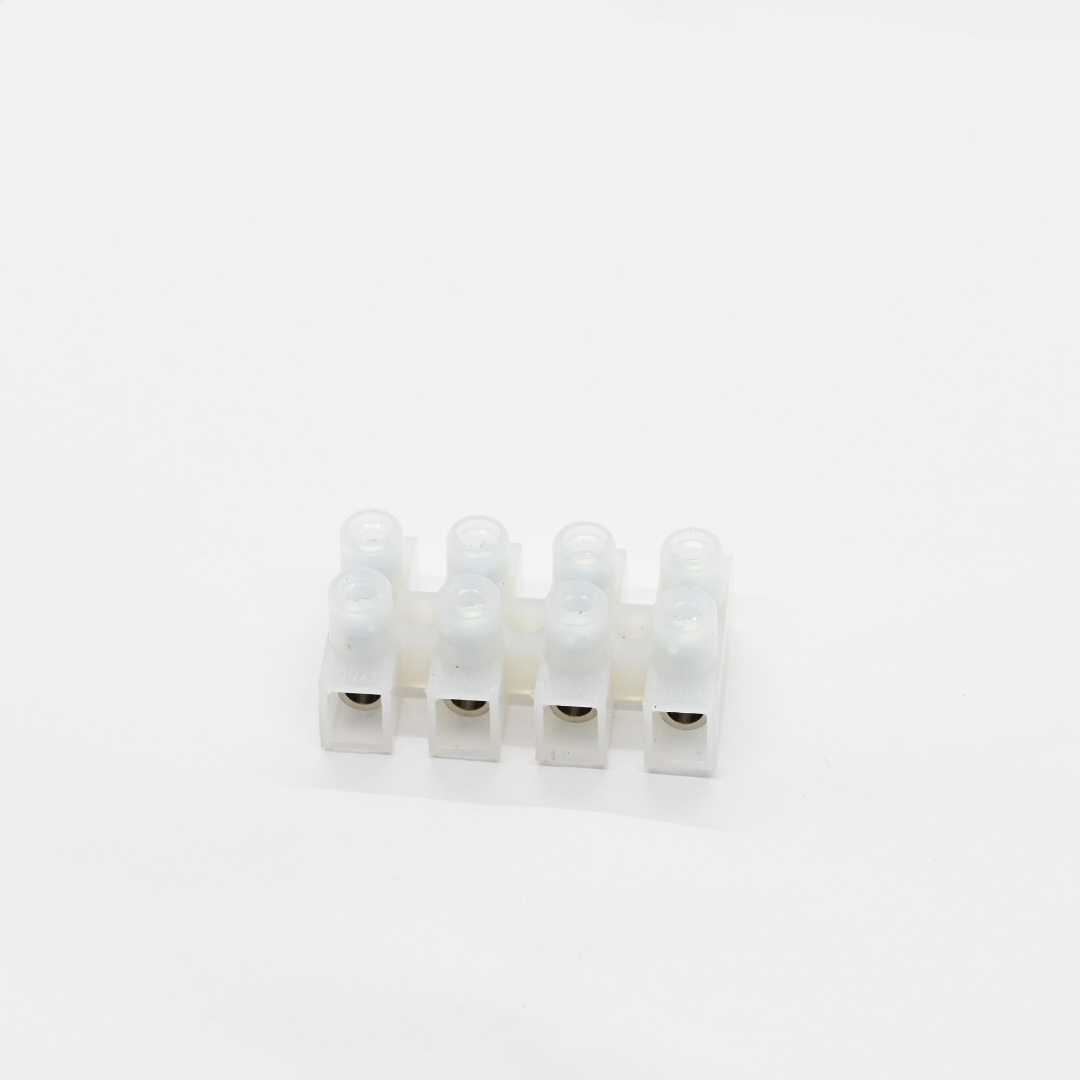

AT801-10.0-04-T-B-A+Feed Through Terminal Block Pitch10.0 mm（1）
