Product details

Product Description:

Huizhou Antenk Electronics Co., Ltd. manufactures UAFR05 USB A Type Receptacle Double Stack Angle DIP 13.14 millimeter for dual port USB signal and power transmission through through hole dip soldering onto printed circuit boards. This double stacked angle receptacle supports multiple spring tail versions and provides white or black insulator housing choices, shell adopts SPCC material and insulator applies LCP with UL94V 0 flame retardant grade, brass or phosphor bronze contacts deliver various plating selections including gold flash different gold thickness and tin finish. It offers 1.5A maximum rated current, 500V AC dielectric withstanding voltage and minimum 1000 megaohm insulation resistance, meets RoHS compliance and fits consumer electronic devices smart home appliances computer peripheral equipment and industrial control instruments. Operators shall strictly follow official PCB layout drawing for dip soldering work and keep inventory under dry storage environment to prevent contact oxidation. Unlike competitors outsourcing stamping molding and plating Antenk completes full in house production covering independent mold development terminal stamping plastic injection molding electroplating and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, support custom plating housing color and diverse packaging options with round the clock engineering assistance, more than seventy percent of connector goods are exported globally. Feel free to submit your project specifications for sample quotation and complete datasheet resources.

1. Stacked USB Receptacle realizes dual port signal and power transmission within limited board space for compact electronic device designs.

2. LCP Insulator Jack delivers excellent heat resistance and dimensional stability to withstand high temperature through hole soldering processes.

3. Through Hole USB Socket ensures firm mechanical locking on printed circuit boards for stable daily plug and unplug operations.

Detailed Specifications:

1. Mechanical Specifications

1.1 Product type: Double stack angle through hole DIP USB A receptacle

1.2 Measurement unit: millimeter

1.3 Key dimension: main body overall dimension 17.50,15.50,14.50,13.14 related sizes with tolerance, refer to official engineering drawing for complete dimension tables and PCB layout reference data

1.4 Spring tail option: support single spring tail, double spring tail and without spring tail three versions

1.5 Housing color options: White and black insulator available

1.6 Shell material: SPCC steel

1.7 CTA: Contact our engineering team to obtain complete dimension drawings and PCB footprint files for your hardware design validation.

2. Material Construction

2.1 Insulator housing: LCP material with UL94V 0 flame retardant grade

2.2 Contact terminal: Brass or phosphor bronze base material

2.3 Contact plating: Multiple plating choices include gold flash, different gold thickness and tin plating

3. Electrical Parameters

3.1 Rated current: 1.5A maximum

3.2 Dielectric withstanding voltage: 500V AC

3.3 Insulation resistance: minimum 1000 megaohm

4. Environmental Parameters

4.1 Compliance standard: RoHS compliant

4.2 Operating condition: Follow defined industrial temperature specifications in official drawing

5. Usage Method

5.1 Assembly mode: Through hole DIP soldering onto printed circuit boards

5.2 Operation tip: Select suitable spring tail style, insulator color and contact plating according to actual project requirements

6.Application Scenarios

6.1 Consumer electronic devices

6.2 Smart home appliances

6.3 Computer peripheral equipment

6.4 Industrial control instruments

7. Operation & Storage Precautions

7.1 Complete DIP soldering operation strictly following official PCB layout drawing

7.2 Do not apply excessive mechanical force to shell and contact terminals to avoid component deformation

7.3 Store products in dry environment to prevent contact surface oxidation

7.4 Verify dimension parameters spring tail type housing color and contact plating before mechanical structure design

7.5 CTA: Submit your spring tail style, color and plating requirements, we can offer free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

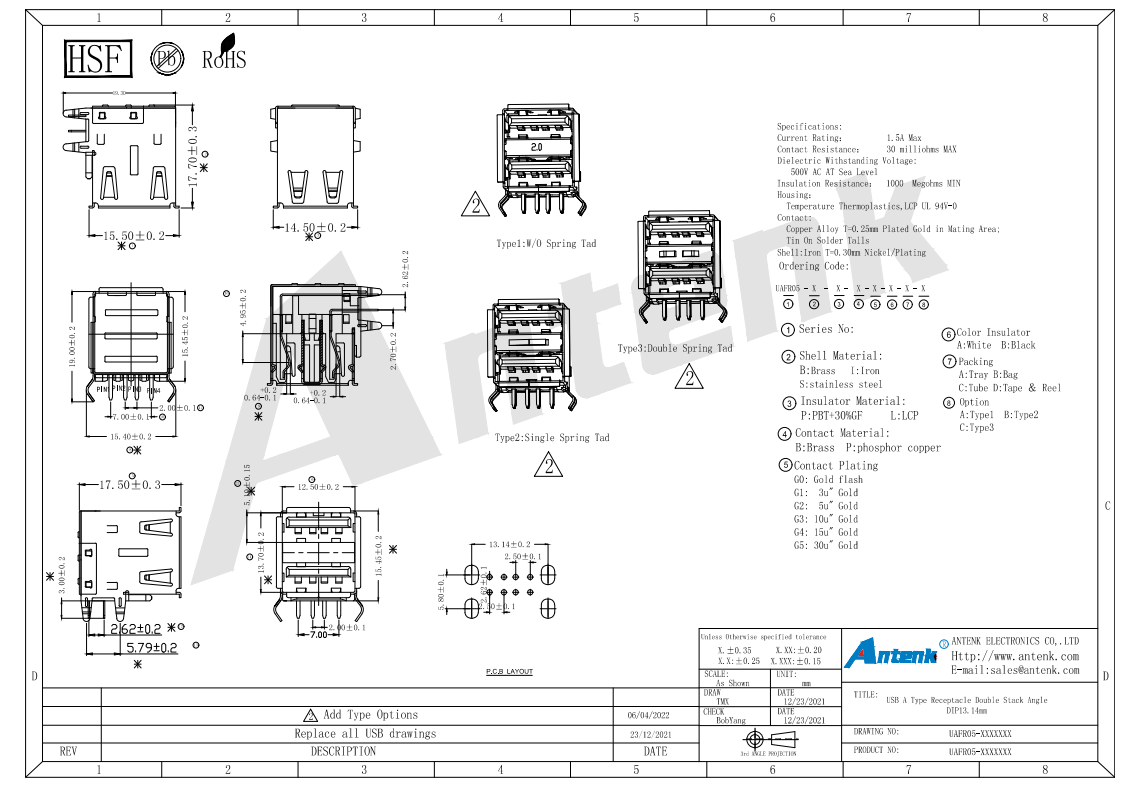

Product Drawing：

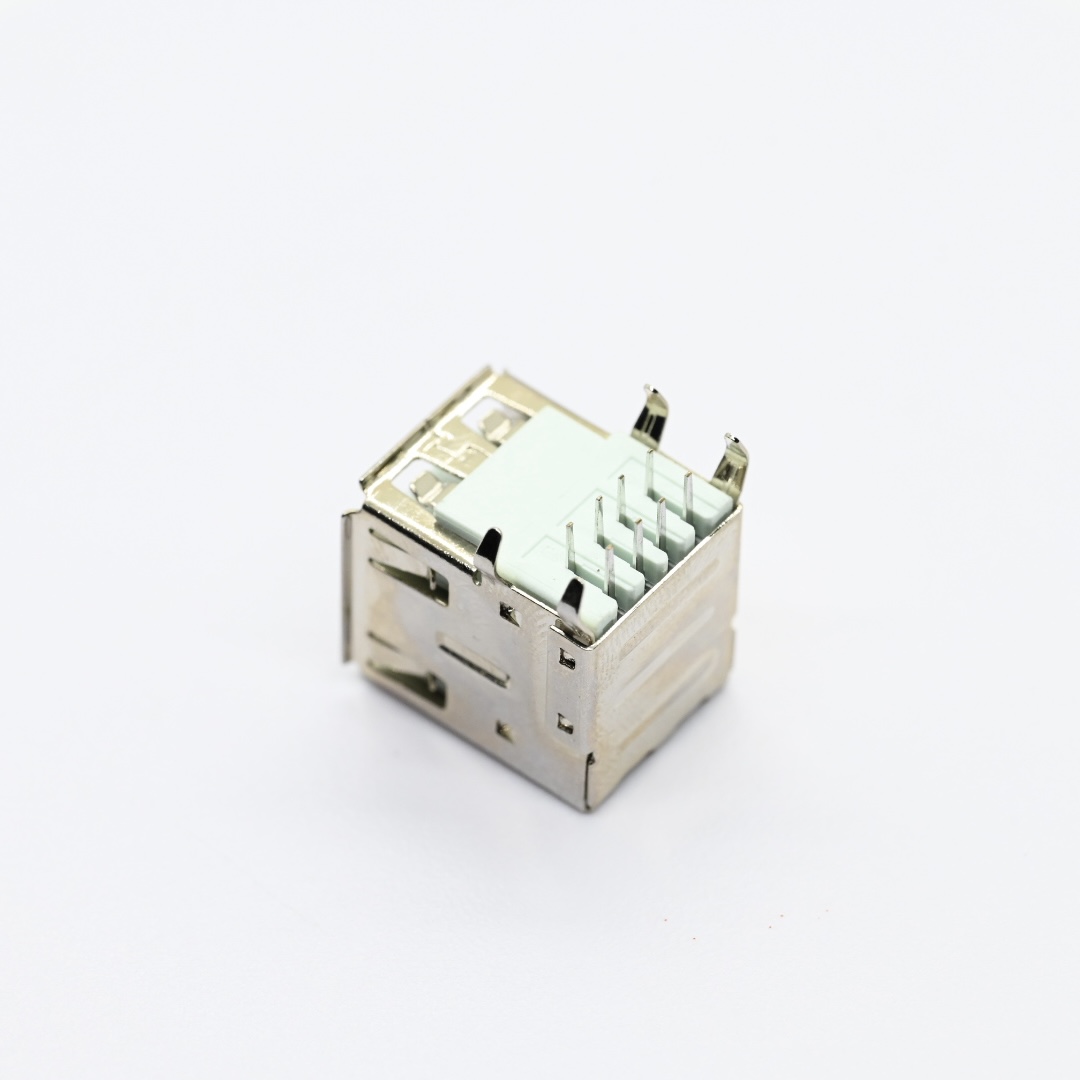

UAFR05-B-L-P-G0-A-A-A+USB A Type Receptacle Double Stack Angle DIP13.14mm（2）

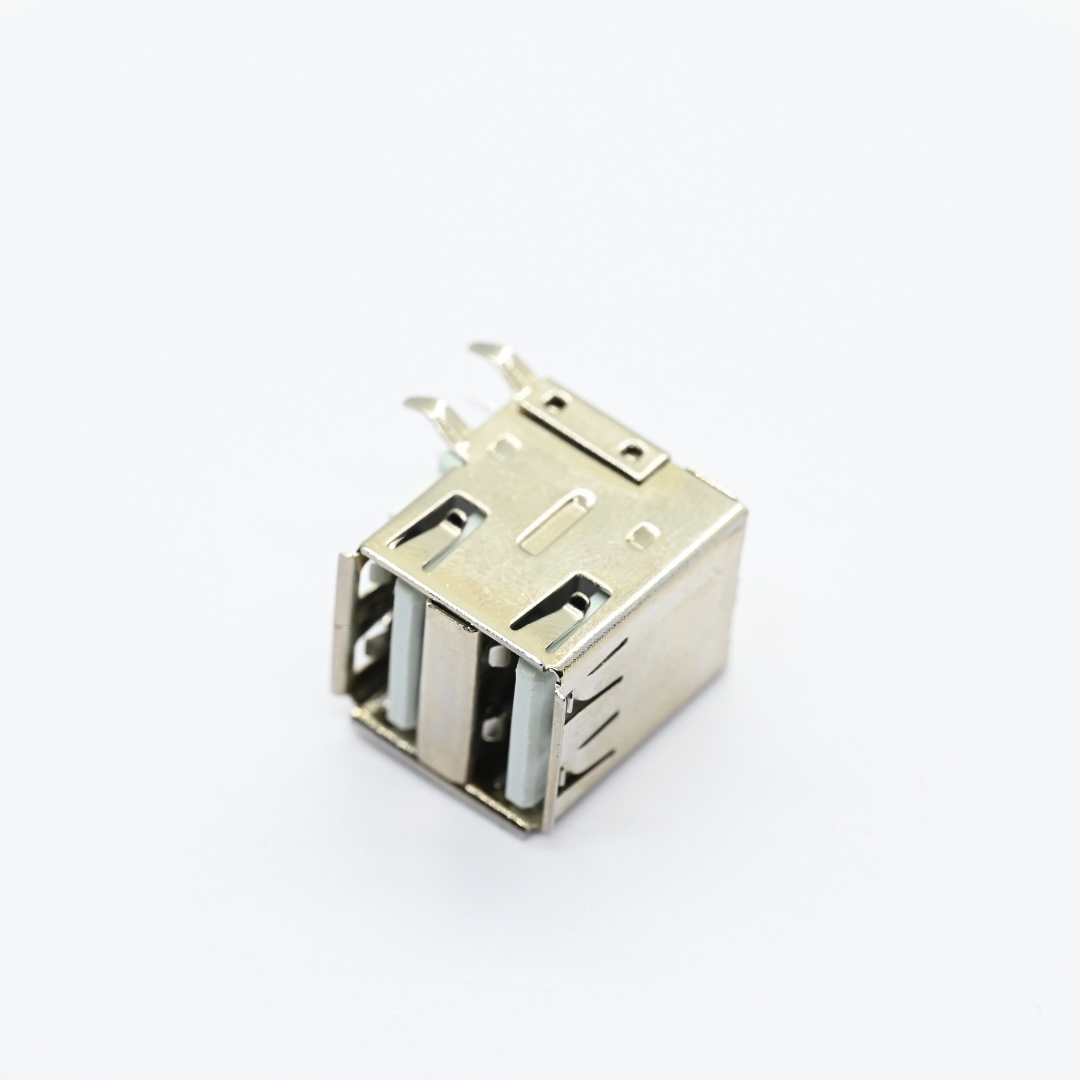

UAFR05-B-L-P-G0-A-A-A+USB A Type Receptacle Double Stack Angle DIP13.14mm（4）

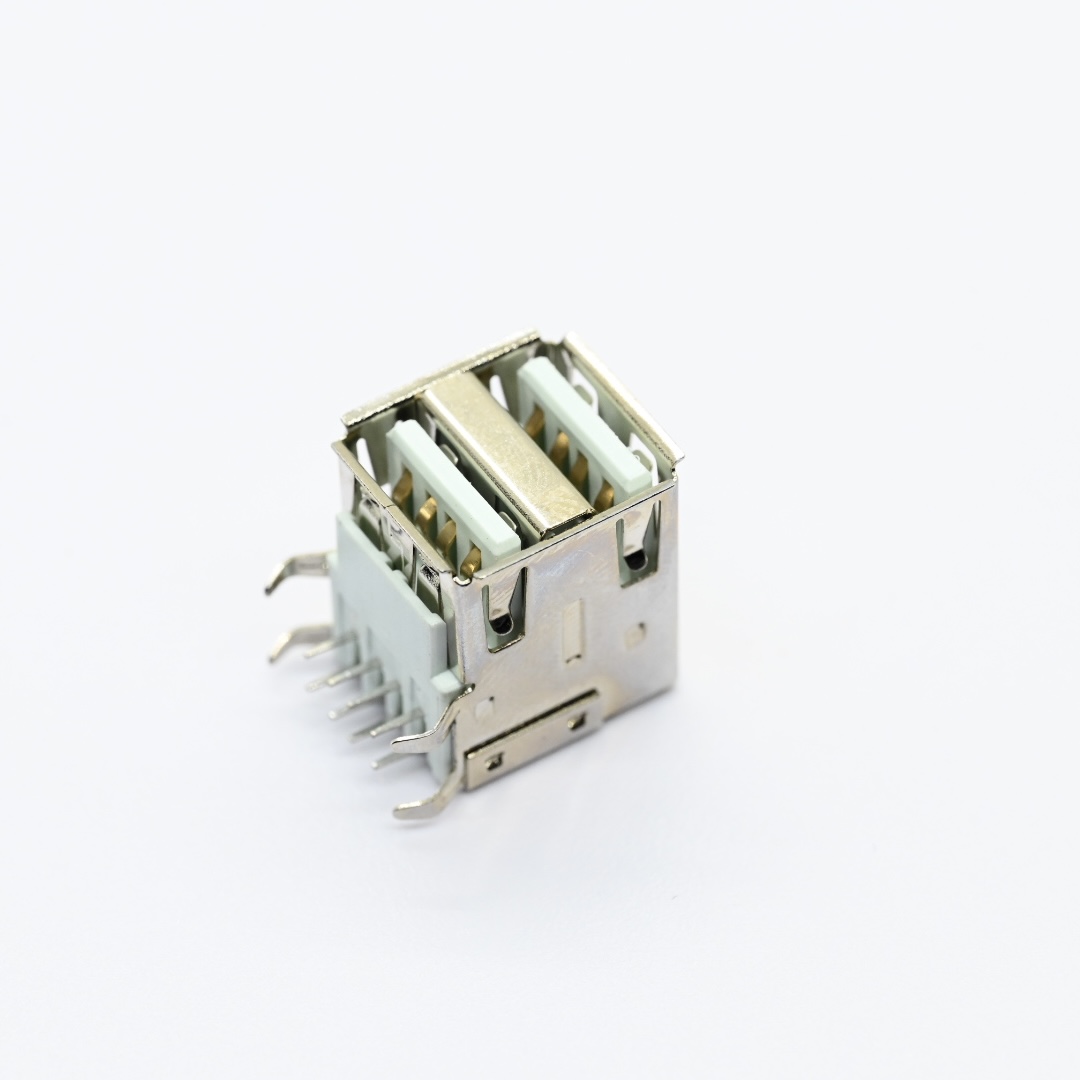

UAFR05-B-L-P-G0-A-A-A+USB A Type Receptacle Double Stack Angle DIP13.14mm（6）

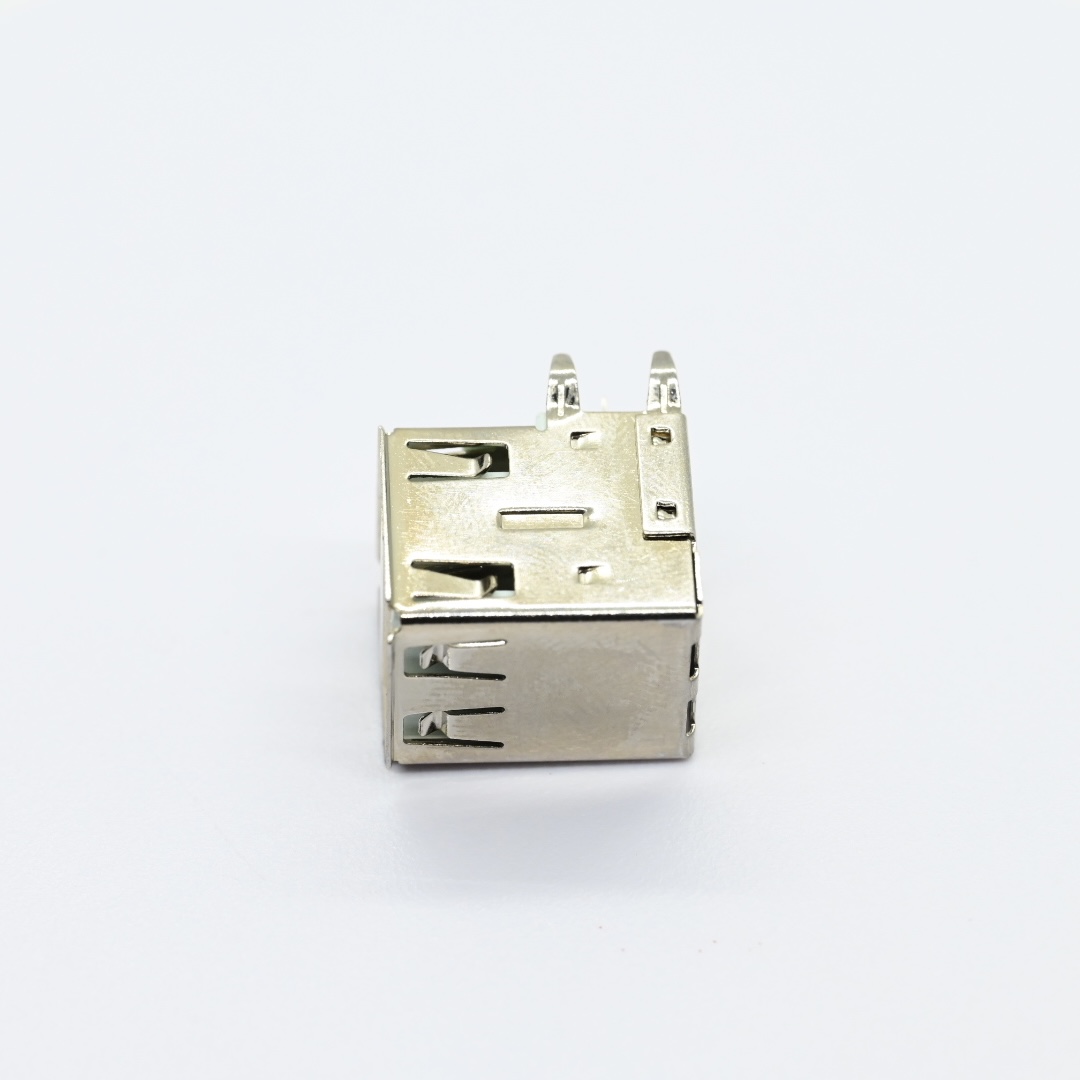

UAFR05-B-L-P-G0-A-A-A+USB A Type Receptacle Double Stack Angle DIP13.14mm（3）

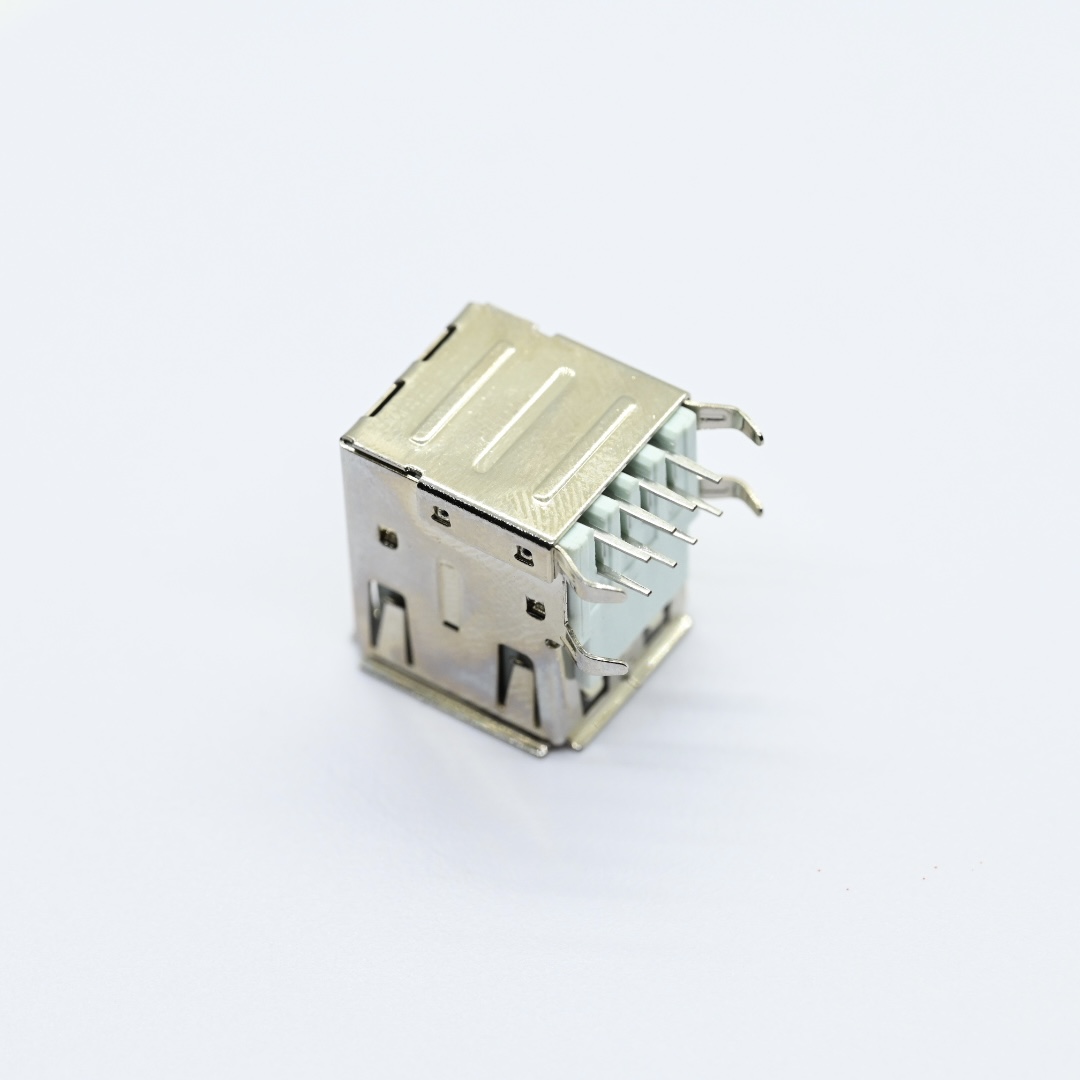

UAFR05-B-L-P-G0-A-A-A+USB A Type Receptacle Double Stack Angle DIP13.14mm（5）

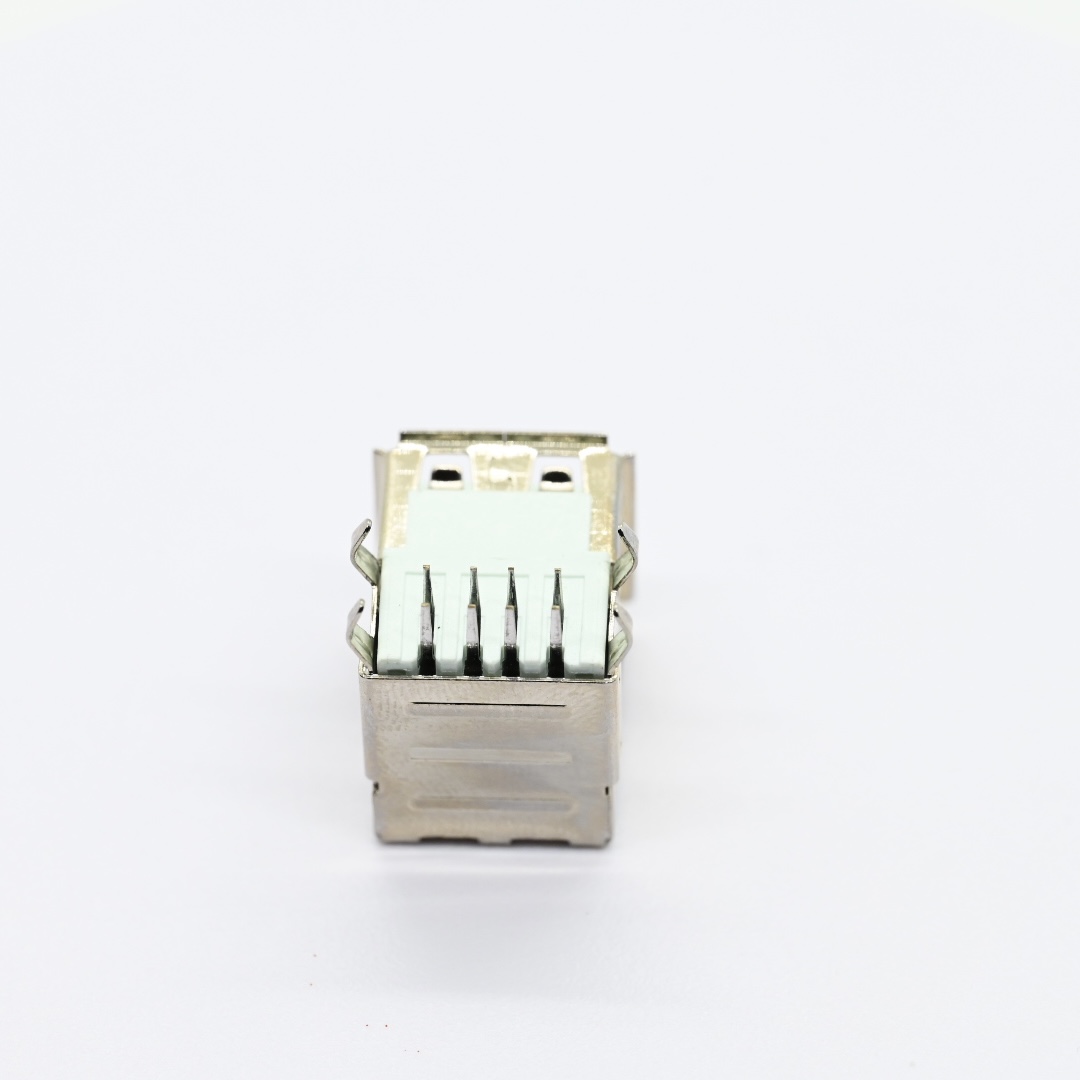

UAFR05-B-L-P-G0-A-A-A+USB A Type Receptacle Double Stack Angle DIP13.14mm（1）
