Product Description：

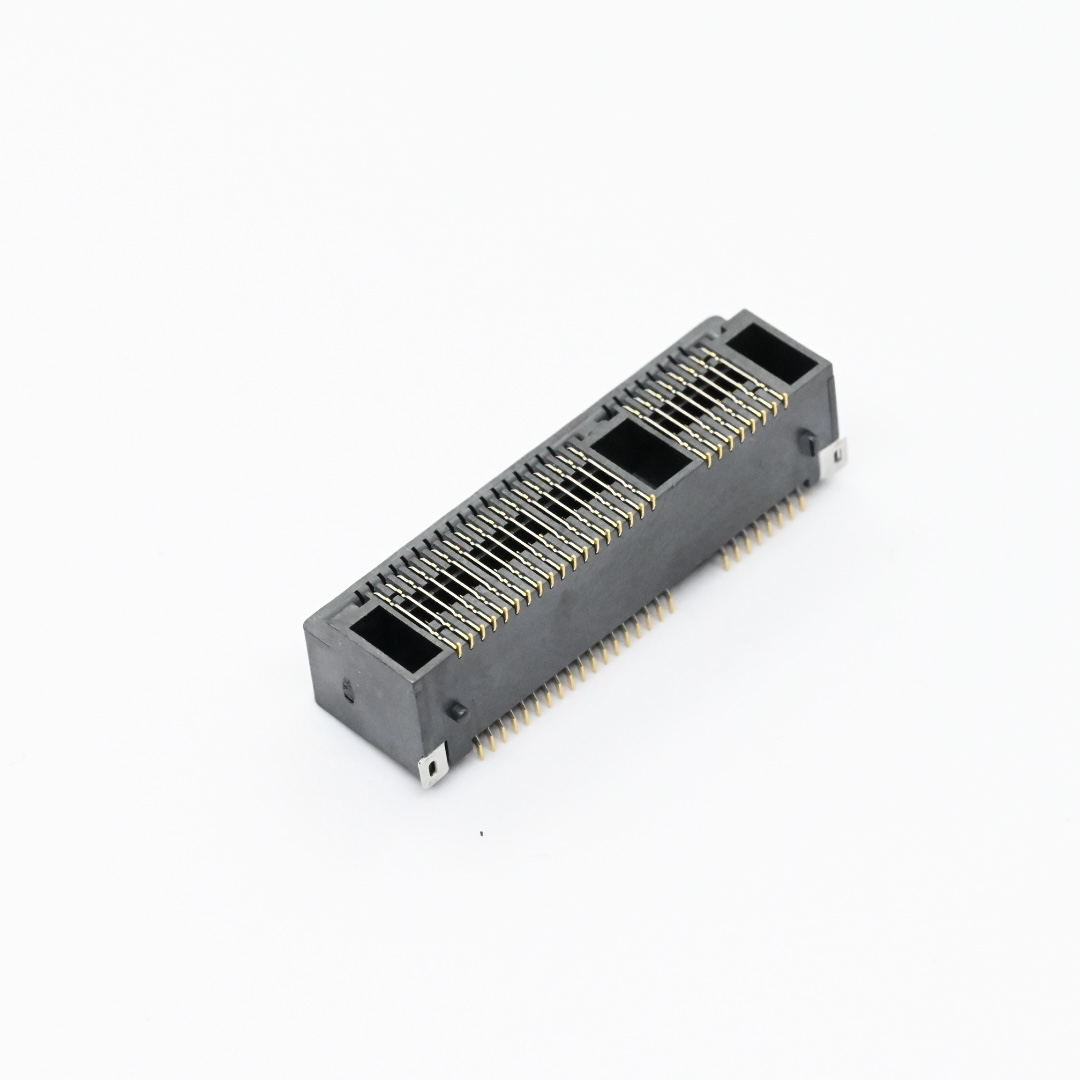

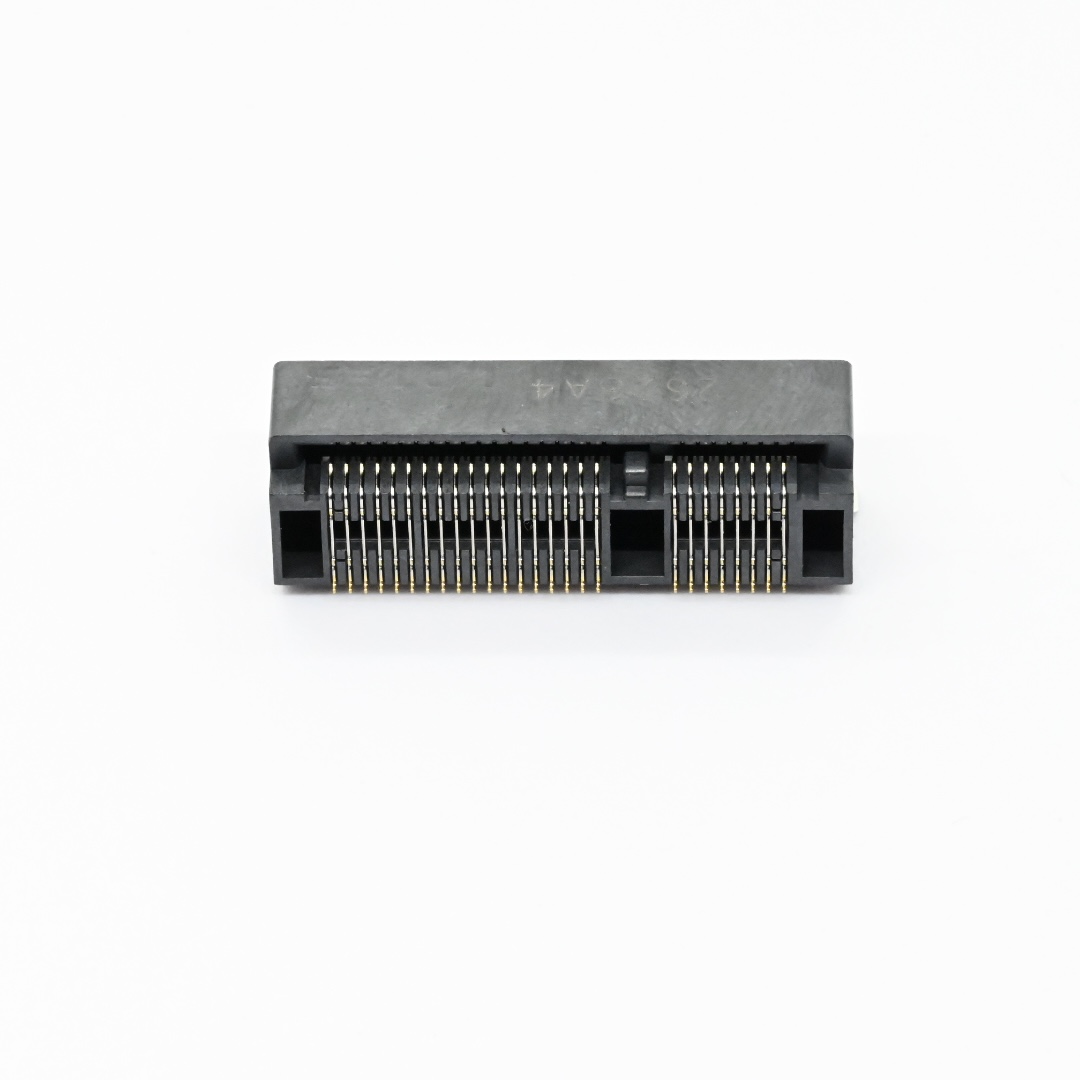

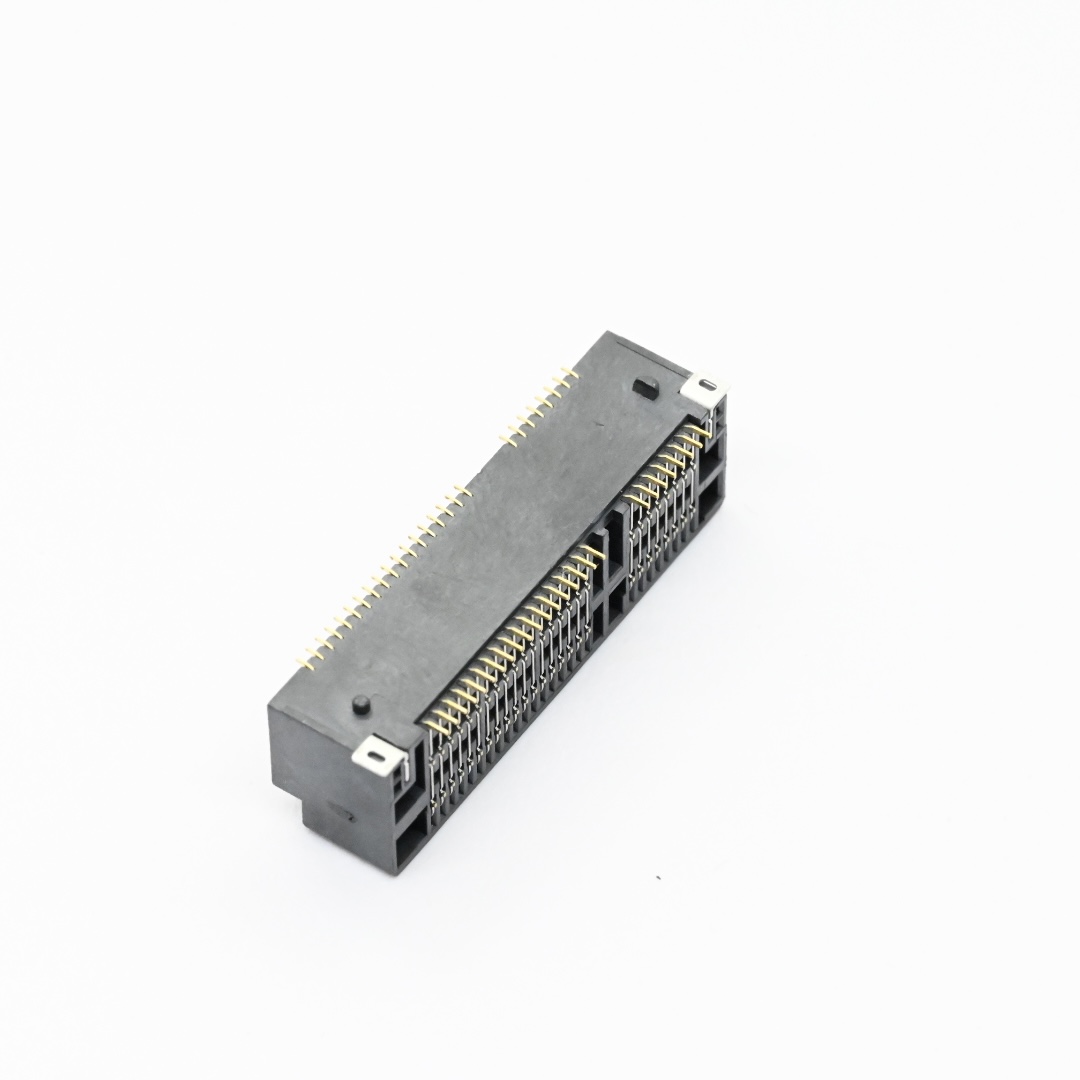

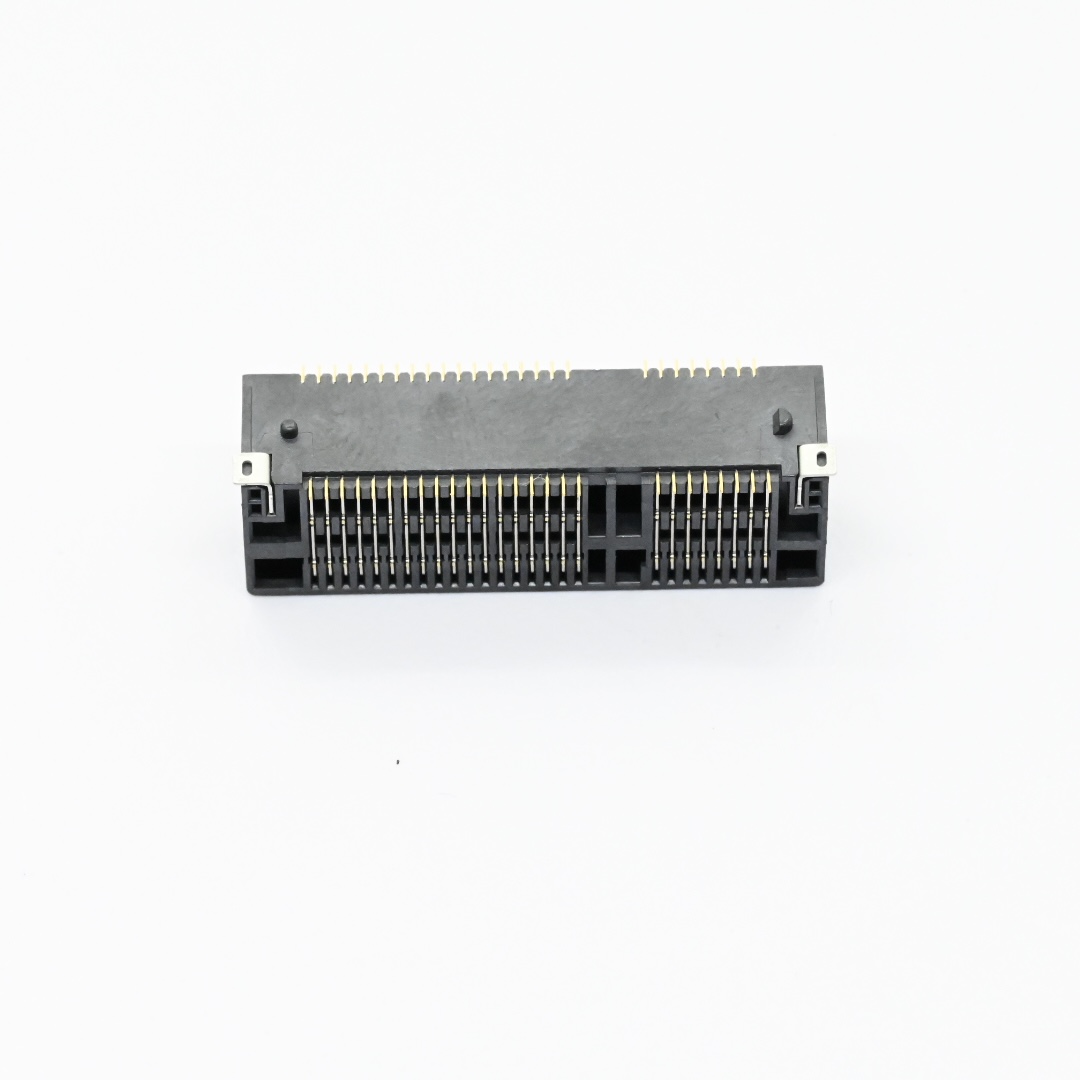

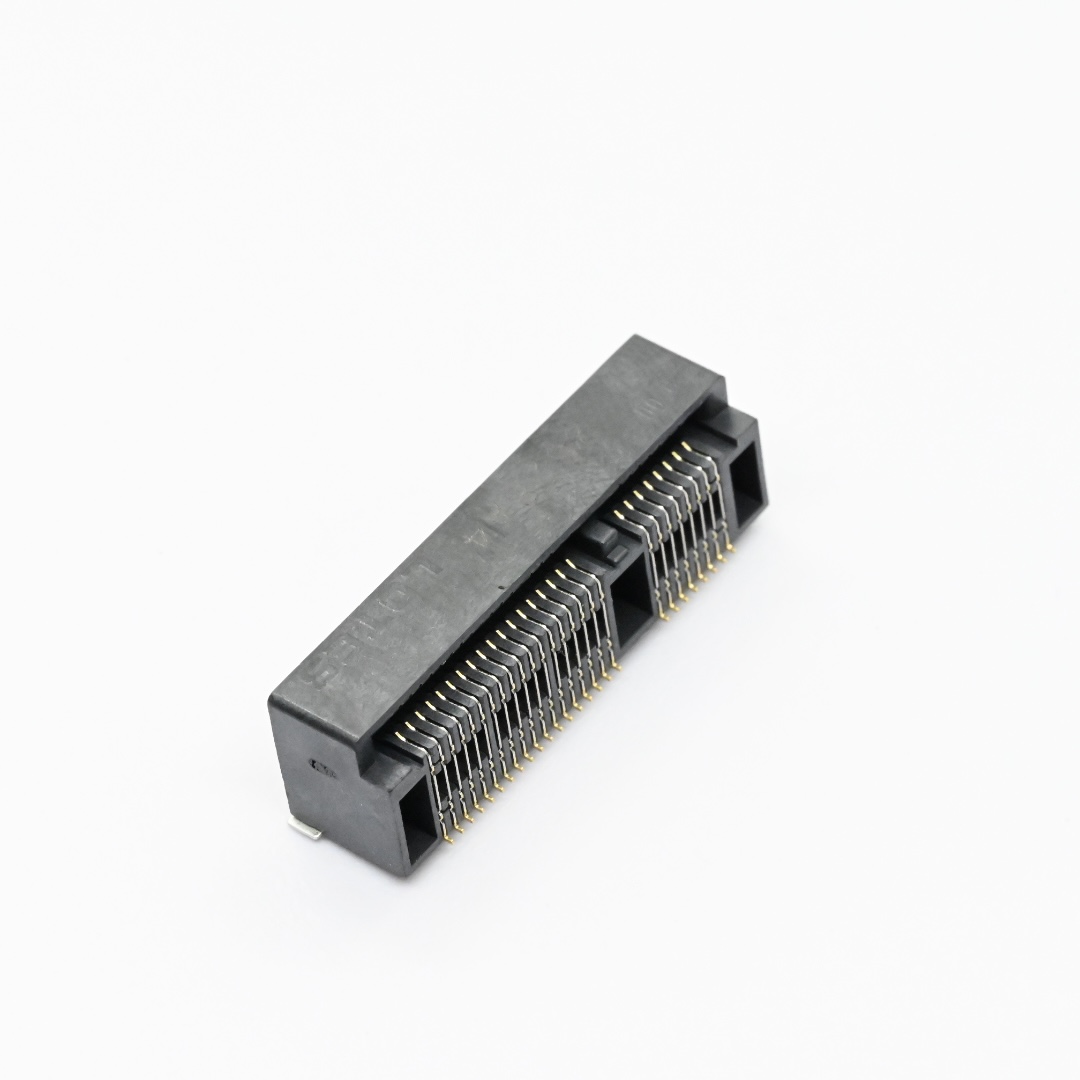

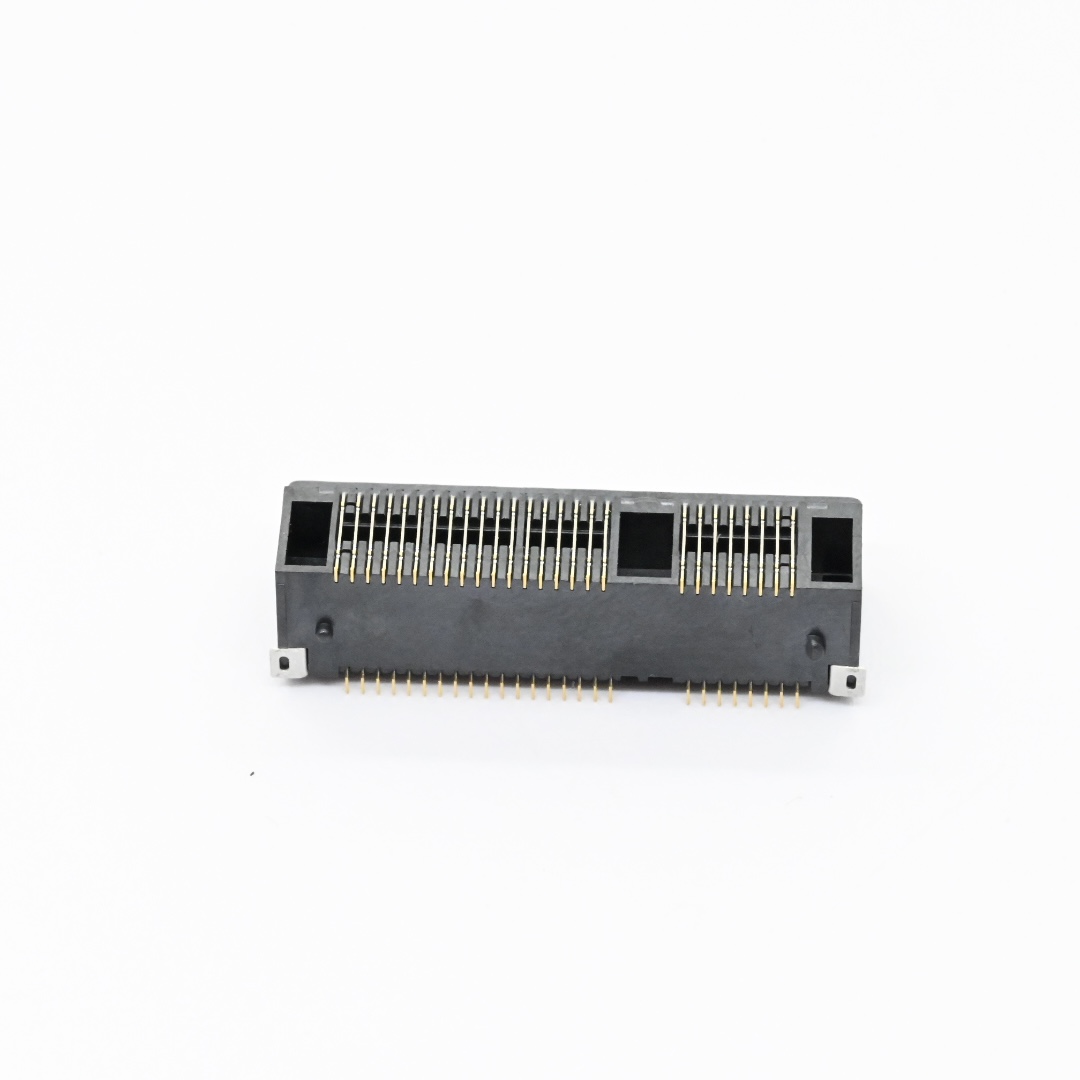

Huizhou Antenk Electronics Co., Ltd. manufactures 52 pin 0.8 pitch mini PCIE connectors with 6.7mm mounting height to deliver high speed signal transmission between printed circuit boards and expansion cards. This mini PCI express connector supports both Half Mini and Full Mini card specifications, features precise 0.8mm pin pitch and strict dimensional tolerances to ensure reliable mating and consistent assembly performance. It is widely used in laptops industrial control devices network equipment and embedded systems. Users solder the connector onto target PCB boards, align the card edge with positioning holes and insert the mini PCIE card firmly to complete the connection. Operators shall follow PCB layout tolerance requirements in design, avoid violent insertion to prevent pin damage and store products in dry environments to avoid contact oxidation. Unlike competitors that outsource core production processes Antenk operates full in house manufacturing including independent mold development terminal stamping plastic injection molding plating and comprehensive laboratory performance verification. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent of our products are exported to global markets. Please send your project requirements for free sample evaluation and complete technical datasheet support.

1. High Speed PCIE Socket delivers reliable high bandwidth signal transmission for mini PCI express expansion cards in compact electronic systems.

2. 0.8 Pitch PCIE Connector maintains strict dimensional tolerances to guarantee consistent mating alignment and stable electrical performance.

3. Mini PCI Express Slot supports both Half Mini and Full Mini card specifications for laptop industrial control and network equipment applications.

Detailed Specifications ：

1. Mechanical Specifications

1.1 Product type: 52 pin Mini PCI Express card edge connector, 0.8 mm pitch, 6.7 mm mounting height

1.2 Measurement unit: millimeter

1.3 Compatibility: Supports Half‑Mini Card and Full‑Mini Card form factors

1.4 Key mechanical parameters: Max mating and unmating force 2.3 kgf; strict dimensional tolerances apply to all critical mating areas; tape and reel packaging with 700 pieces per reel

1.5 Reflow soldering condition: Peak board temperature 260±5°C kept for 10 seconds

1.6 CTA: Contact our engineering team to acquire complete dimension drawings and PCB footprint files for your hardware design validation.

2. Material Construction

2.1 Housing: Black LCP UL94V‑0 plastic

2.2 Contact terminal: Phosphor bronze or brass

2.3 Pad material: Brass

2.4 Plating: 50 micro‑inch nickel under‑plate overall; matte‑tin 100 micro‑inch minimum on solder area; specified gold plating on contact area

3. Electrical & Performance Parameters

3.1 Voltage rating: 50 V AC per contact

3.2 Current rating: 0.5 A maximum per contact

3.3 Final contact resistance: 20 mΩ maximum

3.4 Insulation resistance: 5000 MΩ minimum

3.5 Dielectric withstand voltage: AC 300 V for 1 minute between adjacent contacts, no breakdown or flash‑over, leakage current below 1 mA

3.6 Compliance: HF compliant

4. Usage Method

4.1 Assembly mode: Surface mount soldering onto printed circuit board by reflow process

4.2 Operation tip: Align card edge precisely with connector position before insertion, follow specified force limits for mating and unmating

5. Application Scenarios

5.1 Notebook computer internal expansion interfaces

5.2 Industrial control embedded mainboard modules

5.3 Network communication equipment expansion slots

5.4 Compact embedded electronic systems

6. Operation & Storage Precautions

6.1 Follow drawing dimensional tolerance requirements strictly for PCB layout and mechanical housing design

6.2 Do not apply excessive force during card insertion and extraction to avoid terminal deformation or damage

6.3 Store products under dry environment to prevent oxidation of metal contact surfaces

6.4 Observe reflow temperature profile in datasheet to avoid plastic housing damage during soldering

6.5 Confirm pin count pitch and stacking height before mechanical and circuit design

6.6 CTA: Submit your board design and project requirements, we can provide free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

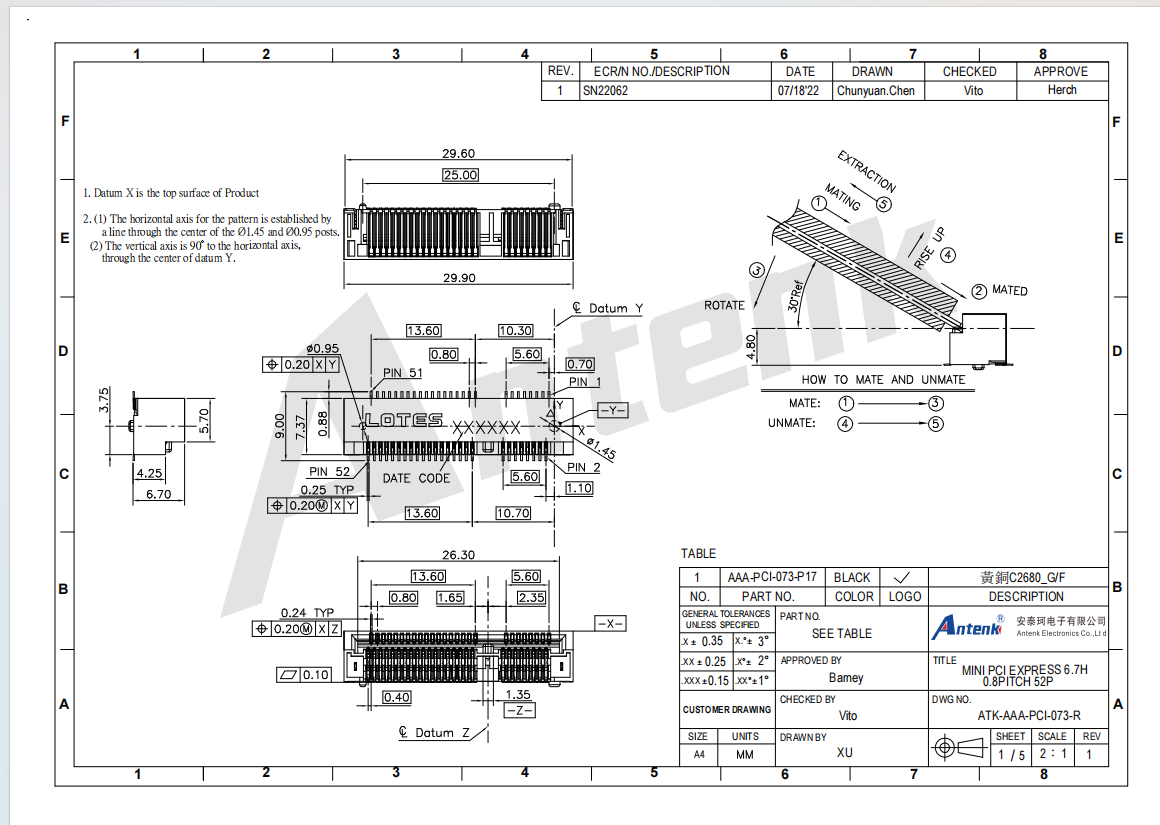

Product Drawing：
