Pneumatic hot foil stamping machine with slide-table //Usage and characters

Samples show

This hot foil stamping machine is equipped with a sliding worktable system based on a standard hot stamping structure. Driven by an independent pneumatic cylinder, the worktable automatically slides into the stamping position during operation and retracts once the stamping process is completed. This design effectively reduces operator exposure to the heated plate, significantly improving operational safety and ease of use.

The standard worktable size is 320 × 420 mm, while the hot stamping plate is available in multiple sizes, including 190 × 270 mm, 210 × 290 mm, and 300 × 250 mm. Customized dimensions are also available to meet specific production requirements.

Stamping pressure is primarily adjusted through support screws located beneath the worktable. The closer the hot plate is set to the worktable surface, the greater the stamping pressure generated. The hot plate lifting system is driven by a pneumatic cylinder and linkage mechanism, ensuring smooth and stable vertical movement during operation.

Both the hot plate and worktable are manufactured from high-strength forged steel, providing excellent rigidity, durability, and long-term stability for continuous industrial production.

250

Machine description

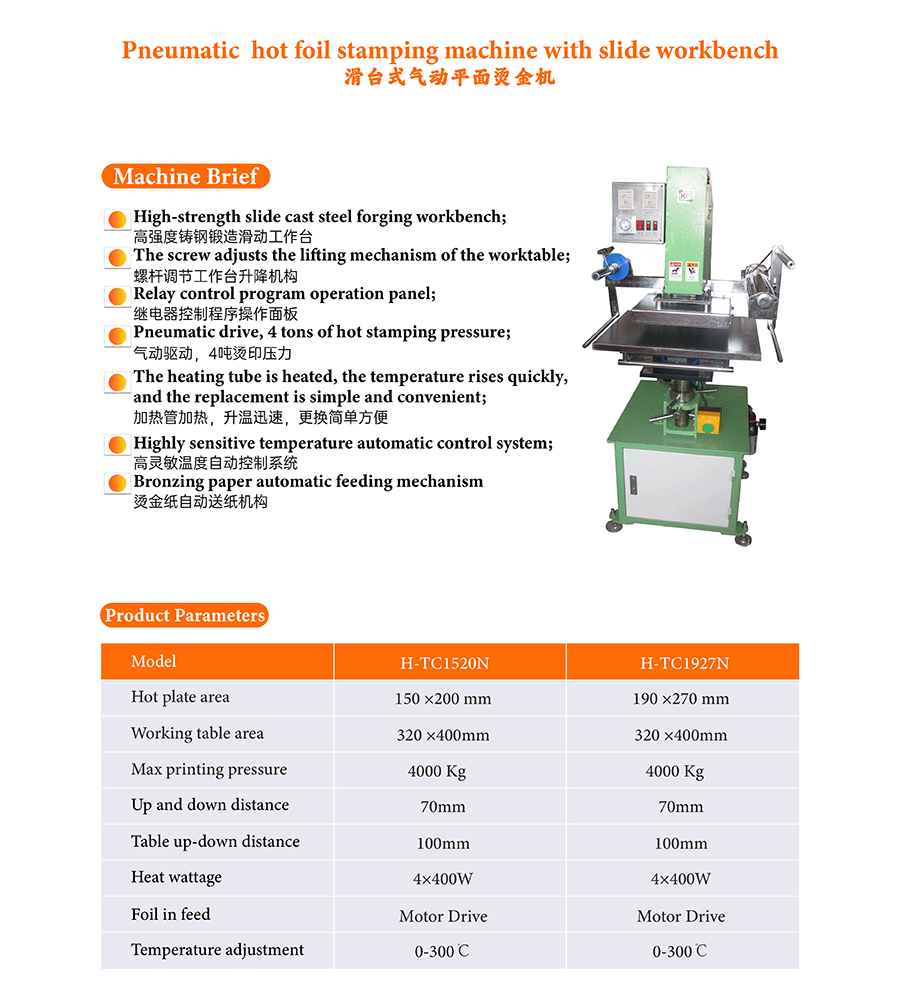

Pneumatic Slide table hot foil stamping Machines //Parameter

H-TC1520N

Hot plate area:150× 200 mm
Working table area:320 ×400mm
Max printing pressure:2,000-3000 Kg
Up and down distance:45mm
Heat wattage:1200W
Foil in feed: Motor Drive
Temperature adjustment:0-300oC .

H-TC1927N

Hot plate area:190 × 270 mm
Working table area:320 ×400mm
Max printing pressure:2,000-3000 Kg
Up and down distance:45mm
Heat wattage:1200W
Foil in feed: Motor Drive
Temperature adjustment:0-300oC .

H-TC2129N

Hot plate area:210×290 mm
Working table area:320 ×400mm
Max printing pressure:2,000-3000 Kg
Up and down distance:45mm
Heat wattage:1000W
Foil in feed: Motor Drive
Temperature adjustment:0-300oC .

H-TC3025N

Hot plate area:300 × 250 mm
Working table area:320 ×400mm
Max printing pressure:2,000-3000 Kg
Up and down distance:45mm
Heat wattage:1000W
Foil in feed: Motor Drive
Temperature adjustment:0-300oC

Catalogue

Details -Advantage

Key Features

Pull-Out Working Table for Easy Loading and Unloading
Multi-Directional Table Adjustment (Up/Down, Front/Back, Left/Right)
Precision Fine-Tuning for Accurate Hot Stamping Positioning
Screw-Driven Table Lifting System for Stable Adjustment
Relay-Based Control System for Reliable Operation
Advanced Digital Temperature Control System
High-Precision Constant Temperature Regulation
Adjustable Temperature, Pressure, Dwell Time, and Foil Feeding Speed
Lever-Type Pneumatic Pressure System for Uniform Stamping Force
Motor-Driven Foil Feeding System with Adjustable Length Control
Suitable for Different Stamping Area Sizes
High-Strength Steel Frame with Excellent Flatness
Durable Hot Stamping Plate and Table Structure
Stable Heating Tube System for Consistent Heat Supply
Easy Maintenance and Component Replacement
Flexible Parameter Adjustment for Various Hot Stamping Processes

Structure

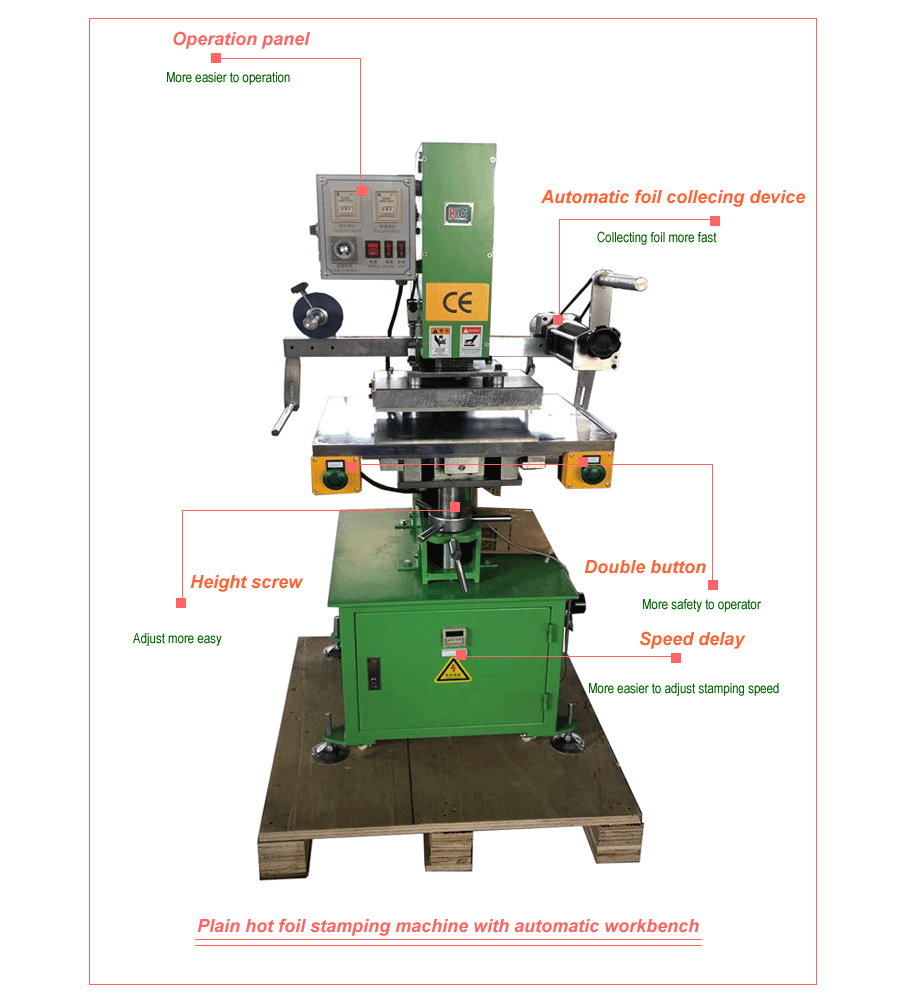

Main Structure of Pneumatic Sliding Table Hot Foil Stamping Machine

1. Pneumatic Sliding Table System

Pneumatic-driven sliding in/out table mechanism
Automatically moves into stamping position and retracts after operation
Improves operator safety by reducing contact with the hot plate
Ensures consistent positioning and high repeatability

2. Heating System

High-strength hot stamping plate (hot plate)
Electric heating tube structure
Constant temperature control system
Adjustable temperature for different foil stamping materials

3. Pneumatic Pressing System

Air cylinder pressing mechanism
Lever-type or direct-pressure structure
Uniform and adjustable stamping pressure
Ensures consistent adhesion quality

4. Worktable System

High-strength steel worktable surface
Adjustable height structure (screw or support adjustment)
Precision positioning design
Suitable for different product sizes

5. Foil Feeding System

Motor-driven foil feeding mechanism
Adjustable foil feeding length and speed
Automatic foil winding and unwinding
Designed for material saving and stable operation

6. Control System

PLC or microcomputer control system
Touchscreen HMI operation interface
Adjustable parameters: temperature, pressure, dwell time, stroke
Supports automatic, semi-automatic, and manual modes

7. Machine Frame Structure

Heavy-duty steel frame construction
High rigidity and deformation resistance
Stable support for all mechanical components
Industrial-grade durability
