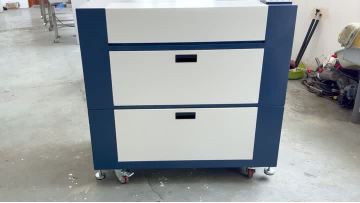

Prepress Equipment Laser ImageSetters High Cost-Effective Laser Image Setter Machine for Pad Printing Film Output
KC Printing Machine (Group) Limited
10 year year
Product details

Usage

             The Laser Image Setter Machine is a professional film output solution designed for pad printing and screen printing plate making applications. It is used to accurately output digital artwork, including logos, text, and fine graphics, onto photosensitive film to produce high-quality printing plates.   In the traditional plate-making process, the printing film generated by the Film Output Machine is used for UV exposure. The transparent areas allow ultraviolet light to pass through, while the opaque areas block light, creating precise patterns on the photosensitive layer. After developing and washing, the film image is transferred to the printing plate for high-precision printing applications.  Compared with expensive prepress equipment, the KC High Cost-Effective Laser Image Setter provides an economical and practical solution for small and medium-sized printing businesses. With stable laser exposure, accurate image reproduction, simple operation, and low maintenance requirements, it is ideal for pad printing film output, screen printing film output, and specialty printing plate making.  The machine is widely used in pad printing, screen printing, hot stamping, packaging printing, and industrial product decoration industries. It helps printing manufacturers and service providers achieve professional-quality film output with lower investment costs and improved production efficiency.

Laser Image Setter for Pad Printing, Screen Printing and Hot Stamping Plate Making

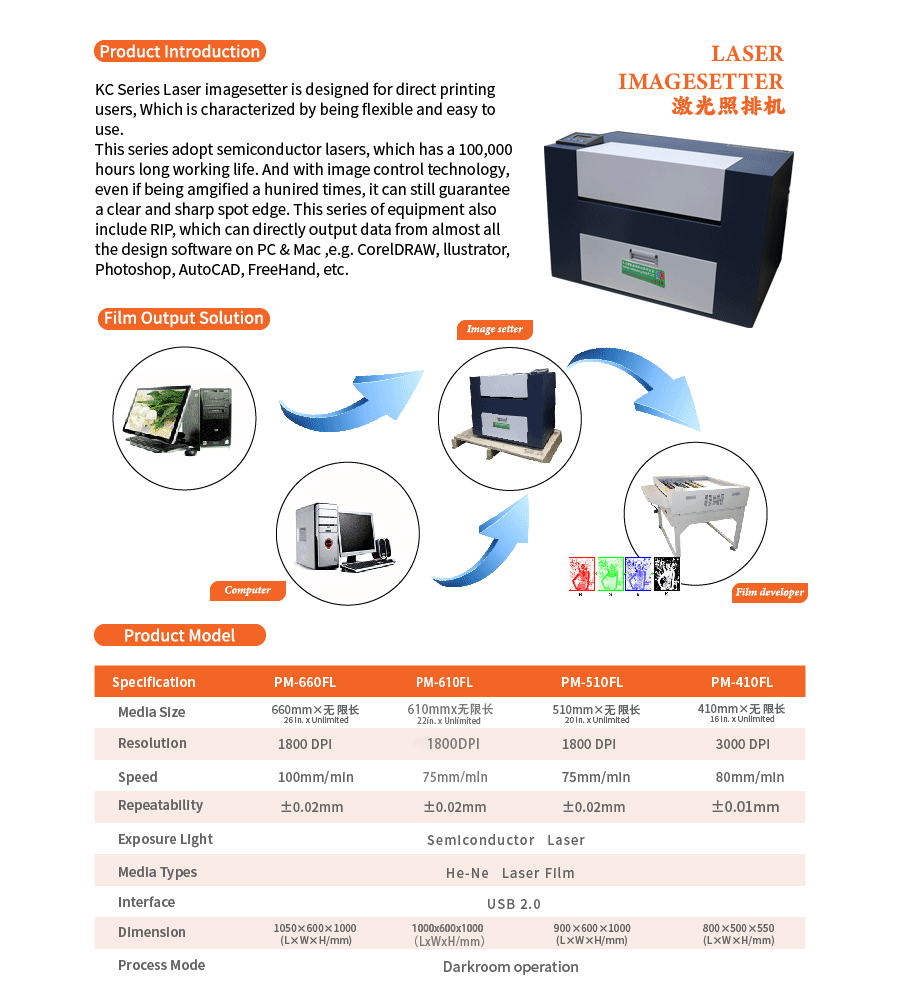

Technical data

Laser film imagine setter //Parameter

Technical parameters

PM-410FL

  • Max exports width: 410mm;
  • Output speed: 85mm/min;
  • Resolution ratio: 3000DPI;
  • Record source : Semiconductor Laser
  • Scan style: step;
  • Repetition accuracy: 0.01mm;
  • Film: Red laser phototypography film;
  • Joint : Parallel USB2.0;
  • Works style: semi-auto operation in darkness room;
  • Operation environment : temperature10-30,humidity:20-80%

PM-510FL
  • Max exports width: 510mm;
  • Output speed: 85mm/min;
  • Resolution ratio: 3000DPI;
  • Record source : Semiconductor Laser
  • Scan style: step;
  • Repetition accuracy: 0.01mm;
  • Film: Red laser phototypography film;
  • Joint : Parallel USB2.0;
  • Works style: semi-auto operation in darkness room;
  • Operation environment : temperature10-30,humidity:20-80%

PM-610FL
  • Max exports width: 610mm;
  • Output speed: 85mm/min;
  • Resolution ratio: 1800DPI;
  • Record source : Semiconductor Laser
  • Scan style: step;
  • Repetition accuracy: 0.01mm;
  • Film: Red laser phototypography film;
  • Joint : Parallel USB2.0;
  • Works style: semi-auto operation in darkness room;
  • Operation environment : temperature10-30,humidity:20-80%

Works supply
  • 110V-220VPower supply;
  • 5-10M2 dark room;
  • Computer: ( P e n t i u m 4 2 G Hz Processor / 5 1 2 M R AM / 1 0 GB/,Mainboard US B 2 . 0/ 17" Monitor/ 3 2 MB VGA /  X V GA/ CD R OM
  • Developing tray, Fixation tray.

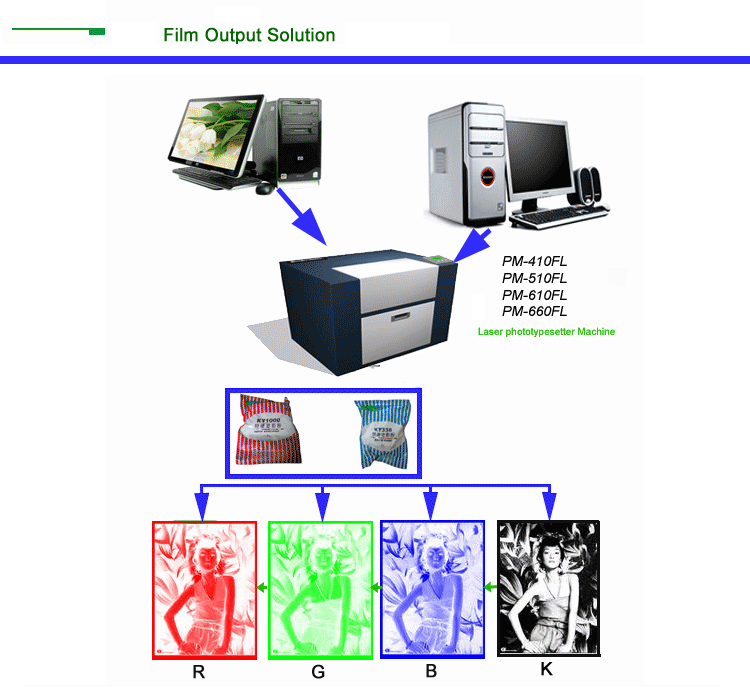

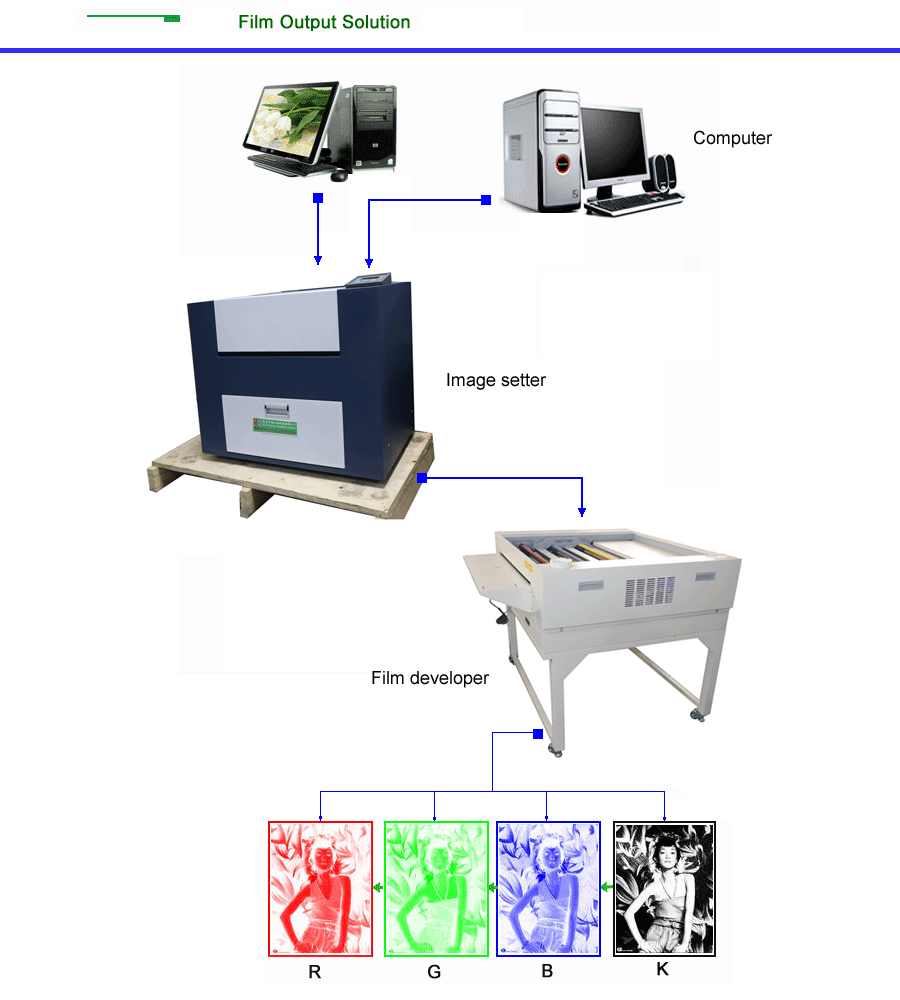

Solution

Professional Laser Phototypesetter for Screen Printing Film Production

Catalogue

          Most printing processes require printing plates, especially in the field of special printing, such as pad printing, screen printing, hot stamping, flexo printing, offset printing, and gravure printing. Some printing processes with higher technical barriers are developing towards computer direct platemaking technology (CTP), that is, using computer control to directly output the design draft stored in the computer to the printing plate to form a printing plate. Offset printing, flexo printing, and screen printing are relatively mature. Some printing processes with lower technical barriers still follow the traditional platemaking process. First, the image and text are output to the platemaking film, and then the platemaking film is used to cover the printing plate to make the printing plate. Pad printing, screen printing, and hot stamping still retain this process. The platemaking film becomes a film, which is formed by coating a photosensitive layer on a PET film. The transparent area of ​​the platemaking film will transmit ultraviolet light, and the non-transparent area will block light. The photosensitive layer will solidify in the area that transmits ultraviolet light, and the photosensitive layer will not solidify in the area that does not transmit ultraviolet light, and will be washed away during development and washing.
Most pad printers, screen printers, and hot stamping machine operators are small-scale investors with meager profits, and may not be willing to buy expensive laser phototypesetters. However, the KC series laser phototypesetters are inexpensive, have moderate accuracy, and are easy to operate. They usually recover their costs in about three months. If you are engaged in pad printers, screen printers, and hot stamping machine processing business, or provide film output and plate making business for other printing factories, you can consider the KC brand laser phototypesetter.
Laser Image Setter for Pad Printing, Screen Printing and Hot Stamping Plate Making
  • High-performance semiconductor laser light source system provides stable exposure performance, long service life, and consistent film output quality for professional plate-making applications.
  • Flatbed film output structure ensures accurate positioning and high-resolution image reproduction during the film imaging process.
  • Advanced image processing and control technology delivers precise graphics output with excellent dot reproduction for pad printing and screen printing plate making.
  • Integrated film storage box system combines film storage, measurement, cutting, and automatic feeding functions, improving workflow efficiency and reducing manual operation.
  • RIP 3.0 software is included with the machine, supporting both Windows PC and Mac operating systems for flexible digital workflow management.
  • Specially designed for pad printing film output, providing an efficient and reliable solution for pad printing cliché and plate-making preparation.
  • Roll film feeding system supports continuous film output with adjustable length, compatible with both negative film and positive film production requirements.
