Product details

Hydraulic hot foil stamping machine //Introduction

The hydraulic hot stamping machine is a high-performance solution designed for precision hot foil stamping, embossing, and heat transfer applications that require high pressure and consistent results. Compared with conventional pneumatic hot stamping machines, the hydraulic drive system delivers stronger pressure output, smoother operation, and superior stamping stability, making it especially suitable for large-area foil stamping and deep embossing processes. Equipped with a powerful hydraulic system, this machine provides continuous and adjustable stamping pressure up to 60 tons, ensuring uniform pressure distribution and excellent printing quality on various materials. With a maximum stamping area of 400 × 500 mm, it is capable of processing large-size products efficiently while maintaining high accuracy and repeatability. This industrial hydraulic hot stamping press is widely used for gold foil stamping, silver foil stamping, embossing, and decorative printing on plastic products, packaging containers, electronic components, automotive parts, decorative panels, leather goods, and other large-area substrates. It is an ideal choice for manufacturers seeking high-pressure, reliable, and efficient hot stamping equipment for premium product decoration.

Hot foil stamping paper and leather

Hydraulic embossing stamping Machine //Parameter

HH-TC4050LPT	HH-TC4060LPT
1. Hot plate area:400 ×500 mm 2. Working table area:520 ×800mm 3. Max printing pressure:20,000 Kg 4. Up and down distance:100mm 5. Heat wattage: 6×500W 6. Foil in feed: Motor Drive 7. Temperature adjustment:0-300oC .	1. Hot plate area:400 × 600 mm 2. Working table area:520 ×800mm 3. Max printing pressure:20,000 Kg 4. Up and down distance:100mm 5. Heat wattage: 6×500W 6. Foil in feed: Motor Drive 7. Temperature adjustment:0-300oC

Hydraulic embossing stamping machine //Advantage

Durable & Stable: High-strength cast steel bench ensures flatness and long-term reliability.
Flexible Table Lift: Threaded table lift allows quick height adjustments to fit products of any size.
Smart Control: Relay-based system is easy to operate and maintain; dual-button design ensures safe operation.
Powerful Hydraulic Drive: Improves stamping pressure, delivering consistent and durable foil impressions.
Fast Heating: Rapid-heating pipes and removable plates make template replacement quick and convenient.
Precise Alignment: Adjustable ironing board and table ensure accurate stamping in different areas.
Intelligent Temperature Control: Automatic temperature regulation within ±5°C for consistent results.
Customizable Settings: Free adjustment of stamping time and foil roll speed for various applications.
Efficient Automation: Automatic foil feeding with adjustable conveyor length reduces manual labor.

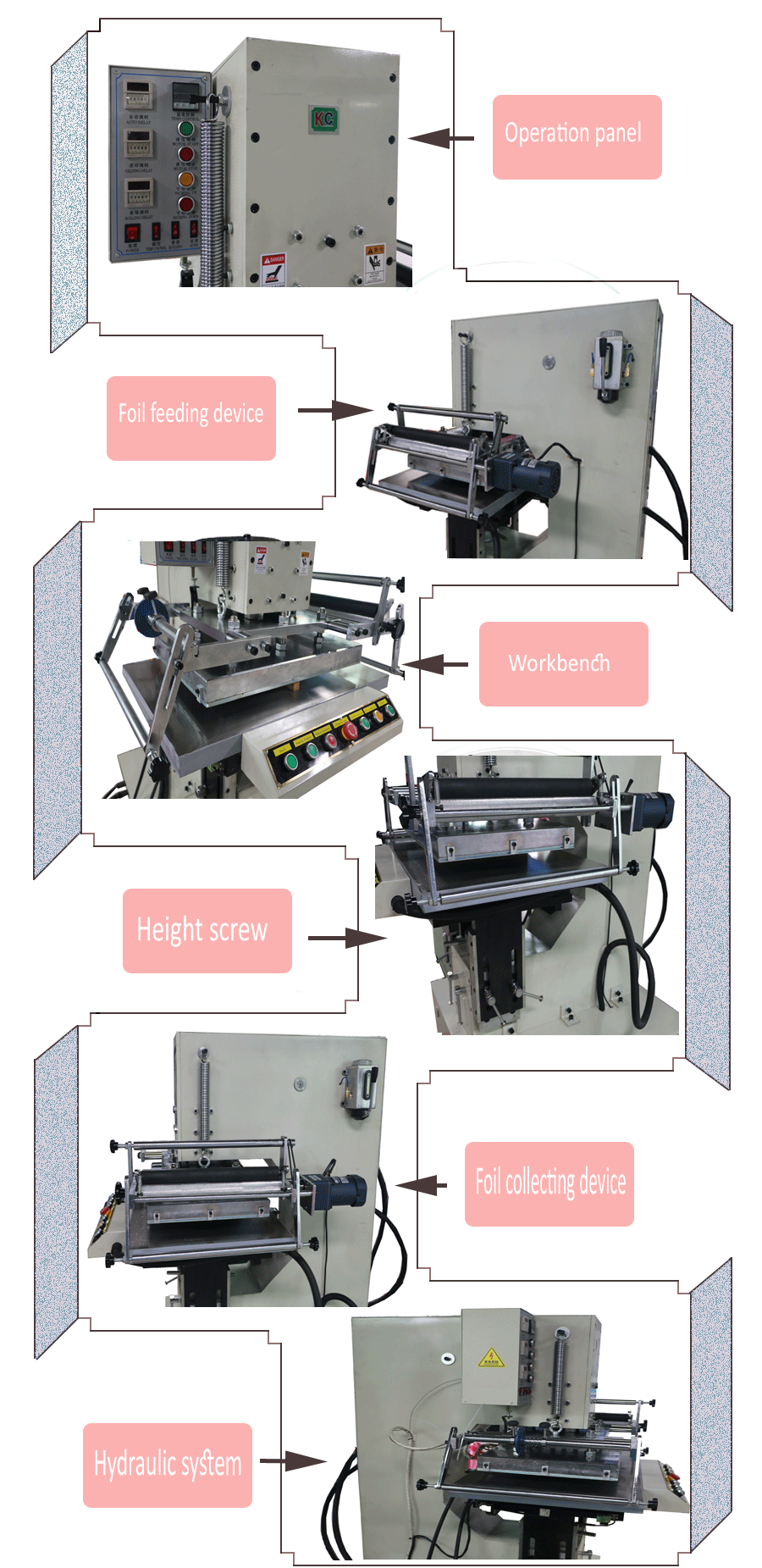

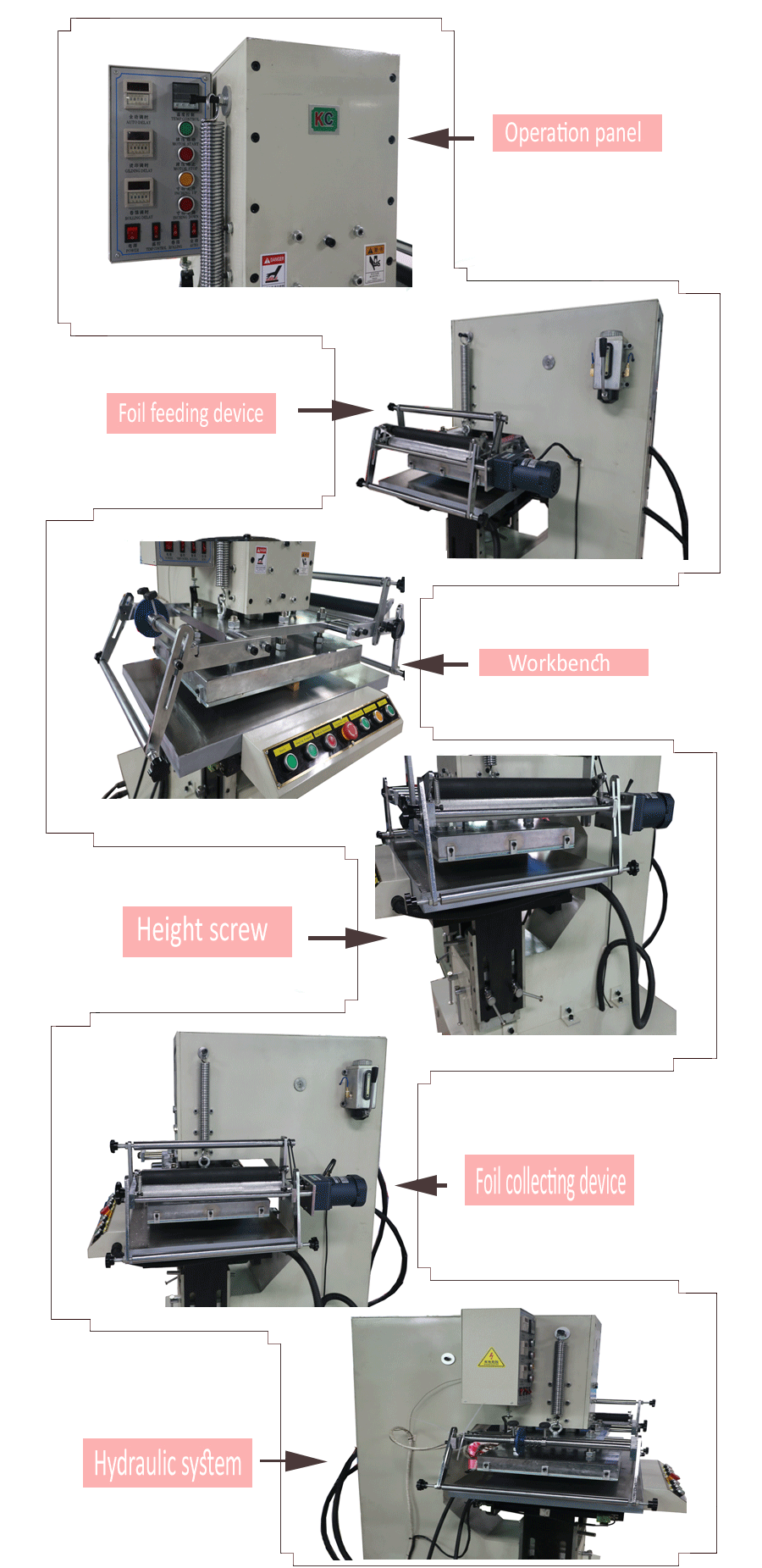

Details

Ideal Solution for Large Area Hot Stamping and Embossing

The 60 Ton Hydraulic Hot Stamping Machine provides stable and continuous high-pressure performance, making it especially suitable for: Large-size foil stamping/Hot stamping decoration/Embossing and debossing/Plastic product decoration/Packaging enhancement . With its powerful hydraulic system, large stamping area of 400×500mm, and precise pressure control, this hydraulic foil stamping machine delivers excellent stamping quality and reliable performance for modern manufacturing industries.

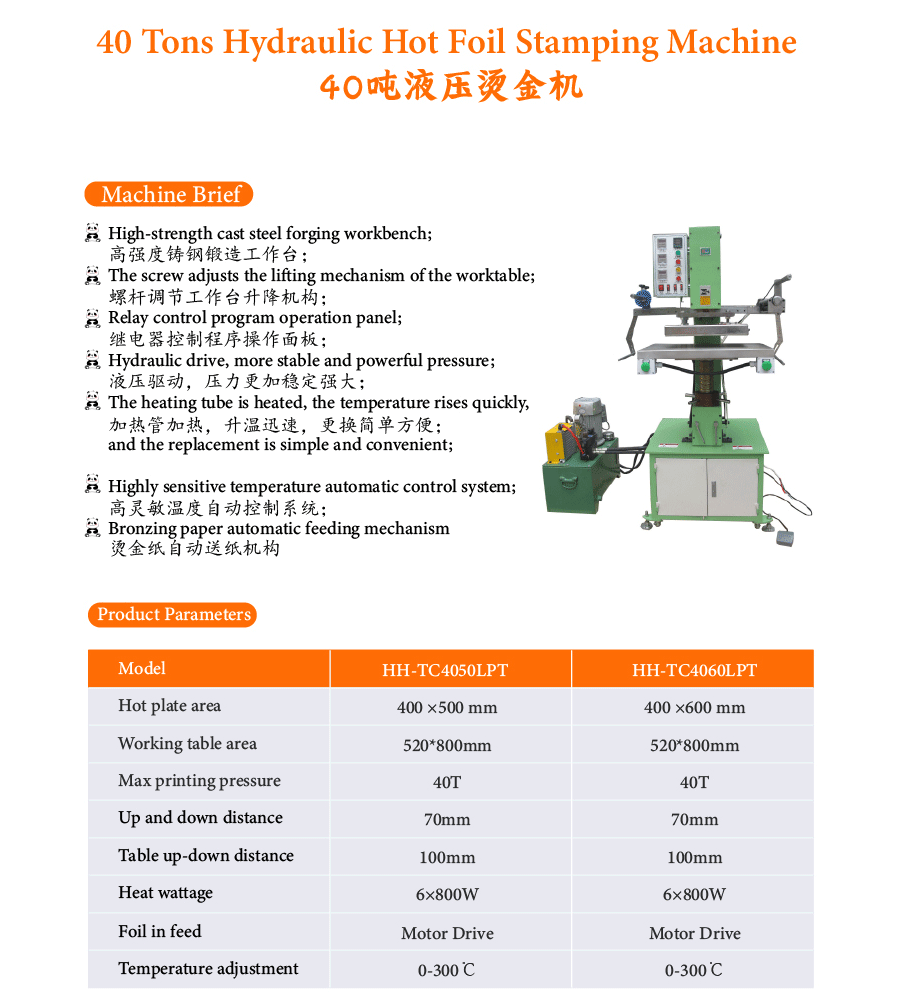

Catalogue

Hydraulic hot foil stamping machine price

Hydraulic hot stamping machine and embossing technology

The hydraulic hot stamping machine has huge pressure. Combined with the embossing plate, it can form a pattern with a strong three-dimensional sense on various papers, and occupies an important position in the field of packaging and decoration.

Strong and stable pressure: The hydraulic system can provide a large pressure output, and the pressure transmission is uniform, which can ensure the consistency of the depth of the pattern during embossing, especially suitable for hot stamping and indentation of large areas and complex textures. Through components such as hydraulic valves, the pressure can be accurately controlled, and it can be flexibly adjusted according to different materials (such as paper, leather, plastic, etc.) and embossing requirements. It has strong adaptability and can ensure the clear presentation of subtle textures. The hydraulically driven slider stroke is accurately positioned and has high repetition accuracy, ensuring that the mold is accurately aligned each time it is embossed, reducing waste caused by positioning deviation.
Adapt to thick and hard materials: For thicker or harder materials (such as cardboard, wood, etc.), the strong pressure and slow pressurization characteristics of the hydraulic hot stamping machine can better shape the material and achieve a clear embossing effect.
Smooth operation and low noise: The hydraulic system has low vibration and low noise during operation, which can reduce interference with the working environment, reduce wear and tear of the equipment caused by vibration, and extend its service life.
Reliable overload protection: The hydraulic system is usually equipped with an overload protection device, which will automatically release the pressure when the pressure exceeds the set value, avoiding damage to the mold, workpiece or equipment parts due to overload, and improving production safety.

Hydraulic hot stamping machine's requirements for hydraulic oil:

Hydraulic hot stamping machine uses hydraulic oil as a medium to push the hydraulic cylinder to move in a certain direction, thereby performing the lifting and lowering of the hot stamping plate, the in and out of the workbench, the movement of the shuttle workbench, etc. The hydraulic hot stamping machine has the following requirements for hydraulic oil:

Viscosity--The viscosity needs to match the equipment working conditions to ensure that the hydraulic system can stably transmit pressure during the hot stamping process at different temperatures and ensure that the viscosity fluctuates little when the temperature changes.
Good wear resistance--There are precision parts such as pumps and valves in the hydraulic system. The hydraulic oil must have anti-wear properties to reduce component wear and extend the life of the equipment.
Stable physical properties-- During long-term use, the hydraulic oil must resist oxidation and deterioration to avoid the formation of impurities such as sludge and carbon deposits that block the oil circuit. It must have good anti-emulsification properties to prevent the hydraulic oil from mixing with water vapor to form an emulsion, so as not to reduce the lubrication and transmission effects. It has good anti-foaming properties to reduce the generation of bubbles in the oil. It has a suitable flash point and pour point. The flash point needs to be higher than the system operating temperature, and the pour point needs to be lower than the lowest temperature of the equipment's working environment to ensure that the oil can still flow smoothly at low temperatures.
