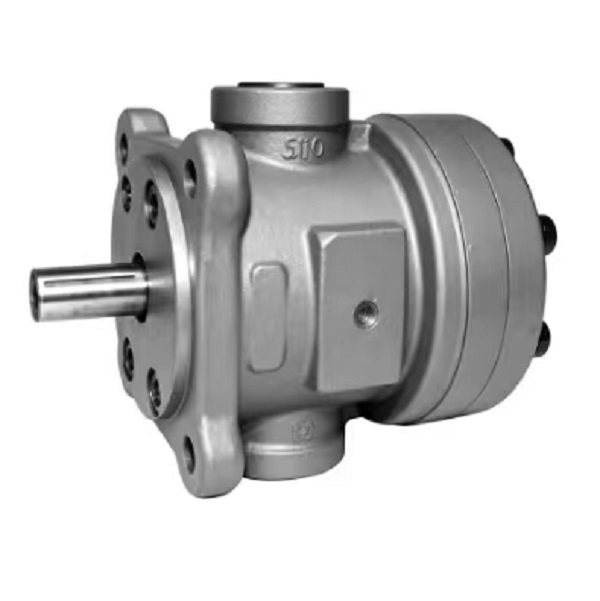

50T/150T Vane Pump

Product Overview

50T/150T Vane Pump is a fixed‑displacement Hydraulic Vane pump. As a widely‑used hydraulic pump, it provides stable flow and pressure for the hydraulic system of general‑purpose industrial Machine. This hydraulic pump owns compact structure, stable running performance and cost‑effective characteristics. It maintains continuous power output for the hydraulic system. Dual‑pump combined structures are optional to meet diverse working demands. It is commonly adopted for original equipment assembly and spare‑part replacement of various Machine.

Technical Specifications

- Model Series: 50T, 150T

- Product Type: Fixed‑displacement Hydraulic Vane pump

- Displacement Range: 10‑150 cm³/rev

- Rated Working Pressure: 14‑17.5 MPa

- Rotational Speed: 600‑1800 rpm

- Working Medium: Anti‑wear mineral hydraulic oil

- Structure: Cartridge insert design, easy‑to‑replace internal components

- Mounting Mode: Flange‑mount, matched for multiple Machine

- Core Function: Power source for complete hydraulic system

Working Principle

This Hydraulic Vane pump converts mechanical rotary energy into hydraulic energy. Inside the 50T/150T hydraulic pump, rotor drives vanes to closely fit the cam ring, forming sealed variable oil chambers. Hydraulic oil is inhaled, pressurized and delivered to the hydraulic system, driving hydraulic cylinders and actuators of the Machine. Combined double‑pump version can supply different flow for separate hydraulic circuits. Adopting replaceable cartridge kit, users can restore pump performance without complete disassembly, ensuring stable operation of the whole hydraulic system.

Core Advantages

1. Simple and reliable mechanical structure, low failure rate, suitable for continuous operation of general‑duty Machine.

2. Good volumetric efficiency, steady oil output, guaranteeing normal working performance of the hydraulic system.

3. Cost‑effective, convenient procurement of spare parts, effectively reducing operating expense of the hydraulic pump.

4. Cartridge‑type internal assembly, quick disassembly and replacement, shortening maintenance downtime for Machine.

5. Single‑pump and double‑pump combined options, flexible to satisfy different flow requirements of the hydraulic system.

6. Standard installation and oil‑port dimensions, strong interchangeability, easy for retrofitting existing Machine.

Application Scope

50T / 150T series Hydraulic Vane pump serves as the main hydraulic pump for injection molding machines, small‑medium presses, machine tools, rubber machinery and other general‑purpose industrial Machine. It provides power support for the hydraulic system. Widely applied in plastic workshops, hardware processing factories, ordinary hydraulic power packs and light‑industry production equipment.
