BMW 4Pin Breakout Automotive Cable Assembly

More Working Distance for Diagnostic Bench Setups

A short cable can make it awkward to position test equipment around a vehicle or workbench. This BMW 4Pin Breakout Automotive Cable Assembly comes with a 5000±30mm cable, giving technicians more room to arrange their testing equipment. It is designed for BMW vehicle signal testing and automotive diagnostic bench work, making it a practical option for equipment developers and automotive service tool suppliers looking for a BMW breakout automotive cable assembly.

Item	Specification
Type	Automotive Diagnostic Breakout Cable
Wire Gauge	24AWG
Cable Jacket	TPE
Working Temperature	-40℃ ~ +105℃
Length	5000±30mm
Pins Material	Tin-Plated Brass Terminals
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Test Voltage	DC 300V 10MS
Application Fields	BMW vehicle signal test, automotive diagnostic bench testing, car electronic wiring connection
Specific Shipping Cost	Please Contact Us

The four-pin layout is intended for breakout testing rather than general-purpose vehicle wiring. Before connecting the cable, check the connector shape, pin assignment, and signal requirements against your test equipment. This is especially important when sourcing a BMW 4pin wiring cable assembly for a dedicated test fixture, where the correct wiring layout matters more than simply matching the connector appearance.

TPE Jacket and 24AWG Wire Details

The cable uses a TPE jacket and 24AWG wire, giving engineering teams two key specifications to consider when planning the cable route and connection setup. Its working temperature range is -40°C to +105°C. These details can help buyers assess whether the cable suits their intended environment, available installation space, and equipment requirements when developing an automotive wiring setup.

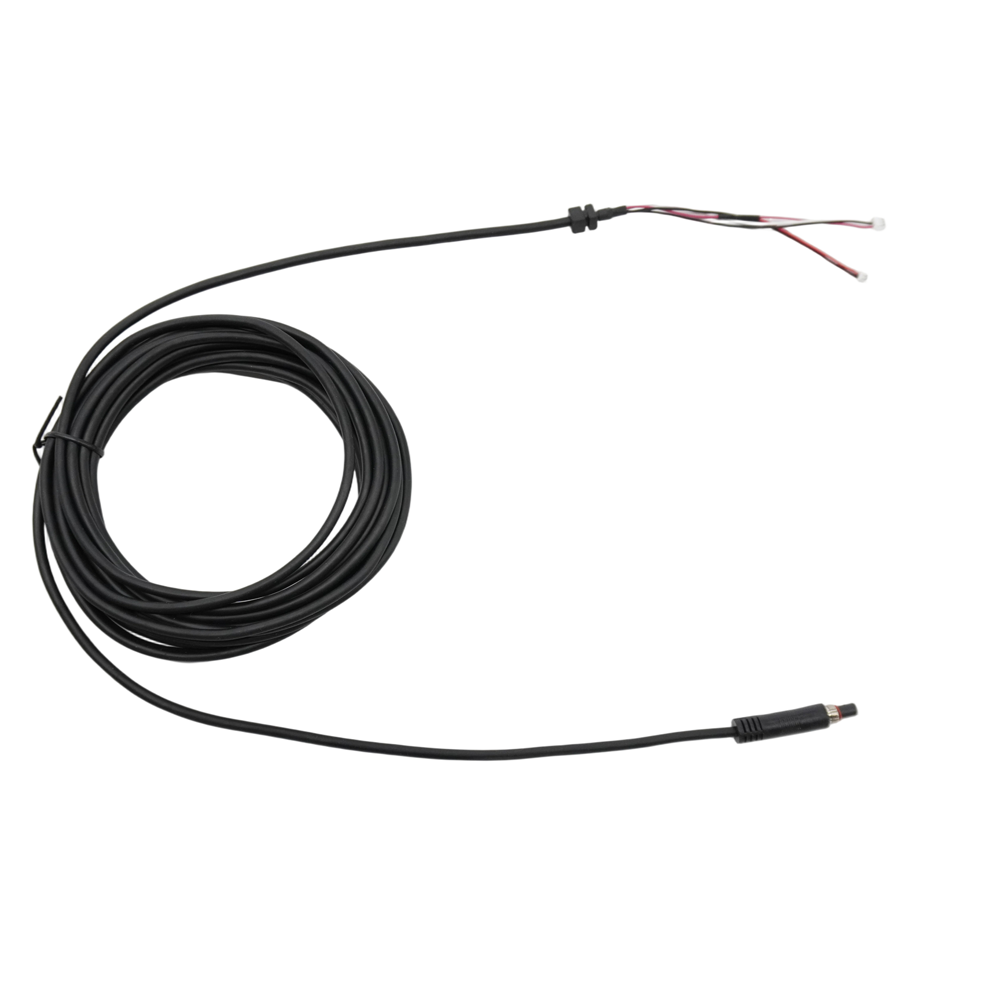

BMW 4Pin Diagnostic Automotive Cable Assembly

Tin-plated brass terminals are used for the pins. The listed minimum insulation resistance is ≥10MΩ, and the maximum conduction resistance is ≤2Ω. The supplied test-voltage specification is DC 300V 10MS. For a project that includes a vehicle cable assembly or other test leads, the relevant test conditions and electrical requirements should be confirmed before approval. FBXSlink can review the available specifications alongside your technical drawing.

Built Around BMW Signal Testing Requirements

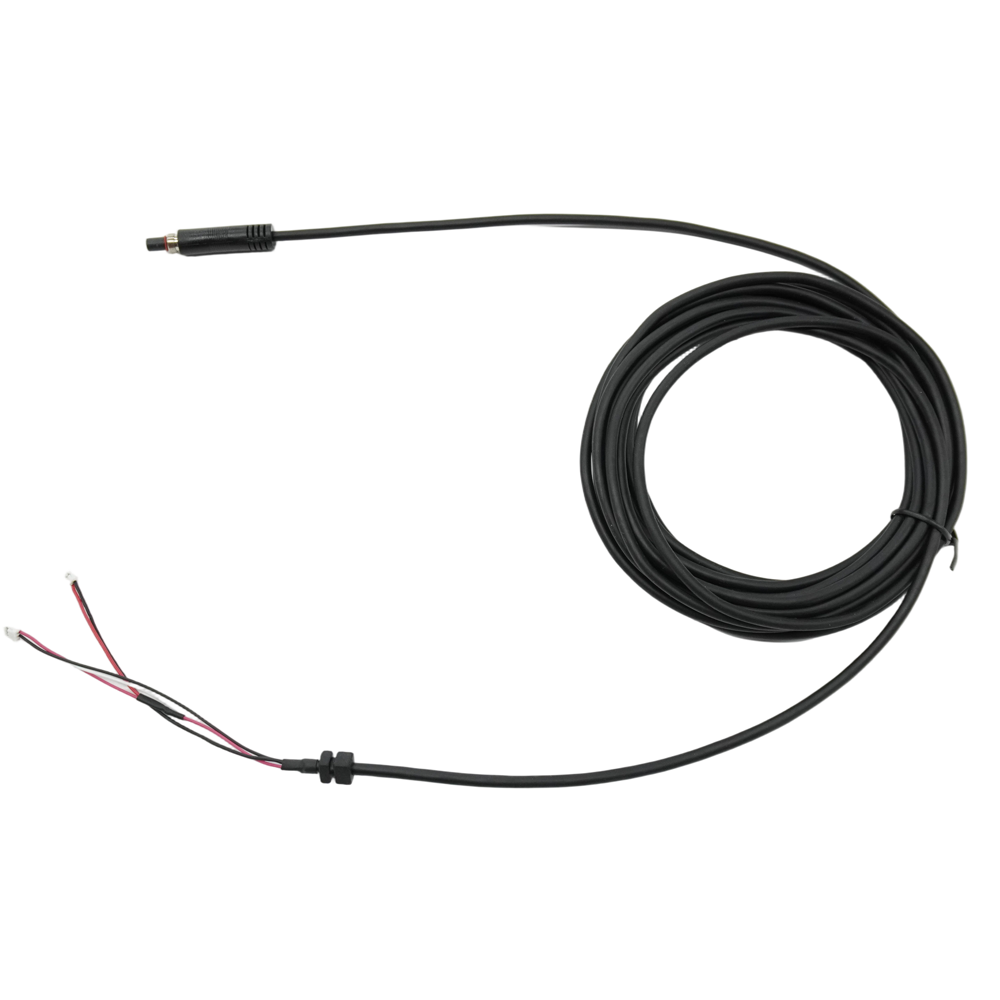

This cable is intended for BMW vehicle signal testing, automotive diagnostic bench testing, and car electronic wiring connections. It can be considered for test fixtures, diagnostic equipment development, and vehicle electronics evaluation where a compatible four-pin breakout connection is required. The Auto breakout harness cable assembly should be selected according to the actual interface and signal layout of the equipment.

If you are developing a testing setup that uses automotive diagnostic cables, the wiring diagram and intended measurement points are useful details to share before production. FBXSlink can review the required connector arrangement and cable specifications for your project. For buyers sourcing connector cables or automotive cable and connectors for a particular test system, providing a drawing or sample can help clarify the required configuration and quotation details.

Why Choose FBXSlink?

FBXSlink was established in 2013 in Shenzhen, China, and focuses on automotive and industrial wiring products. Its product work includes vehicle diagnostic connection cables, new energy vehicle wiring, and energy storage harnesses. This combination of product areas gives customers a single manufacturer to discuss wiring requirements across automotive testing and other industrial connection applications.

For projects that need a cable built around specific equipment requirements, FBXSlink's technical and production teams can review connector details, wire specifications, cable length, and the intended use before confirming a design. Instead of assuming every project needs the same configuration, the team works from the information provided by the customer. Contact FBXSlink with your BMW four-pin cable requirements to discuss feasibility and request a quotation. Shipping costs can be confirmed according to the destination and order details.
