M12 5Pin Industrial Sensor Cable Harness

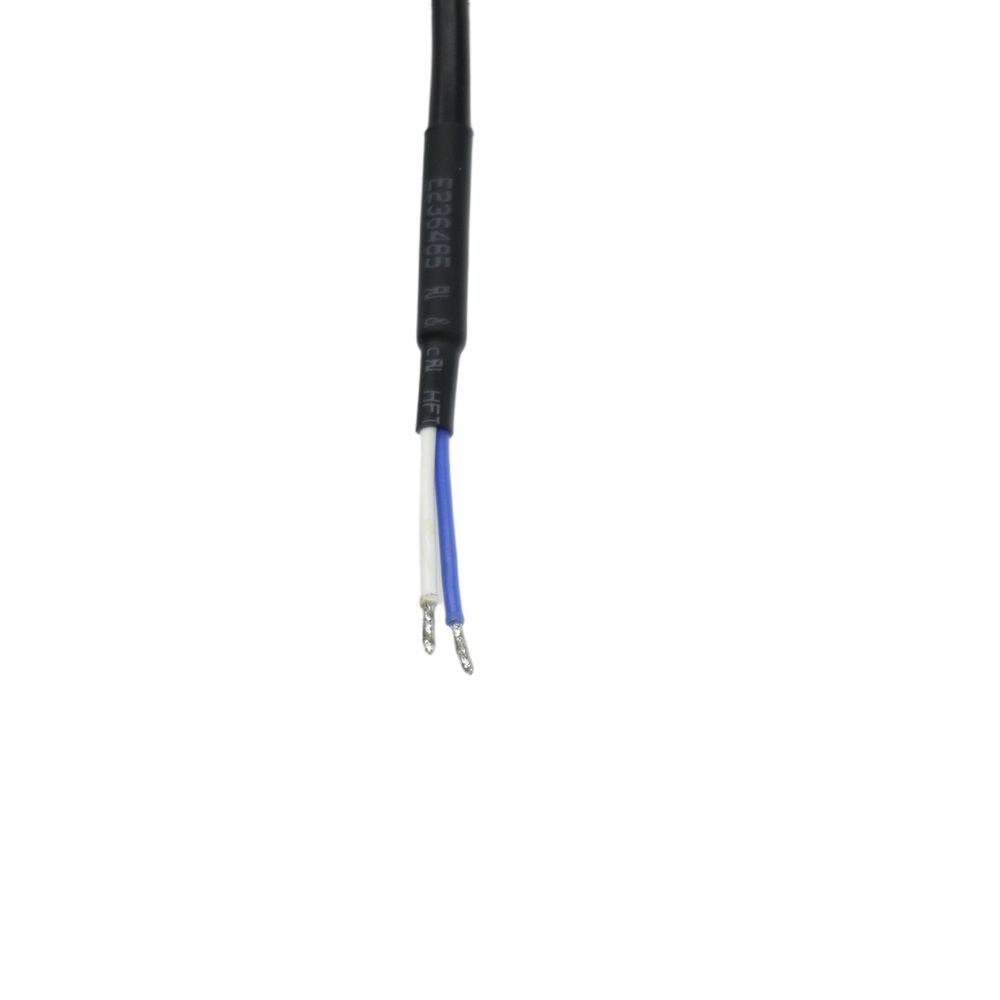

M12 5Pin Open-End Design for Easy Wiring

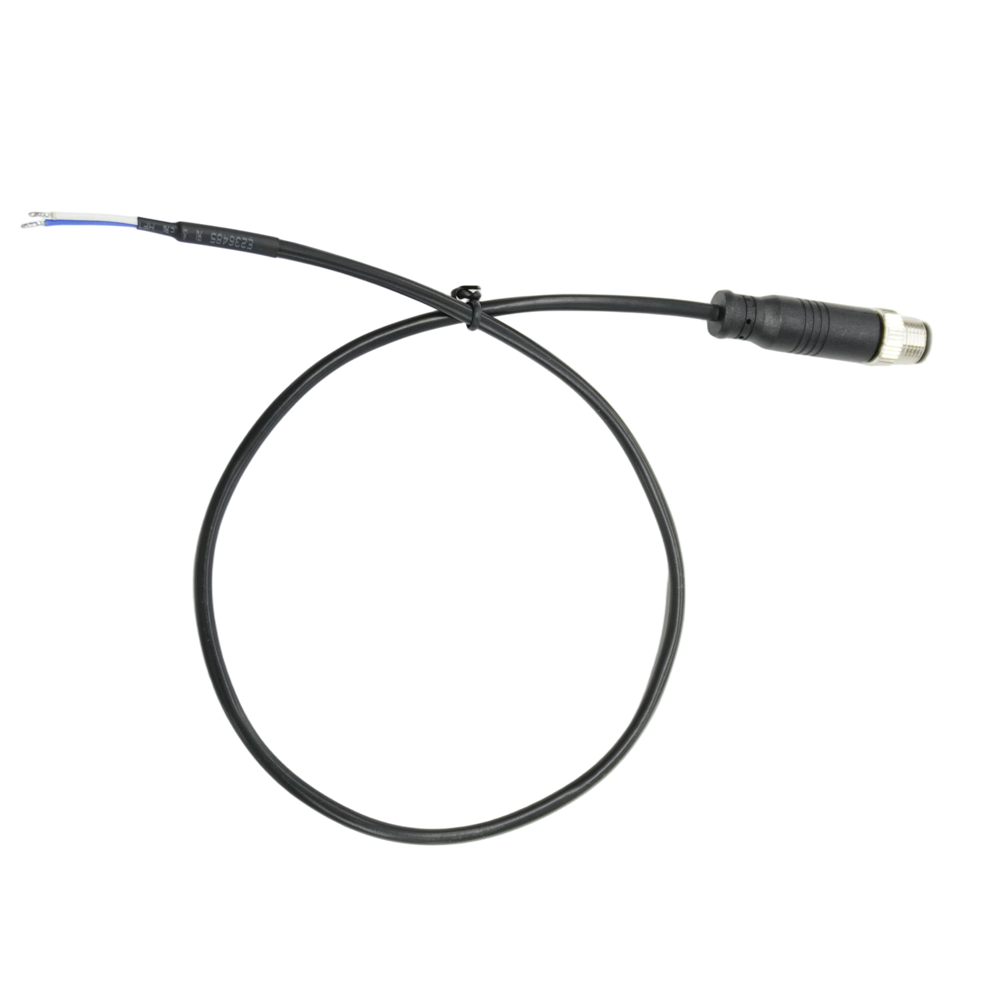

The M12 5Pin Industrial Sensor Cable Harness is made for equipment that needs an M12 connection on one side and an open wire end on the other. This setup gives installers more freedom when connecting the cable to a control unit, terminal block, or other compatible device. With a 500±20mm length, it can work well in compact automation equipment where a short, manageable cable is preferred.

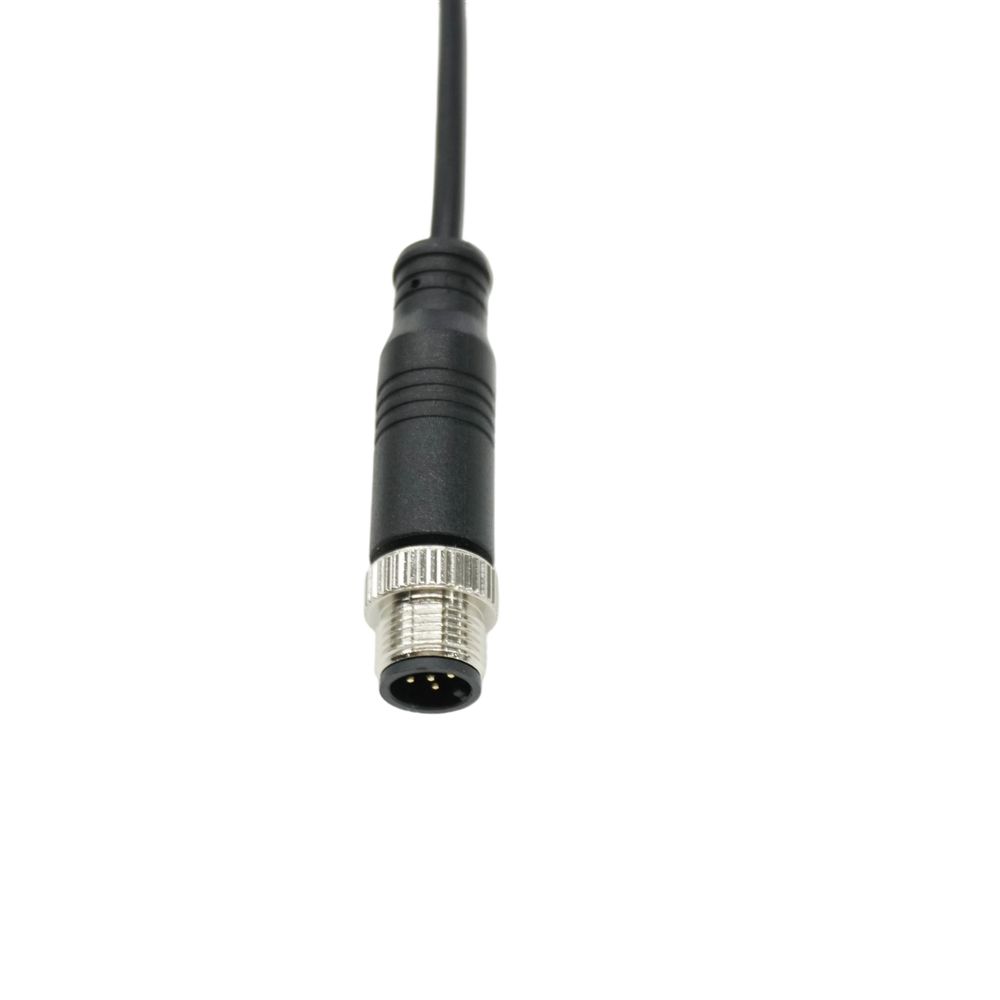

The M12 5Pin open end cable harness is a useful choice when a ready-made connector-to-connector cable does not match the wiring layout of your machine. The five-pin configuration provides a defined connection format, while the open end leaves room for integration with the customer's own wiring system. For projects using circular connector cable products, checking the required pinout before assembly is recommended.

Durable Connector Materials for Industrial Connections

The plug housing is made from black PA66 plastic, while the terminals use nickel-plated brass. These materials give buyers clear specifications to consider when selecting a cable for industrial sensor or equipment connections. The working temperature range is -25°C to +80°C, covering the stated operating conditions of the harness.

M12 5Pin Industrial Sensor Cable Harness

The cable has a minimum insulation resistance of ≥10MΩ and a maximum conduction resistance of ≤3Ω. Its specified voltage is DC 500V. When the harness is used together with circular cable connectors or other control-system wiring, these electrical values can be checked against the requirements of the equipment before the cable is put into production or installation.

Sensor, Automation, and NMEA Device Wiring

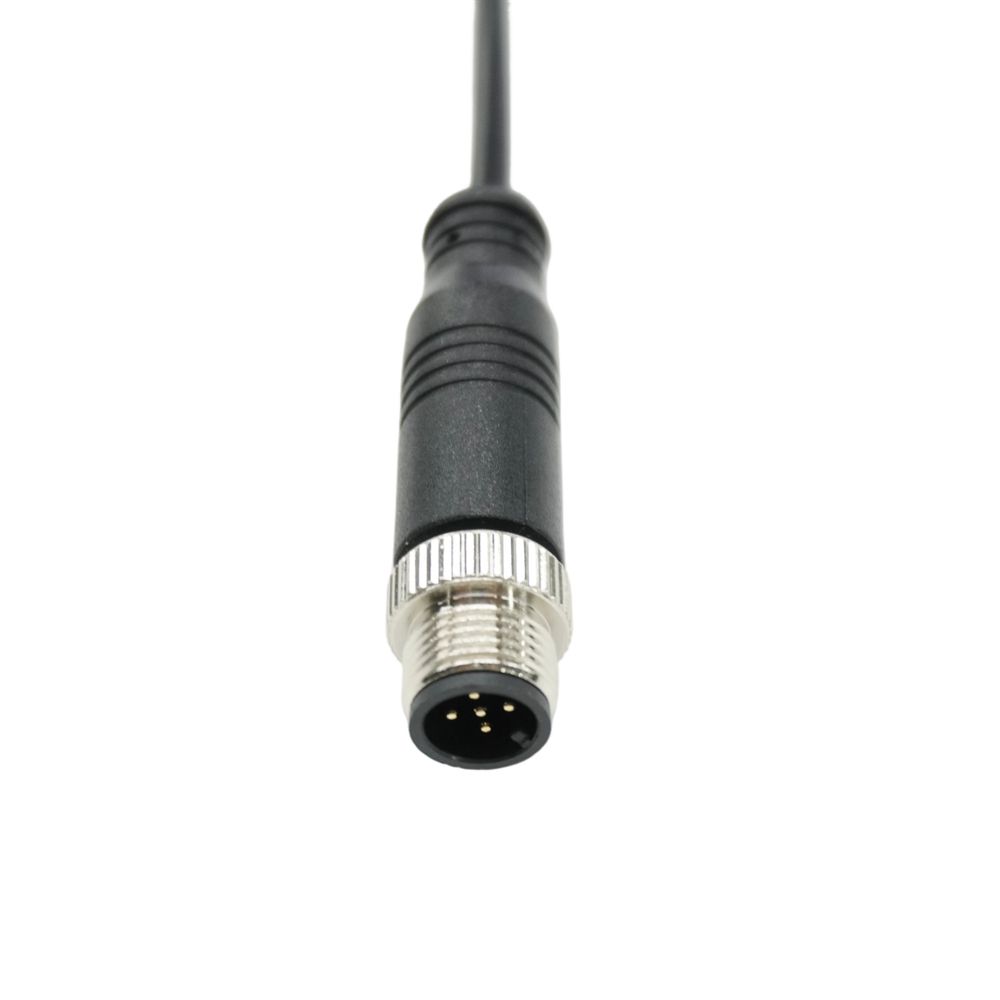

This harness is designed for industrial sensor connection, automation equipment, electronic signal transmission, and NMEA device wiring. The open-end format can be useful when the cable needs to connect directly into a customer's own electrical system. For an Industrial M12 sensor wiring harness, the actual pin assignment and connection method should be confirmed according to the equipment being used.

Item	Specification
Type	M12-5P Male Open End Wiring Harness
Voltage	DC 500V
Pins Material	Nickel-Plated Brass Terminals
Plug Material	PA66 Black Plastic Housing
Working Temperature	-25℃ ~ +80℃
Length	500±20mm
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤3Ω
Application Fields	Industrial sensor connection, automation equipment, NMEA device wiring, electronic signal transmission
Specific Shipping Cost	Please Contact Us

For an NMEA device M12 wiring harness project, customers can provide the required wiring information so the cable configuration can be reviewed before production. FBXSlink can also discuss related circular connection cables and vehicle circular connector cable requirements when a project involves different connection environments. The goal is to make the finished harness fit the actual installation rather than force the equipment to work around a standard cable.

Why Choose FBXSlink?

Industrial sensor wiring often has to fit the equipment around it, especially when the available space and termination method are already fixed. FBXSlink has experience developing automotive and industrial wiring products, so our team can work with details such as connector type, pin configuration, cable length, and open-end termination. This makes the company a practical partner for customers who need more than an off-the-shelf cable.

For this M12 harness, the combination of a five-pin M12 connector, open-end wiring, PA66 housing, and nickel-plated brass terminals gives the project a clear starting specification. Since 2013, FBXSlink has operated from Shenzhen with dedicated R&D and production capabilities, supporting customers with customized wire-harness solutions. If your equipment needs a different length, wiring arrangement, or connector configuration, send us the requirements and our team can review the project with you.

Contact Now
