CYW-76–500 Bimetallic Oil Level & Temperature Gauges

Product Description

CYW-76~500 series bimetallic oil level & temperature gauges (also called sensing-type liquid level & temperature gauges) are upgraded hydraulic tank accessories developed based on the YWZ series level gauges, widely used for hydraulic system oil tanks, lubrication units, cooling tanks and gearboxes of industrial and mobile Machine .

It adopts bimetallic temperature sensing principle to measure hydraulic oil temperature, with high accuracy and shock-resistant structure. Operators can visually read the real-time oil level through the transparent sight window, while checking the oil temperature on the bimetallic dial at the bottom. It helps prevent system failures caused by oil shortage or overheating, protecting pumps, Hydraulic valve groups and CARTRIDGE VALVE manifolds in hydraulic stations.

The series covers multiple specifications from 76mm to 500mm mounting center distance, compatible with the same tank mounting hole size as YWZ series for direct replacement. It is suitable for mineral hydraulic oil, supporting OEM assembly and aftermarket replacement for hydraulic power units, lifting machinery and engineering equipment.

Key Features

✅ Integrated design: visual oil level observation + bimetallic dial temperature display

✅ Wide range: mounting center 76–500 mm, multiple size options for different hydraulic oil tanks

✅ Bimetallic temperature measurement, high sensitivity, easy reading

✅ Sturdy shock-resistant construction, durable for heavy-duty industrial environments

✅ Reliable sealing structure to avoid oil leakage at tank mounting position

✅ Same installation hole as YWZ series for convenient direct replacement

✅ Simple side bolt mounting, easy assembly and maintenance

✅ Matched with hydraulic system, Hydraulic valve and CARTRIDGE VALVE integrated hydraulic stations

✅ Large-volume supply for OEM and after-sales replacement

Technical Specifications

- Model: CYW-76 ~ CYW-500 Bimetallic Oil Level & Temperature Gauges

- Temperature measuring range: 0℃ ~ 100℃

- Temperature division: 1℃ per grid

- Accuracy class: 2.5

- Max bearing pressure: 0.15 MPa

- Sensing tube insertion depth: ≥90mm

- Mounting: Side-mounted on hydraulic oil tank

- Compatibility: Interchangeable with YWZ series mounting dimensions

- Application: Hydraulic stations, industrial hydraulic system, construction Machine, lubrication & cooling equipment

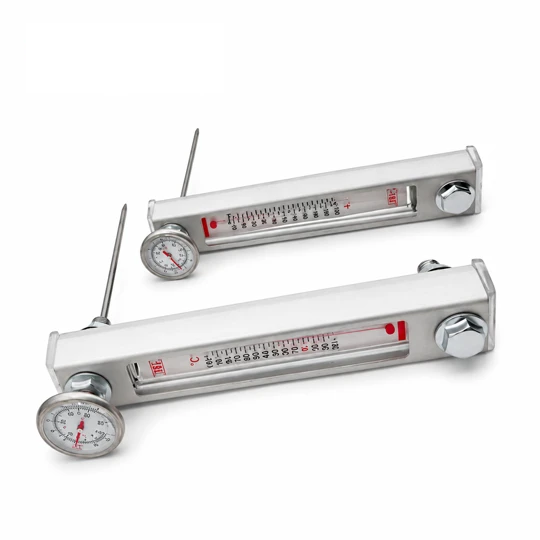

adiffer-CYW-Series-sensory-bimetallic-level-gauge-540by540-1
