Introduction
This two-color open ink tray pad printing machine is designed for high-precision, large-format industrial printing applications. Equipped with a 200 × 300 mm steel plate, it provides a large printing area and a powerful 500 kg pneumatic printing force, making it ideal for printing large graphics or oversized products with outstanding consistency and accuracy.
The open ink tray system allows operators to easily monitor ink viscosity and condition throughout the production process. Ink can be adjusted quickly at any time, ensuring stable print quality while reducing downtime caused by ink changes.
To improve printing accuracy and productivity, the machine features a dual-station servo shuttle worktable. The shuttle travel can be freely programmed according to different product sizes and printing requirements, while the high-precision servo positioning system delivers excellent repeatability for multi-color registration.
The machine is equipped with two independent pad printing heads, each driven by its own pneumatic cylinder. Both printing units operate independently without interfering with one another, ensuring smooth, stable, and accurate two-color printing. Whether printing large graphics, small logos, or products requiring complex two-color registration, the machine consistently delivers exceptional print quality.
An advanced human-machine interface (HMI) touchscreen provides intuitive operation and easy parameter adjustment. Printing settings can be saved and modified quickly, significantly reducing setup time and improving efficiency when switching between different products or production batches.
Designed for demanding industrial applications, this two-color pad printer is widely used for printing plastic products, electronic components, cosmetic packaging, household items, promotional gifts, automotive parts, and other precision industrial products.

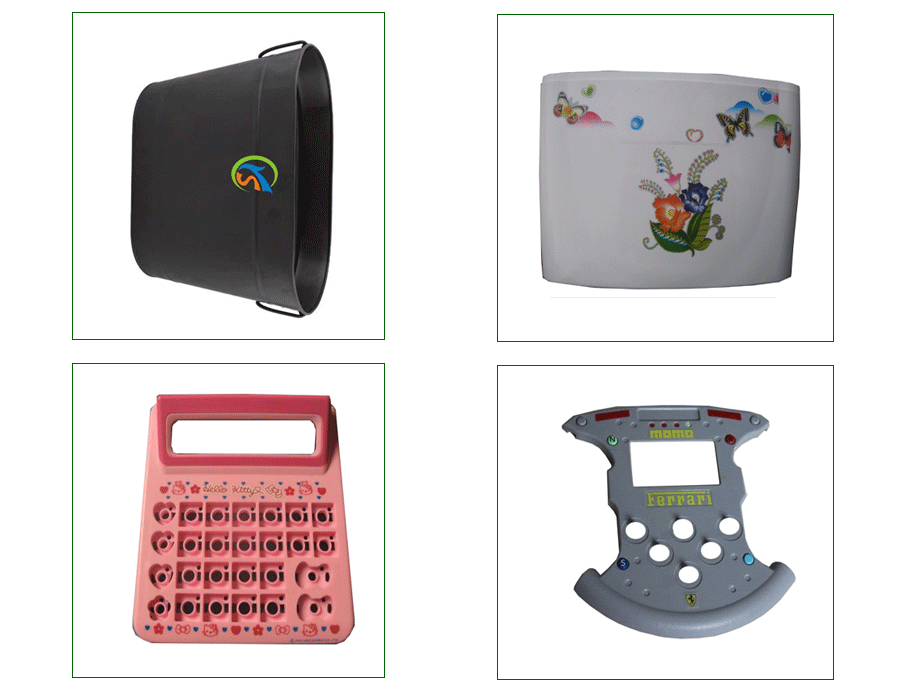

Samples-Application fields
Toy industry
Can be used for surface printing of toys, such as building blocks, plastic dolls, etc.
Electronic and electrical industry
Suitable for printing on the shells, buttons, display screens and other parts of electronic and electrical products. Such as printing logos, patterns, texts, etc. of products such as mobile phones, computers, and remote controls.
Plastic and rubber industry
For plastic pipes, rubber products, etc., this type of pad printer can print brand logos, specifications, models, production dates and other information on their surfaces.
Hardware and building materials industry
Two-color pad printing on the surfaces of hardware products such as door handles, locks, faucets, etc., as well as building materials such as tiles and glass.
Auto parts industry
Surface printing of automotive interior parts, dashboards, lights and other parts
Introduction
|
Two colors independent-press pad printers with shuttle//Parameter
|
|
Technical parameters
|
P2-810DS
|
P2-812DS |
- Max. plate size: 200×250 mm;
- Max. worktable area: 170×220mm;
- Max. printing area: 350×300mm;
- Max. printing speed: 700pcs/h;
- Printable colour :2;
- Stroke of table shuttle: 250mm.
|
- Max. plate size: 200×300mm;
- Max. worktable area: 170×270mm;
- Max. printing area: 350×300mm;
- Max. printing speed: 700pcs/hr;
- Printable colors:2;
- Stroke of table shuttle: 250mm
|
|
Works supply
|
- 110V-220VPower supply; 5-7Bar Compress air;
|
|
Package list
|
- Package dimension:850×670×1460mm Gross weight:155KG CBM: 0.83147
|
|
H.S.Code
|
8443198000
|
|
Certicate
|
CE
|
Fuction
Multi color pad printing: The high-precision servo system pad printing machine supports multi-color printing function, which can print multiple colors of patterns or text simultaneously, meeting diverse printing needs.
Batch pad printing: This device has efficient batch printing capabilities and can complete a large number of printing tasks in a short period of time, improving production efficiency.
Personalized customization: The high-precision servo system pad printing machine supports personalized customization services, and can design equipment configuration and printing solutions according to the specific needs of customers.
High definition pad printing: This device is capable of printing high-definition patterns and text, ensuring the quality and stability of the printing effect.
- Servo-Driven Shuttle Worktable – High-precision servo shuttle system ensures fast, smooth, and accurate workpiece positioning for improved printing accuracy and production efficiency.
- PLC & Touchscreen Control System – Advanced PLC controller with an intuitive touchscreen interface enables easy parameter setting, stable operation, and efficient production management.
- Open Ink Tray System – Open ink tray design provides convenient ink filling, color adjustment, and maintenance, making it suitable for large-format clichés and specialty ink applications.
- Independent Dual Pad Printing System – Two independently controlled silicone pads allow precise two-color printing with accurate registration, delivering consistent, high-quality multi-color results.
- Automatic Self-Leveling Doctor Blade Technology – Automatic balancing doctor blade maintains uniform ink distribution across the printing plate, ensuring clean ink transfer, consistent print quality, and reduced blade wear.
Details
Characteristics
High precision: The high-precision servo system pad printers adopts advanced printing technology and servo drive technology, which can achieve precise control at the micrometer level, ensuring the clarity and accuracy of printed patterns or text.
Servo drive: This device uses a servo motor as the power source, which has the characteristics of high precision, high response speed, and high stability. Servo motors can accurately control the movement speed and position of the printing head, achieving a smooth printing process.
High degree of automation: High precision servo system pad printing machines are usually equipped with automation control systems, which can achieve functions such as automatic feeding, automatic positioning, automatic printing, and automatic feeding, reducing manual operations and improving production efficiency.
Strong adaptability: This device is suitable for printing items of various materials and shapes, such as plastic, metal, glass, etc. Meanwhile, by replacing different print heads and inks, it is possible to adapt to different printing needs.
Two-color shuttle pad printers are generally composed of the following parts:
- Workbench: The workbench can be adjusted up and down, left and right, front and back, and angle to ensure that the pad printing position meets user needs. The shuttle table of the workbench can be controlled by pneumatic or servo motor.
- Operation panel: The operation panel is used to control the movement of the entire pad printer. Simpler pad printers are controlled by microcomputers, and complex pad printers are controlled by PLC and touch screen.
- Ink supply system: It is the place where ink is placed. There are two structures on the market, one is an open oil pan structure, and the other is a closed oil cup structure.
- Pad printing system: It is a device that transfers ink to the product. It is composed of one or more sets of rubber head devices. The rubber head device changes position on the printing plate and the product. Its movement can be controlled by pneumatic or servo motor.
- Power source: Most pad printers are driven by pneumatic components, so air compressors are required to provide compressed air. There are also pure electric pad printers on the market that do not require compressed air.
- Additional devices: In order to continuously improve the printing quality of the pad printer and reduce the labor intensity of the operator, the pad printer will also be equipped with a pre-press device, a pad cleaning device, a drying device, a positioning sensor and a safety grating.
What is UV pad printing ink
It is common for pad printers to use solvent-based inks. In recent years, some products have been tested with UV pad printing inks. UV pad printing ink is a UV-curable ink suitable for pad printing process, and its drying process depends on ultraviolet (UV light) irradiation.
The ink layer of pad printing ink is thin. In order to improve its hiding power, pad printing ink is usually required to have a higher color concentration, while UV pad printing ink requires transparency, which makes UV pad printing ink face a dilemma.
Color matching of UV pad printing ink
The two-color shuttle pad printing machine can overprint two colors of UV pad printing ink. If there is no overprinting of the two colors, it can be dried after the two colors are printed; if there is overprinting, tabletop UV curing machine is performed after printing one color, and then the second color is printed, and then the second color is cured.
The market generally reflects that the hiding power of UV pad printing ink after curing needs to be improved, and it is necessary to find pigments with higher hiding power, and at the same time, more tests are conducted on UV light intensity and process.
