Full automatic hot stamping machine for bottle cap side //Usage and characters

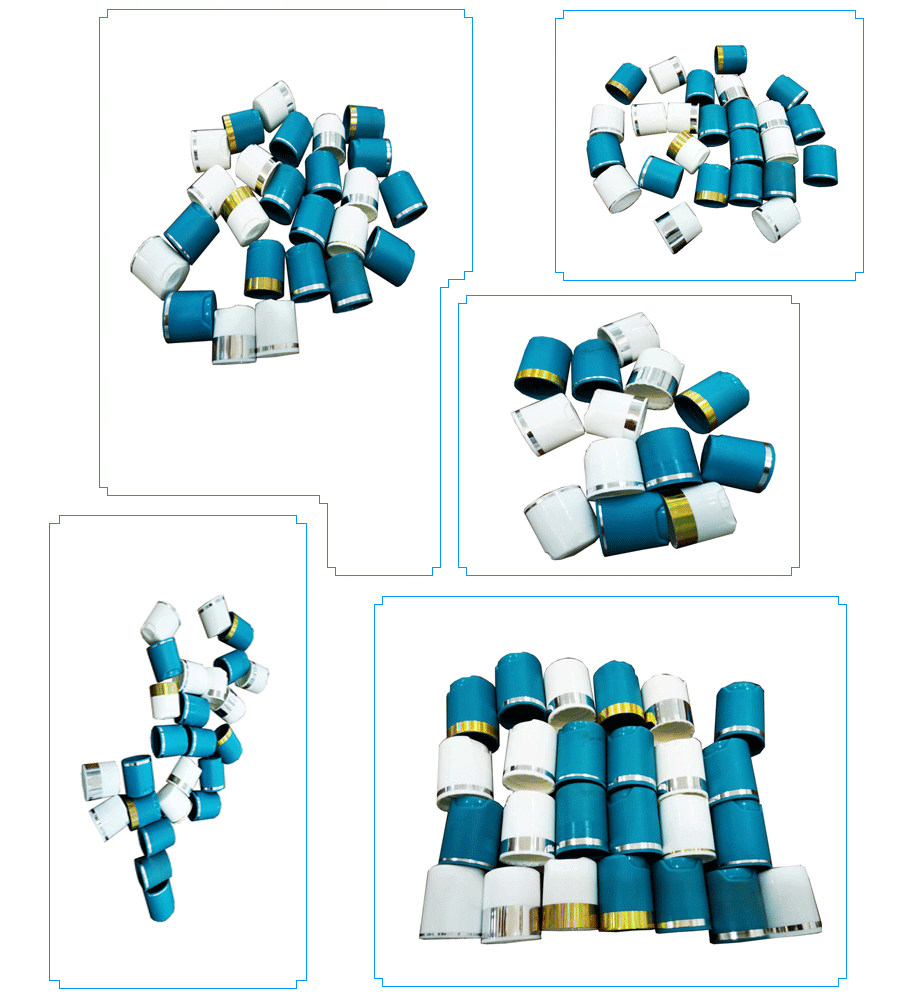

Printed Samples

There are two main hot stamping techniques for the sides of bottle caps: graphic hot foil stamping, which requires creating a copper plate or silicone plate with the graphic and mounting it on a hot stamping plate. Line hot stamping, which typically involves evenly stamping a layer of gold, silver, or other colored foil around the edge of the cap's opening for a decorative effect, requires mounting a flat silicone plate on the hot stamping plate.

Although hot foil stamping lines are merely decorative, they occupy a significant market share on bottle caps. They can also conceal burrs created during injection molding, leading many users to use semi-automatic hot stamping machine, heat transfer machine, or fully automatic hot stamping machine.

This is a fully automatic hot stamping machine with vertical turntable for bottle cap lines. The hot stamping head can be either a cylindrical silicone roller or a flat silicone plate. When using a flat silicone plate, the bottle cap rotates on the plate. In one approach, the plate moves left and right as the bottle cap rotates, or the plate moves left and right as the cap rotates. When using a silicone roller, the roller and bottle cap rotate while in contact. If the automatic hot stamping machine is only used for hot stamping lines, the silicone roller structure is better, but if the automatic hot stamping machine is used for both hot stamping lines and hot stamping images and texts, the flat hot stamping plate and flat silicone plate structure are better.

122

Details

Most of the containers need to be closed with lids to achieve the purpose of long-term preservation of products. The hot foil stamping of lids is also a decoration issue that is generally concerned in the industry. The hot stamping of lids is divided into side stamping and top stamping. The structure of the machine is roughly the same, except that During the process, the hot stamping on the top of the bottle cap adopts flat stamping, and the ironing head only moves up and down, while the hot stamping on the side of the bottle cap requires the rotation of the fixture and the left and right movement of the ironing head.
Automatic bottle cap hot stamping equipment usually consists of automatic crawler feeding system, prepress processing system, positioning system, workbench, hot stamping system, and automatic unloading system. Because bottles and bottle caps are widely used in all aspects of life and are used in large quantities, the speed requirements for automatic hot stamping machine are very high. It is widely used in plastic packaging, medicine, cosmetics, stationery, wine, washing supplies and other industries.

Description

Common type of bottle with the top side of the gilt; Suitable for all kinds of caps made of plastic material gilt;
With the smooth side of the cap are suitable for this machine gilt;
Also for some of the cosmetic cover a diameter less than 40mm gold foil.
With automatic transmission is fully automatic stamping machine cap, the cap for a top side of the gilt automatic stamping machine;
Structural design of the central compact structure; bottle feeding from the side, facing into the stamping station;
Stable horizontal movement, the frequency motor control, stamping pressure evenly, stamping quality;
Programmable logic controller fine-tuning various parameters, a good user interface;
Set a single machine debugging feature operation is set up can be fully functional operation;
As the bottle with the top and bottom of the points, the machine can automatically identify, saving labor costs and labor intensity.

Bottle cap side Full automatic hot stamping Machine //Parameter

- - Total consume Wattage: 260W;
  - Stamping temperature Rnange:20∼300℃;
  - Compress air Pressure﹕5-8Bbar;
  - Products Diameter:﹕(φ15~Φ35mm)×(20~60mm)
  - Max stamping Speed:2000-3000pcs/h
  - Outer dimension: 2300×2160×1200mm;
  - Net weight(kg) : 420;
  - Motor wattage: 1500W;
  - Power supply: 220V;
  - Heater wattage: 800W IR.
  - Works supply: 110 V-220 V Power supply;5-7 Bar Compress air;
  - Package size: 2770×1680×1790 MM;
  - Gross weight: 745 kg
  - CBM: 8.329
  - H.S.Code: 8443198000
  - Certificate: CE

Full automatic hot stamping Machine for cap side /Advantage

Vertical cylinder pressure mechanism design, a strong pressure;
Stamping head can be adjusted for back-front, Left-right, Up-down, easy to operate safely and quickly;
Used for 8-bit rotary type feeding mechanism, significant savings in preparation time, improve the stamping speed;
Stamping pressure, temperature, time stamping adjustable;
Automatic foil feeding , Foil collection, and adjustment;
Lift stamping head height adjustable;
Bin storage, automatic Crawler installed for cap feeding;
Automatically distinguish device between top or Bottom of cap to ensure the correct position into the gilt;
Automatic stamping process;
The use of advanced modular program-controlled device, together with touch-screen display control component of the operating system, the action using SMC Corporation pneumatic control;
With a square column design, the machine structure, solid and durable;
Shift the amount of imported high precision sensor control, to ensure that the hot stamping effect more perfect;
Precision linear bearing high-quality, durable, lightweight and flexible to ensure that the machine is running, to extend the mechanical life.
IR heating, heating, high efficiency, stability and ensure stamping quality.
Rotary table design automatic inflatable device for stamping cap
