Zippers Ribbons Samples
Data
| Technical Parameter | AB6160Z Zipper ribbon heat transfer machine. Voltage: 380V. Power: 12KW Temperature Range: 0-399°C Time range: 0-999Sec. Table size:60X37.5cm Speed range Of roller 0.-3.5M/minutes Weight:400kg AB6190Z Zipper Heat transfer machine. Voltage: 380V. Power: 14KW Temperature Range: :0-399°C Time range: 0-999Sec. Table size:90X37.5cm Speed range Of roller 0.-3.5M/minutes Weight:500kg AB61120Z Zipper Heat trasnfer machine. Voltage: 380V. Power: 16KW Temperature Range: :0-399°C Time range: 0-999Sec. Table size:120X37.5cm Speed range Of roller 0.-3.5M/minutes Weight:600kg |

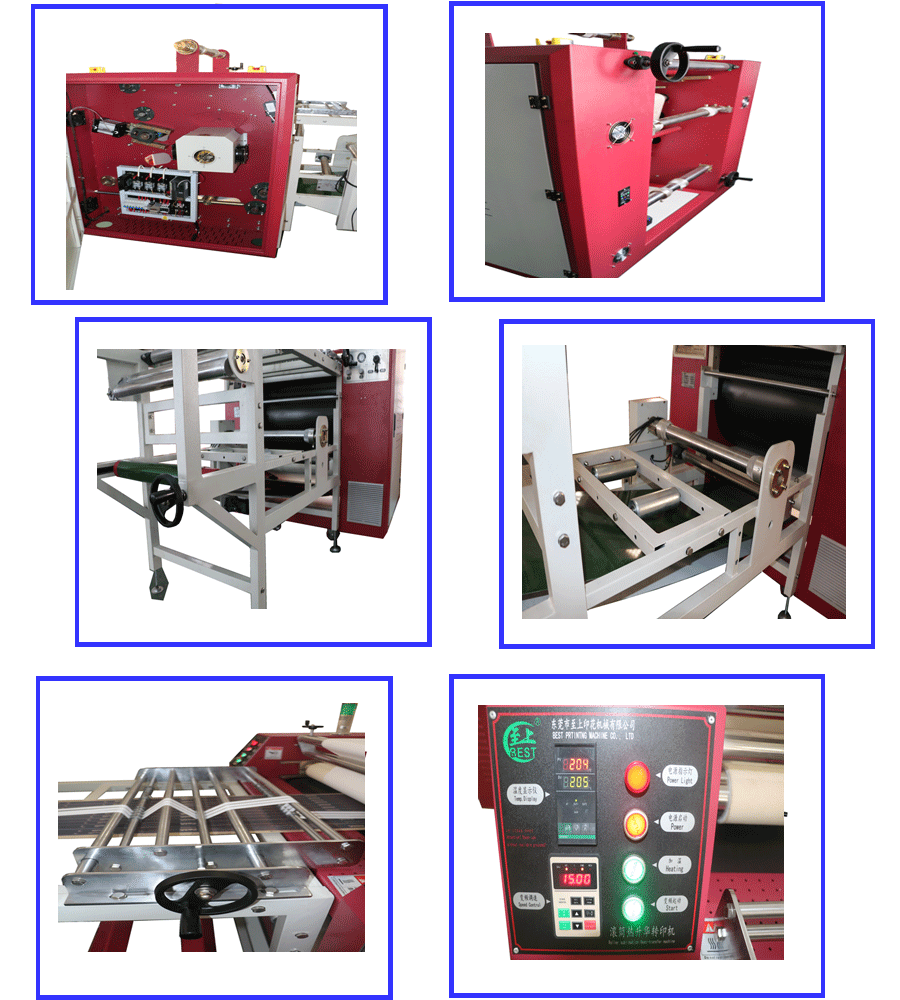

Details-Advantage
1. Selection of high quality carpet belt conveyors, which will help the passing of the pressure of the transfer process;
2, The use of advanced control system, imported components, automatic limit performance (accuracy, safety), long service life;
3.Microcomputer of the PID control temperature control system, high accuracy (0.5 ° C);
4 Time display all-digital, high accuracy;
5. Imported high quality heating plate material, the use of vacuum gas heating and oil heating two devices, even heating, and thermal conductivity, the oil thermal conductivity structure, transfer color uniformity.
6, One-piece quantities can be produced, large-diameter bearings, wearing parts of heating systems and easy maintenance;
7 Transmission glue stick with the Japanese brand of raw materials, long service life;
8. Configure the backup power supply. Are available upon request, instead of imitation imports of blankets from the structure, avoid blanket artificial corrective trouble drawbacks.
9 U.S. imports "DuPont" raw materials, high-capacity heat-conducting oil, temperature effect, continuous transfer without color;
10 Diameter of 377mm roller, the transfer speed inverter speed control, frequency conversion timing motor, carbon brush conductive heating, automatic release paper, cloth and the collection of paper, cloth.
11 Motivated type of fabric conveyor greatly expand the functions of the machine, not only suitable for the transfer of rolls of fabric, but also for more personalized pieces of the transfer process.
12 with the specialized conducting device for the accurate delivery of the different widths of ribbon.
13 installed at the same time the number of ribbon to carry out transfer, the production efficiency.
The difference between a ribbon transfer machine and a zipper transfer machine:
Mechanical structure
Ribbon transfer machine: Usually has an adjustable fixed buckle, which can position ribbons of different widths. It is also equipped with a cooling roller to accelerate the cooling of the transferred ribbon. The roller generally adopts a single-layer full oil structure.
Zipper transfer machine: The surface of the transfer roller is provided with a zipper tooth groove to ensure that the zipper and zipper teeth do not move during the transfer, shorten the alignment time, and ensure that the zipper bag and the tooth surface are consistent in color. In addition, the zipper transfer machine often includes an unwinding correction system, a heating and ironing transfer system, a winding system, etc.
Process
Ribbon transfer machine: The temperature is generally controlled at around 200°C, which varies depending on the material of the ribbon. The oil heating device is used, which has uniform heat generation and strong thermal conductivity, and can make the ribbon heated evenly and the transfer color uniform. The transfer speed is usually around 2.5 meters/minute, which will also vary depending on the machine model and ribbon material.
Zipper transfer machine: The temperature is usually between 180℃ - 200℃. It is necessary to fully sublimate the dye of the transfer paper and avoid damaging the zipper material due to excessive temperature. The zipper transfer machine has high requirements for tension control during the transfer process. It is necessary to ensure that the zipper maintains appropriate tension during the transfer process to avoid deformation, displacement and other problems.
Original
Ribbon transfer machine: Mainly used for polyester chemical fiber ribbons, headbands, horse racing belts, special belts, gift belts, etc. It can realize the transfer of various patterns, such as flowers, cartoons, text, etc., which can meet the personalized design needs of different ribbon uses.
Zipper transfer machine: It is used for various zippers, such as clothing zippers, outdoor products zippers, swimsuit zippers, etc. The patterns are mostly related to the application scenarios of the zipper. For example, some outdoor zippers may be printed with brand logos, functional logos, etc., and swimsuit zippers may be printed with patterns related to the ocean and swimming.
Efficiency
Ribbon transfer machine: Production efficiency is affected by factors such as ribbon width and pattern complexity. Generally speaking, the transfer speed of narrow ribbons with simple patterns is relatively fast, and multiple ribbons can be transferred at the same time, which is suitable for mass production.
Zipper transfer machine: The production efficiency depends on the length of the zipper, the complexity of the transfer pattern, and the performance of the machine. Since zipper transfer requires more precise alignment and tension control, its production speed may be slightly slower than that of the ribbon transfer machine.
